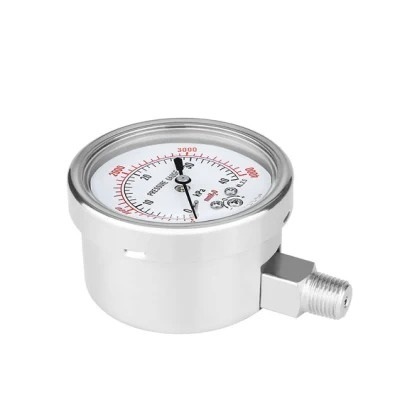

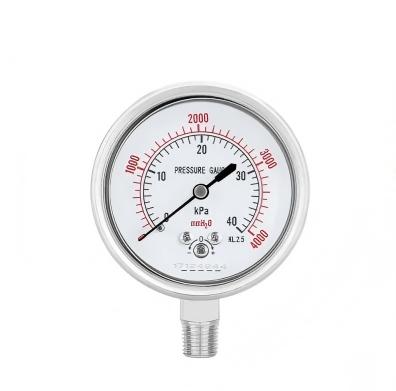

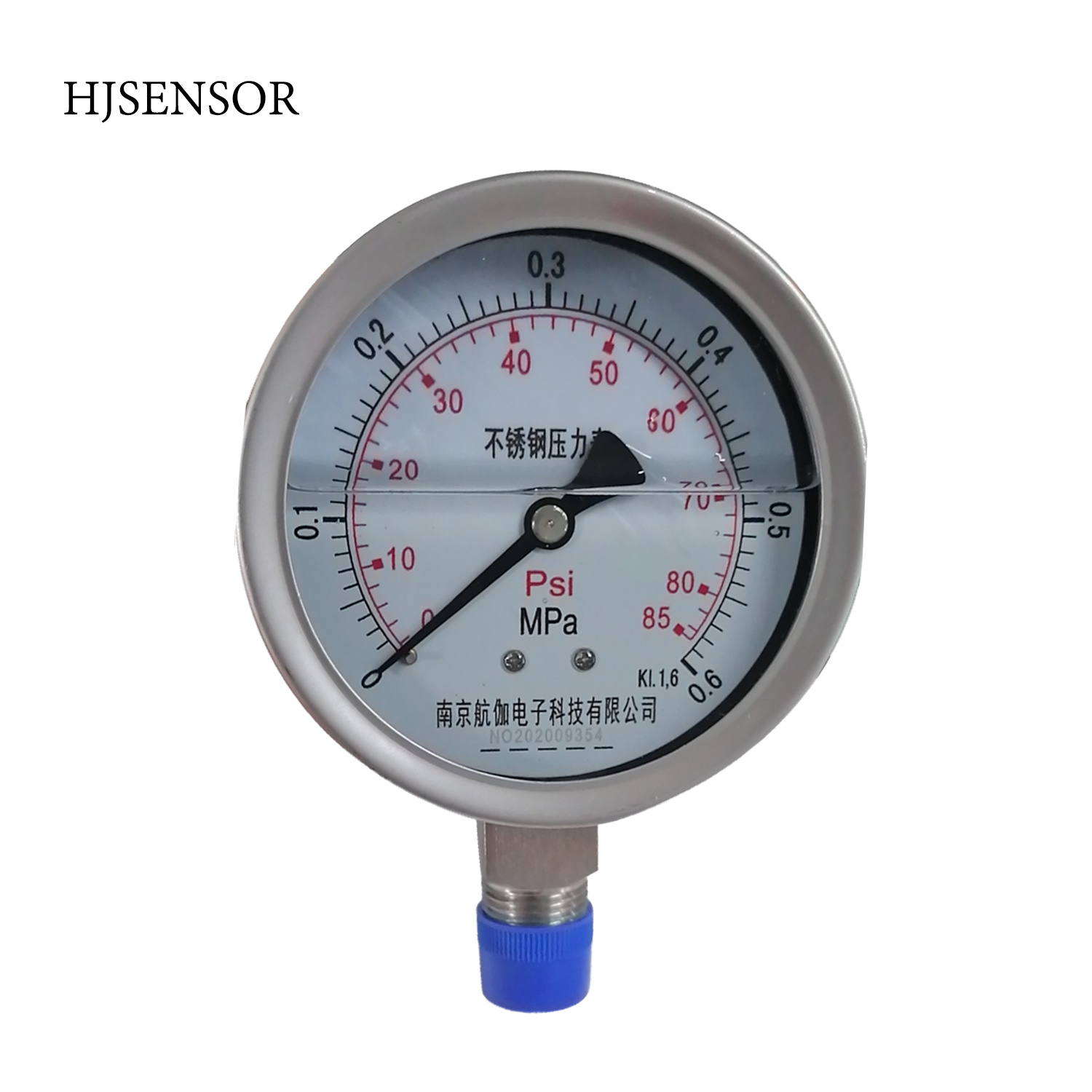

HPB 2'' Liquid Filled 1.6% Accuracy Stainless Steel Pressure Gauge

Dial Diamter: 2'', 2.5'', 3'', 4''

Accuracy：±1.6%（Std.）/±1.0%（Opt.）

Download:
HPB pressure gauge-datasheet.pdf

Quantity:
Availability:





Inquire Add to Basket

For corrosive or non corosive gas and liquid aggressive Media which are not highly viscous and would crystallize.
Particularly used in chemical, petrochemical and food Industry, biochemistry and any rush industries. Ideal for plumbing, heating, air conditioning, pumps, compressors and pneumatic equipment.

Product Description

Features

Technical Parameters

For corrosive or non corosive gas and liquid aggressive Media which are not highly viscous and would crystallize.
Particularly used in chemical, petrochemical and food Industry, biochemistry and any rush industries. Ideal for plumbing, heating, air conditioning, pumps, compressors and pneumatic equipment.

Features

Stainless steel pressure gauges are widely used in petroleum, chemical, metallurgy, engineering machinery and equipment.
Oil filled gauge is suitable for dynamic pressure and vibration occasions.

Technical Parameters

Size	1.5"(40mm), 2"(50mm), 2.5"(63mm), 3"(75mm), 4"(100mm)
Pressure range	0.1~100Mpa
Connector/Socket	M20*1.5, G1/2, other customized
Connection type	Axial, Radial
Movement	Brass
Dial Plate	Single,dual or three scales(Bar,Psi, Kg/cm2,Kpa,Mpa)
Pointer	Aluminum
Case	ss304
Ring	ss304/ crimpled ring
Liquid filled	Glycerin
Accuracy	±1.6%（standard），±1.0%（option）
