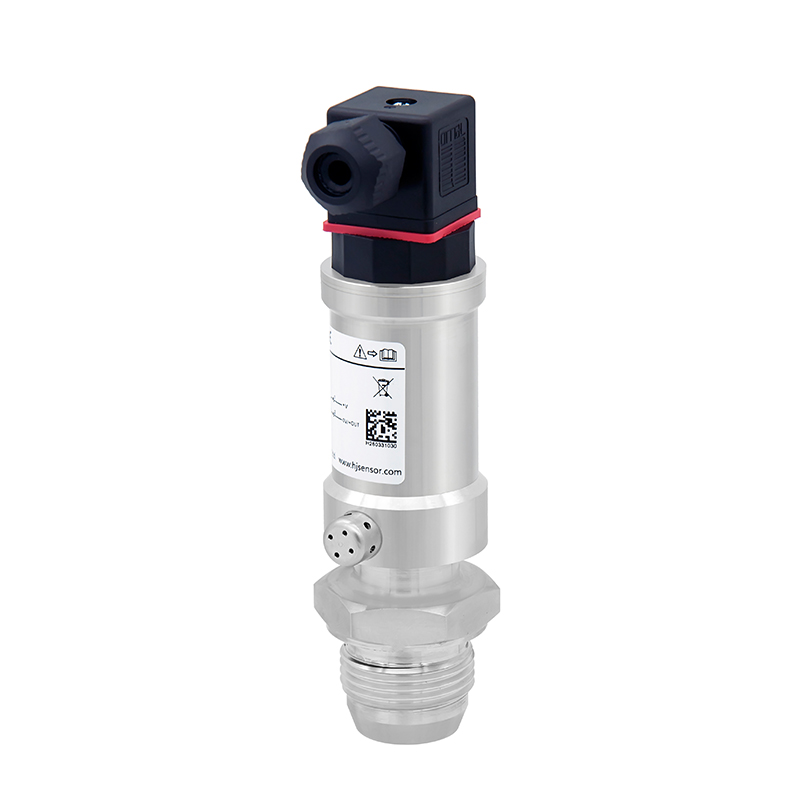

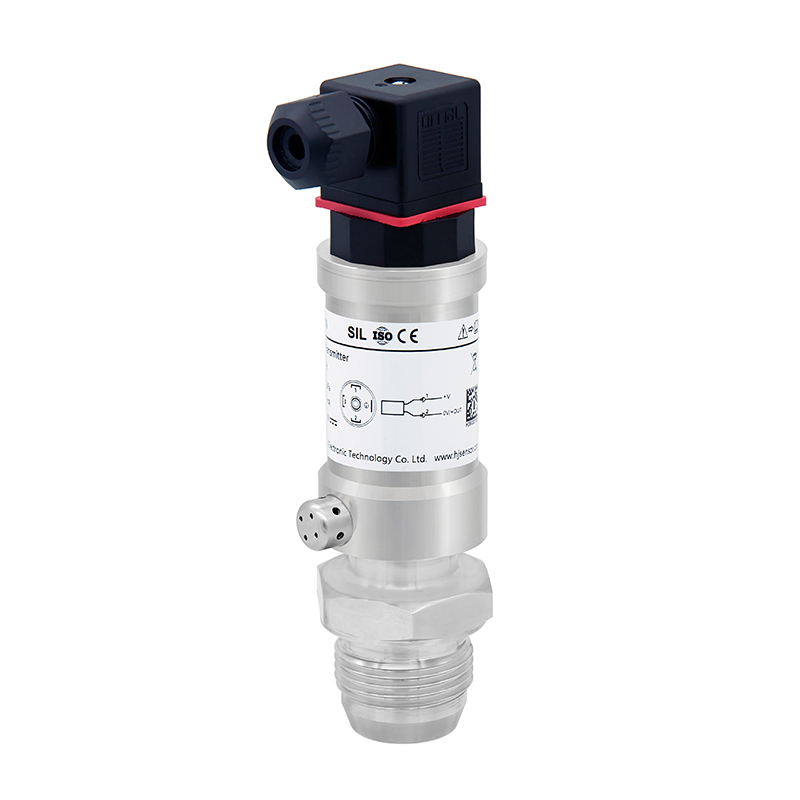

HPM718-H High Temperature Flush Membrane Ceramic Capacitor Pressure Transmitter

HPM718-H High Temperature Flush Membrane Ceramic Capacitor Pressure Transmitter

Accuracy:±0.25%FS (std.) 0.1%FS(opt.)

Measuring range: -100kPa…0~2.5kPa…100bar

Download:
HPM718-H High Temperature Flush Membrane Ceramic Capacitor Pressure Transmitter-Datasheet.pdf

Quantity:
Availability:





Inquire Add to Basket

The HPM718-H high-temperature flush membrane pressure transmitter features an advanced ceramic capacitive pressure sensor for sensitivity, threaded installation, and a flush membrane design. Ceramics offer high elasticity, wear, and corrosion resistance, along with fast heat dissipation, ensuring excellent thermal stability in a wide temperature range. With a minimum measuring range of 2.5kPa and exceptional anti-overload capacity, it is ideal for micro-pressure measurements. This transmitter is suitable for measuring gauge or absolute pressure of gases, vapors, or liquids in industrial process control, printing and dyeing, food, pharmaceutical, and environmental protection industries.

Product Description

Features

Technical Parameters

The HPM718-H high-temperature flush membrane pressure transmitter features an advanced ceramic capacitive pressure sensor for sensitivity, threaded installation, and a flush membrane design. Ceramics offer high elasticity, wear, and corrosion resistance, along with fast heat dissipation, ensuring excellent thermal stability in a wide temperature range. With a minimum measuring range of 2.5kPa and exceptional anti-overload capacity, it is ideal for micro-pressure measurements. This transmitter is suitable for measuring gauge or absolute pressure of gases, vapors, or liquids in industrial process control, printing and dyeing, food, pharmaceutical, and environmental protection industries.

Features

· Stainless steel shell for durability

· Ceramic capacitor core offers corrosion and wear resistance

· Capable of micro-pressure measurement with high overload capacity

· Features a flush membrane structure for easy cleaning and prevention of clogging and scaling

· Suitable for medium temperatures up to 140ºC

· Designed for compatibility with CIP and SIP processes in the healthcare industry

· Supports a range of output signals and electrical interfaces

Technical Parameters

Pressure Range
Measuring Pressure	-100kPa…0~2.5kPa…100bar
Overload	1.5x of full scale
Measuring Medium
Type	Various liquids and gases compatible with contact materials
Output/Power Supply
Standard	4～20mADC,0.5～4.5VDC,etc.
