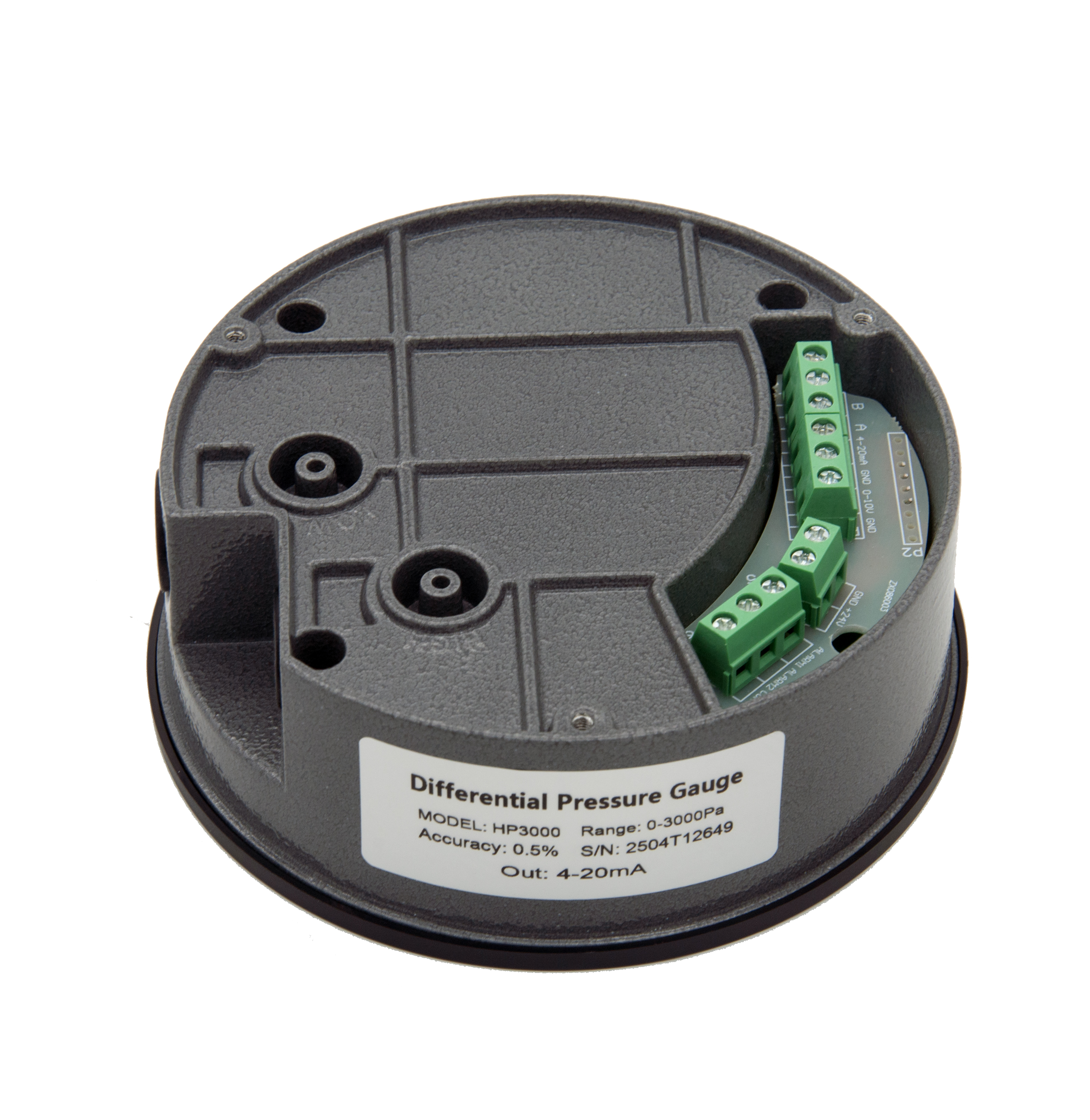

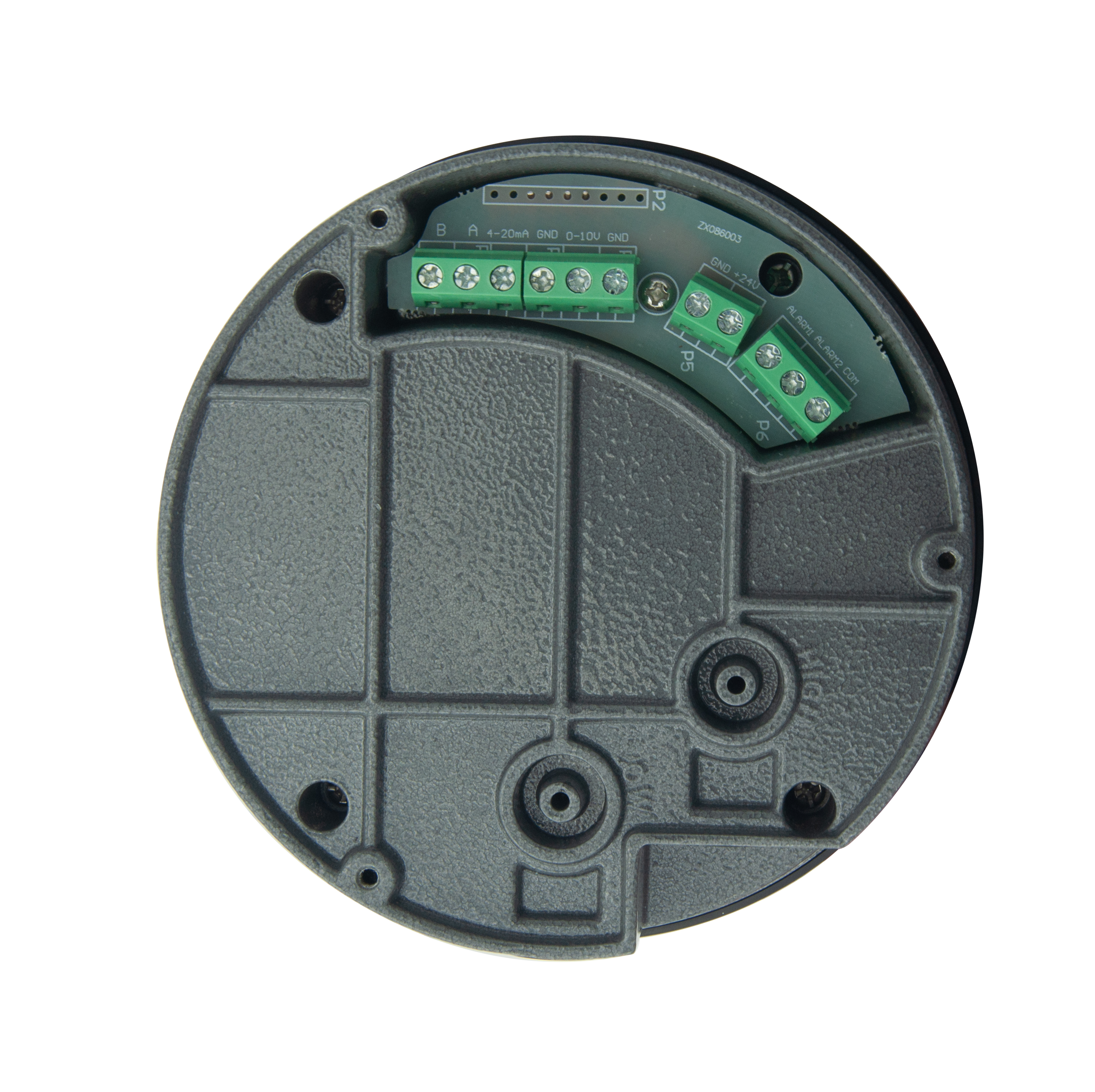

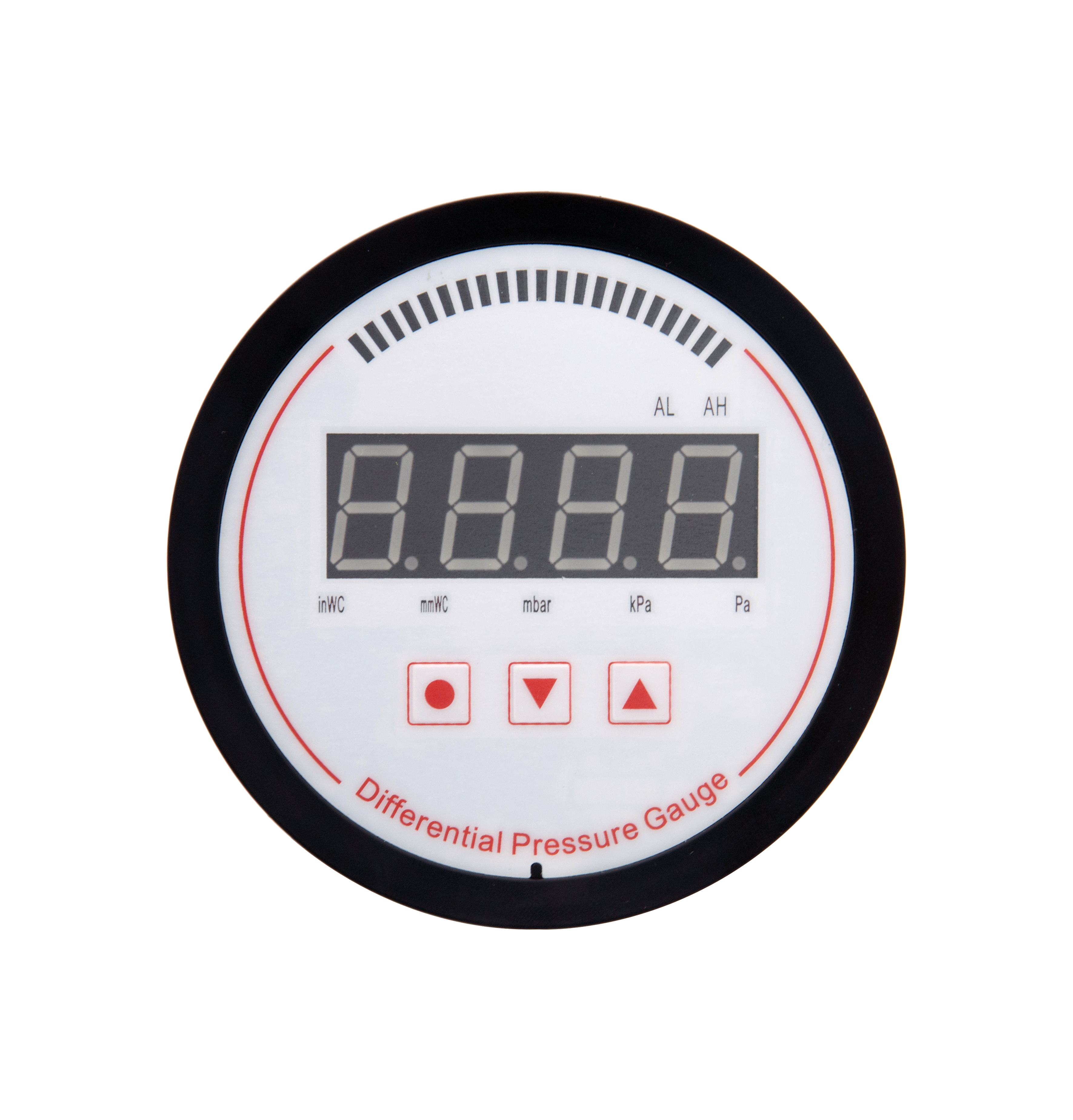

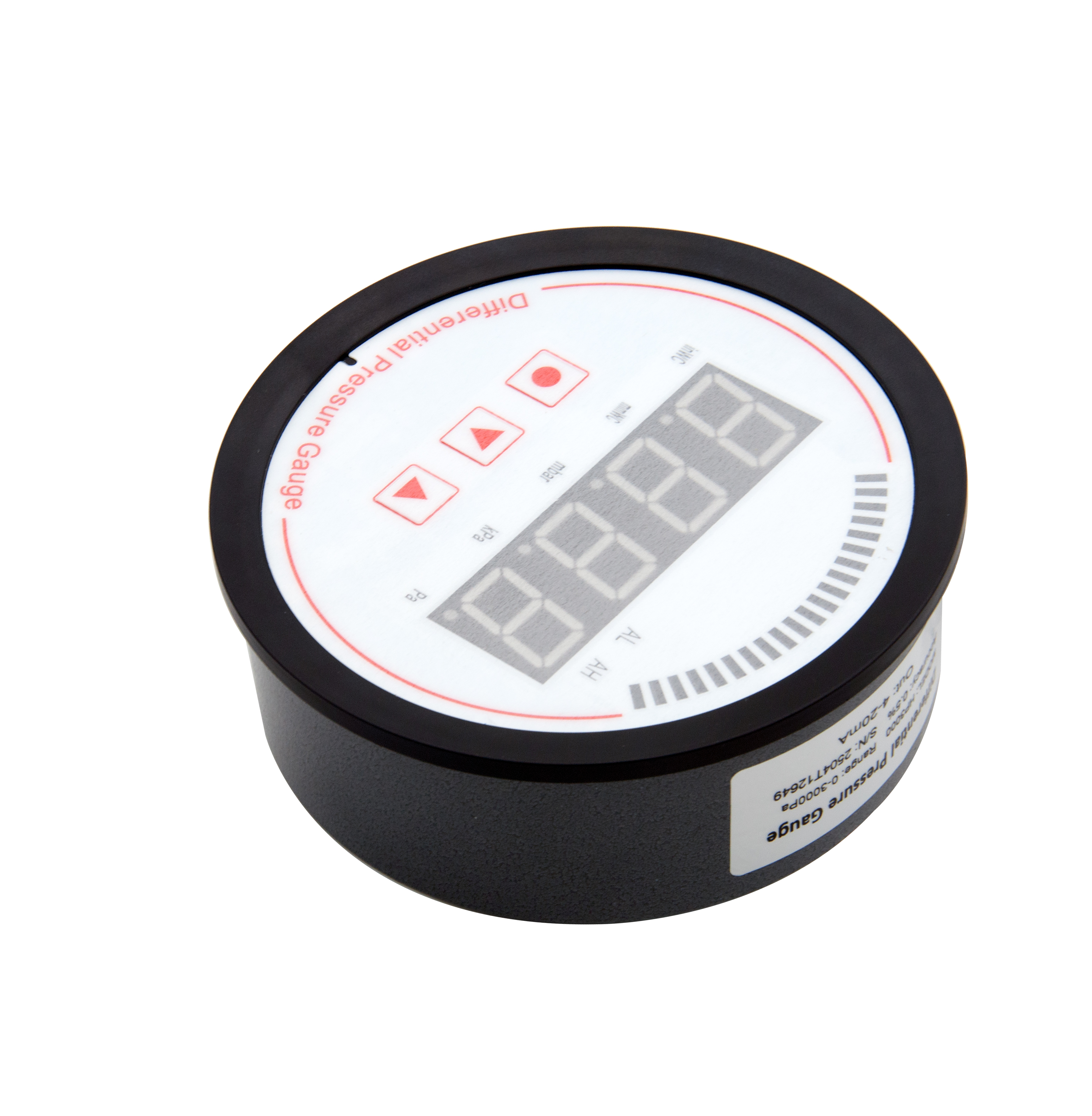

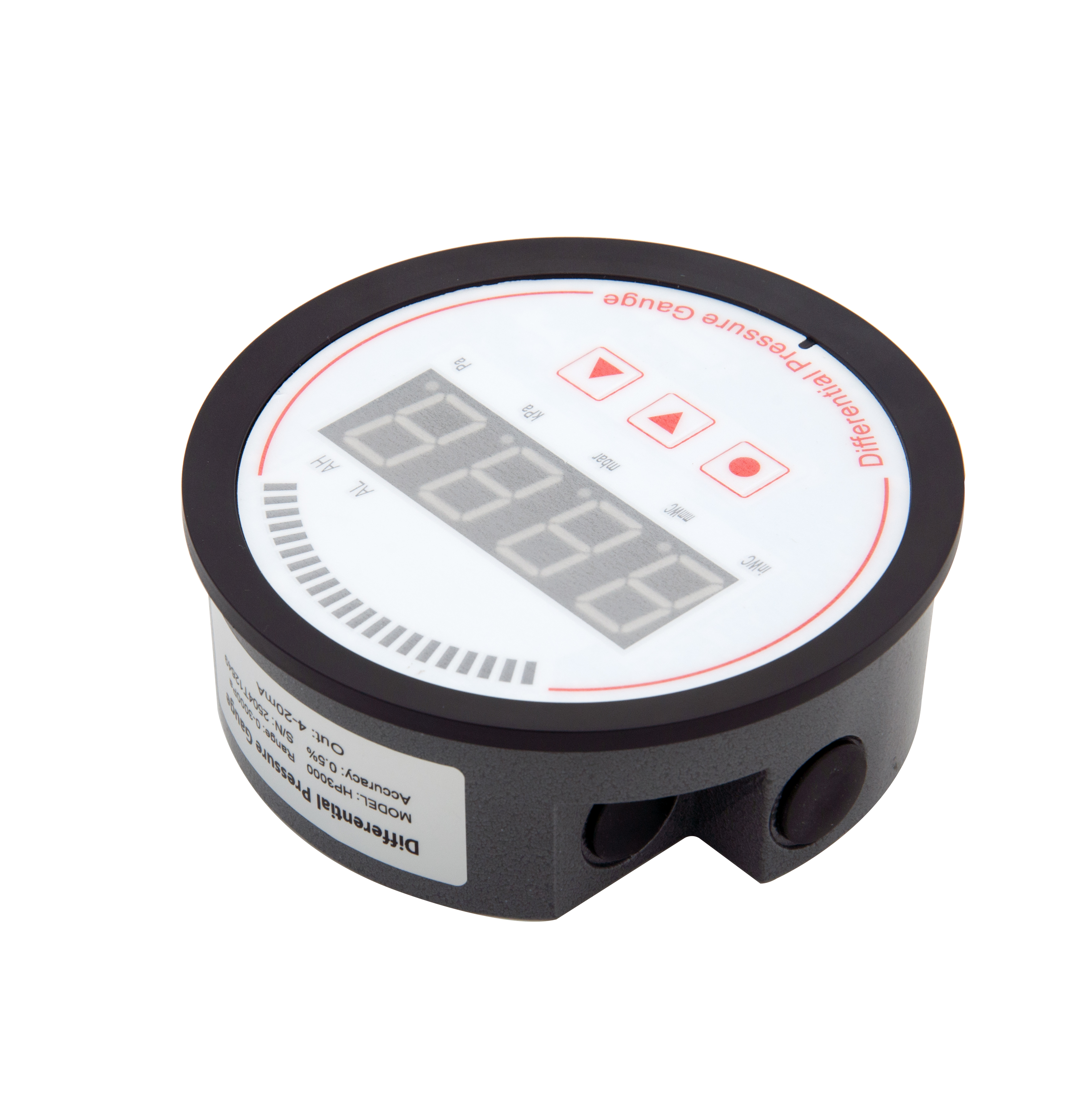

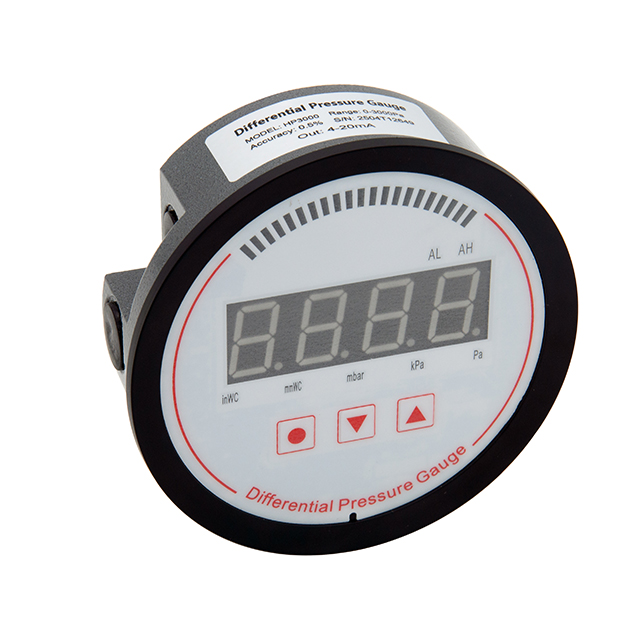

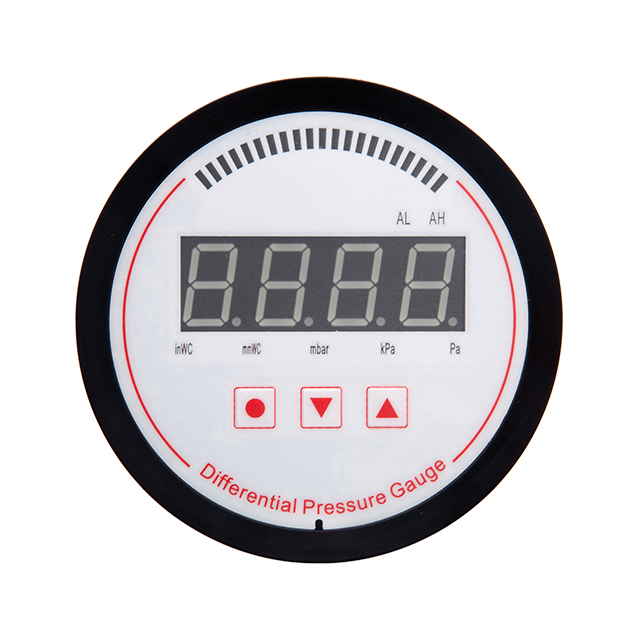

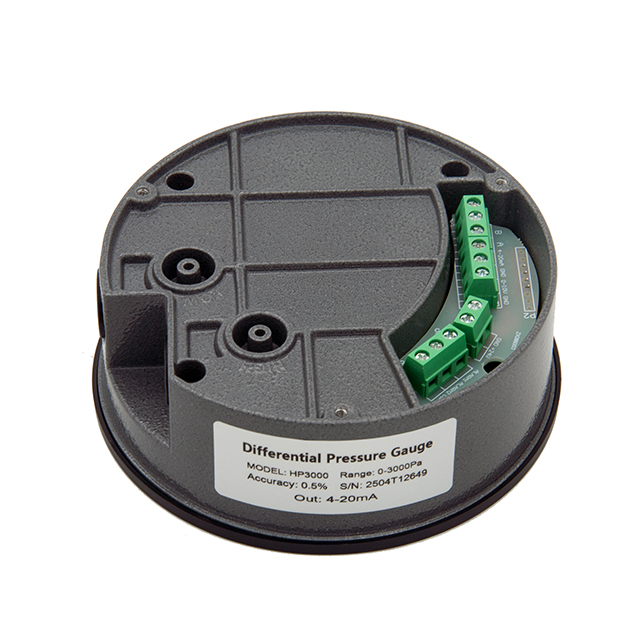

HP3000 Multi-functional Digital Display Differential Pressure Transmitter 4-20mA Alarm Output for Clean Dry Air

Technical Parameters

1. Measuring medium: air and non-flammable, non-corrosive gases.

2. Medium temperature: 0-60°C

3. Housing: ABS engineering plastic

4. Operating environment: -20°C ~ +85°C

5. Differential pressure range: a variety of ranges, overload 3xFS, damage pressure 10xFS

6. communication output: RS485.

7. Accuracy: ±0.5%FS

8. Long-term stability: ±0.1%FS / year

9. Temperature drift coefficient: <0.03%FS/°C

10. power supply: 24VDC±3VDC;
