HPE80 Battery Power 5-bits Electronic Digital Pressure Gauge

Datasheet Download:
HPE80 Digital Pressure Gauge - datasheet.pdf

Quantity:
Availability:





Inquire Add to Basket

Overview

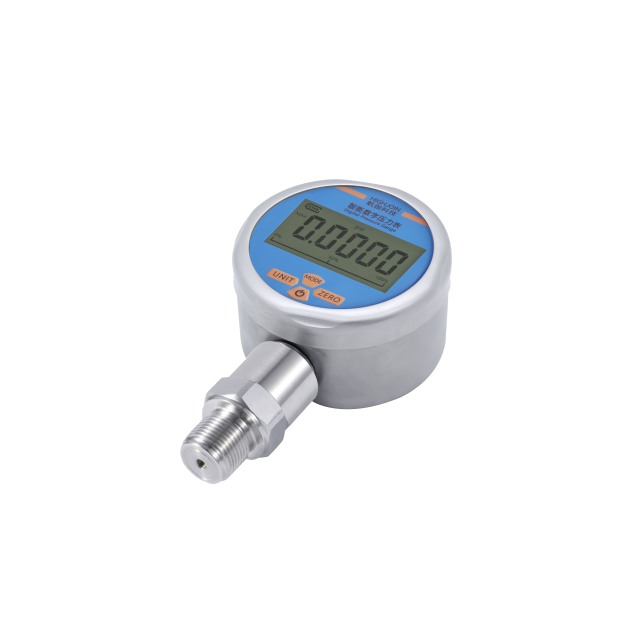

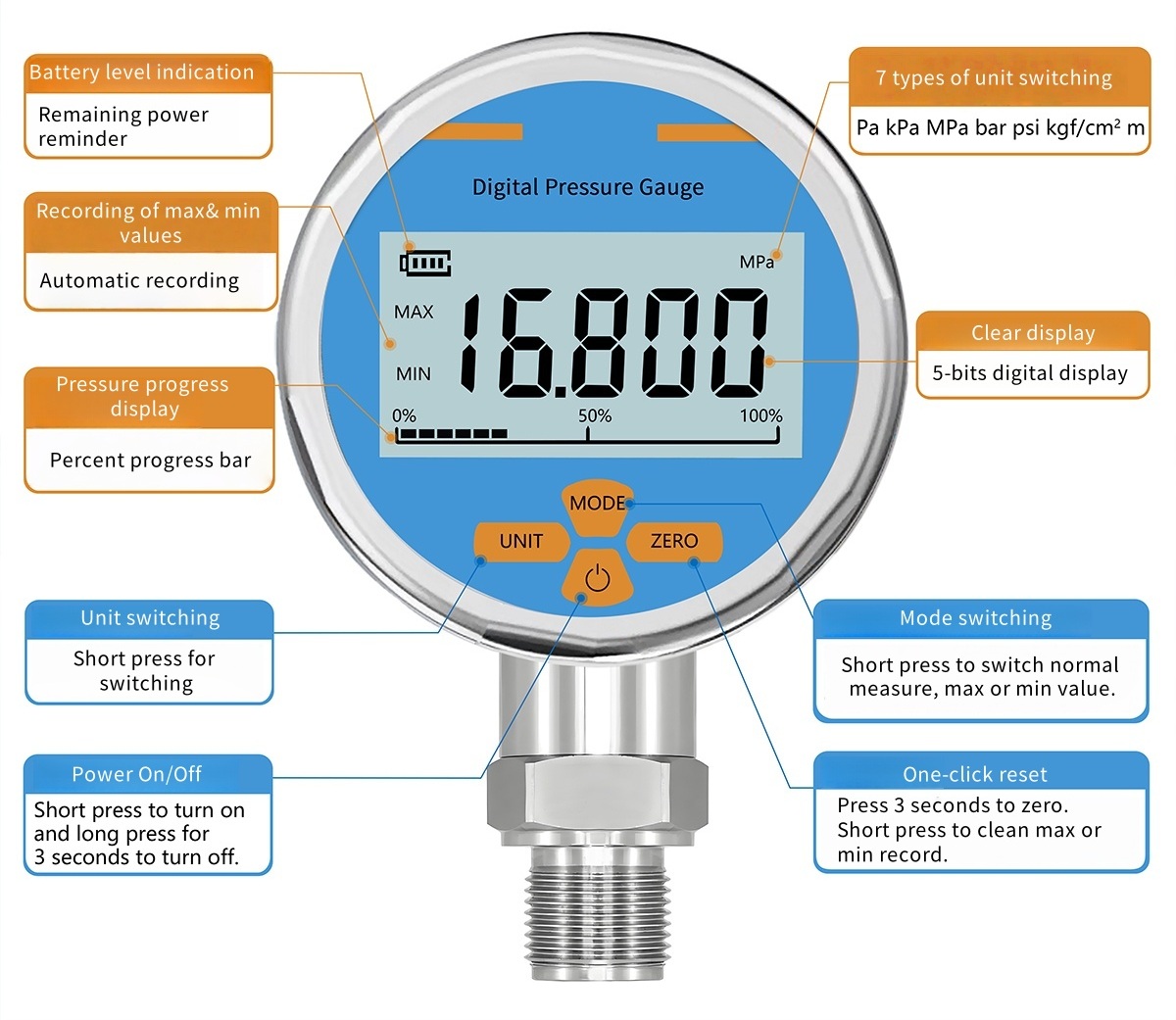

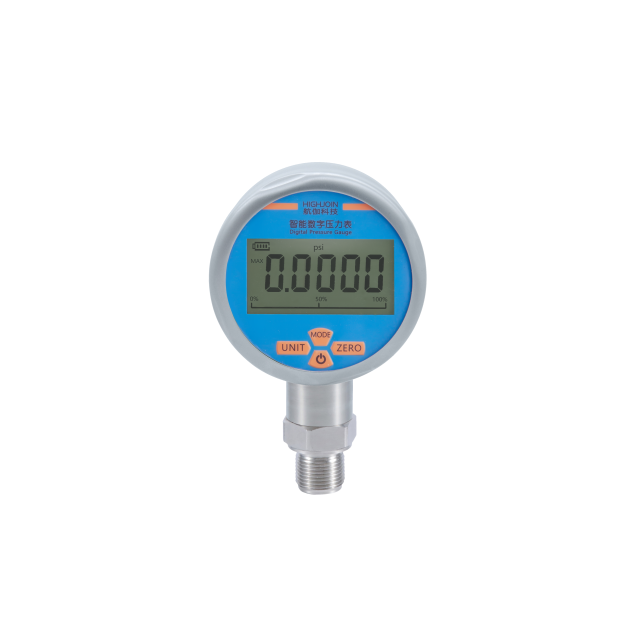

HPE80 electronic digital pressure gauge uses high-precision and high-stability pressure core as sensitive element and is assembled and produced through strict process flow. The product is battery-powered, can accurately display pressure in real time, and has the characteristics of high precision and good long-term stability. The product is equipped with a large LCD screen, 5-digit display, and has functions such as unit switching, one-key zeroing, peak and valley value recording, backlight, power on and off, and adjustment of filter constants.

This electronic digital pressure gauge is widely used in hydropower, tap water, petroleum, chemical industry, machinery, hydraulic and other industries to measure and display the pressure of gas, water, oil and other media that are non-corrosive to stainless steel on site.

Features

5-digit digital display, large LCD screen
Comprehensive functions, easy operation
0.25-level typical accuracy, optional 0.1-level accuracy
Wide measuring range, can measure gauge pressure, absolute pressure and sealed gauge pressure
Universal for oil, water and gas
Multiple pressure interfaces available
Wide temperature range compensation, small temperature drift
Good long-term stability

Pressure Range(Gauge pressure)	-100kPa…0~7kPa…250MPa
Pressure Range(Absolute pressure)	0~50kPa…10MPa
Overload	1.5x of full scale
Measuring Medium	various liquid, gas compatible with 304 or 316L stainless steel
LCD Display Digits	5-bits
LCD Display Range	-19999~99999
LCD Display Content	Simulation progress bar display, pressure unit display, remaining power display, peak and low value record display

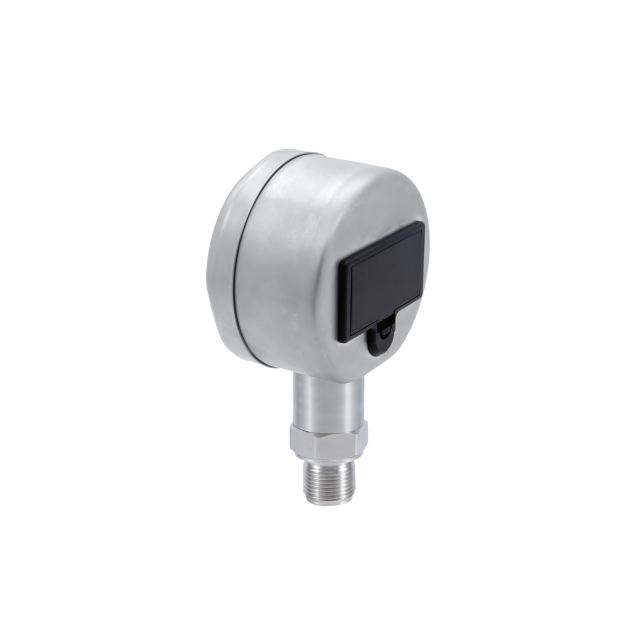

Power Supply	3V (2*AAA battery)
Battery Life	≥6 months (depending on the specific working conditions)
Power Consumption in Shutdown State	<10uA
Accuracy	±0.25%FS, @25℃ (Typical) ±0.1%FS, @25℃ (Improved)
Long-term Stability	±0.3%FS/year (0.25% accuracy) ±0.2%FS/year (0.1% accuracy)
Backlight Time	15 seconds, 30 seconds, 60 seconds, always on demand. 30 seconds by default.
Auto power off time	300 seconds, 600 seconds, 900 seconds, 1800 seconds, 3600 seconds, always on. 3600 seconds by default.
Sampling rate	0.33 seconds/time, 1 second/time, 2 seconds/time, 3 seconds/time, 4 seconds/time, 5 seconds/time. 1 second/time by default
Compensate temperature range (0.25%FS accuracy)	0~50℃ (Range≤35kPa) -10~70℃ (35kPa<Range≤60MPa) 0~70℃ (60MPa<Range≤250MPa)
Temperature Coefficient of Zero (0.25%FS accuracy)	±1.5%FS, Reference 25℃, Within temperature compensation range (Range≤35kPa ,temperature drift ±1.0%FS, 0~50℃)
Temperature Coefficient of Full Scale (0.25%FS accuracy)	±1.5%FS, Reference 25℃, Within temperature compensation range (Range≤35kPa ,temperature drift ±0.8%FS, 0~50℃)
Compensate Temperature Range (0.1%FS accuracy)	0~70℃ (35kPa≤Range≤70kPa, 3.5MPa<Range≤70MPa) -20~85℃ (70kPa<Range≤3.5MPa)
Temperature Coefficient of Zero (0.1%FS accuracy)	±0.75%FS, Reference 25℃, Within temperature compensation range
Temperature Coefficient of Full Scale (0.1%FS accuracy)	±0.75%FS, Reference 25℃, Within temperature compensation range
Ambient Temperature	-20~50℃
Medium Temperature	-30~80℃ -40~140℃ (with 5 pcs cooling fins) -40~200℃ (with 10 pcs cooling fins)
Storage Temperature	-20~50℃
Protection Grade	IP54
Vibration	10g(20~2000Hz)
Impact resistance	100g(11ms)

Description

Technical Parameters

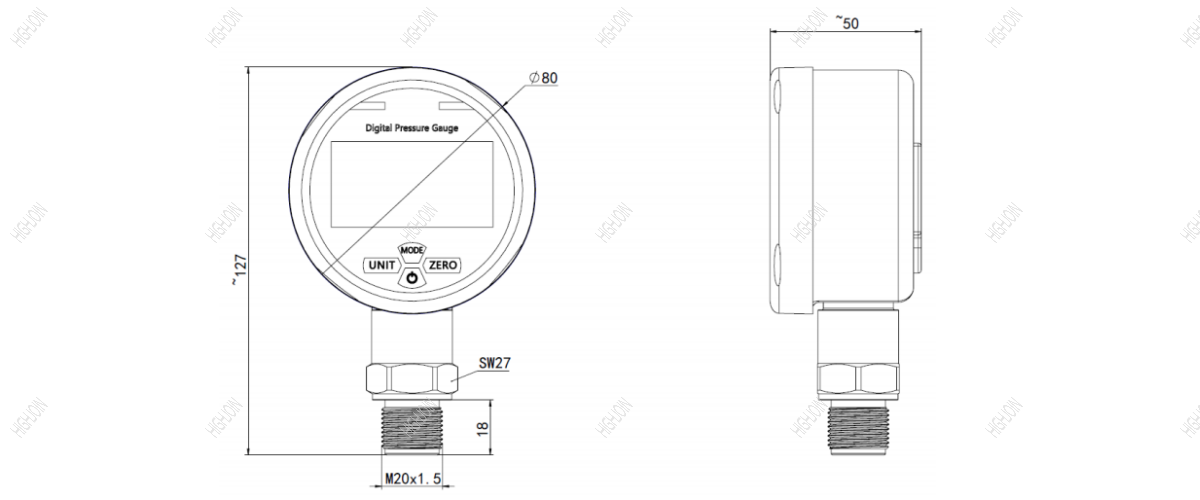

Dimensions
