How Do I Select the Right Flush Mount Pressure Transmitter?

Flush mount pressure transmitters are crucial components in modern industrial automation, especially in hygienic and sanitary applications such as food processing, pharmaceuticals, and biotechnology. Choosing the right model involves a deep understanding of the application's mechanical, electrical, and environmental demands. This guide provides a comprehensive breakdown of how to select the right flush mount pressure transmitter, while exploring related technologies like 4-20mA flush mount pressure transmitter, flat film sanitary field pressure transmitter, and tri-clamp pressure transmitter.

Understanding What a Flush Mount Pressure Transmitter Is

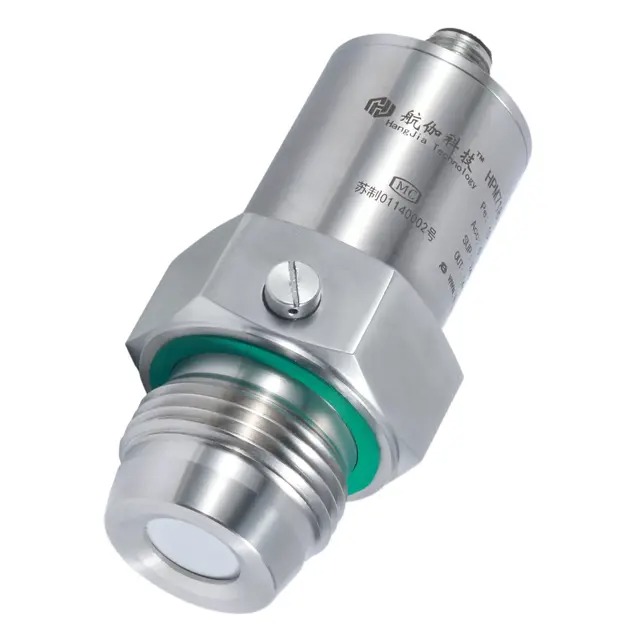

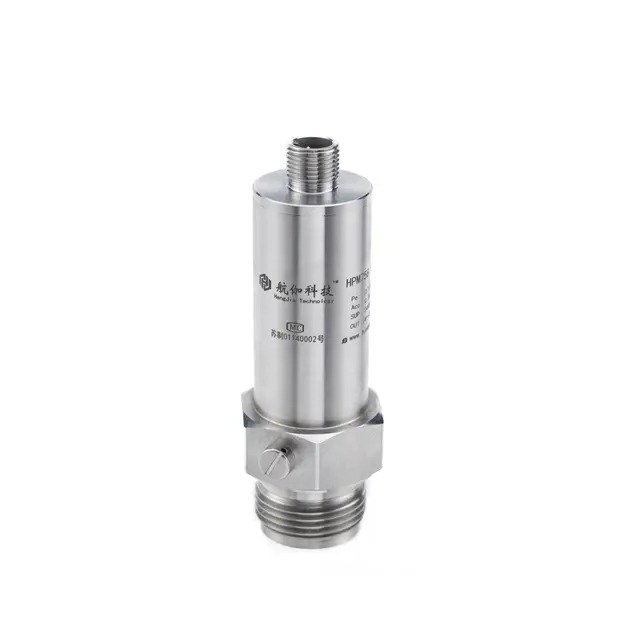

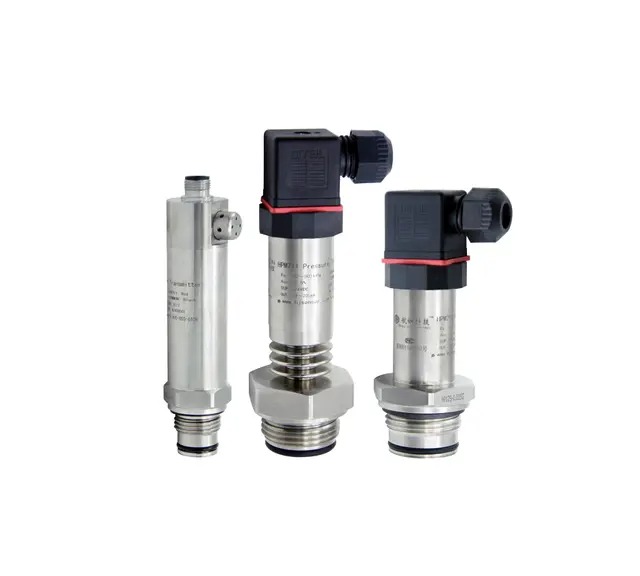

A flush mount pressure transmitter is a type of pressure sensor designed with a diaphragm that is level or nearly level with the process connection. Unlike traditional sensors, which have recessed sensing surfaces, flush-mounted designs prevent the accumulation of residues, making them ideal for viscous or particle-laden media.

These transmitters are especially popular in hygienic processes where easy cleaning is essential. This includes food, beverage, dairy, and pharmaceutical industries. The smooth, cleanable design reduces the risk of contamination and complies with CIP (Clean-In-Place) and SIP (Sterilize-In-Place) procedures.

Key Selection Criteria for a Flush Mount Pressure Transmitter

1. Media Compatibility

Always begin your selection by understanding the medium being measured. If your process fluid is corrosive, abrasive, or prone to crystallization, your transmitter must be constructed from chemically resistant materials such as stainless steel or Hastelloy. For sanitary applications, electropolished 316L stainless steel is the preferred choice.

Furthermore, a flat film sanitary field pressure transmitter is ideal for sticky or viscous media, such as pastes, creams, or food slurries, because the flush diaphragm prevents material buildup.

2. Process Connection Type

For sanitary applications, tri-clamp pressure transmitters are commonly used. The tri-clamp connection is designed for quick installation and removal, reducing downtime and supporting rigorous cleaning protocols.

When selecting a tri-clamp unit, ensure the size matches your piping system (e.g., 1.5", 2", or 3") and that the gasket material is compatible with your process temperature and chemical exposure.

Electrical Output Requirements

Choosing Between 4-20mA and 0-10V Outputs

The most common output signals for industrial pressure transmitters are 4-20mA and 0-10V. Choosing between them depends on your control system and wiring environment:

A 4-20mA flush mount pressure transmitter is typically preferred for harsh or long-distance environments due to its immunity to electrical interference.

For digital precision, a 4-20mA 0-10v digital flush diaphragm pressure sensor can offer both analog and digital output signals, providing flexibility for both legacy and modern control systems.

Pressure Range and Accuracy Requirements

Defining the Operating Pressure Range

Select a pressure transmitter with a range slightly higher than your maximum operating pressure. If your process typically runs at 6 bar but could spike to 10 bar, choose a transmitter rated for 12 bar to prevent sensor fatigue and failure.

Accuracy is also critical, especially in batching or dosing systems. A flush diaphragm hygienic pressure transmitter typically offers accuracy levels of ±0.1% to ±0.5% of full-scale output, which is sufficient for most sanitary applications.

Consider response time as well. Faster response times are critical for dynamic processes such as filling lines or sterilization cycles.

Environmental Considerations

IP Rating, Temperature Range, and Cleaning Requirements

Flush mount transmitters used in food or pharmaceutical environments must withstand aggressive washdowns. Look for an IP67 or IP69K rated housing to ensure water and chemical resistance.

Check that the sensor can tolerate process and ambient temperatures, especially during CIP/SIP cleaning where temperatures can exceed 120°C.

Materials and certifications are also essential. In sanitary environments, sensors should comply with 3-A Sanitary Standards, FDA, or EHEDG requirements, ensuring no contamination risks.

Additional Considerations and FAQs

Frequently Asked Questions About Flush Mount Pressure Transmitters

Q1: What is the main advantage of a flush diaphragm over a traditional pressure sensor?
A: Flush diaphragms prevent material buildup and are easier to clean, making them ideal for sanitary and viscous applications.

Q2: Can I use a flush mount transmitter in a non-sanitary environment?
A: Yes, while they are designed for hygiene-sensitive applications, their easy-clean features are also beneficial in general industrial environments with sticky or particulate media.

Q3: Is it better to go with a digital or analog signal output?
A: Digital outputs offer better precision and diagnostics. However, analog signals like 4-20mA are more compatible with legacy systems and have proven reliability.

Q4: Are tri-clamp connections leak-proof?
A: When installed correctly with appropriate gaskets and torque, tri-clamp connections are highly reliable and leak-resistant, even under pressure.

Conclusion

Choosing the right flush mount pressure transmitter requires balancing multiple factors—media type, sanitary standards, signal compatibility, mechanical connections, and environmental conditions. In most sanitary and industrial applications, transmitters like the flat film sanitary field pressure transmitter and the flush diaphragm hygienic pressure transmitter provide reliable, durable, and accurate performance.

Investing in a well-matched 4-20mA flush mount pressure transmitter or 4-20mA 0-10v digital flush diaphragm pressure sensor ensures your operation remains compliant, efficient, and free of maintenance headaches. Taking the time to assess your specific requirements guarantees long-term success and reliability.
