What Is The Main Advantage of A Flush Diaphragm Over A Traditional Pressure Sensor?
Views: 216 Author: Site Editor Publish Time: 2025-06-06 Origin: Site
The flush mount pressure transmitter is a critical advancement in pressure sensing technology, specifically designed for applications that demand both hygienic performance and high-precision measurements. Unlike traditional pressure sensors with recessed diaphragms that can accumulate process media residues, the flush mount design features a flat diaphragm that aligns seamlessly with the wall of the vessel or pipe. This makes it particularly valuable in industries such as food and beverage, dairy, pharmaceuticals, and biotechnology, where sanitary conditions are non-negotiable.
A 4-20mA flush mount pressure transmitter is commonly preferred due to its analog output signal, which offers excellent noise immunity, making it ideal for long-distance signal transmission. In complex industrial settings, signal stability and accuracy are paramount. This design ensures minimal signal distortion even in high-vibration or high-humidity environments.
Further enhancing its applicability is the tri-clamp connection, a hygienic mounting method that allows for easy cleaning and disassembly without contamination risk. Devices like the flat film sanitary field pressure transmitter are tailor-made for CIP (clean-in-place) and SIP (sterilize-in-place) procedures.
These attributes make the flush mount sensor far superior to traditional recessed diaphragm designs, especially when it comes to ensuring cleanable, sanitary interfaces and preventing cross-contamination in sensitive process environments.
The Core Benefits of Flush Diaphragm Technology
Eliminating Dead Zones
One of the biggest drawbacks of conventional pressure sensors is the presence of dead zones—small crevices around the diaphragm where media can become trapped. Over time, this can lead to contamination, inaccurate readings, and even sensor failure. In contrast, the flush diaphragm sits level with the process interface, eliminating any cavities or gaps. This design allows for more accurate readings, especially with viscous or crystallizing media.
Enhanced Cleanability and Hygiene
In sectors where sterility and cleanliness are crucial, the flush diaphragm's smooth surface is easy to clean without disassembling the entire unit. The flush diaphragm hygienic pressure transmitter, for example, meets EHEDG and FDA compliance standards, ensuring that the unit can withstand frequent sterilization cycles without degradation.
Longer Service Life and Reduced Maintenance
Because there are no corners or crevices to collect particles or chemicals, the maintenance cycle of a flush mount transmitter is significantly extended. This not only reduces the total cost of ownership (TCO) but also minimizes downtime. The 4-20mA 0-10V digital flush diaphragm pressure sensor is an excellent example of combining digital and analog versatility with a robust, easy-to-maintain design.
Industrial Applications and Integration Flexibility
Flush mount pressure transmitters are used across a wide range of industries. Here's a breakdown of typical applications:
| Industry | Application Area | Why Flush Mount Works Best |
|---|---|---|
| Food & Beverage | Milk, Yogurt, Juices | Easy to sterilize, prevents bacterial growth |
| Pharmaceuticals | Vaccine & Liquid Drug Production | Complies with sanitary regulations |
| Chemicals | Slurries, Corrosive Liquids | Prevents clogging and corrosion |
| Biotechnology | Fermentation Vessels | Offers sterile interface and high accuracy |

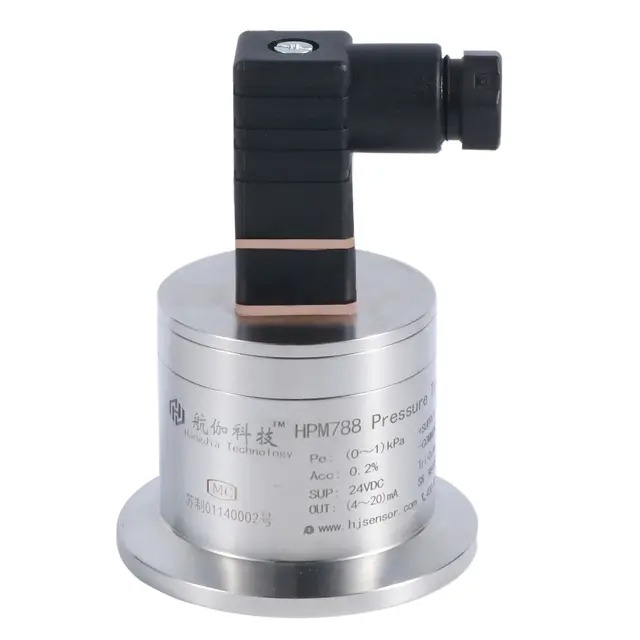

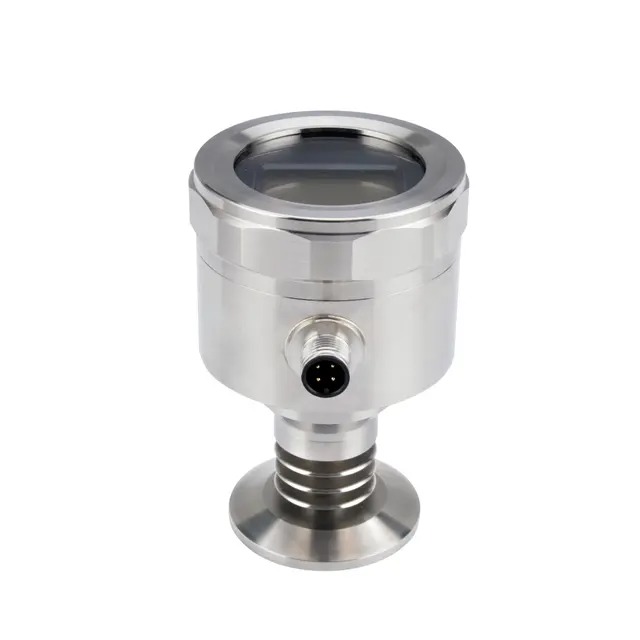

The tri-clamp pressure transmitter is particularly valued in the food industry for its quick-connect sanitary fitting, which makes it easy to remove and replace during washdown procedures. Meanwhile, in pharmaceutical applications, a flat film sanitary field pressure transmitter provides the accurate, drift-free measurements needed for regulatory compliance and batch consistency.
Flush vs. Traditional Diaphragm Pressure Sensors: A Comparison
To truly understand the superiority of flush diaphragm technology, it’s helpful to compare it side-by-side with traditional recessed diaphragm sensors:
| Feature | Flush Diaphragm Sensor | Traditional Sensor |
|---|---|---|
| Surface Alignment | Flush with vessel wall | Recessed in housing |
| Cleanability | Easy, CIP/SIP compatible | Difficult, needs manual cleaning |
| Risk of Contamination | Minimal | High (due to dead space) |
| Media Compatibility | Excellent for viscous, sticky, or corrosive media | Poor for non-Newtonian fluids |
| Maintenance Frequency | Low | High |
| Response Time | Fast | Delayed due to media build-up |
From the above table, it’s clear that flush mount designs offer superior process integration, especially in hygienic and challenging media conditions.
Signal Output Versatility: 4-20mA and 0-10V Explained
One of the unique advantages of modern flush diaphragm sensors is their signal output flexibility. The 4-20mA output remains an industry standard for analog signal transmission, prized for its noise resistance and reliability over long distances. However, 0-10V outputs offer high resolution and fast response times, which are perfect for short-range, high-precision applications.
The 4-20mA 0-10V digital flush diaphragm pressure sensor combines the best of both worlds, supporting PLC integration, SCADA systems, and data acquisition units with ease. Digital variants also enable zero and span adjustments, data logging, and real-time error diagnostics, further enhancing operational efficiency.
Frequently Asked Questions (FAQ)
Why choose a flush diaphragm sensor over a traditional one?
Flush diaphragm sensors eliminate the risk of contamination and are easier to clean. They’re ideal for viscous, corrosive, or crystallizing media and environments that require hygienic conditions.
Are flush diaphragm sensors more expensive?
Initial costs might be slightly higher due to precision manufacturing and compliance certifications, but they offer long-term savings through reduced maintenance and downtime.
Can flush diaphragm sensors be calibrated easily?
Yes. Most modern flush mount pressure transmitters come with automatic zeroing, digital adjustment, and remote calibration options, making setup and maintenance hassle-free.
What materials are used in flush diaphragm construction?
Typically, materials such as 316L stainless steel, Hastelloy, or ceramic film are used for superior resistance to corrosion, wear, and temperature fluctuations.
Conclusion
The main advantage of a flush diaphragm over a traditional pressure sensor is clear—it offers a cleaner, more accurate, and reliable solution for measuring pressure in hygienically sensitive or difficult media environments. With options like the 4-20mA flush mount pressure transmitter, flat film sanitary field pressure transmitter, and tri-clamp pressure transmitter, industries now have robust, precise, and contamination-resistant options.
Incorporating these advanced sensors means better compliance, improved operational efficiency, and reduced downtime. In the era of smart manufacturing and high sanitation standards, the flush diaphragm sensor is no longer a luxury—it's a necessity.
