How Does an Ultrasonic Liquid Level Transmitter Work?
Views: 194 Author: Site Editor Publish Time: 2025-05-29 Origin: Site
In industrial automation and process control, accurate measurement of liquid levels is vital for safety, efficiency, and reliability. One of the most effective tools for this task is the ultrasonic liquid level transmitter. With its non-contact measuring capabilities and robust performance in harsh environments, it has become a preferred solution across multiple sectors. But how does an ultrasonic liquid level transmitter work? In this detailed article, we will break down the working principle, explore its internal mechanics, and address common questions in a comprehensive FAQ.
Understanding the Ultrasonic Principle Behind the Transmitter
An ultrasonic liquid level transmitter operates using the principle of sound wave reflection. It transmits high-frequency ultrasonic pulses from a sensor (also known as a transducer) toward the surface of the liquid. These waves travel through the air and bounce back once they hit the liquid surface. By measuring the time it takes for the echo to return, the device calculates the distance from the sensor to the liquid surface, thereby determining the liquid level.
This time-of-flight measurement relies on the known speed of sound in air, which is approximately 343 meters per second at room temperature. By applying the formula:
Distance = (Speed of Sound × Time Delay) / 2,
the transmitter can accurately calculate the level. The division by two accounts for the round trip of the signal—down to the liquid surface and back to the sensor.
It’s important to understand that temperature, pressure, and humidity can influence the speed of sound. That’s why high-end transmitters often include temperature compensation mechanisms to maintain measurement accuracy.

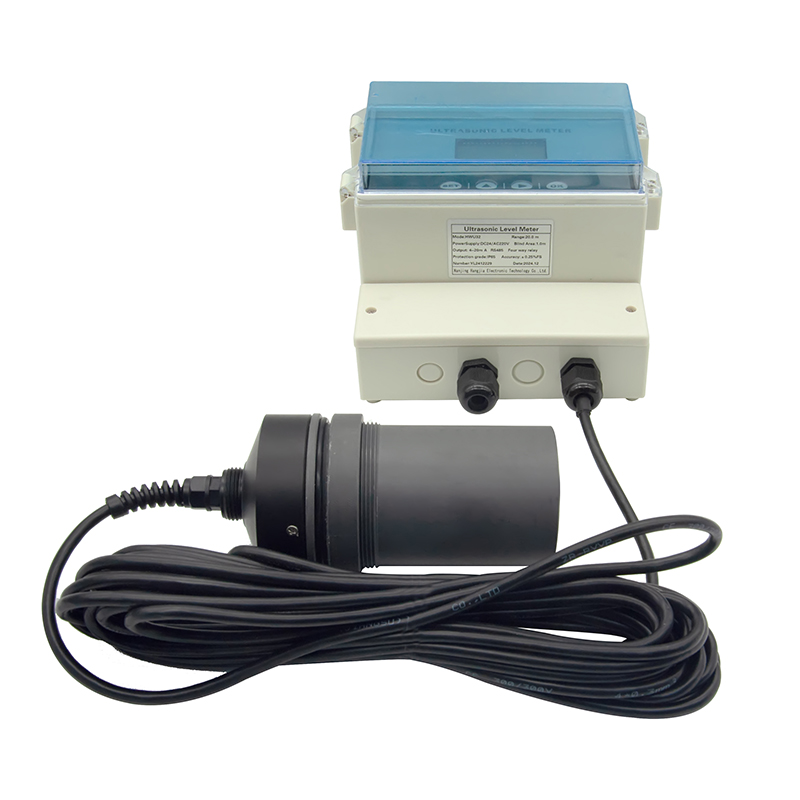

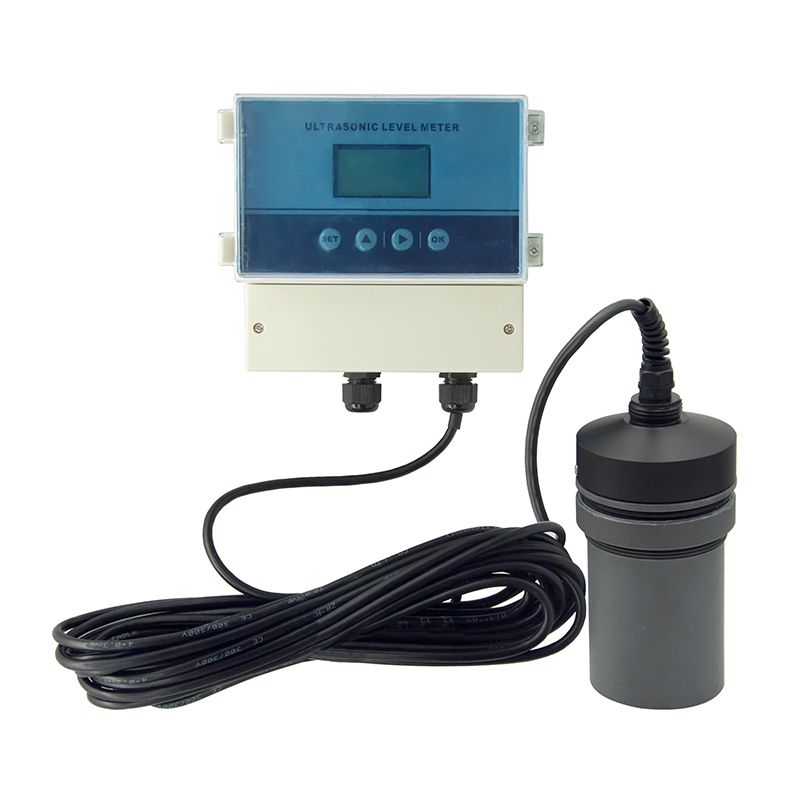

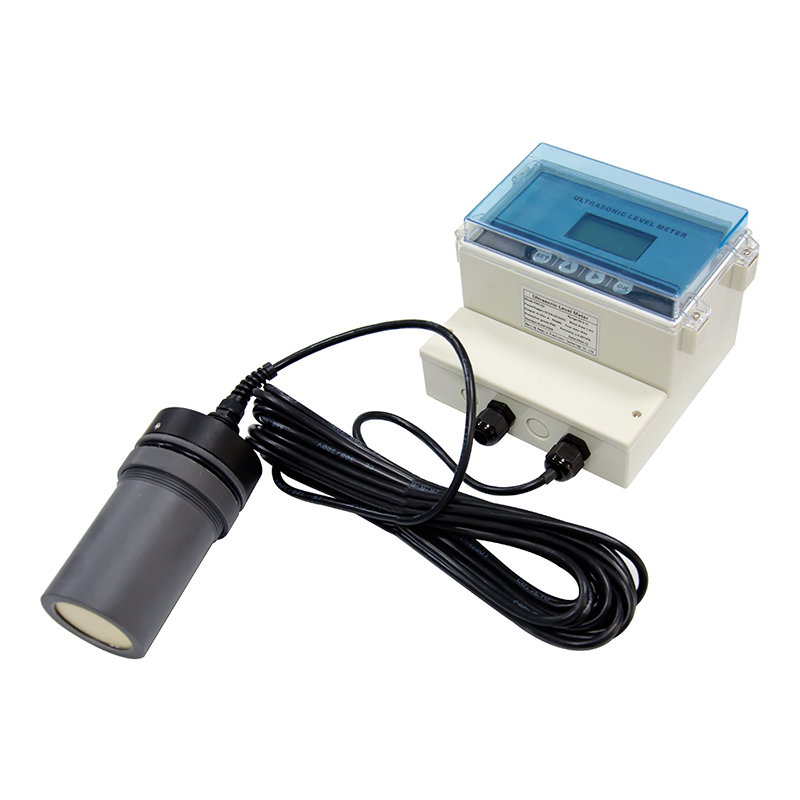

Core Components Inside an Ultrasonic Liquid Level Transmitter
To fully grasp how these devices work, let’s break down the main components of a typical ultrasonic liquid level transmitter:
| Component | Function |
|---|---|
| Transducer | Emits and receives ultrasonic pulses |
| Timing Circuit | Measures the time interval between sending and receiving pulses |
| Microprocessor | Converts time data into distance and then into liquid level measurements |
| Display Unit | Shows the level readings or transmits the signal to external monitoring systems |
| Power Supply Unit | Provides the energy to operate the entire transmitter |
| Housing & Protection | Encases the internal parts and protects them from environmental factors |
Each component plays a role in ensuring the device’s performance remains stable and precise. Modern devices may also include digital signal processing to eliminate noise and provide more accurate results.
Step-by-Step Working Mechanism of an Ultrasonic Liquid Level Transmitter
Let’s walk through the step-by-step operation to understand the whole process more clearly:
Pulse Emission:
The microcontroller activates the transducer to emit a burst of ultrasonic sound waves directed vertically down to the liquid surface.Signal Reflection:
Once the pulse hits the liquid surface, it reflects back toward the sensor. The echo is detected by the same transducer.Time Measurement:
A high-speed internal clock measures the duration between the initial pulse and the received echo. Even millisecond-scale changes are detected with high accuracy.Distance Calculation:
Using the known speed of sound in the current atmospheric conditions, the system calculates the distance to the surface.Level Conversion:
The calculated distance is subtracted from the total tank height (preset during setup), yielding the actual liquid level.Output Transmission:
Finally, the processed level data is converted into standard output signals (4-20 mA, RS485, or Modbus) and transmitted to controllers or human-machine interfaces (HMI).
This non-invasive measurement method eliminates the need for direct contact with corrosive, high-pressure, or hazardous liquids, ensuring longevity and reliability.
Advantages and Applications of Ultrasonic Liquid Level Transmitters
The technology is not just effective—it’s also versatile and cost-efficient. Here are some key benefits:
Non-contact Measurement: Reduces wear and contamination risk.
Maintenance-Free: With no moving parts, the device requires minimal upkeep.
Adaptable for Harsh Environments: Works well in dusty, humid, or corrosive settings.
Wide Range Compatibility: Suitable for water, oil, chemicals, wastewater, and more.
Easy Installation and Integration: Plug-and-play designs make them ideal for both new and retrofit projects.
Typical application areas include:
Water treatment facilities
Chemical storage tanks
Oil refineries
Food and beverage processing
Pharmaceutical manufacturing
Thanks to its reliable performance, the ultrasonic liquid level transmitter remains a staple across industrial, commercial, and municipal sectors.
Frequently Asked Questions (FAQ)
Q1: Is an ultrasonic liquid level transmitter affected by foam or vapor?
Yes, in some cases. Heavy foam layers or thick vapor may scatter or absorb the ultrasonic signal, reducing measurement accuracy. Some advanced models come with signal filters or algorithms to minimize this impact.
Q2: Can ultrasonic level transmitters be used outdoors?
Absolutely. Many models feature weatherproof and IP-rated enclosures designed for outdoor conditions, including rain, heat, and dust. However, proper shielding and installation are necessary to maintain optimal performance.
Q3: How accurate are ultrasonic level transmitters?
Most standard transmitters offer accuracy within ±0.25% to ±1% of full-scale range, depending on the model and environmental conditions. High-end transmitters with digital compensation can provide even greater precision.
Q4: What is the typical range of an ultrasonic level transmitter?
The detection range varies from a few centimeters to over 20 meters, depending on the model. Always check the specification to match your application’s requirements.
Q5: What maintenance does it require?
Routine inspection to clean the sensor face and verify proper alignment is usually sufficient. Dust, spider webs, or sediment buildup can affect performance if not periodically addressed.
Troubleshooting Common Issues
Despite their reliability, users may occasionally face issues. Here's a quick table of common problems and solutions:
| Issue | Possible Cause | Recommended Action |
|---|---|---|
| No Reading or Output | Sensor not powered, faulty wiring | Check power supply and connections |
| Inconsistent Readings | Vapor, foam, or obstruction in the signal path | Remove obstructions, apply signal filtering |
| Drifting Measurements | Temperature variation affecting sound speed | Enable or calibrate temperature compensation |
| Signal Loss After Rain or Dust | Sensor face contaminated | Clean the transducer surface carefully |
| Wrong Level Calculation | Incorrect tank height input | Reconfigure tank parameters in setup |
Proper installation and calibration are crucial for error-free operation. Always follow the manufacturer’s installation guide and test the system after setup.
Conclusion
The ultrasonic liquid level transmitter stands as a proven and intelligent solution for continuous, real-time liquid level monitoring. From municipal water treatment to high-end manufacturing, it combines precision with ease of use, offering a non-invasive, low-maintenance, and highly adaptable tool for any application where liquid level measurement matters.
Whether you’re managing tanks, reservoirs, or silos, understanding how ultrasonic liquid level transmitters work empowers you to make better installation, maintenance, and investment decisions. Their blend of advanced science and user-friendly functionality makes them a top-tier option for modern automation needs.
