RTD Temperature Transducers: Accuracy, Stability, And Long-Term Reliability

In modern industrial processes, precise temperature measurement is not simply a desirable feature—it is often essential to both quality control and operational safety. From chemical plants to power generation, from food processing to pharmaceutical manufacturing, the ability to reliably monitor temperature ensures consistent results, maximizes efficiency, and reduces the risk of costly errors. Among the many types of temperature-sensing technologies available today, RTD (Resistance Temperature Detector) temperature transducers stand out for their remarkable combination of accuracy, stability, and long-term reliability.

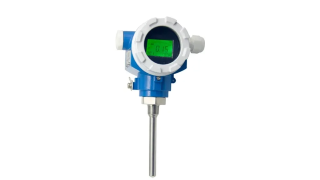

An RTD temperature transducer is not just a sensor; it is an integrated device that converts the resistance change of an RTD element into a usable electrical signal, typically a standard output like 4-20mA or a digital protocol such as HART. These devices bring the precision of RTD sensing into a practical format for integration into process control systems. Understanding why RTD temperature transducers are so highly valued requires exploring their construction, how they function, and why their performance is trusted in demanding applications.

Understanding RTD Temperature Sensing

At the core of an RTD temperature transducer is the RTD sensor element, usually made from pure platinum due to its highly predictable and repeatable resistance-temperature relationship. As the temperature changes, the resistance of the platinum wire changes in a linear and consistent way. The RTD transducer measures this change and converts it into a proportional signal.

Common RTD sensor types include PT100 (100 ohms at 0°C) and PT1000 (1000 ohms at 0°C). These designations refer to the base resistance of the sensor at a reference temperature. Because platinum offers excellent long-term stability and corrosion resistance, these sensors can operate in a variety of environments without significant drift.

From Sensor to Transducer: How the Conversion Works

While a bare RTD sensor can measure temperature, it is highly sensitive to electrical interference, lead wire resistance, and distance from the monitoring system. This is where the transducer plays its role. Inside the RTD temperature transducer, the sensor is connected to a small but sophisticated electronic circuit. This circuit excites the sensor with a low current, measures the resulting voltage drop, calculates the resistance, and then converts that resistance into an accurate temperature reading. The temperature is then translated into a standard process signal such as:

• 4-20mA analog output for compatibility with most industrial control systems

• HART digital protocol for additional configuration and diagnostics

• Voltage output for specialized applications

By converting the signal close to the measurement point, the transducer minimizes the impact of electrical noise and cable resistance, allowing accurate readings even in electrically noisy industrial settings.

Accuracy: Why RTD Transducers Excel

Accuracy is one of the main reasons engineers choose RTD temperature transducers over alternatives like thermocouples. Platinum RTDs already offer very high accuracy—often within ±0.1°C or better in laboratory conditions—and the transducer’s electronics are designed to maintain this precision throughout the signal conversion process.

Factors contributing to high accuracy include:

• High-quality sensor elements with tight tolerance specifications

• Precision excitation circuits that ensure stable readings

• Temperature linearization algorithms embedded in the transducer

• Lead wire compensation to eliminate errors from long cable runs

In industrial terms, this accuracy translates into better process control. For example, in a distillation column, a 0.5°C temperature error could shift separation efficiency and affect product purity. Using an RTD transducer ensures that the readings are as close to the true temperature as possible.

Stability: The Key to Consistent Measurements

Short-term accuracy is important, but in real-world operations, stability over time is equally critical. RTD transducers excel in this area because platinum’s resistance properties do not degrade rapidly, and the electronics are designed for long-term performance. This means fewer recalibrations, less downtime, and more consistent process control.

In applications like kiln temperature monitoring, where equipment operates continuously at elevated temperatures, stability ensures that the process remains within specified parameters day after day, avoiding product defects and energy waste.

Long-Term Reliability in Harsh Conditions

Industrial environments are rarely gentle. Equipment must withstand vibration, temperature extremes, moisture, and sometimes chemical exposure. RTD temperature transducers are engineered for this reality. Housed in robust enclosures—often stainless steel or industrial-grade aluminum—they can be mounted directly in process lines, tanks, or machinery without fear of rapid degradation.

For example:

• In steam temperature measurement, the transducer must endure high humidity and potential condensation without losing calibration.

• In oil and gas facilities, the transducer must survive corrosive environments while maintaining accuracy.

• In water tank temperature control, the transducer must handle constant immersion without sensor deterioration.

The combination of rugged construction, sealed electronics, and corrosion-resistant sensor materials makes RTD transducers well suited to these challenges.

Applications Across Industries

Because of their accuracy, stability, and durability, RTD temperature transducers are used in an impressive range of industries. Here are some notable examples:

Water Tank Temperature Monitoring

In municipal water systems, industrial water storage, or HVAC chilled water loops, temperature monitoring ensures efficiency and prevents issues like bacterial growth. RTD transducers provide precise readings that help optimize heating or cooling systems.

Power Plants

In both fossil fuel and renewable energy plants, temperature plays a critical role in efficiency and safety. RTD transducers monitor turbine temperatures, feedwater, condensers, and other critical points where accurate readings support operational performance.

Oil and Gas Facilities

From upstream drilling operations to downstream refining, temperature monitoring helps maintain product quality, optimize energy use, and prevent safety hazards. RTD transducers withstand the harsh and sometimes hazardous conditions of these facilities.

Kiln Temperature Measurement

In ceramics, glass, and metallurgy, kilns must maintain precise temperatures for extended periods. RTD transducers provide the necessary stability to ensure consistent product quality.

Steam Temperature Control

In industrial heating systems and sterilization processes, steam temperature is critical. RTD transducers provide accurate feedback to control valves and maintain the desired temperature.

Distillation Columns

In chemical and petrochemical plants, temperature control in distillation columns determines the separation efficiency of different components. RTD transducers ensure that column temperatures remain within the exact range required for optimal output.

Intelligent Features for Modern Operations

Today’s RTD temperature transducers are more than just passive measurement devices. Many include advanced features such as:

• LCD displays for local temperature readouts

• Digital communication protocols for remote monitoring and configuration

• Self-diagnostics to alert operators of sensor drift or wiring faults

• Programmable ranges to suit different processes

These capabilities help maintenance teams respond quickly to issues and give process engineers more control over their operations.

Installation and Maintenance Considerations

To get the best performance from an RTD temperature transducer, proper installation is essential. The sensor should be positioned in a location that truly represents the process temperature, with sufficient immersion depth and minimal interference from flow disturbances. Proper wiring and grounding help maintain signal integrity, especially in electrically noisy environments.

While RTD transducers are known for their low maintenance requirements, periodic verification or calibration is advisable in critical processes. This ensures that the sensor and electronics remain within specification over time.

Conclusion

RTD temperature transducers offer an exceptional combination of accuracy, stability, and durability, making them one of the most reliable solutions for industrial temperature measurement. By merging the proven sensing precision of platinum RTDs with robust, industrial-grade transducer technology, they provide dependable data in applications where even minor temperature deviations can have significant consequences. Whether used in water tanks, kilns, steam systems, power plants, oil and gas facilities, or distillation columns, these devices play a vital role in ensuring consistent product quality, process efficiency, and operational safety. For engineers and plant operators, choosing RTD temperature transducers is not merely selecting a measurement tool—it is investing in long-term process reliability and performance.
