Understanding 4-20mA Digital Temperature Transmitters: How They Work And Where They’re Used

In many industries, temperature is more than just a number—it is a key factor that determines efficiency, safety, and product quality. From managing water in storage tanks to controlling heat in massive industrial kilns, accurate temperature monitoring is essential. This is where the 4-20mA digital temperature transmitter plays a vital role. It is one of the most widely used devices for converting temperature readings into a signal that can be easily transmitted, read, and processed by control systems.

The 4-20mA standard has been trusted for decades, and when combined with digital processing, it becomes a powerful tool for accurate and reliable temperature measurement. This article will explain how these transmitters work, why they are so popular, and where they are applied—covering examples such as water tanks, power plants, oil and gas facilities, kilns, steam systems, and distillation columns.

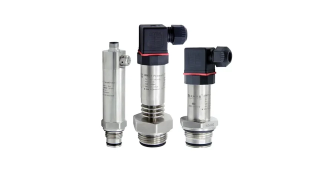

What is a 4-20mA Digital Temperature Transmitter?

A 4-20mA digital temperature transmitter is a device that takes the input from a temperature sensor—such as a RTD (Resistance Temperature Detector) or thermocouple—and converts it into an electrical signal ranging from 4 to 20 milliamps (mA). This signal is then sent to a control system like a PLC (Programmable Logic Controller), DCS (Distributed Control System), or data logger.

The “digital” part refers to the internal electronics that process the temperature signal before converting it to the 4-20mA current output. This means the device can filter out noise, apply calibration, and even offer additional communication options like HART (Highway Addressable Remote Transducer) protocol for advanced monitoring and configuration.

Why the 4-20mA Standard is Widely Used

The 4-20mA signal is considered an industry standard for a few important reasons:

• Noise Resistance – Current signals are less affected by electrical noise compared to voltage signals, making them ideal for industrial environments with heavy machinery.

• Long-Distance Transmission – The signal can be sent over long cable runs without significant loss of accuracy.

• Simple Troubleshooting – Since 4mA represents the minimum value and 20mA the maximum, a signal below 4mA or above 20mA immediately indicates a fault.

• Two-Wire Simplicity – Many transmitters operate on just two wires, which both supply power and carry the signal.

How a 4-20mA Digital Temperature Transmitter Works

The process can be broken down into several steps:

• Temperature Sensing – A sensor such as a PT100 RTD or a thermocouple detects the temperature. For example, in a kiln, the sensor is placed inside to measure internal heat levels.

• Signal Conversion – The raw signal from the sensor is often small and unstable. The transmitter’s electronics convert this into a stable, processed digital signal.

• Scaling to 4-20mA – The temperature range is mapped to the 4-20mA scale. For example, 0°C might be 4mA, and 200°C might be 20mA.

• Signal Transmission – The signal travels through cables to the control system, even if it’s hundreds of meters away.

• Display and Control – The control system interprets the current value and can display it, log it, or trigger control actions such as opening a valve or shutting down a heater.

Key Benefits of Digital Temperature Transmitters

• High Accuracy – Digital processing helps remove signal noise and improve measurement precision.

• Reliability in Harsh Conditions – They work in environments with vibration, high heat, or electrical interference.

• Ease of Integration – Compatible with a wide range of industrial control systems.

• Self-Diagnostics – Many models can alert operators if there’s a sensor fault or wiring issue.

Applications of 4-20mA Digital Temperature Transmitters

Now that we understand how these transmitters work, let’s explore their real-world uses in different industries.

Water Tank Temperature Monitoring

In facilities where water is stored for industrial processes or municipal supply, maintaining the right temperature can be important. For example, in food processing plants, water used for cleaning and mixing must stay within certain temperature limits to ensure hygiene and product quality.

A 4-20mA digital temperature transmitter installed in a water tank can provide continuous monitoring. If the water gets too warm or too cold, the control system can automatically adjust heaters or cooling systems. The stability of the 4-20mA signal ensures accurate readings even if the control room is located far from the tank.

Power Plants

In power generation facilities—whether coal, natural gas, nuclear, or renewable—temperature control is critical. Boilers, turbines, and cooling systems all rely on accurate temperature readings to operate efficiently and safely.

For instance:

• Boiler Steam Temperature – If steam temperature rises too high, it can damage turbines or piping. A transmitter sends real-time readings so operators can adjust fuel input or cooling rates.

• Cooling Water Systems – In nuclear and thermal plants, cooling water must stay within safe limits to protect equipment.

The durability of 4-20mA digital transmitters makes them suitable for the high heat, vibration, and electrical noise common in these environments.

Oil and Gas Facilities

The oil and gas industry often operates in extreme conditions—from offshore rigs to desert pipelines. Temperature monitoring is vital for both safety and efficiency.

Common uses include:

• Pipeline Monitoring – Ensuring crude oil stays at the right temperature to prevent solidification or flow issues.

• Refining Processes – In distillation and cracking units, precise temperature readings determine product quality.

• Storage Tanks – Monitoring stored liquids to prevent overheating or cooling beyond safe limits.

The 4-20mA signal’s resistance to interference ensures reliable data transmission even over long distances, which is essential in sprawling refinery layouts.

Kiln Temperature Control

In industries such as ceramics, metallurgy, and cement manufacturing, kilns operate at extremely high temperatures. Consistency is key—if the temperature is too low, products may be weak; if too high, they may be damaged.

A 4-20mA digital temperature transmitter connected to a high-temperature thermocouple can handle these demanding conditions. Its accuracy allows operators to maintain precise firing profiles, which is crucial for achieving the desired product characteristics.

Steam Temperature Monitoring

Steam is used widely in manufacturing for heating, sterilization, and power generation. Controlling steam temperature is essential to avoid equipment damage, maintain energy efficiency, and ensure safety.

For example:

• In food processing, steam sterilization requires exact temperatures to kill microorganisms without damaging packaging.

• In textile production, steam is used for dyeing and finishing fabrics, and temperature consistency affects the final quality.

• A transmitter ensures that the steam system’s temperature data reaches the control panel in real time, enabling quick adjustments.

Distillation Columns

Distillation is a process used in chemical plants, oil refineries, and beverage production to separate liquids based on their boiling points. Temperature measurement at different points in a distillation column is critical for process control.

The 4-20mA digital temperature transmitter provides accurate readings from multiple column locations. This helps operators adjust heat input, reflux ratios, and flow rates to optimize separation efficiency and product purity.

Why 4-20mA Digital Temperature Transmitters Are Ideal for These Applications

The common thread across these industries is the need for accuracy, durability, and long-distance communication. Water tanks, power plants, oil facilities, kilns, steam systems, and distillation columns all operate in challenging conditions where electrical interference, extreme temperatures, and mechanical stress are common. The 4-20mA standard, combined with digital processing, ensures that temperature readings remain stable and trustworthy.

Moreover, these transmitters are relatively simple to install and integrate into existing control systems, making them a practical choice for both new projects and retrofits.

Final Thoughts

The 4-20mA digital temperature transmitter is more than just a piece of measurement equipment—it’s a critical link between the physical process and the control system that manages it. By converting raw temperature readings into a reliable, easy-to-read signal, it enables industries to run more safely, efficiently, and consistently.

Whether you are monitoring the temperature in a water tank, controlling a kiln, managing steam systems, or fine-tuning a distillation process, this technology offers the accuracy and dependability you need to keep operations on track.
