Can a Turbine Meter Be Hygienic?

When it comes to measuring liquid flow in industries like food processing, pharmaceutical manufacturing, or biotechnology, “hygienic” is not just a buzzword – it’s a strict requirement. You need instruments that are not only accurate but also easy to clean, corrosion-resistant, and free from places where bacteria or residue can hide.

So, can a turbine flow meter – specifically the HFM900 – truly meet those hygienic standards? Let’s take a closer look based on the actual product specifications.

Designed for Clean, Low-Viscosity Liquids

The HFM900 turbine flow transmitter operates on the moment balance principle. Its sensor has a simple structure, is lightweight, and offers high precision and good repeatability. According to the manual, it is suitable for measuring closed pipelines containing liquids that do not corrode stainless steel (1Cr18Ni9Ti, 2Cr13), corundum (Al₂O₃), or cemented carbide, and importantly, liquids without fibers, particles, or other impurities.

This makes it inherently compatible with many clean media found in hygienic environments, such as purified water, syrups, solvents, and certain liquid ingredients.

Material Compatibility – A Key Hygienic Factor

For a flow meter to be considered hygienic, the wetted materials must resist corrosion and not contaminate the product. The HFM900 uses:

• Stainless steel 1Cr18Ni9Ti – a common austenitic stainless steel with good corrosion resistance.

• Hard alloy bearings – which improve wear resistance without compromising accuracy.

• Corundum (Al₂O₃) and cemented carbide – inert and durable.

While 316L stainless steel is often preferred for high-end hygienic applications, the materials in the HFM900 already provide a solid foundation for many sanitary processes. For special requirements, the manual explicitly states that custom orders can be negotiated.

Easy to Clean? Look at the Structure

A hygienic flow meter must allow easy disassembly and cleaning – either CIP (clean-in-place) or SIP (steam-in-place). The HFM900 features:

• A hard alloy bearing thrust type structure, which is firm and convenient to disassemble.

• An impeller that can be accessed for inspection and cleaning.

• A smooth housing interior (the manual emphasizes that the inner wall should be smooth and clean with no dents or scale).

However, note that threaded connections (G1/2, G1, etc.) may have small crevices. For demanding hygienic applications, you may want to request tri-clamp (DIN or SMS) connections instead of standard threads or flanges. The manufacturer is open to special forms per order.

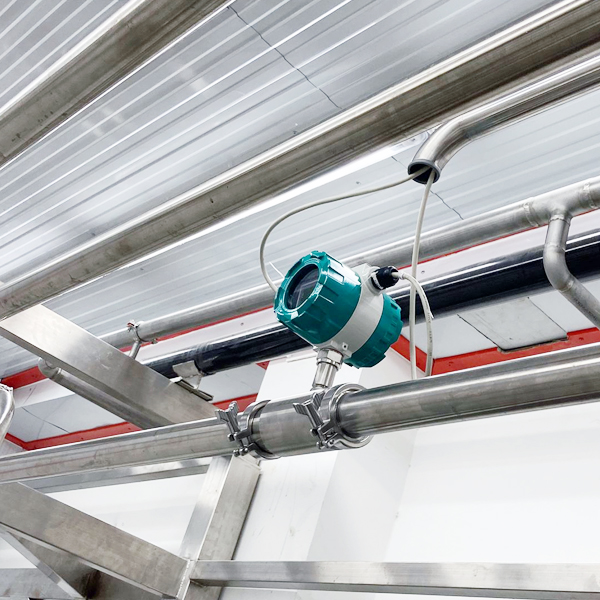

Installation Considerations for Hygienic Systems

The HFM900 can be installed horizontally or vertically (with upward flow). To maintain hygiene and measurement integrity:

• Avoid dead zones – Gaskets must not protrude into the pipe.

• Straight pipe requirements – 20× nominal diameter upstream, 5× downstream.

• No bubbles or gas – The liquid should fill the pipe completely.

• Filters recommended – For fluids with impurities (20–60 mesh), which also protects the impeller.

If the fluid contains free gas, a degasser should be added. This ensures that the measurement remains stable and the system clean.

Output & Monitoring – Hygienic Doesn’t Mean Compromised Electronics

The HFM900 offers:

• Frequency output, 4–20mA, or RS485.

• A local display with backlight, showing instantaneous flow, total flow, and flow rate.

• User menu with password protection (default 2010), cut-off frequency settings, and multiple calibration segments.

The electronics are housed separately, and the transmission distance can reach up to 1000m. For outdoor installation, waterproofing is required – essential for wash-down environments.

Where It Excels and Where Caution Is Needed

Good for:

• Clean liquids (water, light syrups, solvents, low-viscosity oils <5×10⁻⁶ m²/s).

• Applications needing ±0.5% or ±1.0% accuracy.

• Systems that require easy disassembly for manual cleaning.

• Temperature range: -20℃ to +120℃ (medium), -20℃ to +55℃ (ambient).

Caution for high-hygiene standards:

• Viscosity >5×10⁻⁶ m²/s requires recalibration with the actual liquid.

• Fibers or particles can damage the impeller or bearings – pre-filtration is a must.

• Threaded connections may trap residue; consider requesting sanitary flanges or clamps.

The Bottom Line: Can It Be Hygienic?

Yes, with proper customization and installation practices. The HFM900 turbine flow transmitter offers a simple, cleanable design, corrosion-resistant materials, and flexibility for special orders. For demanding food and pharma applications, specify:

• Tri-clamp or sanitary flange connections.

• Electropolished stainless steel wetted parts.

• High-temperature seals (if needed).
