Overview

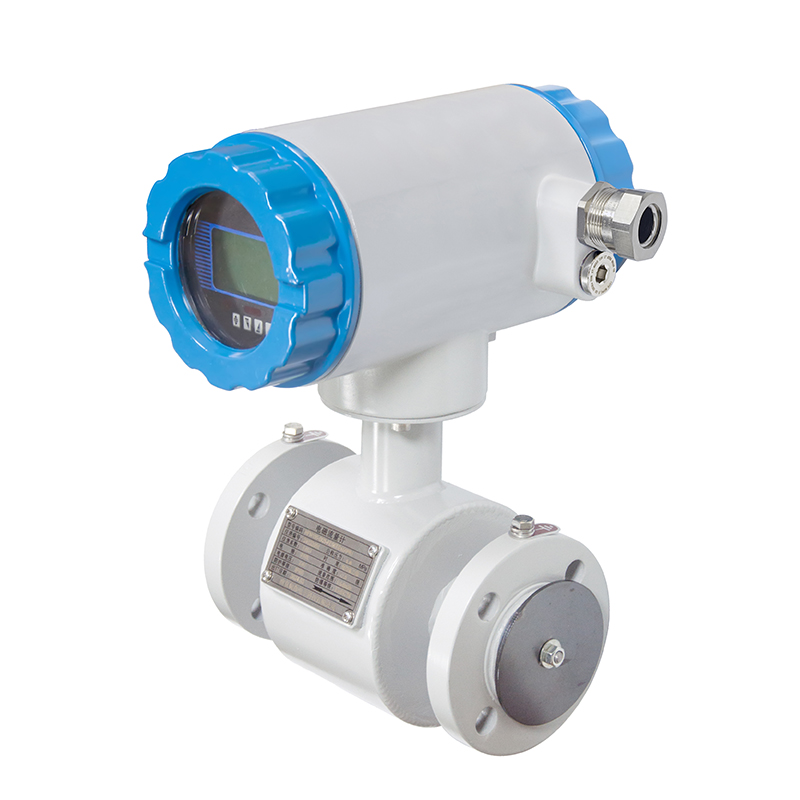

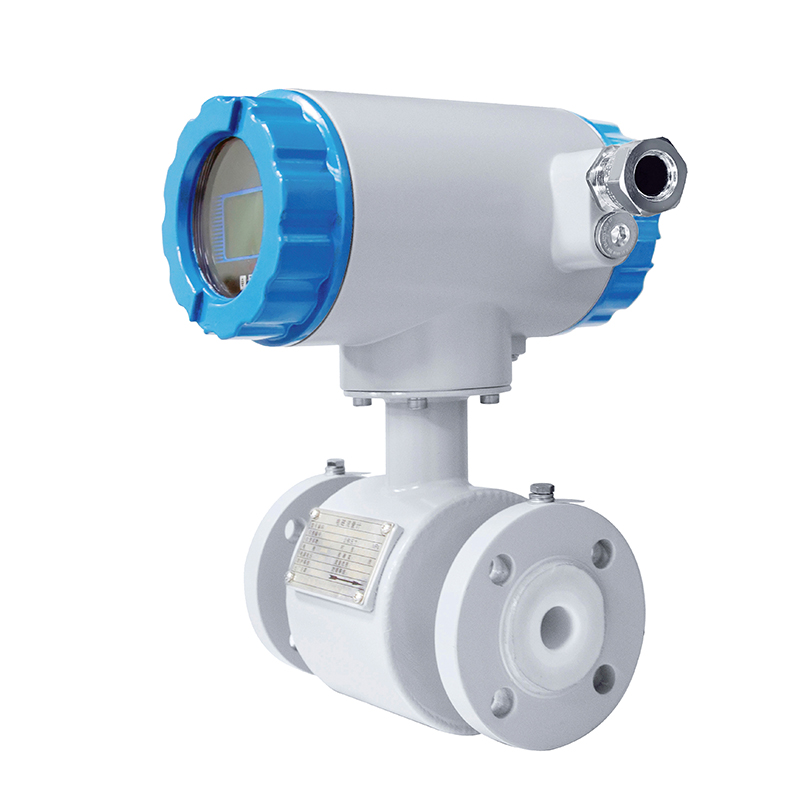

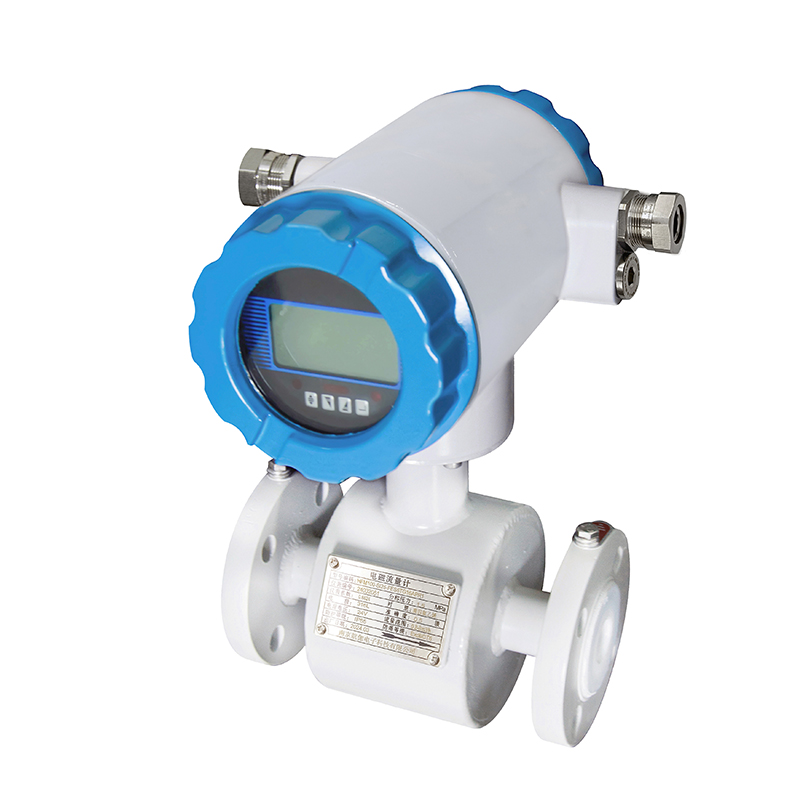

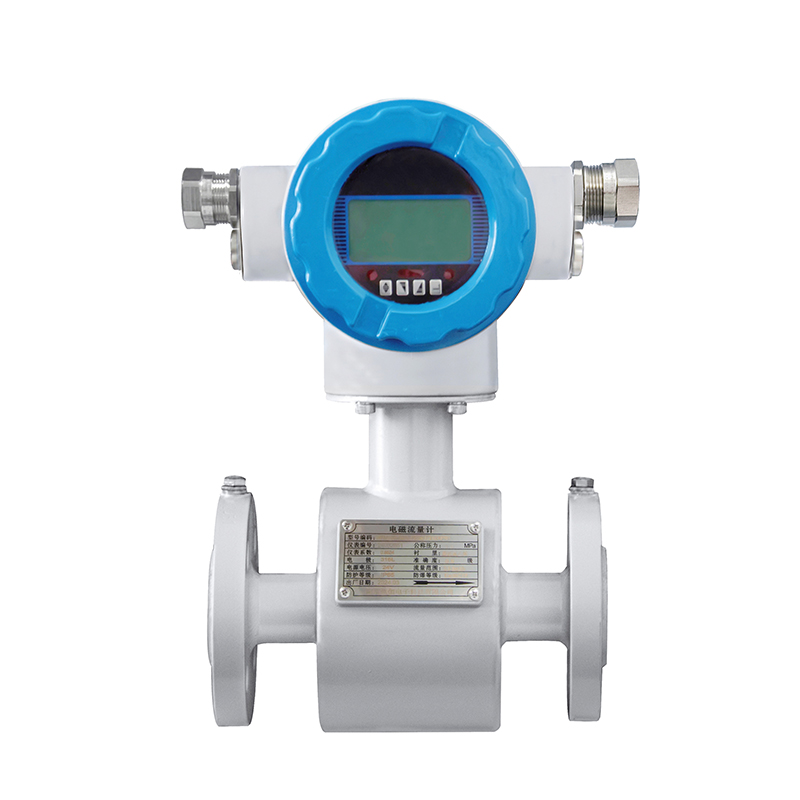

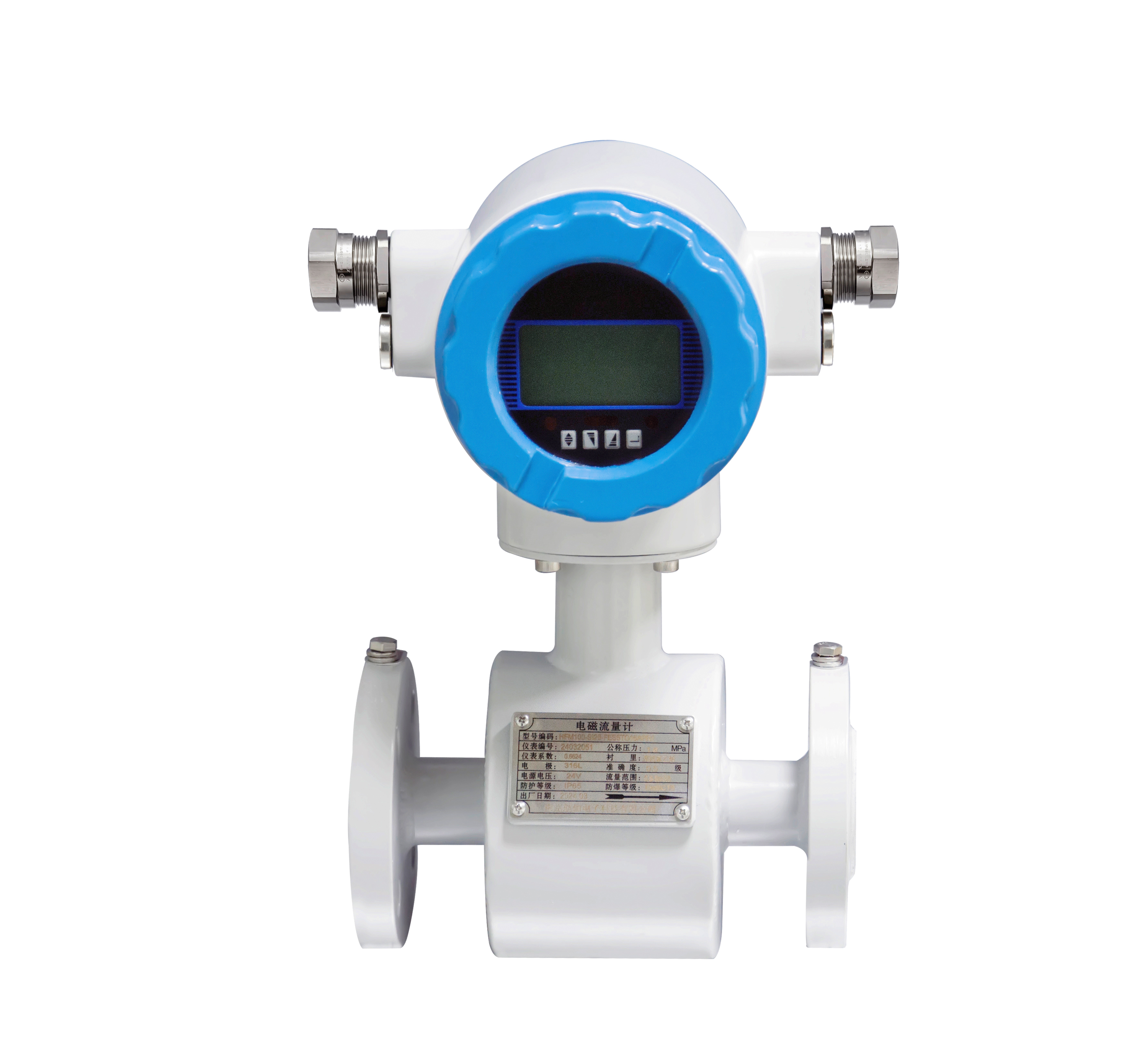

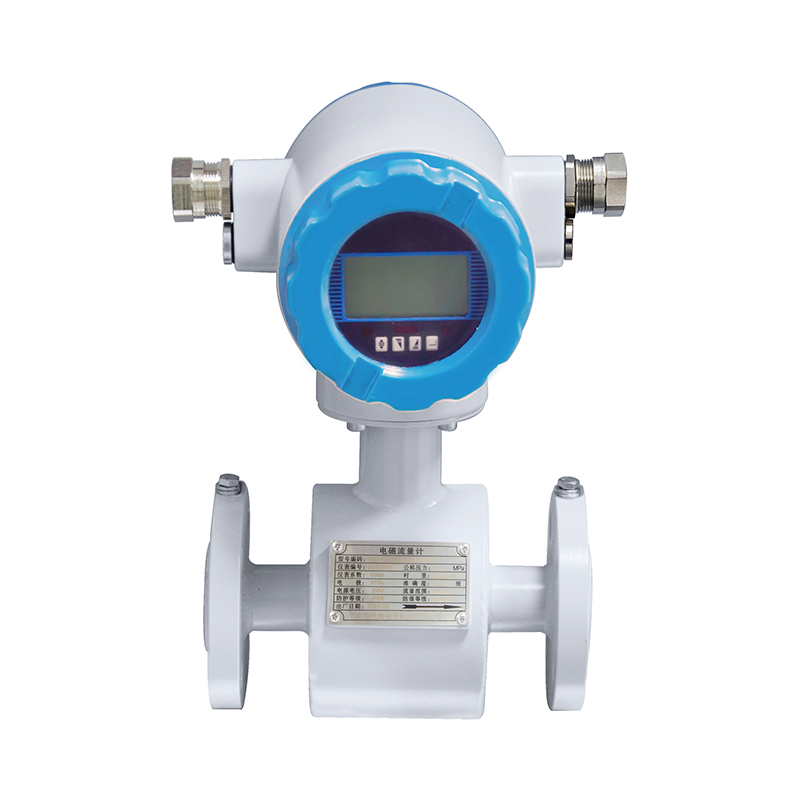

HFM100 Electromagnetic Flow meter is made of a sensor and a converter. It works base on Faraday's law of electromagnetic induction to measure conductivity of liquid or liquid-solid medium. It requires the conductivity should be greater than 5µS/CM (the conductivity of tap water and raw water is 100-500µS/CM ). It can be used for many mediums like acid, alkali, saline solution, paper pulp, ore pulp etc but the medium can not much conclude ferromagnetic substance or a mass of bubbles. This product is a main flow instrument for measuring conducting liquid, which can be widely used for flow measurement in the fields of water conservancy, municipal administration, chemical, food, pharmacy, papermaking, metallurgy, electric power, environment protection, etc.
Application
Widely used in petroleum industry
Chemical industry
Water treatment industry
Sewage, acid, alkali, salt solution
Volume flow of liquid-solid two-phase fluid conductive medium
Overview
HFM100 Electromagnetic Flow meter is made of a sensor and a converter. It works base on Faraday's law of electromagnetic induction to measure conductivity of liquid or liquid-solid medium. It requires the conductivity should be greater than 5µS/CM (the conductivity of tap water and raw water is 100-500µS/CM ). It can be used for many mediums like acid, alkali, saline solution, paper pulp, ore pulp etc but the medium can not much conclude ferromagnetic substance or a mass of bubbles. This product is a main flow instrument for measuring conducting liquid, which can be widely used for flow measurement in the fields of water conservancy, municipal administration, chemical, food, pharmacy, papermaking, metallurgy, electric power, environment protection, etc.
Application
Widely used in petroleum industry
Chemical industry
Water treatment industry
Sewage, acid, alkali, salt solution
Volume flow of liquid-solid two-phase fluid conductive medium
Features
Clear LCD display screen, display instantaneous flow and cumulative flow respectively
Advanced excitation technology, brief excitation circuit with stability and reliability
Pioneering fuzzy algorithm technology applies to measurement of electromagnetic flowmeter with the performance of artificial intelligence
Empty and full pipe measurement technique to avoid false alarm
With low conductivity measurement function
Prompt response design for high resistance, undistorted collection of weak signals and 2 prompt reaction for flow change
Various optional output communication interfaces
Features
Clear LCD display screen, display instantaneous flow and cumulative flow respectively
Advanced excitation technology, brief excitation circuit with stability and reliability
Pioneering fuzzy algorithm technology applies to measurement of electromagnetic flowmeter with the performance of artificial intelligence
Empty and full pipe measurement technique to avoid false alarm
With low conductivity measurement function
Prompt response design for high resistance, undistorted collection of weak signals and 2 prompt reaction for flow change
Various optional output communication interfaces
Aperture Diameter | DN10-DN2400 |
Flange Standard | GB/T9119-2000, carbon steel material (stainless steel optional), other standards can be customized |
Rated Pressure Grade | DN10~DN600, 1.0 1.6 2.5 4.0MPa; DN700~DN2000, 0.6 1.0 1.6MPa |
Lining Material | Chloroprene Rubber (CR), Teflon (PTFE), Polyurethane Rubber (PU), Polyethylene (PE), PFA, etc. |
Electrode | Default Stainless steel 316L, Hastelloy (HB and HC), Titanium, Ttantalum, Platinum optional |
Accuracy Grade | 0.5 grade |
Medium Temperature | Sensor: -25~180℃, Transmitter: -10~80℃ |
Supply Voltage | 24VDC, 220VAC |
Output | Current 4~20mA, Pulse, RS485 and HART optional |
Aperture Diameter | DN10-DN2400 |
Flange Standard | GB/T9119-2000, carbon steel material (stainless steel optional), other standards can be customized |
Rated Pressure Grade | DN10~DN600, 1.0 1.6 2.5 4.0MPa; DN700~DN2000, 0.6 1.0 1.6MPa |
Lining Material | Chloroprene Rubber (CR), Teflon (PTFE), Polyurethane Rubber (PU), Polyethylene (PE), PFA, etc. |
Electrode | Default Stainless steel 316L, Hastelloy (HB and HC), Titanium, Ttantalum, Platinum optional |
Accuracy Grade | 0.5 grade |
Medium Temperature | Sensor: -25~180℃, Transmitter: -10~80℃ |
Supply Voltage | 24VDC, 220VAC |
Output | Current 4~20mA, Pulse, RS485 and HART optional |
