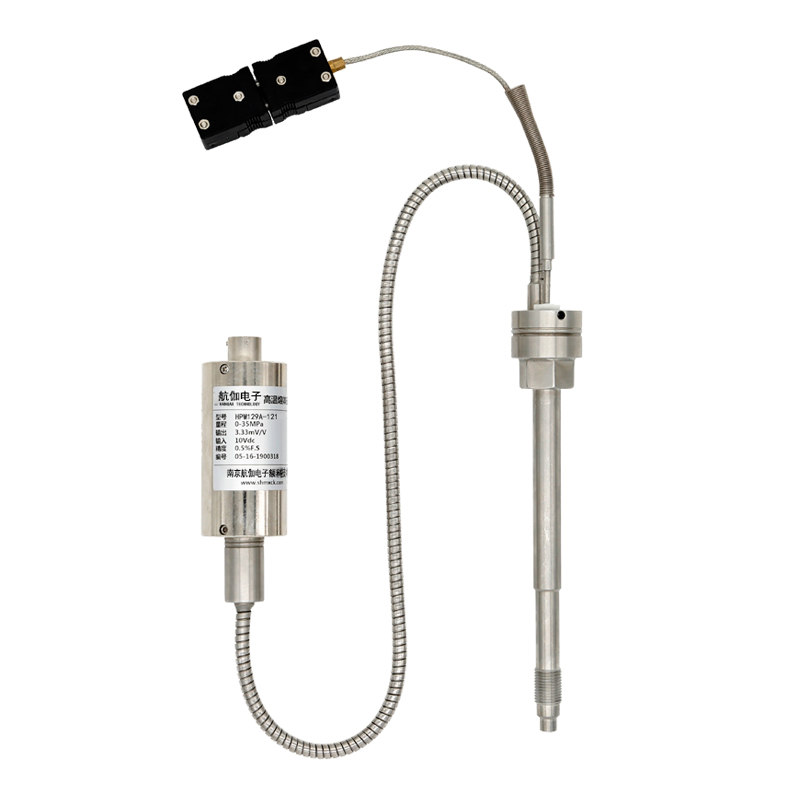

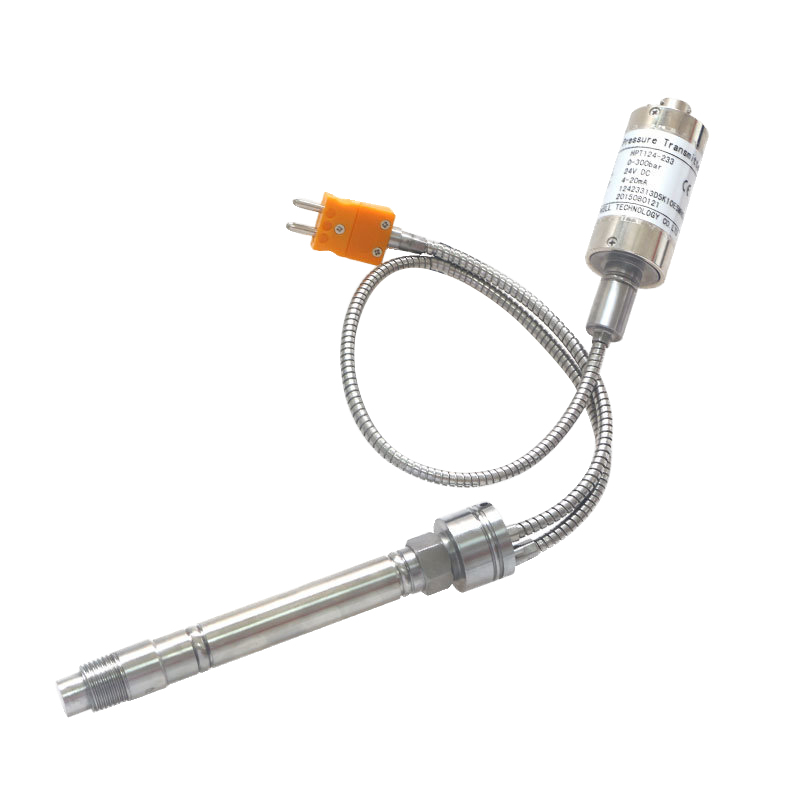

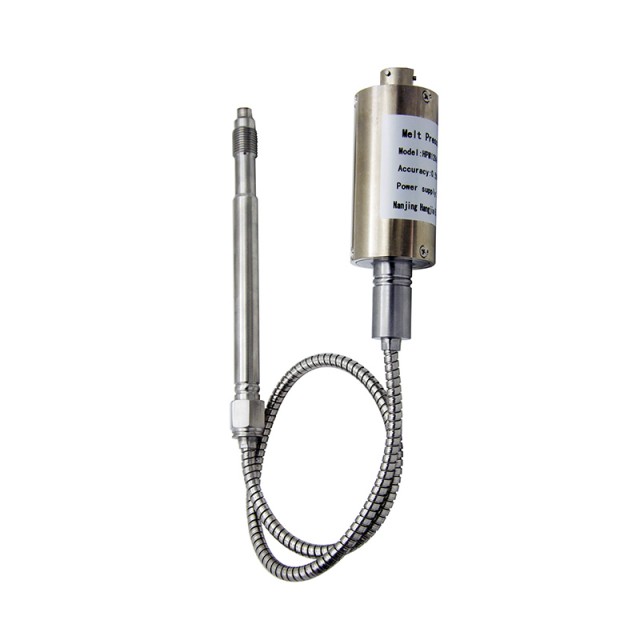

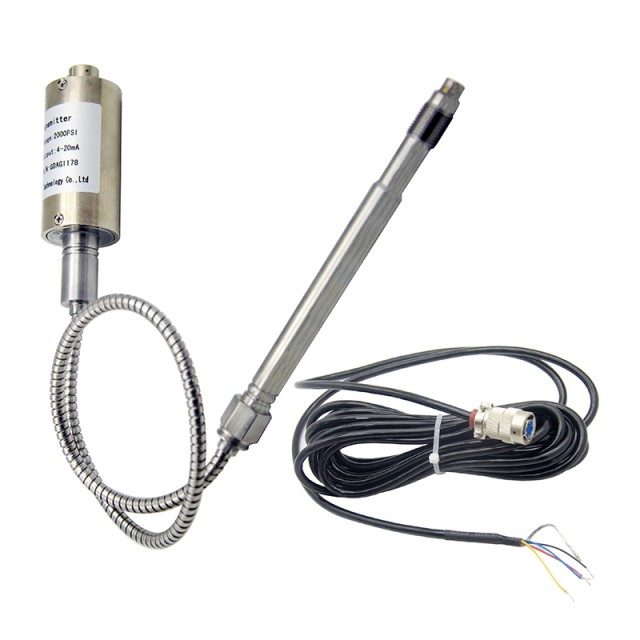

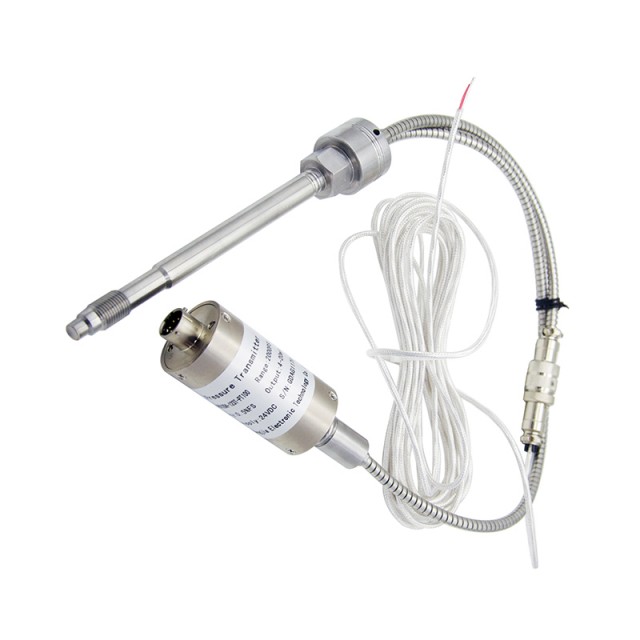

HPM129A-123/123T High Temperature Melt Pressure Transmitter
The HPM129A-123/123T High Temperature Melt Pressure Transmitter is an essential instrument in the melt-blown fabric production process, designed specifically for measuring and controlling the pressure of high-temperature materials. This device is not only crucial in the production of melt-blown fabrics, but also finds extensive applications in various industries, including chemical fibers, plastics, rubber, and the handling of high-temperature resistant fluids.
By integrating cutting-edge technologies from similar international products and utilizing high-quality raw materials and key components, the HPM129A series stands out for its exceptional features. It offers stable operation, reliable performance, and high accuracy, making it a trusted choice for professionals in demanding environments. The transmitter delivers a strong output signal and exhibits excellent dynamic performance, ensuring precise measurements even under fluctuating conditions. Additionally, it boasts a minimal high-temperature resistant zero drift, enhancing its reliability over time.
This series of transducers can seamlessly integrate with our intelligent digital display pressure sensor instruments, providing a comprehensive solution for pressure measurement and control. With universally compatible connecting screws and outgoing connectors, installation and maintenance are straightforward, allowing for enhanced operational efficiency.
Whether you are involved in manufacturing, quality control, or research and development, the HPM129A-123/123T High Temperature Melt Pressure Transmitter is an indispensable tool that ensures optimal performance and quality in your processes.
HPM129A-123/123T High Temperature Melt Pressure Transmitter
The HPM129A-123/123T High Temperature Melt Pressure Transmitter is an essential instrument in the melt-blown fabric production process, designed specifically for measuring and controlling the pressure of high-temperature materials. This device is not only crucial in the production of melt-blown fabrics, but also finds extensive applications in various industries, including chemical fibers, plastics, rubber, and the handling of high-temperature resistant fluids.
By integrating cutting-edge technologies from similar international products and utilizing high-quality raw materials and key components, the HPM129A series stands out for its exceptional features. It offers stable operation, reliable performance, and high accuracy, making it a trusted choice for professionals in demanding environments. The transmitter delivers a strong output signal and exhibits excellent dynamic performance, ensuring precise measurements even under fluctuating conditions. Additionally, it boasts a minimal high-temperature resistant zero drift, enhancing its reliability over time.
This series of transducers can seamlessly integrate with our intelligent digital display pressure sensor instruments, providing a comprehensive solution for pressure measurement and control. With universally compatible connecting screws and outgoing connectors, installation and maintenance are straightforward, allowing for enhanced operational efficiency.
Whether you are involved in manufacturing, quality control, or research and development, the HPM129A-123/123T High Temperature Melt Pressure Transmitter is an indispensable tool that ensures optimal performance and quality in your processes.
Range | 0….10MPa to 0….150MPa (0…1500psi to 0…20000psi) |
Output signal | 0~5V; 0~10V; 4-20mA optional |
Accuracy | ±0.5%FS |
Input voltage | 24(12~36V)DC |
Repeatability | ±0.2% |
Construction | Wheatstone bridge |
Bridge resistance | 350 ohms±10% |
Overload pressure | 1.5×FSO |
Internal calibration | 80%±1% |
Insulation resistance | 1000Megohms @50Vdc |
Max. diaphragm temp. | 0~400℃ |
Electric connector | 5PIN, 6PIN |
Process connector | 1/2″-20UNF, M14×1.5, M18×1.5(Customer design) |
Range | 0….10MPa to 0….150MPa (0…1500psi to 0…20000psi) |
Output signal | 0~5V; 0~10V; 4-20mA optional |
Accuracy | ±0.5%FS |
Input voltage | 24(12~36V)DC |
Repeatability | ±0.2% |
Construction | Wheatstone bridge |
Bridge resistance | 350 ohms±10% |
Overload pressure | 1.5×FSO |
Internal calibration | 80%±1% |
Insulation resistance | 1000Megohms @50Vdc |
Max. diaphragm temp. | 0~400℃ |
Electric connector | 5PIN, 6PIN |
Process connector | 1/2″-20UNF, M14×1.5, M18×1.5(Customer design) |
HPM129A-123/123T High Temperature Melt Pressure Transmitter
The HPM129A-123/123T High Temperature Melt Pressure Transmitter is an essential instrument in the melt-blown fabric production process, designed specifically for measuring and controlling the pressure of high-temperature materials. This device is not only crucial in the production of melt-blown fabrics, but also finds extensive applications in various industries, including chemical fibers, plastics, rubber, and the handling of high-temperature resistant fluids.
By integrating cutting-edge technologies from similar international products and utilizing high-quality raw materials and key components, the HPM129A series stands out for its exceptional features. It offers stable operation, reliable performance, and high accuracy, making it a trusted choice for professionals in demanding environments. The transmitter delivers a strong output signal and exhibits excellent dynamic performance, ensuring precise measurements even under fluctuating conditions. Additionally, it boasts a minimal high-temperature resistant zero drift, enhancing its reliability over time.
This series of transducers can seamlessly integrate with our intelligent digital display pressure sensor instruments, providing a comprehensive solution for pressure measurement and control. With universally compatible connecting screws and outgoing connectors, installation and maintenance are straightforward, allowing for enhanced operational efficiency.
Whether you are involved in manufacturing, quality control, or research and development, the HPM129A-123/123T High Temperature Melt Pressure Transmitter is an indispensable tool that ensures optimal performance and quality in your processes.
Range | 0….10MPa to 0….150MPa (0…1500psi to 0…20000psi) |
Output signal | 0~5V; 0~10V; 4-20mA optional |
Accuracy | ±0.5%FS |
Input voltage | 24(12~36V)DC |
Repeatability | ±0.2% |
Construction | Wheatstone bridge |
Bridge resistance | 350 ohms±10% |
Overload pressure | 1.5×FSO |
Internal calibration | 80%±1% |
Insulation resistance | 1000Megohms @50Vdc |
Max. diaphragm temp. | 0~400℃ |
Electric connector | 5PIN, 6PIN |
Process connector | 1/2″-20UNF, M14×1.5, M18×1.5(Customer design) |
