The HPM310 Breeze Differential Pressure Sensor is a high accuracy, high stability transmitter with multiple output signals such as 4-20mADC, 0-5V or RS485. The sensor uses a reliable amplification circuit and advanced pressure sensitive chip to ensure excellent quality and performance when measuring differential pressure. Suitable for measuring boiler air supply to indoor ventilation and ambient air pressure.
The HPM310 Breeze Differential Pressure Sensor is a high accuracy, high stability transmitter with multiple output signals such as 4-20mADC, 0-5V or RS485. The sensor uses a reliable amplification circuit and advanced pressure sensitive chip to ensure excellent quality and performance when measuring differential pressure. Suitable for measuring boiler air supply to indoor ventilation and ambient air pressure.
Application
Measures pressure in ducts
Extracts indoor air
Ventilates underground areas
Supplies air to boilers
Measures differential pressure
Application
Measures pressure in ducts
Extracts indoor air
Ventilates underground areas
Supplies air to boilers
Measures differential pressure
Features

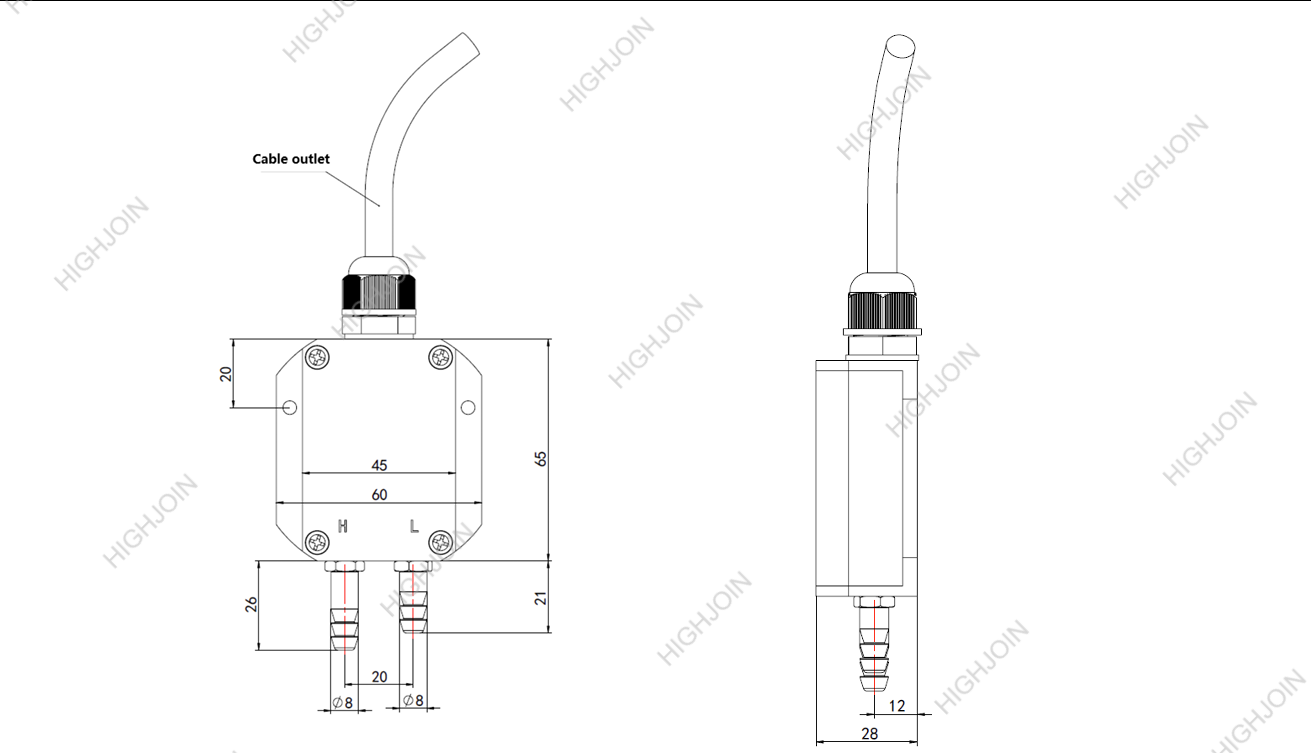

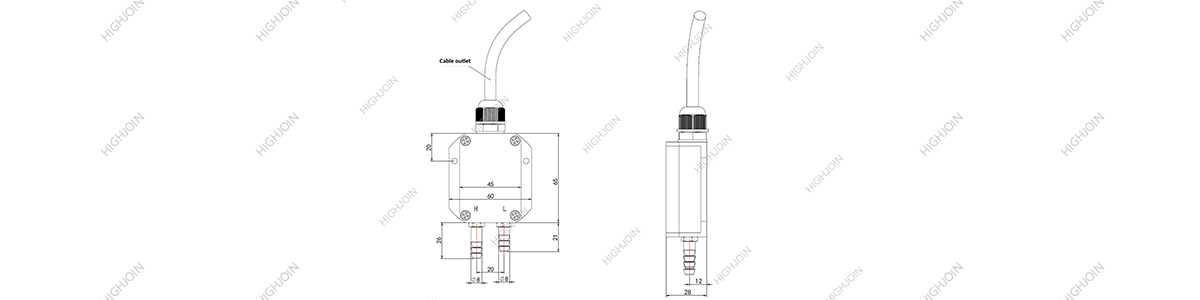

Easy installation with Ø8 pagoda nozzle pressure connection
Small gas differential pressure measurement
High precision (0.5 grade) with minimal error
Wide temperature zone compensation, minimal temperature drift
Manual zero function for calibration
Features
Easy installation with Ø8 pagoda nozzle pressure connection
Small gas differential pressure measurement
High precision (0.5 grade) with minimal error
Wide temperature zone compensation, minimal temperature drift
Manual zero function for calibration
Technical Parameters
Measuring Medium | Dry and clear noncorrosive gas(cannot measure liquids) |
Overload | 3~5x of full scale |
Accuracy | ±1.0%FS,±0.5%FS,±0.25%FS(subject to working pressure range) |
Output Signal | 4~20mA | Voltage | RS485 |
Power Supply | 24VDC(12~24VDC) |
Working Temperature | -40~85℃ |
Electrical Connection | Cable outlet |
Technical Parameters
Measuring Medium | Dry and clear noncorrosive gas(cannot measure liquids) |
Overload | 3~5x of full scale |
Accuracy | ±1.0%FS,±0.5%FS,±0.25%FS(subject to working pressure range) |
Output Signal | 4~20mA | Voltage | RS485 |
Power Supply | 24VDC(12~24VDC) |
Working Temperature | -40~85℃ |
Electrical Connection | Cable outlet |
