Overview

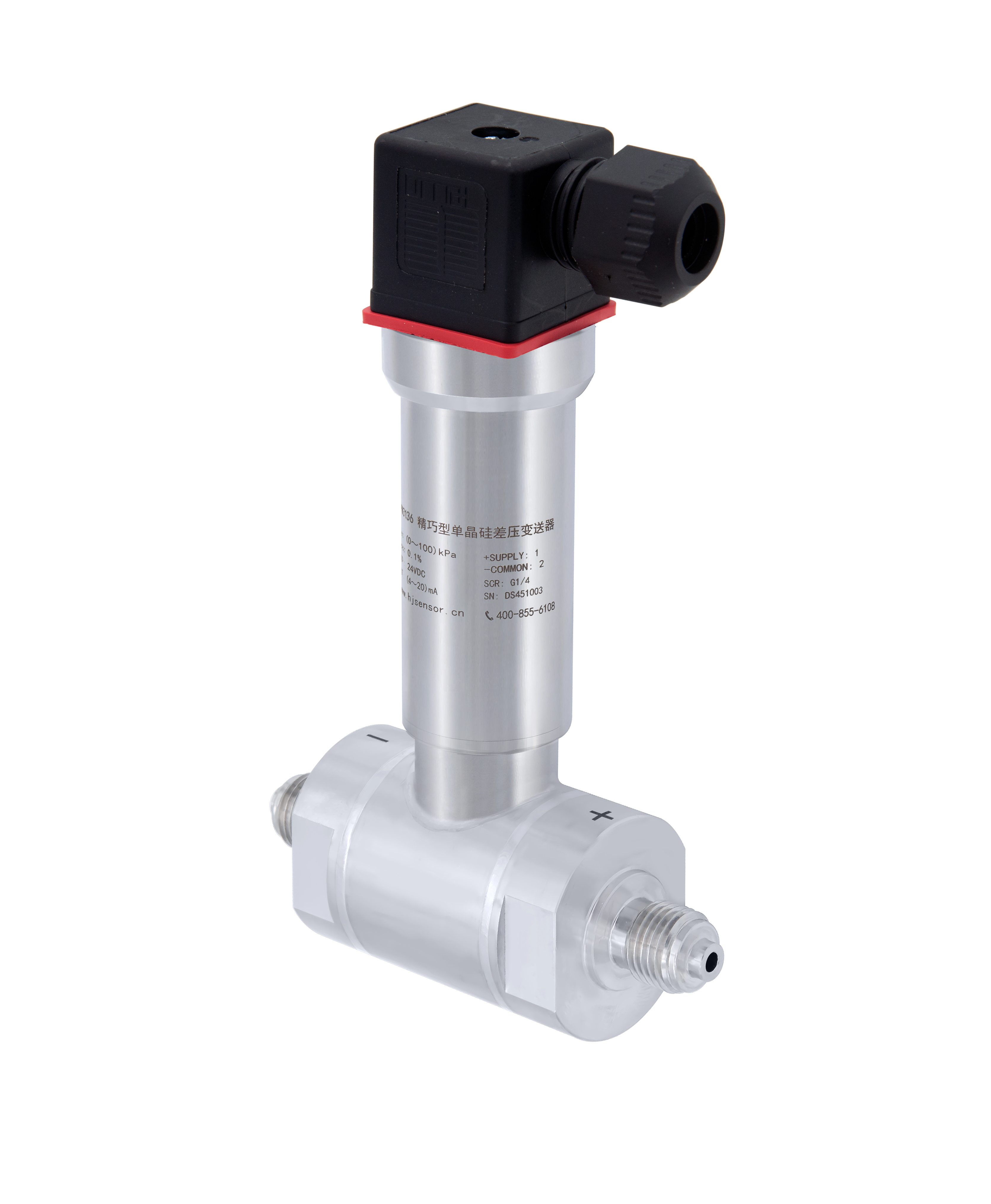

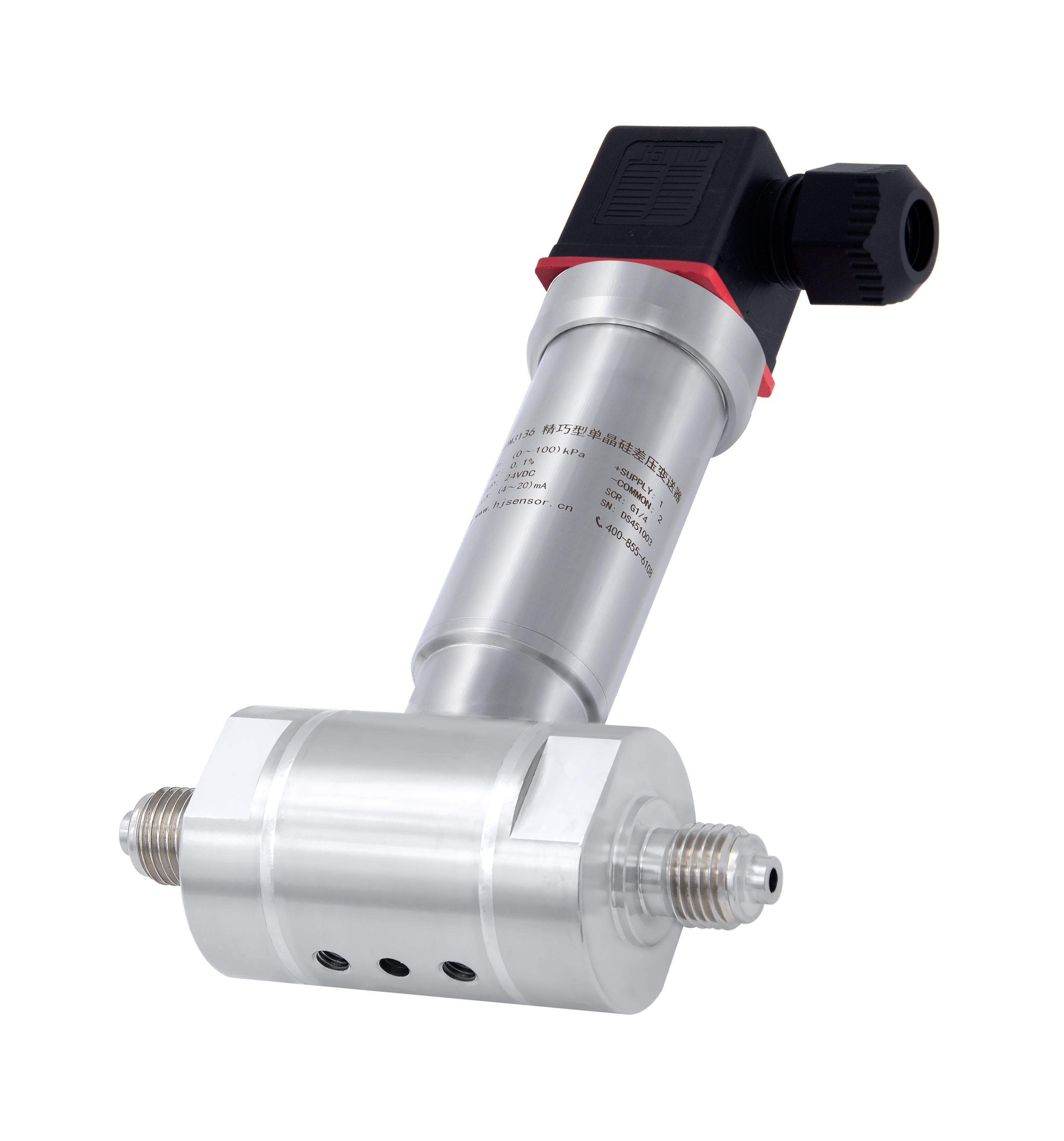

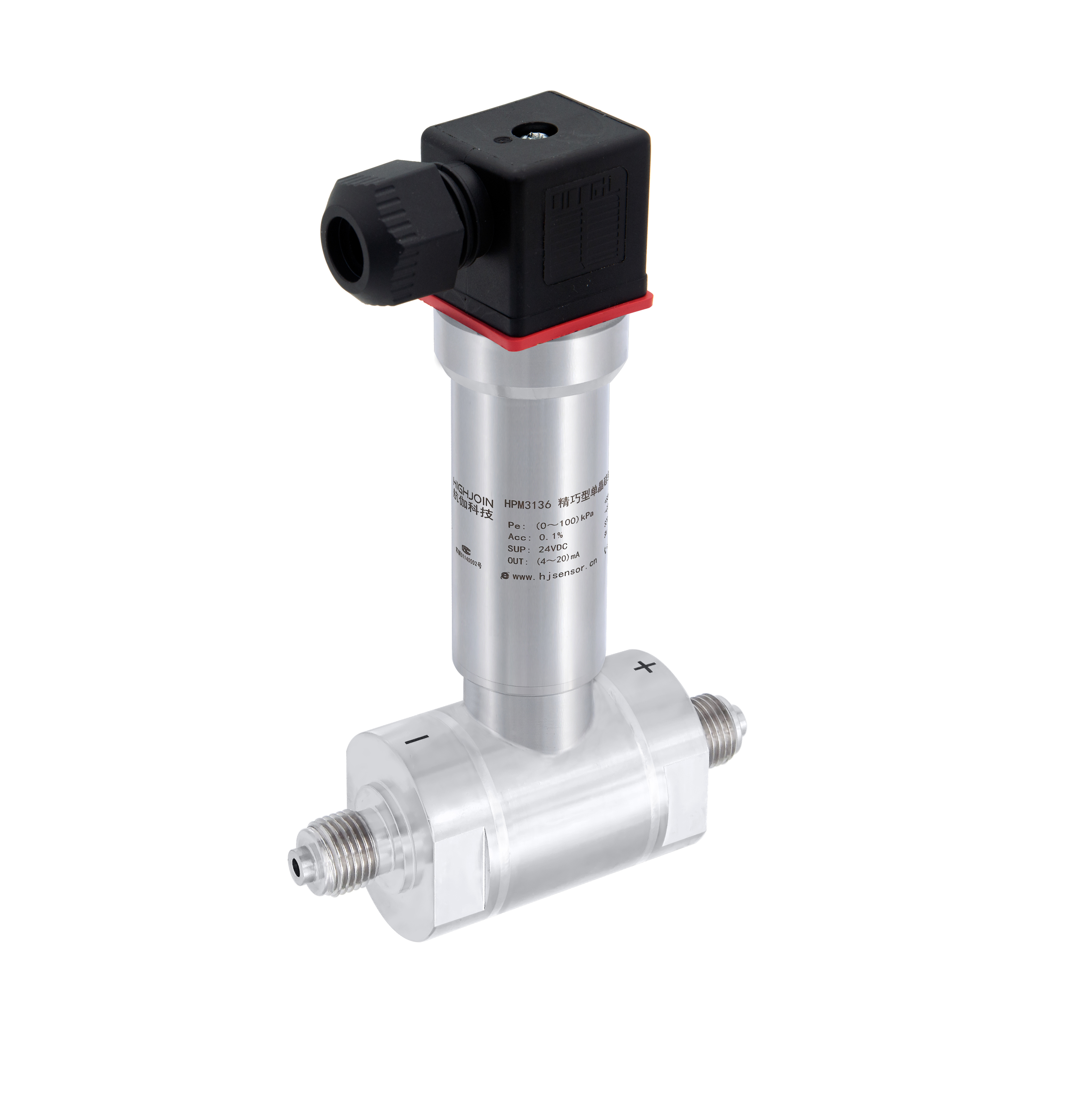

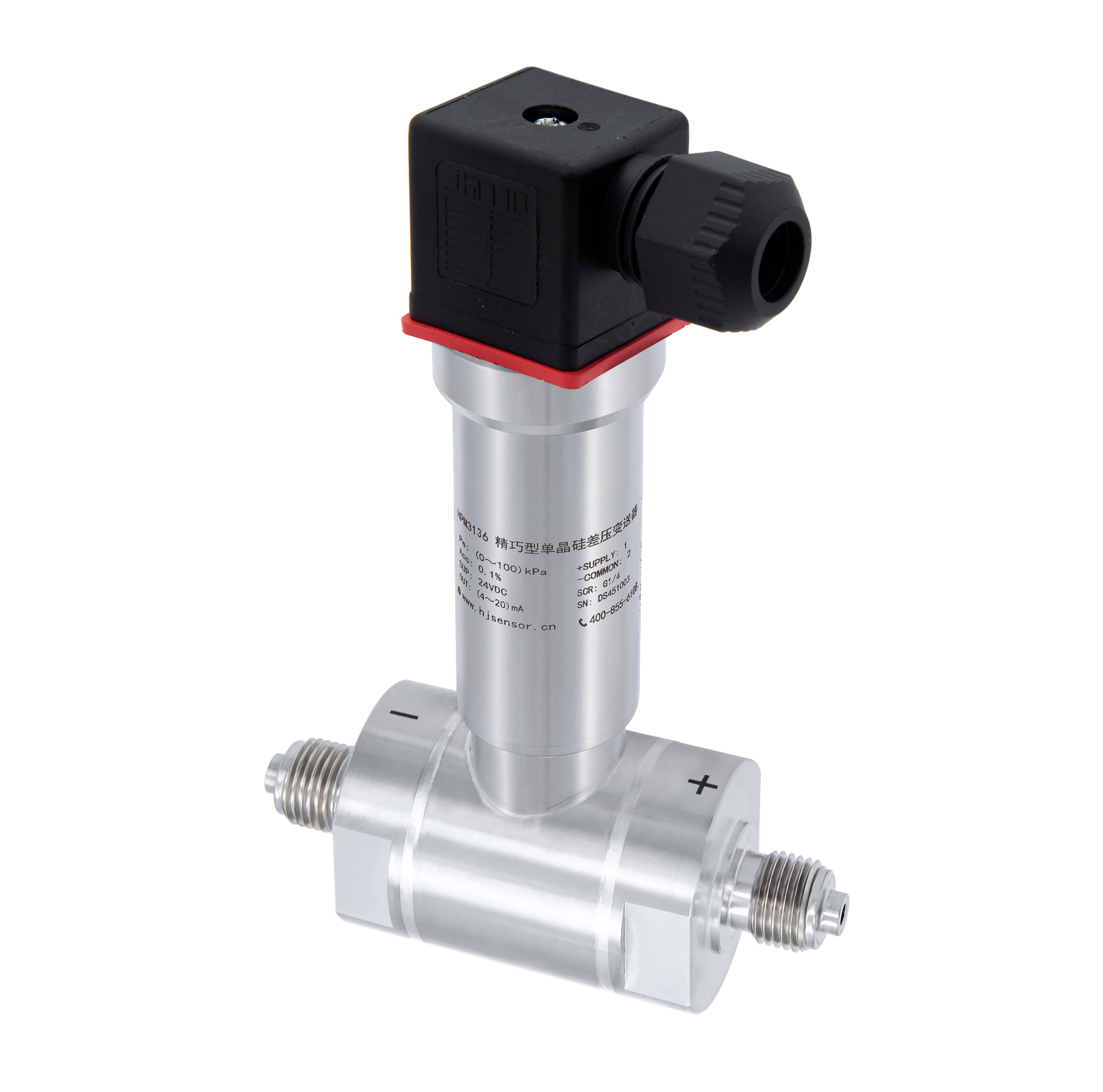

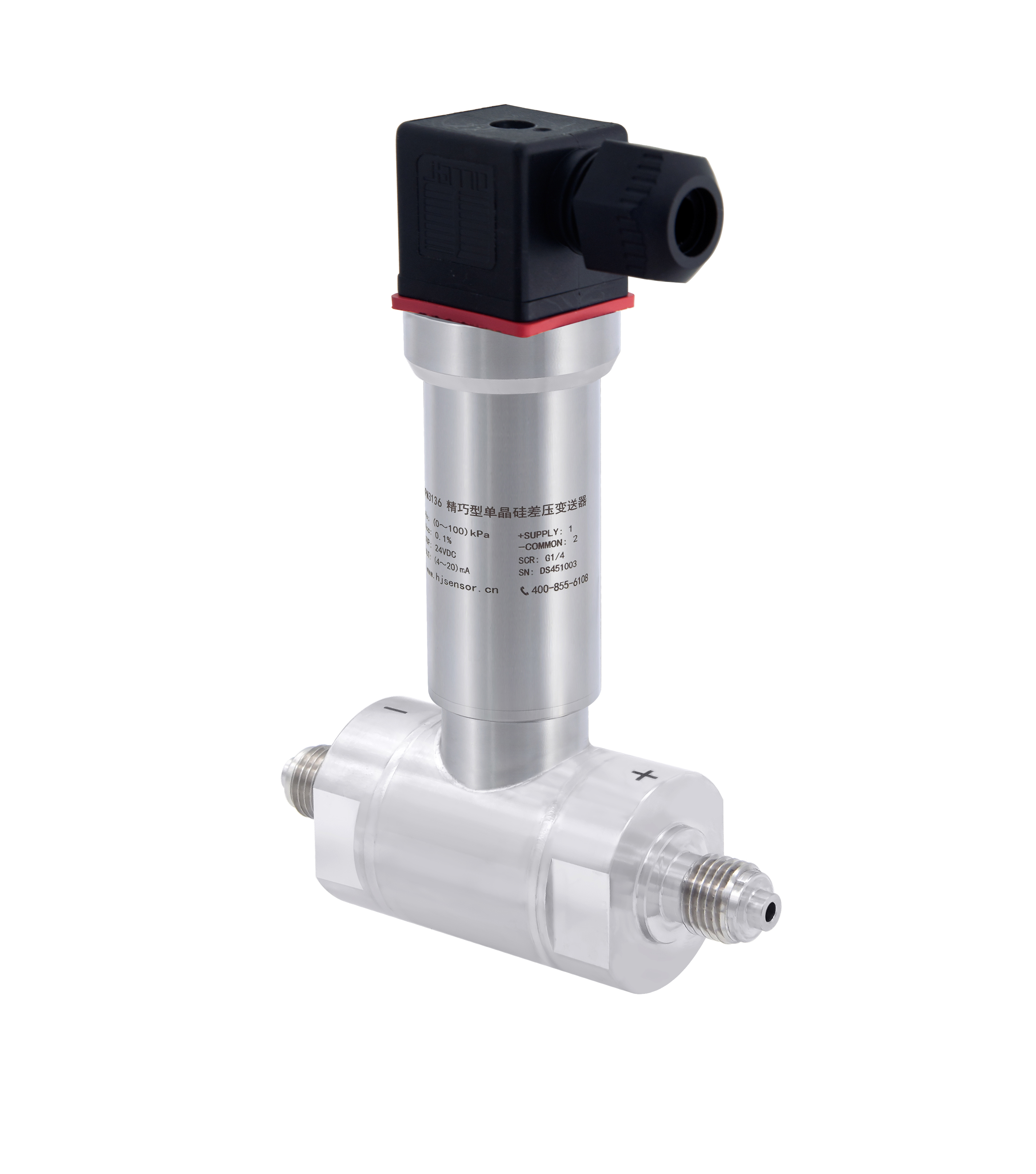

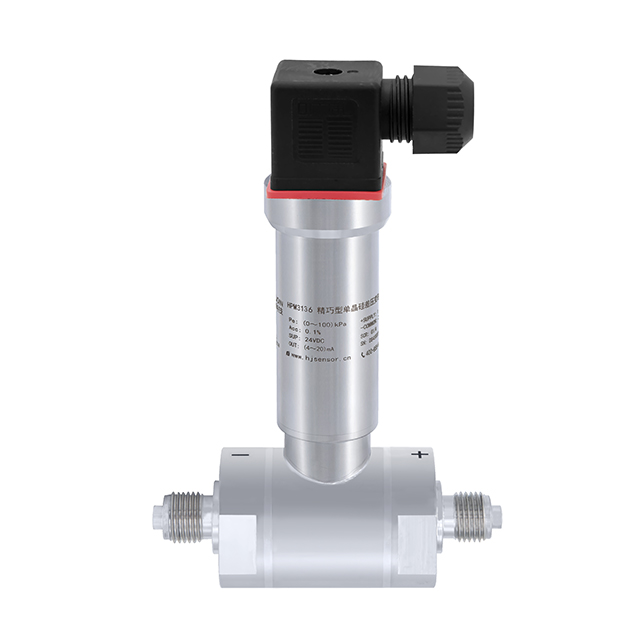

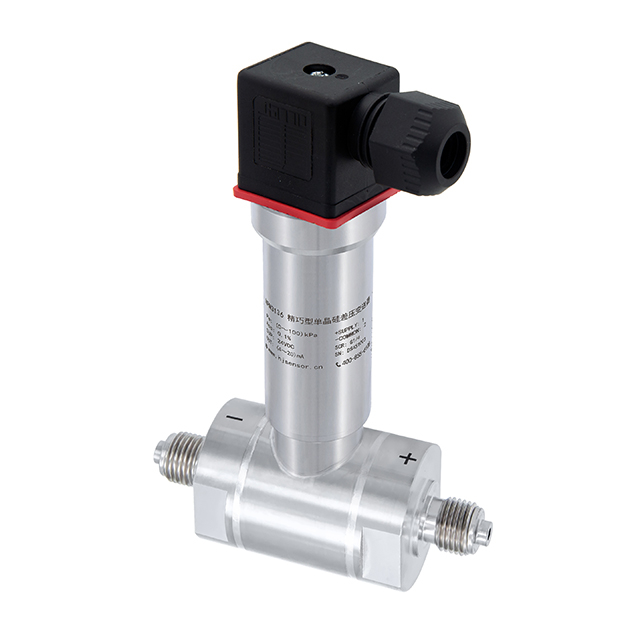

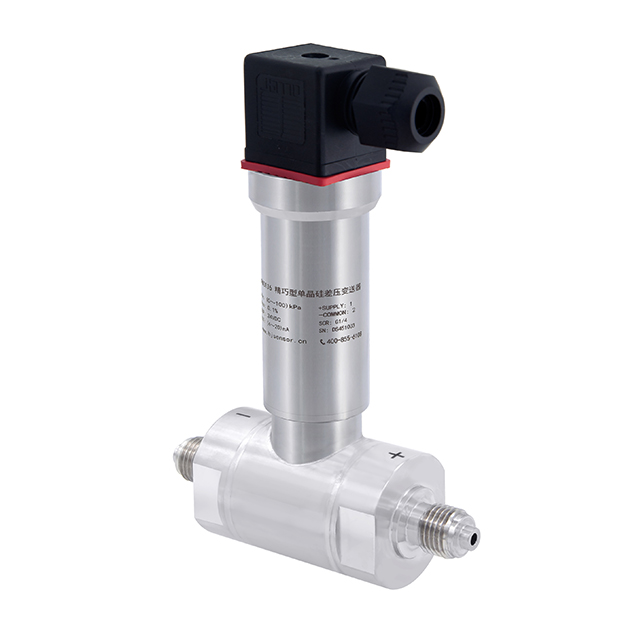

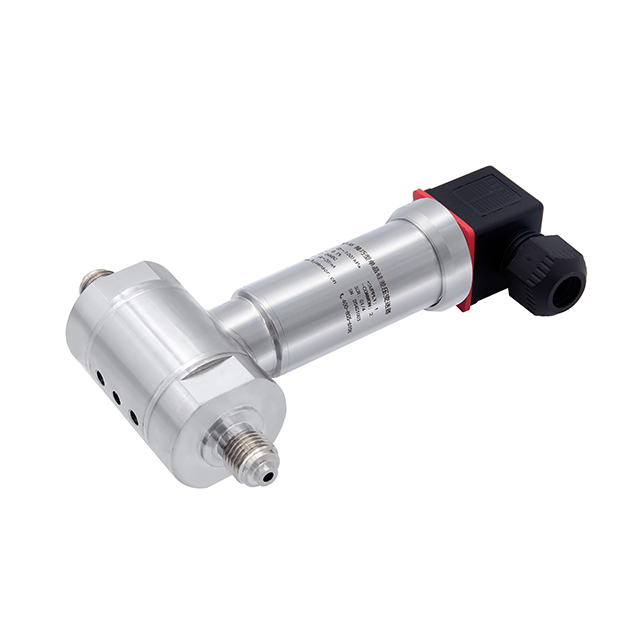

HPM3136 monocrystalline silicon compact differential pressure transmitter adopts monocrystalline silicon high-stability differential pressure chip, which can achieve high-precision measurement and high overload. The product has an embedded signal processing module, which realizes the combination of static pressure and temperature compensation and can achieve high-precision measurement and maintain good long-term stability under a wide range of static pressure and temperature changes. At the same time, the product adopts a fully welded structure, and the pressure interface is a threaded connection, which can be directly installed on the measuring pipeline or connected through a pressure pipe. The product is compact and easy to install, and is widely used in differential pressure, liquid level, flow measurement and control in the fields of process control and equipment monitoring.
Features
Compact differential pressure measurement
Single crystal silicon high stability differential pressure chip
Overload diaphragm protection design
High accuracy
Fully welded type
Multiple process connections
Overview
HPM3136 monocrystalline silicon compact differential pressure transmitter adopts monocrystalline silicon high-stability differential pressure chip, which can achieve high-precision measurement and high overload. The product has an embedded signal processing module, which realizes the combination of static pressure and temperature compensation and can achieve high-precision measurement and maintain good long-term stability under a wide range of static pressure and temperature changes. At the same time, the product adopts a fully welded structure, and the pressure interface is a threaded connection, which can be directly installed on the measuring pipeline or connected through a pressure pipe. The product is compact and easy to install, and is widely used in differential pressure, liquid level, flow measurement and control in the fields of process control and equipment monitoring.
Features
Compact differential pressure measurement
Single crystal silicon high stability differential pressure chip
Overload diaphragm protection design
High accuracy
Fully welded type
Multiple process connections
Range, overload and accuracy | |||||||||
Rated range | 1kPa | 6kPa | 40kPa | 100kPa | 400kPa | 1MPa | 3MPa | 10MPa | |
Single-side positive terminal | 300kPa | 16MPa | 16MPa | 16MPa | 16MPa | 16MPa | 16MPa | 16MPa | |
Single-side negative terminal | 150kPa | 16MPa | 16MPa | 16MPa | 16MPa | 16MPa | 16MPa | 16MPa | |
Double-side static pressure | 5MPa | 25MPa | 25MPa | 25MPa | 25MPa | 40MPa | 40MPa | 40MPa | |
Accuracy | 0.1% | 0.075% | 0.075% | 0.075% | 0.075% | 0.075% | 0.075% | 0.075% | |
Measuring Medium | Various liquids and gases compatible with contact materials | ||||||||
Output Signal | 4~20mADC+HART | ||||||||
Power Supply | 12~30VDC | ||||||||
Temperature compensation range | -10~70℃ | ||||||||
Temperature Coefficient of Zero | ±0.2%FS(Within temperature compensation range, 1kPa) ±0.1%FS(Within temperature compensation range, other ranges) | ||||||||
Temperature Coefficient of Full Scale | ±0.2%FS(Within temperature compensation range, 1kPa) ±0.1%FS(Within temperature compensation range, other ranges) | ||||||||
Measuring Medium Temperature | -40~120℃ | ||||||||
Ambient Temperature | -40~80℃ | ||||||||
Storage Temperature | -40~80℃ | ||||||||
Protection Grade | IP65 | ||||||||
Short circuit protection | With | ||||||||
Reverse polarity protection | No damage, the circuit does not work | ||||||||
Process Connection | NPT1/4 female thread (default), G1/4 male thread, M20×1.5 male thread, other customized | ||||||||
Insulation resistance | >200MΩ,500VDC | ||||||||
Dielectric strength | <2mA 500VAC(Apply 500VAC 50Hz test voltage, no breakdown or arcing for 1 minute) |
