How to Install a Pressure Switch Correctly?
Pressure switches are essential for monitoring and controlling pressure in hydraulic, pneumatic, and industrial systems. But incorrect installation can lead to false switching, unstable readings, or even equipment failure. So, what is the right way to install a pressure switch like the HPM560 Intelligent Pressure Switch? This guide walks you through the key steps and best practices.

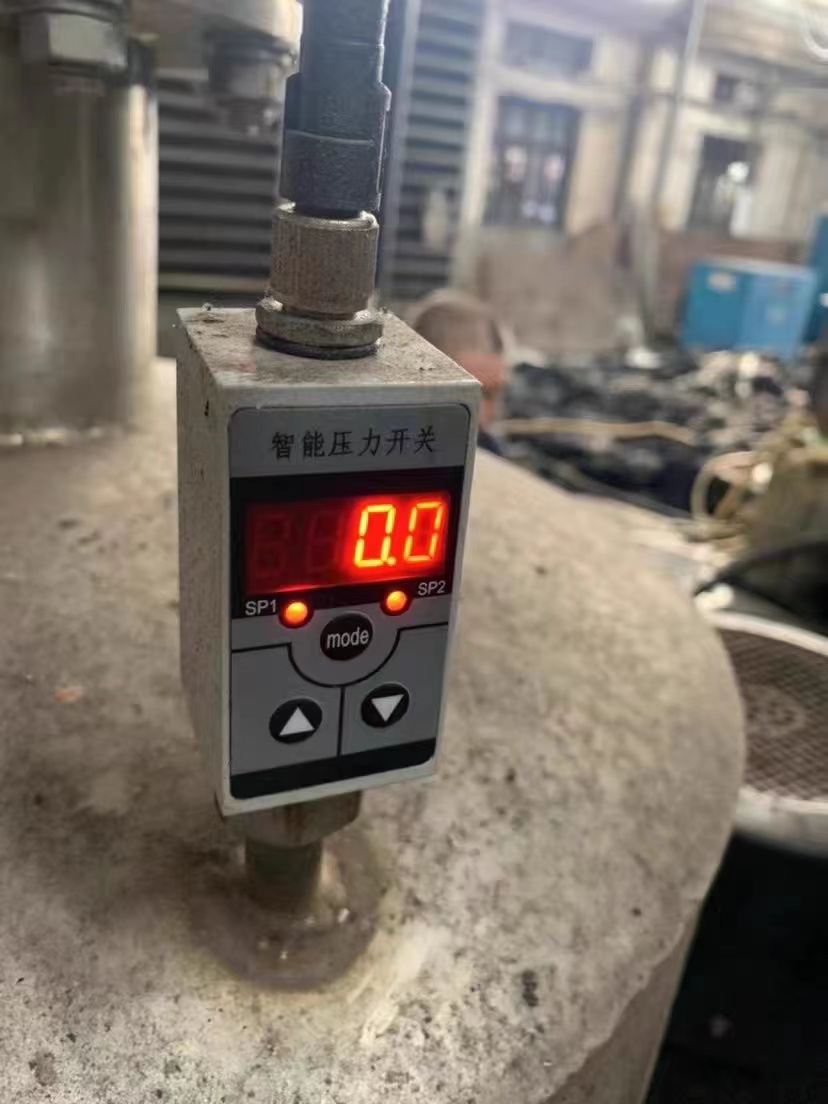

Why Choose the HPM560 Intelligent Pressure Switch?
The HPM560 is an all-electronic pressure switch with a silicon piezoresistive sensor and an isolated diaphragm. It combines pressure measurement, display, output, and control in one compact unit. Key features include:
Wide pressure range – from -100kPa up to 60MPa
High accuracy – ≤±0.5% FS
4-bit LED display – clear on-site reading
Dual switching outputs – PNP/NPN selectable, load capacity up to 1.2A
Analog output – 4-20mA for remote monitoring
Fast response – response time <4ms
Long switch life – >1 million cycles
IP65 protection – suitable for industrial environments
Wide temperature range – medium temperature from -25°C to 80°C
Step-by-Step Installation Guide
1. Pre-Installation Checks
Verify the model – confirm that the pressure range, output type (PNP/NPN), and process connection match your application.
Inspect the unit – check for any visible damage to the housing, display, or thread.
Read the manual – review the wiring diagram and parameter setting instructions.
2. Select the Right Mounting Location
Vibration – avoid locations with excessive vibration. The HPM560 can withstand 10g vibration, but prolonged heavy vibration may affect accuracy.
Temperature – keep ambient temperature within -25°C to 80°C. Avoid direct heat sources.
Accessibility – mount the switch where the display is easy to read and the keys are accessible for parameter adjustment.
Media compatibility – ensure the wetted material (304 stainless steel) is compatible with your media.
3. Mechanical Installation
Thread connection – standard process connection is threaded. Apply PTFE tape or sealant to the male thread, leaving the first two threads clean to prevent contamination.
Tightening – use a wrench on the hexagon flats of the switch, never on the housing. Tighten firmly but do not overtighten.
Orientation – mount the switch with the cable entry pointing downward to prevent moisture ingress.
4. Electrical Connection
The HPM560 offers three wiring options. Refer to the ordering guide for your specific configuration:
Standard 4-pin M12 connector – pin assignment varies by output type. Consult the wiring diagram on the product label.
Cable outlet – use shielded cable for analog output to minimise electrical noise.
Important – always disconnect power before wiring. Connect the power supply (24VDC) with correct polarity.
5. Parameter Setting
Set switching points – use the front keys to set the upper and lower switching values. Values can be set anywhere from zero scale to full scale.
Select output type – choose PNP or NPN according to your control system.
Adjust delay time – set the switching delay to prevent chattering in noisy applications.
Test the settings – apply pressure and verify that the LED indicators and switching outputs respond correctly.
6. System Commissioning
Slowly pressurise the system and monitor the display.
Verify the switching action at the preset points.
Check the analog output (4-20mA) for linearity.
Test the system under normal operating conditions.
Common Mistakes to Avoid
Mistake | Consequence | Solution |
|---|---|---|
Mounting with cable entry upward | Moisture ingress damages electronics | Orient cable entry downward |
Using the housing to tighten the switch | Housing damage or misalignment | Always use the hexagon flats |
Incorrect wiring polarity | Damage to the internal circuit | Double-check wiring before powering on |
Ignoring vibration limits | False switching or premature failure | Add vibration isolators if needed |
Setting switching points too close | Output chattering | Maintain sufficient hysteresis |
No PTFE tape on threads | Leakage at connection point | Use proper thread sealant |
Final Thoughts
Installing a pressure switch like the HPM560 Intelligent Pressure Switch is straightforward when you follow the correct procedures. Always verify your model, mount it properly, wire it correctly, and test thoroughly before putting it into service. If you need help selecting the right pressure switch for your application – whether you need PNP or NPN output, a specific pressure range, or custom settings – contact us for free technical support.
