How to Install a Radar Level Meter Correctly?
Radar level meters are essential for non‑contact level measurement in industries like water treatment, chemical processing, and mining. But improper installation can lead to unstable readings, signal loss, or inaccurate measurements. So, what is the correct way to install a radar level meter like the HYM503? This guide walks you through the key steps and best practices.

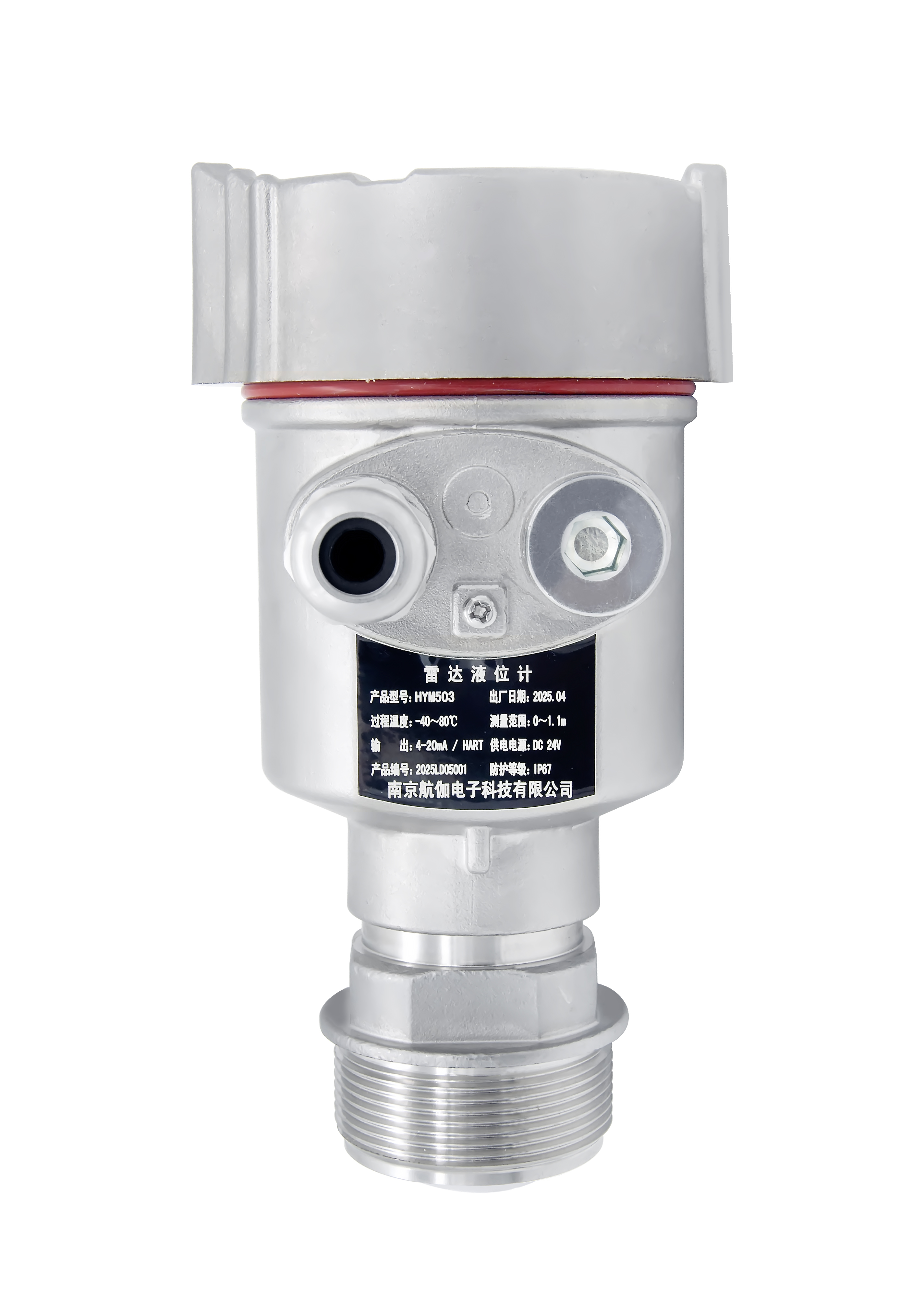

Why Choose the HYM503 Radar Level Meter?
The HYM503 uses Frequency Modulated Continuous Wave (FMCW) technology for high‑precision, non‑contact level measurement. Key features include:
Wide measuring range – up to 120 meters
High accuracy – ±2mm (for 30m range)
Multiple antenna options – PTFE, SS304 with PTFE, suitable for corrosive and high‑temperature environments
Flexible outputs – 4‑20mA, HART, Modbus
Strong adaptability – works with dust, lumps, powders, and liquids
IP66 protection – robust for outdoor and harsh environments
Easy configuration – via on‑board keys, HART handheld, or PC software
Step‑by‑Step Installation Guide

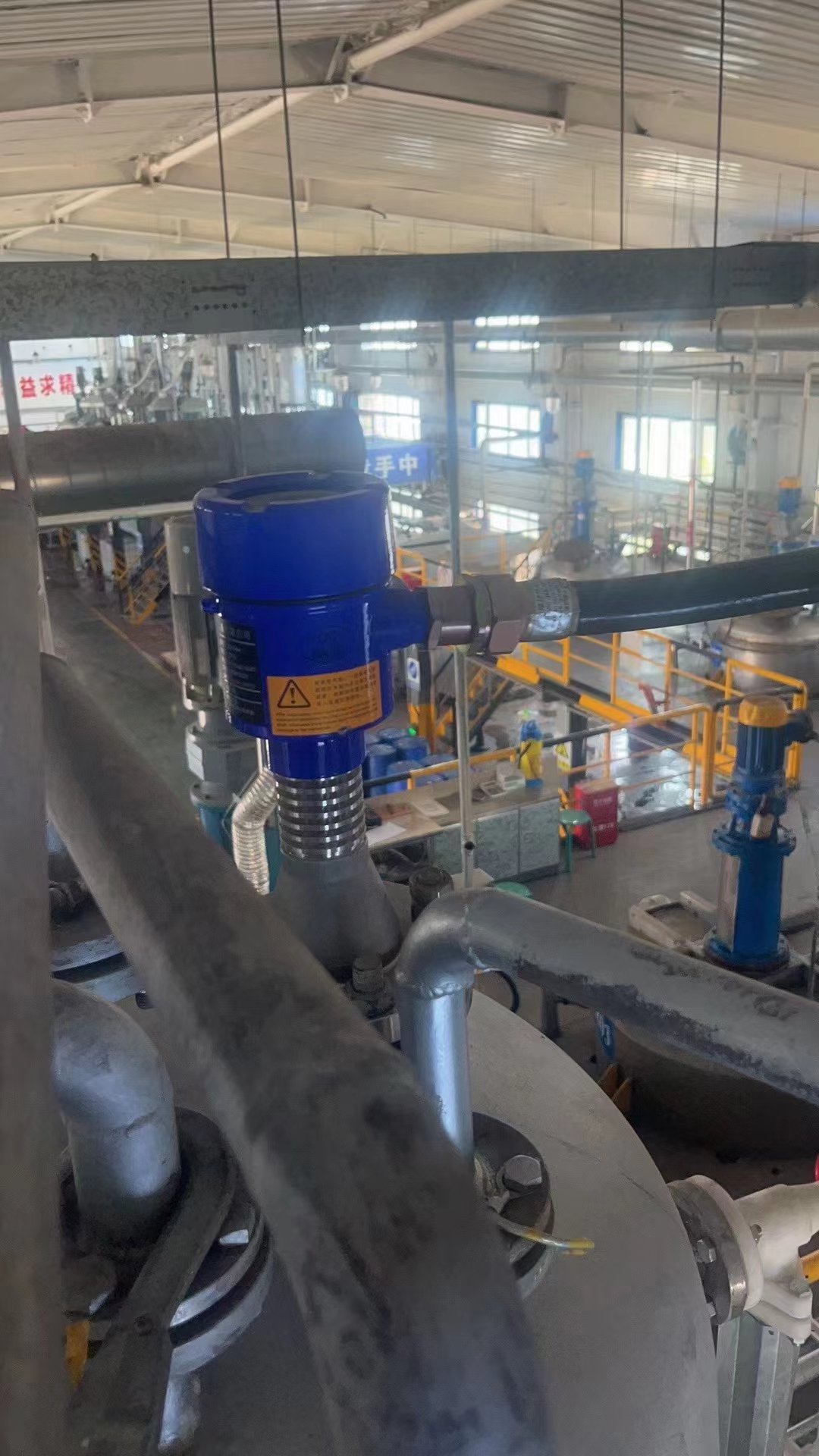

1. Select the Right Installation Position
Avoid obstructions – the antenna beam must have a clear path to the measured surface. Avoid installations near tank walls, ladders, or internal structures.
Avoid fill streams – do not install the meter directly above the material inlet. The falling material can cause false reflections and measurement errors.
For conical tanks – position the meter so the beam hits the bottom of the tank directly. Off‑center installation may cause inaccurate readings at low levels.
For stilling wells or bypass pipes – these are recommended for turbulent surfaces or foam, providing a stable reflection surface.
2. Choose the Right Antenna Type
Antenna Type | Application |
|---|---|
Horn antenna (PTFE) | Corrosive media, high temperature (up to 200°C), long range |
Rod antenna (PTFE) | Small tanks, limited space, light media |
Flush antenna (SS304 + PTFE) | Hygienic applications, food and pharmaceutical |

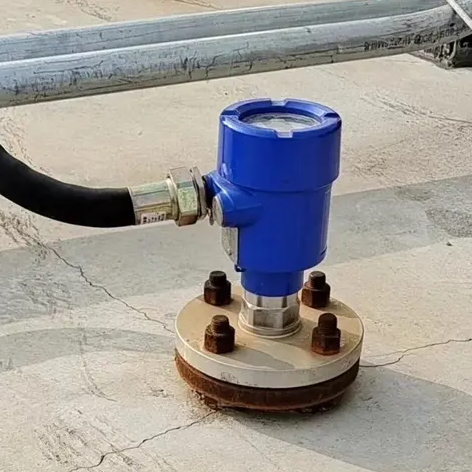

The HYM503 supports thread, bracket, or flange connections – select the appropriate mounting method based on your tank design.
3. Mounting Orientation
Vertical mounting – install the meter with the antenna facing straight down. The beam angle is ±4° (or narrower for larger antennas). Tilted installation can cause signal deflection.
Clearance – ensure sufficient clearance between the antenna and the maximum material level to prevent contact or coating.
For plastic tanks – metal plates or stilling wells may be needed to improve signal reflection if the medium has low dielectric constant.
4. Electrical Connection
Power supply – 18‑36VDC. Use a regulated power supply for stable operation.
Output wiring – connect 4‑20mA, HART, or Modbus according to your control system.
Cable shielding – use shielded twisted‑pair cables for signal lines. Connect the shield to ground at one end.
Cable glands – ensure proper sealing to maintain IP66 protection.
5. Configuration and Setup
Parameter setting – use the on‑board keys to set measuring range, output mode, and application type.
HART communication – for remote configuration, use a HART handheld or PC software.
Learning function – the HYM503 includes a learning function to exclude interference waves and adapt to complex tank environments.
6. Commissioning
Check signal strength – after installation, verify the signal quality and echo curve.
Adjust settings if needed – if false echoes are detected, adjust the threshold or use the learning function to filter them.
Verify measurement – compare the displayed level with manual measurement or a reference sensor.
Common Mistakes to Avoid
Mistake | Consequence | Solution |
|---|---|---|
Installing above the fill inlet | False reflections from falling material | Position away from the fill stream |
Beam blocked by internal structures | Signal loss or inaccurate readings | Ensure clear beam path |
Insufficient clearance to max level | Antenna coating or contact | Keep adequate distance |
Tilted installation | Signal deflection | Ensure vertical mounting |
Poor grounding | Electrical noise and unstable readings | Ground the cable shield properly |
Using wrong antenna material | Corrosion or signal attenuation | Select PTFE or 304+PTFE for corrosive media |
Final Thoughts
Installing a radar level meter like the HYM503 requires careful attention to position, antenna selection, beam path, and electrical connections. Following these guidelines ensures accurate, reliable level measurement and long‑term stability. If you need help selecting the right antenna type or installation method for your tank, contact us for free technical support.
Need a reliable radar level meter for your next project? Check the HYM503 specifications or request a quote today.
Summary: This guide provides step‑by‑step instructions for installing the HYM503 radar level meter, covering position selection, antenna choice, mounting orientation, wiring, configuration, and commissioning. It highlights common mistakes such as incorrect positioning or blocked signal paths, and includes a real‑world application example. Proper installation ensures accurate, stable level measurement in challenging industrial environments.
