How to Install an Electromagnetic Flow Meter Correctly?
Electromagnetic flow meters are essential for measuring conductive liquids in industries like water treatment, chemical, food, and metallurgy. But improper installation can lead to inaccurate readings, unstable signals, or even sensor damage. So, what is the correct way to install an electromagnetic flow meter like the HFM100? This guide walks you through the key steps and best practices.
Why Choose the HFM100 Electromagnetic Flow Meter?
The HFM100 operates on Faraday's law of electromagnetic induction, making it ideal for measuring conductive liquids (≥20μS/cm) such as acids, alkalis, slurries, and pulp. Key features include:
Wide diameter range – DN6 to DN3000
Multiple lining materials – CR, PTFE, FPM, PU, F46, PFA for various media compatibility
Multiple electrode options – 316L, Hastelloy B/C, Titanium, Tantalum, Platinum
High accuracy – 0.5% or 1.0% grade
Flexible outputs – 4‑20mA, Pulse, RS485, HART
Explosion‑proof versions available – Ex db ia q [ia Ga] IIC T6 Gb
Wide temperature range – sensor: -25°C to 180°C
Step‑by‑Step Installation Guide
1. Pre‑Installation Checks
Verify the model – confirm that the nominal diameter, lining material, and electrode material match your application.
Check the medium – ensure the fluid conductivity is >20μS/cm. The meter cannot measure oils, gases, or non‑conductive liquids.
Inspect the sensor – check for any damage to the liner, electrodes, or flange faces.
2. Select the Right Location
Full pipe requirement – the flow meter must be installed in a section where the pipe is always completely filled with liquid. Avoid high points in the pipeline where air bubbles can accumulate.
Straight pipe runs – ensure sufficient straight pipe lengths: at least 5× DN upstream and 3× DN downstream from the sensor.
Vibration – avoid locations with excessive vibration. For vibrating environments, use separated type installation.
Magnetic interference – keep away from strong magnetic fields (e.g., large motors, transformers).
3. Mounting Orientation

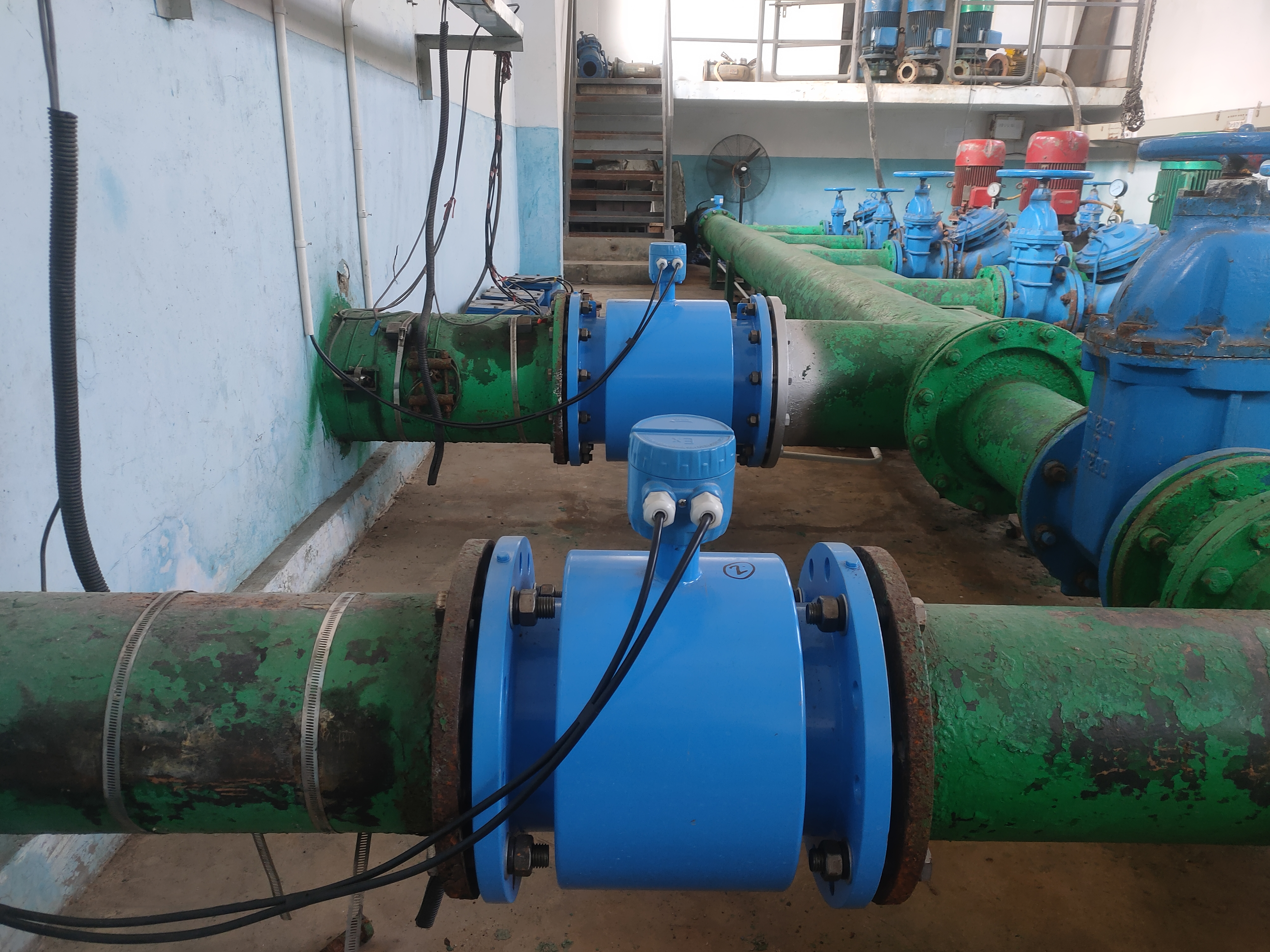

Horizontal installation – install the sensor in a horizontal pipe with the electrodes on the sides (at 3 o'clock and 9 o'clock positions). This prevents bubbles from accumulating on the electrodes.
Vertical installation – vertical installation is acceptable for upward flow, ensuring the pipe remains full.
Never install with electrodes at the top or bottom – this can trap air bubbles or sediment, causing measurement errors.
4. Grounding
Proper grounding is essential for electromagnetic flow meters to prevent electrical noise interference.
Ground the sensor – connect the grounding rings (or grounding electrodes) to a proper earth ground.
Ground the converter – ensure the converter housing is grounded separately.
For plastic or lined pipes – install grounding rings at both ends of the sensor.
5. Electrical Connections
Signal cable – use dedicated shielded cables for the sensor‑to‑converter connection. Keep the cable as short as possible (recommended <100m for integrated type).
Power supply – connect 24VDC or 220VAC according to the model. Check the terminal block description before wiring.
Output connections – connect 4‑20mA, pulse, or RS485 outputs to the control system as required.
Cable glands – ensure cable glands are properly sealed to maintain the IP65/IP67 rating.
6. System Commissioning
Check wiring – verify all connections are secure and correct.
Power on – apply power and check the LCD display for normal startup.
Empty pipe detection – confirm the empty pipe alarm is functioning correctly.
Zero adjustment – with the pipe full and flow stopped, perform zero calibration through the converter menu.
Range setting – set the flow range according to your process requirements.
Verify readings – compare the flow reading with a reference measurement if possible.
Common Mistakes to Avoid
Mistake | Consequence | Solution |
|---|---|---|
Installing at a high point in the pipeline | Air bubbles trapped, causing unstable readings | Install at a low point or in a vertical upward pipe |
Electrodes at the top or bottom | Bubbles or sediment interfere with measurement | Orient electrodes at the sides (3 and 9 o'clock) |
Insufficient straight pipe runs | Flow profile distortion, affecting accuracy | Ensure ≥5D upstream and ≥3D downstream |
Poor grounding | Signal noise and unstable readings | Connect grounding rings and earth ground properly |
Measuring non‑conductive fluids | No signal output | Verify fluid conductivity >20μS/cm |
Overtightening flange bolts | Liner damage or leakage | Tighten to recommended torque evenly |
Final Thoughts
Installing an electromagnetic flow meter like the HFM100 requires careful attention to pipe position, electrode orientation, grounding, and straight pipe requirements. Following these guidelines ensures accurate, reliable flow measurement and long‑term stability. If you need help selecting the right lining material, electrode type, or installation method for your specific application, contact us for free technical support.
