Key Factors To Consider When Selecting The Right Flow Switch

Flow switches are essential components in various industrial systems where the accurate monitoring of fluid and gas flow is critical for the safe and efficient operation of equipment. Choosing the right flow switch is crucial to ensure system reliability, avoid damage, and enhance safety. With various flow switch types, materials, and configurations available, it can be challenging to make the right choice. This article will explore the key factors to consider when selecting the right flow switch, helping you make an informed decision based on your system's needs.



1. Understanding the Role of a Flow Switch

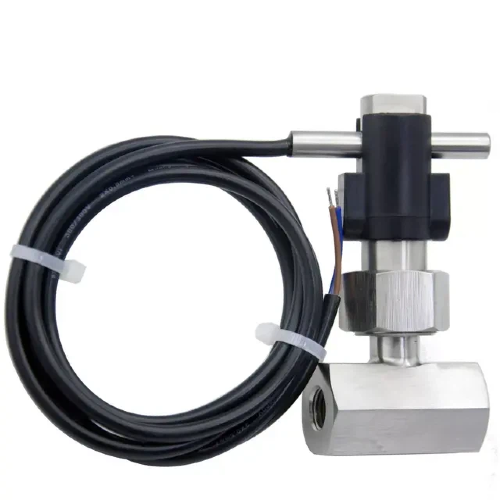

What is a Flow Switch?

A flow switch is a mechanical or electronic device used to detect and monitor the flow of liquids or gases in a system. It ensures that the flow remains within safe operational parameters and triggers an alarm or action when the flow deviates from a set range. Flow switches are commonly used in industrial applications, including water treatment plants, HVAC systems, chemical processing plants, and industrial cooling systems.

Why is It Important to Choose the Right Flow Switch?

Choosing the right flow switch plays a vital role in ensuring system efficiency, safety, and longevity. The right flow switch ensures that the system remains within its optimal operational range, helping to avoid costly downtime, reduce maintenance costs, and prevent potential system damage. Conversely, choosing an inappropriate flow switch can lead to operational issues, safety hazards, and even equipment failure.



2. Key Factors to Consider When Choosing a Flow Switch

Selecting the appropriate flow switch requires careful consideration of several key factors. Below are the most important elements to evaluate when making a choice:

2.1 Flow Rate Range

Importance

The flow rate range is one of the most important factors when choosing a flow switch. If the flow rate is too high or too low for the selected switch, it may fail to detect flow or trigger incorrect actions. Therefore, it’s crucial to ensure that the flow switch can handle the flow rate range specific to your application.

How to Determine

The flow rate is typically measured in units like gallons per minute (GPM) or liters per second (L/s). To determine the required flow rate range for your system, you should:

Measure or estimate the maximum and minimum flow rates.

Choose a flow switch that supports the desired flow range, ensuring accurate detection and activation.

Flow Rate Consideration	Action
Maximum Flow Rate	Ensure the flow switch handles peak flow conditions.
Minimum Flow Rate	Ensure the switch detects low flow to avoid dry-running or equipment damage.
Flow Rate Tolerance	Consider the tolerance or margin for error when choosing the switch's flow range.



2.2 Type of Fluid

Fluid Properties

The type of fluid being monitored is another critical factor. Flow switches need to be compatible with the characteristics of the fluid, including its viscosity, corrosiveness, and density. Depending on the application, you may be working with water, oil, chemicals, or gases.

Viscosity and Corrosiveness

Viscosity: A high-viscosity fluid, like oil or syrup, may require a flow switch with a more robust detection mechanism, such as a turbine or piston switch, as opposed to a paddle or vane switch, which may not operate effectively with thicker fluids.

Corrosiveness: Corrosive fluids require a flow switch made from materials like stainless steel, Hastelloy, or other corrosion-resistant materials to prevent wear and tear.

Fluid Property	Impact on Flow Switch Selection
Viscosity	Choose flow switches with mechanical or piston mechanisms for high-viscosity fluids.
Corrosiveness	Select materials such as stainless steel or specialized coatings for corrosive fluids.
Gas vs. Liquid	For gas systems, magnetic or thermal flow switches are more suitable.



2.3 Pressure and Temperature Conditions

Pressure Range

Flow switches are rated for specific pressure ranges. Ensuring that the flow switch can withstand the maximum pressure in your system is vital to avoid damaging the device. A flow switch that is rated for lower pressure may not perform well in high-pressure systems.

Temperature Resistance

Temperature is another factor to consider. Fluids in high-temperature systems, such as steam or hot oil, can cause damage to a flow switch if it is not designed to withstand high heat. Ensure that the flow switch you choose is rated for the temperature range your system will experience.

Condition	Factor to Consider
Pressure	Choose a flow switch that matches or exceeds the pressure rating of the system.
Temperature	Ensure the flow switch is designed for the operational temperature range of your system.



2.4 Response Time

Fast Activation

Depending on the application, a fast response time may be critical. For example, in cooling systems or chemical processing, even a brief disruption in flow can cause damage. In such cases, a flow switch with a rapid response time is essential to activate alarms or safety mechanisms before damage occurs.

How to Measure Response Time

The response time of a flow switch is usually specified by the manufacturer. Choose a switch with an appropriate response time based on your system's needs. Systems that require rapid adjustments will benefit from a flow switch that responds quickly to flow changes.

Response Time Consideration	Action
Critical Systems	Choose flow switches with fast activation times to prevent damage or downtime.
Less Critical Systems	A standard response time is sufficient for non-critical systems.



2.5 Mounting and Installation

Mounting Style

The mounting style of the flow switch depends on how your system is configured. Flow switches are typically mounted in-line, in-tank, or as an insertion-type switch. Choose a mounting style that fits the available space in your system and offers optimal performance.

Space Constraints

If your system has space limitations, consider compact flow switches or those that can be easily integrated into existing setups. The size and shape of the switch should align with the available installation space.

Mounting Type	Recommended For
Inline Mounting	For systems with straight pipelines or ducts.
In-Tank Mounting	For monitoring fluid flow within a tank or reservoir.
Insertion Mounting	For installations where direct contact with the fluid is required.



2.6 Electrical Requirements

Power Source

Some flow switches require external power sources, while others operate on battery power. Depending on the power availability in your system, select a flow switch that matches your system’s electrical capabilities.

Signal Output Type

Flow switches can output signals in various formats, such as digital, analog, or relay-based signals. Choose a switch that integrates with your system's control and monitoring systems. Ensure that the signal type is compatible with your existing setup.

Electrical Consideration	Action
Power Supply	Ensure the flow switch is compatible with the power source available.
Signal Type	Select a signal output type (digital, analog, relay) compatible with your system.



2.7 Durability and Maintenance

Material Durability

The durability of the flow switch is important, especially in harsh environments. For systems that deal with extreme temperatures, pressures, or corrosive fluids, selecting a switch made from high-quality materials like stainless steel or durable plastic is crucial.

Maintenance Requirements

Some flow switches require frequent maintenance and calibration, while others are designed for long-term reliability with minimal upkeep. Consider the maintenance demands of the flow switch and choose one that fits with your operational needs.

Durability Consideration	Action
Material Quality	Choose corrosion-resistant or durable materials for challenging environments.
Maintenance Needs	Opt for low-maintenance flow switches for long-term reliability.



3. Applications and Use Cases

3.1 Water Treatment and Distribution

Flow switches in water treatment systems ensure consistent water flow throughout the filtration and distribution processes. These switches help maintain water quality by ensuring that flow is uninterrupted and within required parameters.

3.2 HVAC Systems

In HVAC systems, flow switches monitor the flow of water or refrigerants in cooling and heating units. They help protect pumps and other equipment from running dry, which can cause overheating or failure.

3.3 Chemical Processing

Chemical plants often require flow switches that can withstand harsh chemicals and high pressures. A reliable flow switch is essential for ensuring consistent fluid flow and protecting equipment from damage caused by disruptions.

3.4 Industrial Cooling Systems

In industrial cooling systems, flow switches help regulate the coolant flow, ensuring that machinery operates at safe temperatures. The switch will trigger an alarm or system shutdown if coolant flow stops, preventing overheating and potential damage.



4. Troubleshooting and Maintenance of Flow Switches

4.1 Regular Testing

Performing regular tests of your flow switch is essential to ensure it remains in good working order. This includes visual inspections, testing the switch under varying flow conditions, and ensuring that alarms and system responses function correctly.

4.2 Common Issues and Solutions

Common flow switch problems include incorrect flow readings, failure to activate alarms, and false readings. Regular maintenance, including cleaning, calibration, and part replacement, can help resolve these issues.

4.3 Replacing Faulty Flow Switches

A malfunctioning flow switch should be replaced promptly to avoid system failure. When replacing a flow switch, ensure it matches the specifications of the old unit and is compatible with your system's requirements.



5. Conclusion

Choosing the right flow switch is critical for maintaining the safe, efficient, and reliable operation of your system. Key factors to consider include flow rate range, fluid type, pressure, temperature, response time, mounting style, and durability. By understanding these factors, you can select a flow switch that meets the specific needs of your system.

A properly selected flow switch can enhance your system’s performance, prevent downtime, and protect your equipment from damage. Regular maintenance and timely replacement of faulty switches are essential for ensuring long-term system reliability.

If you need assistance in selecting the right flow switch or learning more about our solutions, Nanjing Hangjia Electronic Technology Co., Ltd. is here to help. Our team of experts can guide you through the selection process and provide tailored solutions for your industrial needs.



6. FAQ

1. What is the most important factor when selecting a flow switch?

The most important factor is ensuring that the flow switch is suitable for your system’s flow rate, pressure, temperature, and fluid type. It should also be compatible with your control system.

2. Can a flow switch be used for both liquids and gases?

Yes, flow switches are available for both liquids and gases, but the design and materials of the switch may vary depending on the fluid type.

3. How do I know if my flow switch is malfunctioning?

Signs of a malfunctioning flow switch include inconsistent flow detection, failure to trigger alarms, and no response when the flow deviates from set thresholds.

4. How often should I replace my flow switch?

Flow switches should be replaced when they show signs of wear, damage, or when they no longer function properly. Regular testing and maintenance can help determine when replacement is necessary.

5. How do environmental factors affect flow switches?

Environmental factors such as temperature, humidity, and corrosive fluids can degrade the performance of flow switches. Ensure you select a flow switch made from materials suitable for the environmental conditions of your system.
