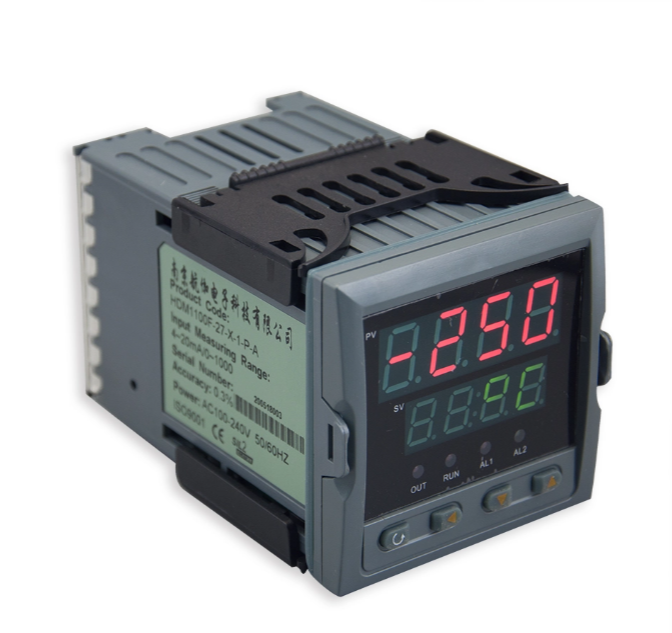

Single-Loop Digital Controller for Universal Industrial Input HDM1100
| Quantity: | |
|---|---|
Overview
The HDM1100 Simple Single Loop Digital Display Controller is a high-reliability industrial process monitoring and control instrument built for professional engineering teams and industrial system integrators. It delivers 0.3-class measurement accuracy, dual 4-digit LED displays, and supports thermocouples, thermal resistance, voltage, current, and transmitter inputs, making it ideal for real-time monitoring of temperature, pressure, flow, level, and humidity in demanding industrial environments. This compact controller integrates 2-channel alarm outputs, 1-channel analog transmission or RS485 Modbus communication, 1-channel DC24V feed output, and full photoelectric isolation between input, output, and power circuits. It accepts wide power input (100–240V AC/DC or 12–36V DC) and uses standard snap-in mounting, with seven panel sizes to fit diverse control cabinets. Engineered for stable operation, it works reliably at 0–50°C and 5–85%RH non-condensing conditions, supporting long-term unattended industrial field applications.
Key Benefits
High Precision & Stable Measurement
The HDM1100 single loop digital controller provides 0.3-class measurement accuracy to ensure consistent, reliable data capture for critical industrial parameters. Dual 4-digit LED screens clearly show process values and setpoints simultaneously, while adjustable filtering minimizes display fluctuation for smooth, stable readings under complex on-site conditions.
Universal Input Compatibility
This controller supports multiple signal types, including various thermocouples, Pt100/Cu50 thermal resistance, 0–10V, 4–20mA, and millivolt inputs, with square-root calculation for flow signals. It easily replaces multiple dedicated meters, simplifying system design and reducing spare parts inventory for enterprise clients.
Flexible Output & Communication
Equipped with 2-channel relay alarm outputs, 1-channel isolated analog transmission, and RS485 Modbus RTU communication, the HDM1100 digital display controller seamlessly connects to PLCs, DCS, and SCADA systems for remote monitoring and centralized control. The built-in 24V DC feed output directly powers 2-wire transmitters, simplifying wiring and lowering installation costs.
User-Friendly Operation & Installation
With a straightforward keypad interface and parameter lock function, the instrument enables fast setup without complex training. Seven standard panel sizes (160×80mm, 96×96mm, 48×48mm, etc.) and snap-in mounting ensure easy retrofitting and cabinet integration, shortening on-site commissioning time.
Enhanced Safety & Durability
Full photoelectric isolation protects against interference and surge damage, extending service life in harsh industrial environments. Wide-range power input and robust construction ensure stable performance under voltage fluctuations, supporting continuous, maintenance-light operation.
Industrial Applications of HDM1100 Digital Display Controller
The HDM1100 single loop digital display controller serves as a stable monitoring and control core across process industries, providing accurate data and reliable protection for enterprise production systems.
Manufacturing & Machinery
Monitors and controls temperature of heating plates, ovens, and cooling systems; regulates hydraulic pressure, lubrication flow, and equipment status to stabilize production quality and reduce downtime.
Petrochemical & Chemical Engineering
Measures and alarms for pipeline pressure, tank level, reaction temperature, and gas flow; supports interlock protection to improve operational safety and compliance.
Water Treatment & Environmental Systems
Monitors water level, flow rate, and pressure in water supply/drainage networks; integrates with dosing and circulation systems for stable, efficient operation.
HVAC & Facility Management
Controls temperature and humidity in workshops, warehouses, and clean rooms; supports linkage with ventilation and refrigeration units to optimize energy consumption.
Energy & Power Equipment
Monitors generator temperature, transformer oil temperature, and distribution cabinet parameters; provides early warning of abnormal conditions to prevent failures.
FAQ
What input signals does the HDM1100 support?
It supports thermocouples (K, S, B, E, T, J, R, N, Wre), thermal resistance (Pt100, Cu50, Cu100), DC voltage (0–5V, 1–5V, 0–10V), DC current (0–10mA, 4–20mA), and millivolt signals, with square-root processing for flow applications.
What output and communication options are available?
The controller offers 2-channel relay alarm outputs, 1-channel isolated analog output (4–20mA, 0–10V, etc.), and RS485 with Modbus RTU protocol. Only one function can be active on the shared output terminal; simultaneous analog and communication requires separate configuration.
What power supply versions are offered?
Two options: A (100–240V AC/DC, 50/60Hz) and D (12–36V DC), suitable for industrial power grids and mobile/off-grid equipment.
What mounting dimensions are available?
Seven standard sizes: 160×80mm, 80×160mm, 96×96mm, 96×48mm, 48×96mm, 72×72mm, 48×48mm, with matching panel cutouts for broad compatibility.
How to set input type and measurement range?
Enter the L2 parameter menu by setting Loc=132, adjust Pn to select input code, then set PL (lower limit) and PH (upper limit) to define the measuring range; decimal point and filtering can also be adjusted here.
