The Science Behind 0.1% High-Accuracy Sanitary Pressure Sensors

In sanitary applications such as food production, pharmaceuticals, and biotechnology, measurement accuracy is essential for ensuring product safety, meeting strict regulatory requirements, and maintaining consistent quality standards. Even minor pressure variations can disrupt sensitive processes like sterile filtration, precise dosing, or fermentation control, leading to product loss or contamination risks.

A sanitary pressure transmitter plays a vital role in achieving these demanding tolerances. Designed specifically for hygienic environments, it delivers precise and stable measurements while complying with 3-A, EHEDG. This combination of accuracy and sanitary design helps manufacturers operate efficiently and confidently in critical applications.

What Does 0.1% Accuracy Mean?

1. Definition of Accuracy in Pressure Sensors

Accuracy in a sanitary pressure transmitter refers to how closely the sensor’s output matches the true process pressure over its measurement range. It combines multiple error sources, such as linearity, hysteresis, and temperature effects, into a single performance indicator.

2. Explanation of the 0.1% Full-Scale Error Specification

A 0.1% accuracy rating means that the maximum measurement error will not exceed 0.1% of the transmitter’s full-scale span. For example, if a transmitter has a 0–10 bar range, the total error at any point in that range will be within ±0.01 bar. This extremely tight tolerance is especially valuable in sanitary applications where precise control is critical for quality and compliance.

3. How Accuracy Differs from Repeatability and Stability

It is important to distinguish accuracy from other performance characteristics:

Repeatability describes the sensor’s ability to produce the same reading under identical conditions, indicating short-term consistency.

Stability (or long-term drift) measures how readings change over time due to aging, temperature cycles, or mechanical stress.
While repeatability and stability contribute to overall performance, accuracy defines the combined maximum deviation from the true pressure at any point across the measuring range.

Key Design Elements Enabling High Accuracy

Achieving 0.1% high accuracy in a sanitary pressure transmitter depends on the integration of several advanced technologies. From sensing elements to signal processing, each component must work seamlessly to ensure consistent, reliable performance in demanding sanitary environments.

1. Advanced Sensing Technology

At the heart of any sanitary pressure transmitter lies the sensing element, which directly converts applied pressure into an electrical signal. Several technologies are commonly used:

• Strain Gauge Sensors: Rely on changes in electrical resistance caused by deformation of the sensor under pressure. They are robust and widely used in industrial and sanitary environments.

• Piezoresistive Sensors: Offer excellent sensitivity and are suitable for applications requiring fast response and high precision.

• Capacitive Sensors: Measure pressure changes by detecting variations in capacitance between two plates. They are known for their high resolution and stability, especially in low-pressure ranges.

The overall sensor architecture, including diaphragm design, bonding methods, and mechanical isolation, directly influences measurement precision and long-term reliability.

2. Temperature Compensation

Temperature fluctuations are common in food, pharmaceutical, and biotech processes, and they can distort pressure readings if not properly managed.

• Integrated Temperature Sensors: Built into modern sanitary transmitters, these sensors detect environmental changes in real time.

• Compensation Algorithms: Microprocessors use complex algorithms to correct the pressure signal based on temperature input, minimizing thermal drift and ensuring consistent output across a wide temperature range.

This functionality is especially critical in SIP (Sterilize-in-Place) or high-temperature cleaning cycles, where maintaining sensor accuracy is essential.

3. Signal Processing and Electronics

The analog pressure signal generated by the sensor must be converted and transmitted accurately to a control system.

• High-Resolution A/D Conversion: Precision analog-to-digital converters ensure minimal loss of detail during signal conversion, supporting accurate pressure interpretation even in micro-scale changes.

• Noise Filtering: Advanced filtering techniques reduce the influence of electrical noise, vibration, or mechanical shock—common in industrial environments.

• Stable Output Signals: Whether using analog (4–20mA, 0–10V) or digital protocols (like HART), the transmitter’s electronics must deliver clean, repeatable signals for integration with PLCs or SCADA systems.

Together, these design elements enable sanitary pressure transmitters to deliver the ultra-high accuracy and repeatability required in modern hygienic processing.

Hygienic Design Without Compromising Performance

A sanitary pressure transmitter must deliver accurate measurements while fully meeting strict hygiene standards required in food, beverage, and pharmaceutical industries.

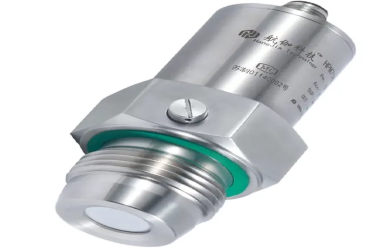

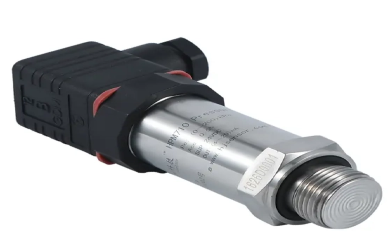

1. Flush Diaphragm Design

Flush diaphragm sensors have smooth, crevice-free surfaces that prevent residue buildup and bacterial growth. This design not only supports high measurement accuracy but also allows for effective cleaning through CIP (Clean-in-Place) and SIP (Sterilize-in-Place) procedures.

2. Material Selection

Most sanitary pressure transmitters use 316L stainless steel with highly polished surfaces to resist corrosion and reduce contamination risks.

3. Compliance with Standards

Certified according to 3-A, EHEDG, these transmitters guarantee hygienic design and cleaning compatibility, ensuring safe use in sensitive food and pharmaceutical applications.

Factors That Influence Real-World Accuracy

While a sanitary pressure transmitter may be specified with a high accuracy rating under ideal conditions, several real-world factors can affect its actual performance. Understanding these factors is essential for maintaining reliable and precise pressure measurements.

1. Installation Considerations

Mounting Position: Proper orientation and secure mounting minimize mechanical stress and ensure accurate pressure transmission to the sensor diaphragm. Incorrect positioning can cause measurement errors or sensor damage.

Vibration: Excessive vibration from nearby machinery or piping can introduce noise and wear, affecting sensor stability and longevity. Vibration dampening or isolation may be required in harsh environments.

2. Process Conditions

Temperature Swings: Rapid or wide temperature changes can cause thermal expansion or contraction in sensor components, leading to signal drift if not properly compensated. Maintaining stable temperature or using temperature-compensated transmitters helps mitigate this effect.

Pressure Pulsation: Fluctuating or pulsating pressure can challenge sensor response time and cause fluctuating readings. Proper dampening or filtering solutions can improve measurement consistency.

3. Calibration Practices and Frequency

Regular calibration against known pressure standards is critical to ensuring ongoing accuracy.

The frequency of calibration depends on process criticality, environmental conditions, and manufacturer recommendations.

Neglecting calibration can result in sensor drift, leading to inaccurate data and potential process issues.

Applications That Demand 0.1% High Accuracy

High-accuracy sanitary pressure transmitters with 0.1% precision are crucial in several sensitive processes within the food, beverage, and pharmaceutical industries. Their reliable performance ensures product quality and process safety where even minor pressure deviations can have significant consequences.

1. Dosing and Filling in Beverage Production

Accurate pressure measurement is essential during dosing and filling operations to guarantee consistent volumes and prevent product loss. High-precision transmitters help maintain the correct pressure in tanks and pipelines, ensuring smooth flow and avoiding overfilling or underfilling, which can affect taste and packaging integrity.

2. Sterile Filtration Pressure Monitoring

Sterile filtration is a critical step to remove contaminants while preserving product sterility. Monitoring pressure differentials across filters with high-accuracy sanitary pressure transmitters allows early detection of clogging or filter failure. This ensures timely maintenance, avoids contamination risks, and maintains process efficiency.

3. Critical Pharmaceutical Blending and Fermentation Processes

Pharmaceutical blending and fermentation require precise control over pressure to maintain sterile and stable environments. High-accuracy transmitters ensure the correct pressure levels are maintained, supporting optimal reaction conditions and product consistency. Any deviations could impact drug efficacy or cause batch rejection.

Conclusion

High-accuracy sanitary pressure transmitters rely on advanced sensing technologies, precise temperature compensation, and sophisticated signal processing to deliver reliable measurements essential for hygienic industries. Their careful design ensures both measurement precision and compliance with strict sanitary standards.

When selecting a sanitary pressure transmitter, it is crucial to evaluate its accuracy, hygienic design, and certification to ensure optimal performance and regulatory compliance. Choosing the right sensor supports process safety, product quality, and operational efficiency in demanding food, beverage, and pharmaceutical applications.
