Exploring Explosion-Proof Pressure Transmitters: Key Features And Benefits for Industrial Applications

Pressure transmitters are integral components in many industrial applications, playing a critical role in measuring and monitoring pressure in various systems. These devices are used across industries such as oil & gas, chemical processing, power generation, and more. In hazardous environments, where explosive gases, vapors, or dust can be present, the safety of both the equipment and personnel is paramount. This is where explosion-proof pressure transmitters come into play.

An explosion-proof pressure transmitter is a specialized type of sensor designed to operate safely in volatile conditions. The designation "explosion-proof" refers to the transmitter’s ability to contain any explosion within the device itself, preventing it from igniting the surrounding atmosphere. This feature is crucial in maintaining both operational efficiency and safety standards in industries with high-risk environments.

Understanding Explosion-Proof Pressure Transmitters

Explosion-proof pressure transmitters are engineered to work in environments where combustible gases or dust are prevalent. These transmitters are constructed with enhanced safety features that prevent the ignition of flammable substances, which could otherwise lead to catastrophic accidents.

Key components of an explosion-proof pressure transmitter include:

• Pressure Sensor: The heart of any pressure transmitter, this sensor converts the applied pressure into an electrical signal. In explosion-proof models, the sensor is designed to withstand higher temperatures and pressure changes associated with hazardous environments.

• Explosion-Proof Enclosure: This housing is made of durable materials, like stainless steel or aluminum, and is designed to contain any potential explosion that could occur inside the transmitter, ensuring it does not ignite the surrounding atmosphere. The enclosure must meet specific safety standards to prevent sparks from escaping.

• Electrical Circuitry: The electrical circuits of an explosion-proof pressure transmitter are enclosed in such a way that, even in the event of a short circuit or fault, no sparks will escape to cause ignition. These circuits are often sealed in protective coatings or casings to prevent external exposure to the hazardous environment.

To ensure the safe operation of pressure transmitters in these dangerous conditions, they must meet strict safety standards, such as those set out by the ATEX (Atmosphere Explosible) certification. These regulations ensure that the equipment is capable of operating without igniting explosive gases or dust.

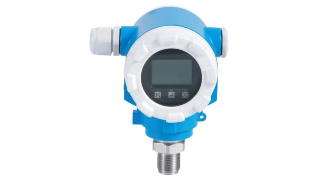

ATEX Standard Pressure Transmitter for Oil & Gas Production

The oil and gas industry is one of the most hazardous environments where explosion-proof pressure transmitters are indispensable. ATEX (Atmosphere Explosible) certification is a European standard that defines the safety requirements for equipment used in explosive atmospheres. ATEX-certified pressure transmitters are specifically designed to meet these stringent regulations, ensuring the safe operation of equipment in areas where flammable gases or vapors are present.

In the oil and gas industry, explosion-proof pressure transmitters are commonly used for:

• Wellhead Monitoring: Pressure transmitters are used to monitor the pressure of oil wells to ensure safe and efficient extraction processes. Any fluctuation in pressure can indicate potential issues, such as a wellhead blowout, which could lead to dangerous situations.

• Pipeline Pressure Control: Pipelines that transport oil and gas need constant monitoring to prevent leaks, ruptures, or overpressure situations. Explosion-proof pressure transmitters ensure that pressure readings are accurately recorded and that the systems are well-regulated.

• Offshore Drilling Rigs: Offshore drilling platforms, where both high pressure and volatile environments are common, rely heavily on explosion-proof transmitters to monitor pressure and ensure the integrity of the system. These transmitters are crucial in preventing accidents and maintaining the safety of offshore workers.

The ATEX certification guarantees that pressure transmitters are designed and built to operate safely in environments where explosive gases such as methane or hydrogen sulfide may be present. These transmitters help mitigate risks and contribute to the smooth operation of oil and gas production systems.

High Accuracy and Reliable Performance

One of the key features of explosion-proof pressure transmitters is their high accuracy, which is critical for precise monitoring and control. For example, some explosion-proof pressure transmitters offer an accuracy rating as high as 0.075%, which ensures that the pressure readings are reliable and consistently correct, even in challenging environments.

Accuracy in pressure measurement is essential because it directly impacts the safety, efficiency, and operational costs of industrial processes. For instance:

• In the oil and gas industry, high-precision pressure measurements ensure the correct functioning of extraction processes. Any deviation in pressure readings could indicate a potential problem, such as a leak or equipment failure, which could result in catastrophic damage.

• In chemical and petrochemical plants, precise pressure readings help optimize the chemical reactions and improve overall production efficiency, reducing waste and maximizing output.

Moreover, high-precision sensors help prevent costly shutdowns and failures, contributing to the longevity and reliability of industrial equipment. The use of these sensors in explosion-proof transmitters ensures that any pressure-related issues are detected early, enabling quick responses to mitigate risks.

Exd IIC T4~T6 Gb Differential Pressure Transducer

Another important aspect of explosion-proof pressure transmitters is the Exd IIC T4~T6 Gb certification, which guarantees that the transmitter is safe for use in hazardous environments with explosive gases. This certification, part of the IECEx standard, specifically refers to the transmitter's ability to withstand certain temperature ranges and operate safely in explosive atmospheres.

The Exd IIC T4~T6 Gb certification means that the pressure transmitter can safely operate in areas where explosive gases (such as methane, ethane, or hydrogen) are present, with temperature ratings that range from T4 to T6. These temperature classifications specify the maximum surface temperature that the device can reach without igniting surrounding gases. For example:

• T4 allows for a maximum surface temperature of 135°C (275°F).

• T5 allows for a maximum surface temperature of 100°C (212°F).

• T6 allows for a maximum surface temperature of 85°C (185°F).

This certification ensures that the differential pressure transducer can function safely and effectively in the presence of volatile gases or dust, which is essential for industries like oil & gas, chemical processing, and pharmaceuticals.

Flameproof Enclosures and Their Importance

A critical feature of explosion-proof pressure transmitters is their flameproof enclosures, which play a vital role in preventing explosions from spreading to the surrounding environment. These enclosures are made from robust materials, such as stainless steel or aluminum, and are designed to withstand high-impact conditions and high temperatures.

Flameproof enclosures are built to contain any internal explosion and prevent it from escaping, ensuring that the surrounding atmosphere is not exposed to the igniting source. These enclosures also dissipate heat effectively, preventing overheating and reducing the risk of ignition.

In industries such as refineries, chemical plants, or pharmaceutical facilities, flameproof enclosures are vital. A small spark or malfunction in the equipment can cause massive damage in these volatile environments. Flameproof enclosures ensure that any risk of ignition is contained, thereby improving the safety of personnel and equipment.

Conclusion:

In conclusion, explosion-proof pressure transmitters are indispensable in industries where safety, precision, and reliability are paramount. These transmitters not only ensure that industrial systems operate efficiently but also protect workers and equipment from the dangers of explosive environments. The ATEX certification, high accuracy, flameproof enclosures, and Exd IIC T4~T6 Gb certification are all crucial elements that make explosion-proof pressure transmitters ideal for applications in hazardous environments like oil & gas, chemical, and petrochemical industries.

As industries continue to grow and evolve, the development of explosion-proof sensors and transmitters will play an increasingly important role in ensuring safety, efficiency, and sustainability. With continuous advancements in technology, these devices will continue to provide accurate pressure measurements while maintaining the highest safety standards.
