Overview

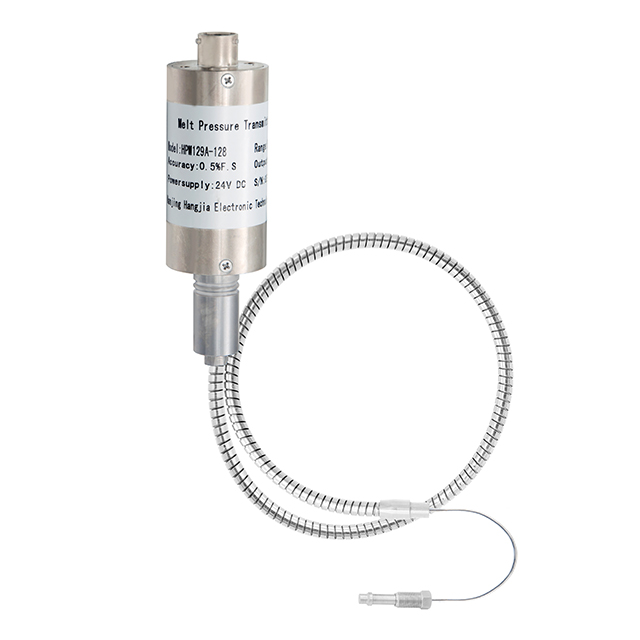

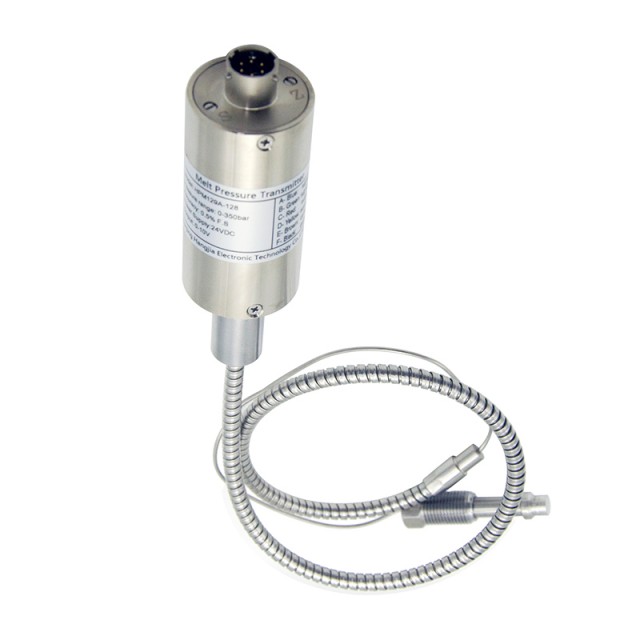

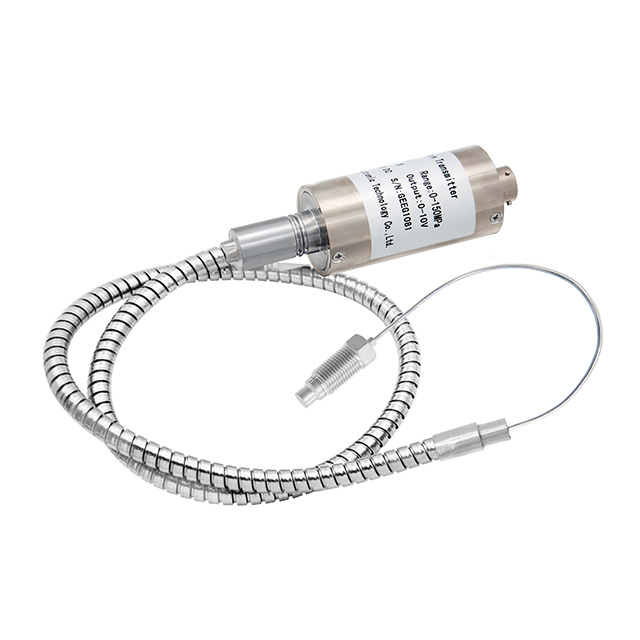

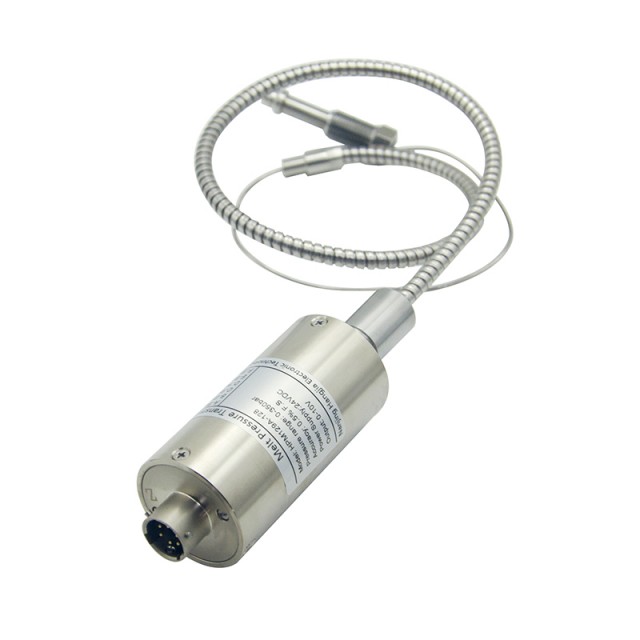

HPM129A-128 Series melt pressure transmitter is ideal for space restricted areas applications required, where mounting space is limited. It also has a free-spinning jam nut that simplifies installation. The series comes equipped with six or eight pin bendix connector. It can be interchangeable with the similar world standard products. It is suitable to measure and control the melt pressure in chemical fiber equipment, rubber and plastic machine and so on.
Application
Chemical fiber& spinning Equipment
Polyester equipment
Other pressure measurement and control
Features
High-standard quality
Accuracy better than ±0.5%
Stainless steel wetted part
Internal 80% Shunt Calibration
Good stability and repeatability
Exposed, bendable capillary
Overview
HPM129A-128 Series melt pressure transmitter is ideal for space restricted areas applications required, where mounting space is limited. It also has a free-spinning jam nut that simplifies installation. The series comes equipped with six or eight pin bendix connector. It can be interchangeable with the similar world standard products. It is suitable to measure and control the melt pressure in chemical fiber equipment, rubber and plastic machine and so on.
Application
Chemical fiber& spinning Equipment
Polyester equipment
Other pressure measurement and control
Features
High-standard quality
Accuracy better than ±0.5%
Stainless steel wetted part
Internal 80% Shunt Calibration
Good stability and repeatability
Exposed, bendable capillary
Range | 0….10MPa to 0….150MPa (0…1500psi to 0…20000psi) |
Output | 0~5V; 0~10V; 4-20mA |
Accuracy | ±0.5%FS |
Input voltage | 24VDC |
Repeatability | ±0.2% |
Construction | Wheatstone bridge |
Bridge resistance | 350 ohms±10% |
Overload pressure | 1.5×FSO |
Internal calibration | 80%±1% |
Insulation Resistance | 1000Megohms @50Vdc |
Max diaphragm temp | 0~350℃ |
Electric connector | 5PIN, 6PIN |
Process connector | 1/2″-20UNF, M14×1.5, M18×1.5(Customer design) |
Range | 0….10MPa to 0….150MPa (0…1500psi to 0…20000psi) |
Output | 0~5V; 0~10V; 4-20mA |
Accuracy | ±0.5%FS |
Input voltage | 24VDC |
Repeatability | ±0.2% |
Construction | Wheatstone bridge |
Bridge resistance | 350 ohms±10% |
Overload pressure | 1.5×FSO |
Internal calibration | 80%±1% |
Insulation Resistance | 1000Megohms @50Vdc |
Max diaphragm temp | 0~350℃ |
Electric connector | 5PIN, 6PIN |
Process connector | 1/2″-20UNF, M14×1.5, M18×1.5(Customer design) |
Overview
HPM129A-128 Series melt pressure transmitter is ideal for space restricted areas applications required, where mounting space is limited. It also has a free-spinning jam nut that simplifies installation. The series comes equipped with six or eight pin bendix connector. It can be interchangeable with the similar world standard products. It is suitable to measure and control the melt pressure in chemical fiber equipment, rubber and plastic machine and so on.
Application
Chemical fiber& spinning Equipment
Polyester equipment
Other pressure measurement and control
Features
High-standard quality
Accuracy better than ±0.5%
Stainless steel wetted part
Internal 80% Shunt Calibration
Good stability and repeatability
Exposed, bendable capillary
Range | 0….10MPa to 0….150MPa (0…1500psi to 0…20000psi) |
Output | 0~5V; 0~10V; 4-20mA |
Accuracy | ±0.5%FS |
Input voltage | 24VDC |
Repeatability | ±0.2% |
Construction | Wheatstone bridge |
Bridge resistance | 350 ohms±10% |
Overload pressure | 1.5×FSO |
Internal calibration | 80%±1% |
Insulation Resistance | 1000Megohms @50Vdc |
Max diaphragm temp | 0~350℃ |
Electric connector | 5PIN, 6PIN |
Process connector | 1/2″-20UNF, M14×1.5, M18×1.5(Customer design) |
