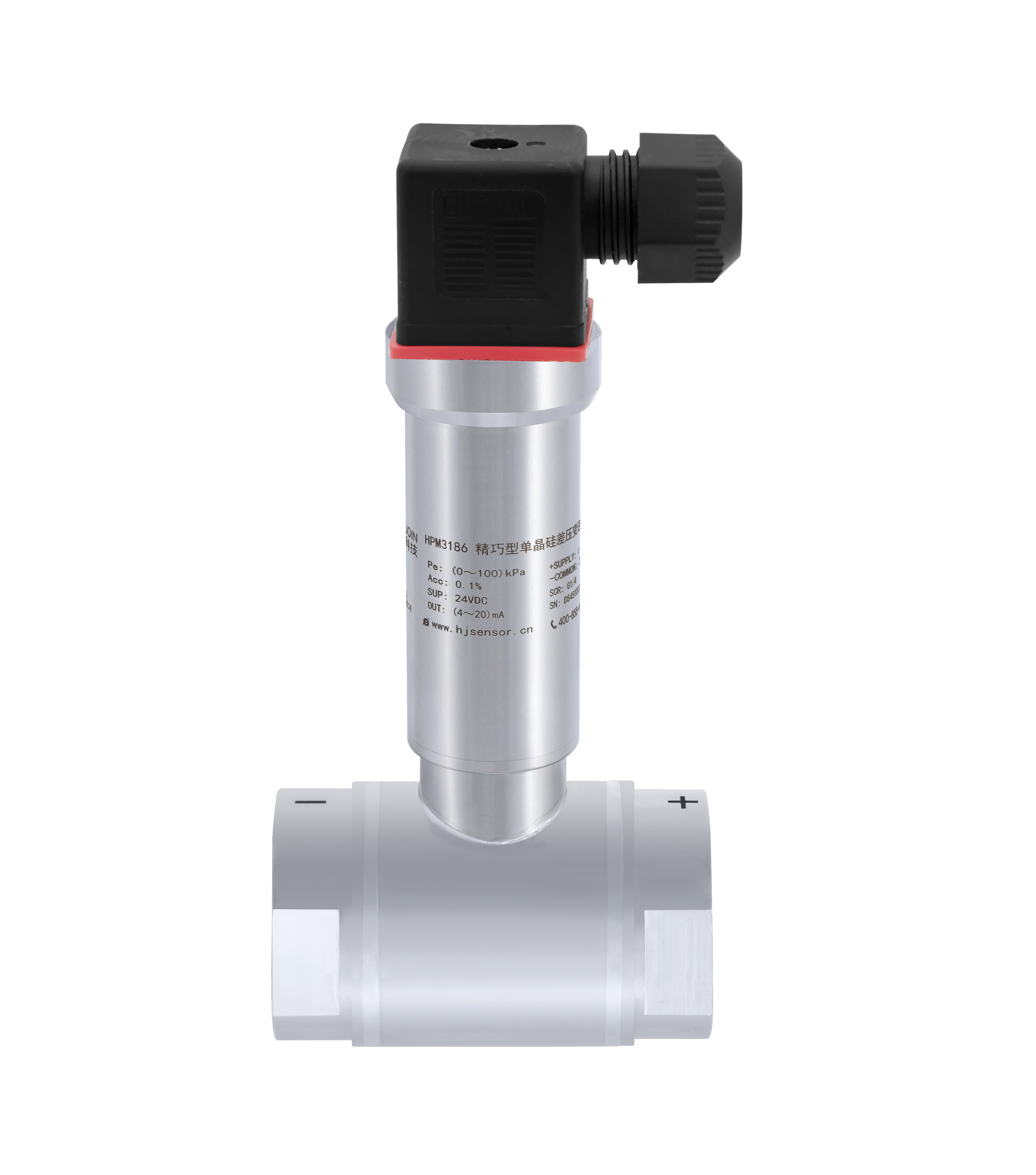

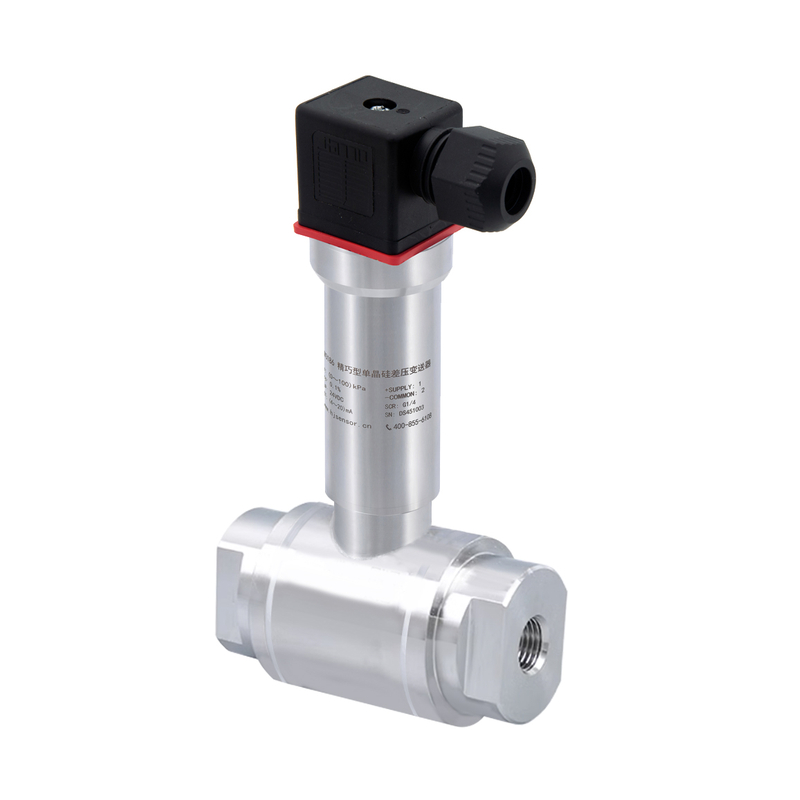

HPM3186 0～1kPa…10MPa Monocrystalline Silicon Compact Differential Pressure Transmitter
Accuracy: ±0.075%
Output signal: 4-20mA+Hart
| Quantity: | |
|---|---|
Overview
HPM3186 monocrystalline silicon compact differential pressure transmitter adopts monocrystalline silicon high-stability differential pressure chip, with internal overload diaphragm protection design, which can achieve high-precision measurement and high overload load. The product has an embedded signal processing module, which realizes the combination of static pressure and temperature compensation and can achieve high-precision measurement and maintain good long-term stability
under a wide range of static pressure and temperature changes. At the same time, the product adopts a fully welded structure, and the pressure interface is a threaded connection. It can be directly installed on the measuring pipeline or connected through a pressure pipe.
The product is small and easy to install. It is widely used in differential pressure, liquid level, flow
measurement and control in the fields of process control and equipment monitoring.
Features
Compact differential pressure measurement
Monocrystalline high-stability differential pressure chip
Overload diaphragm protection design
High accuracy
Fully welded type
Multiple process connections
