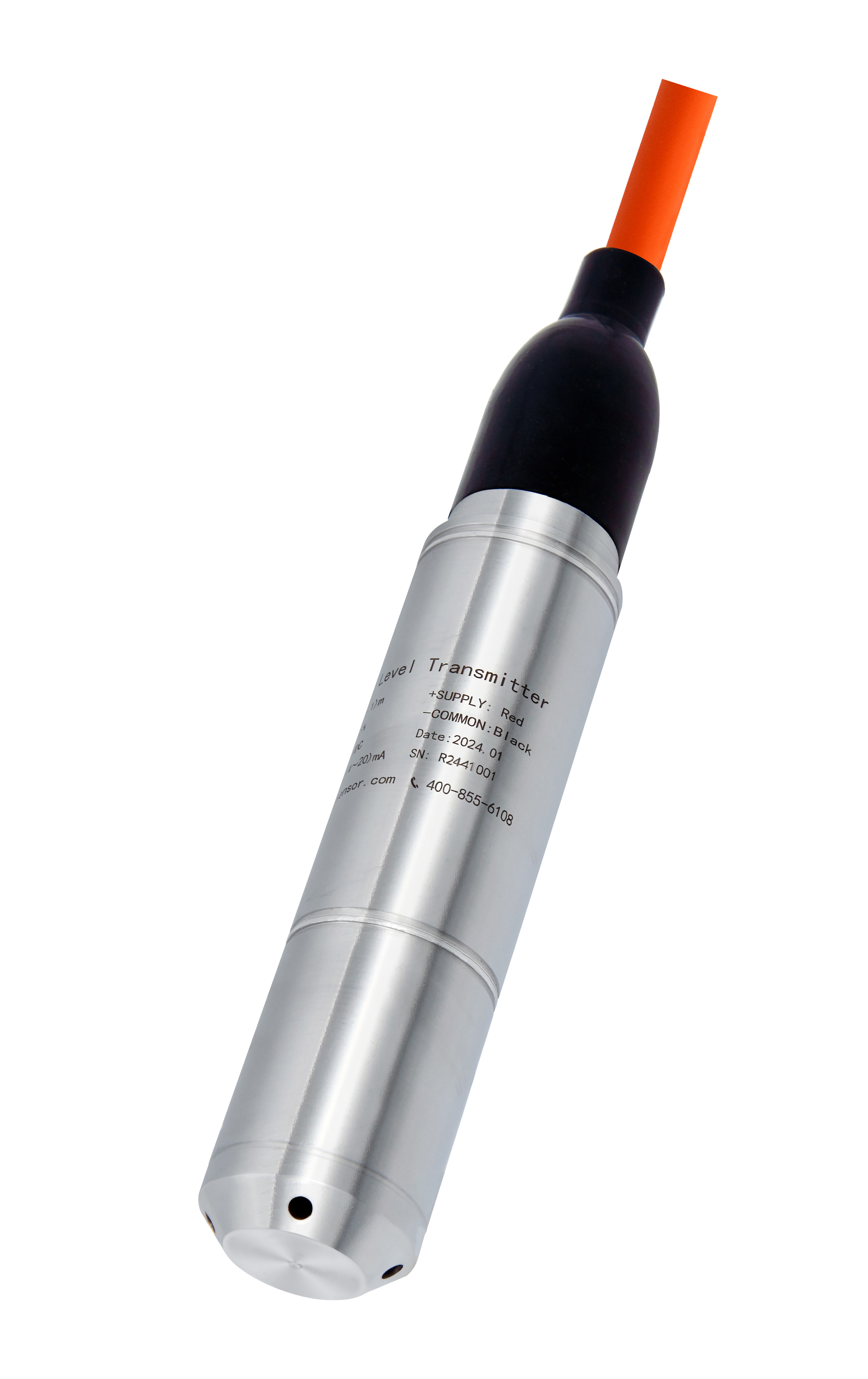

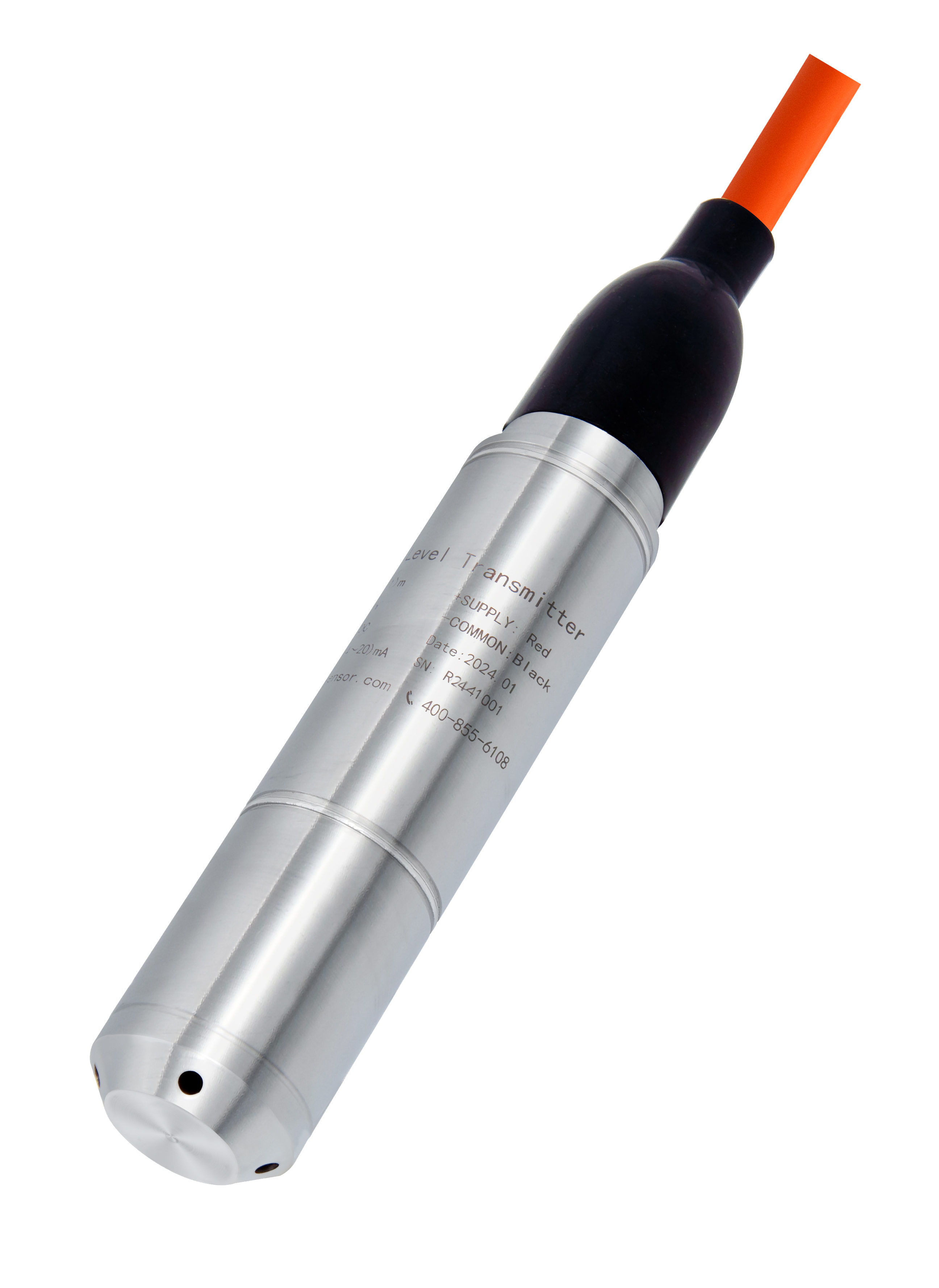

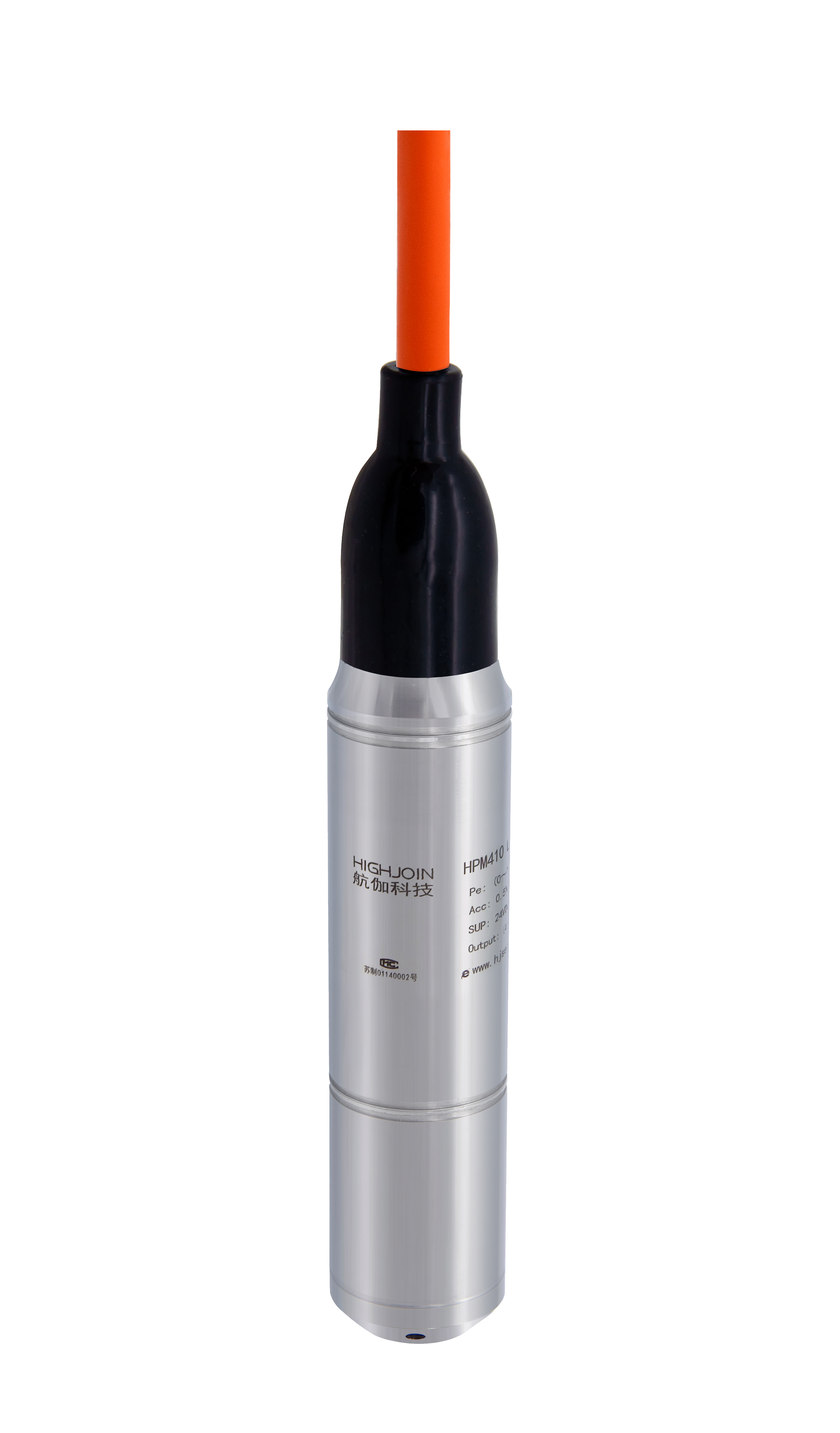

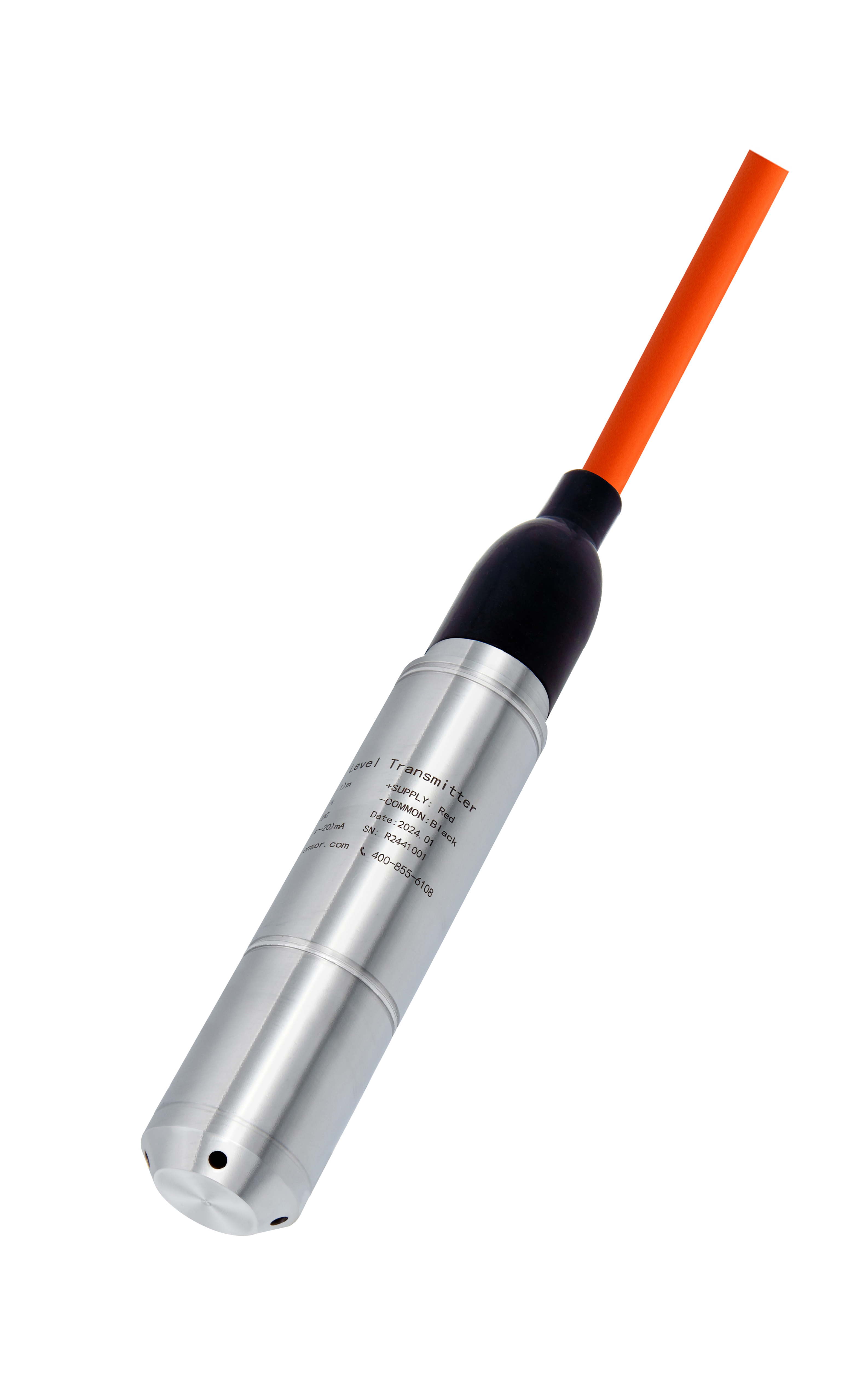

HPM410LR Low Power Consumption RS485 Level Transmitter For IoT Wireless

Level Range: 0～0.5…50mH2O

Output Signal: I²C

Datasheet Download:
HPM410LR Low power consumption level transmitter - V26.1.2.pdf

Quantity:
Availability:





Inquire Add to Basket

Overview

HPM410LR low power consumption level transmitter uses high quality stable pressure sensor as the measurement element; it measures the static level pressure accurately which has direct ratio with liquid depth. Then converting the measurement value into standard RS485 signal through the signal conditioning circuit to achieve the measurement of liquid depth. This product has extremely low power consumption and long service life, it can use lithium-ion battery as power supply. And can connect wireless module, implement data wireless transport.

With long-term aging and stability testing, the product is suitable for harsh outdoor environment and can be widely used for groundwater, rivers, lakes, surface water tanks, and inventory water tanks. It is also suitable for kinds of measurement levels in IoT.

Features

Low Power Consumption
Easy adapted with wireless module
Can equip lithium battery outside as supply.
Common regular profile, easy to install.
Special Anti-condensation design
Customized requests supported.

Description

Parameters

Overview

HPM410LR low power consumption level transmitter uses high quality stable pressure sensor as the measurement element; it measures the static level pressure accurately which has direct ratio with liquid depth. Then converting the measurement value into standard RS485 signal through the signal conditioning circuit to achieve the measurement of liquid depth. This product has extremely low power consumption and long service life, it can use lithium-ion battery as power supply. And can connect wireless module, implement data wireless transport.

With long-term aging and stability testing, the product is suitable for harsh outdoor environment and can be widely used for groundwater, rivers, lakes, surface water tanks, and inventory water tanks. It is also suitable for kinds of measurement levels in IoT.

Features

Low Power Consumption
Easy adapted with wireless module
Can equip lithium battery outside as supply.
Common regular profile, easy to install.
Special Anti-condensation design
Customized requests supported.

Parameters

Level Range	0～0.5…50mH₂O Notes：Can also use mH2O、inH2O、m、mm, etc. as unit Need to highlight the density of liquid to be measured when use length unit such as m、mm etc.
Overload	1.5 times of Full scale
Measuring Medium	Liquid which applicable with the contact material
Output Signal	RS485
Power Supply	3.1~8 VDC
Power consumption	Standby current <5uA Date collection cycle 0~65535s Power Consumption: About 200uA with data collection cycle as 1s About 70uA with data collection cycle as 3s About 50uA with data collection cycle as 5s … Note：Longer data collection cycle, lower consumption
Accuracy	±0.5%FS
Long term stability	±0.25%FS/year
Medium temperature	-40～85℃
