Overview

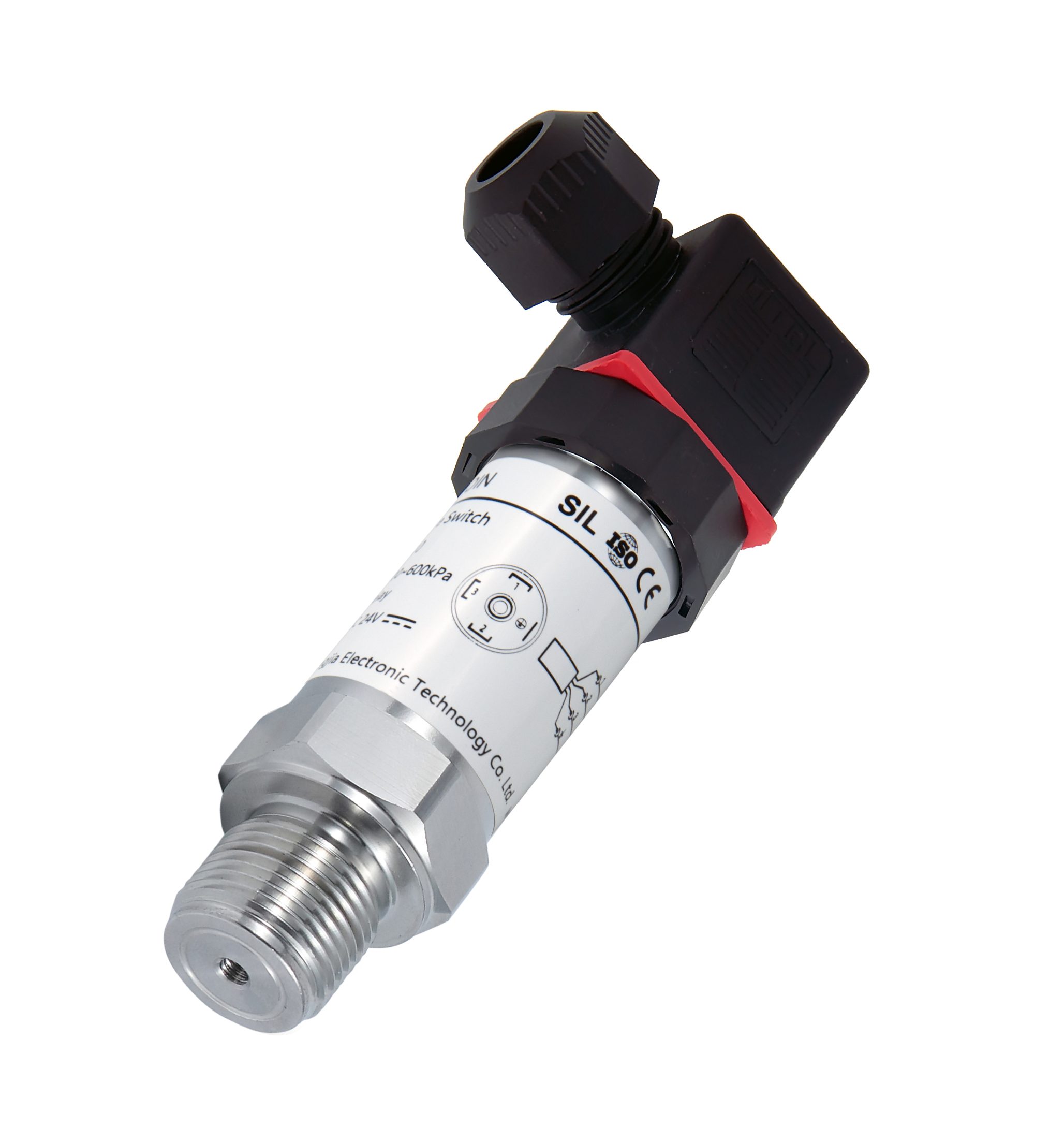

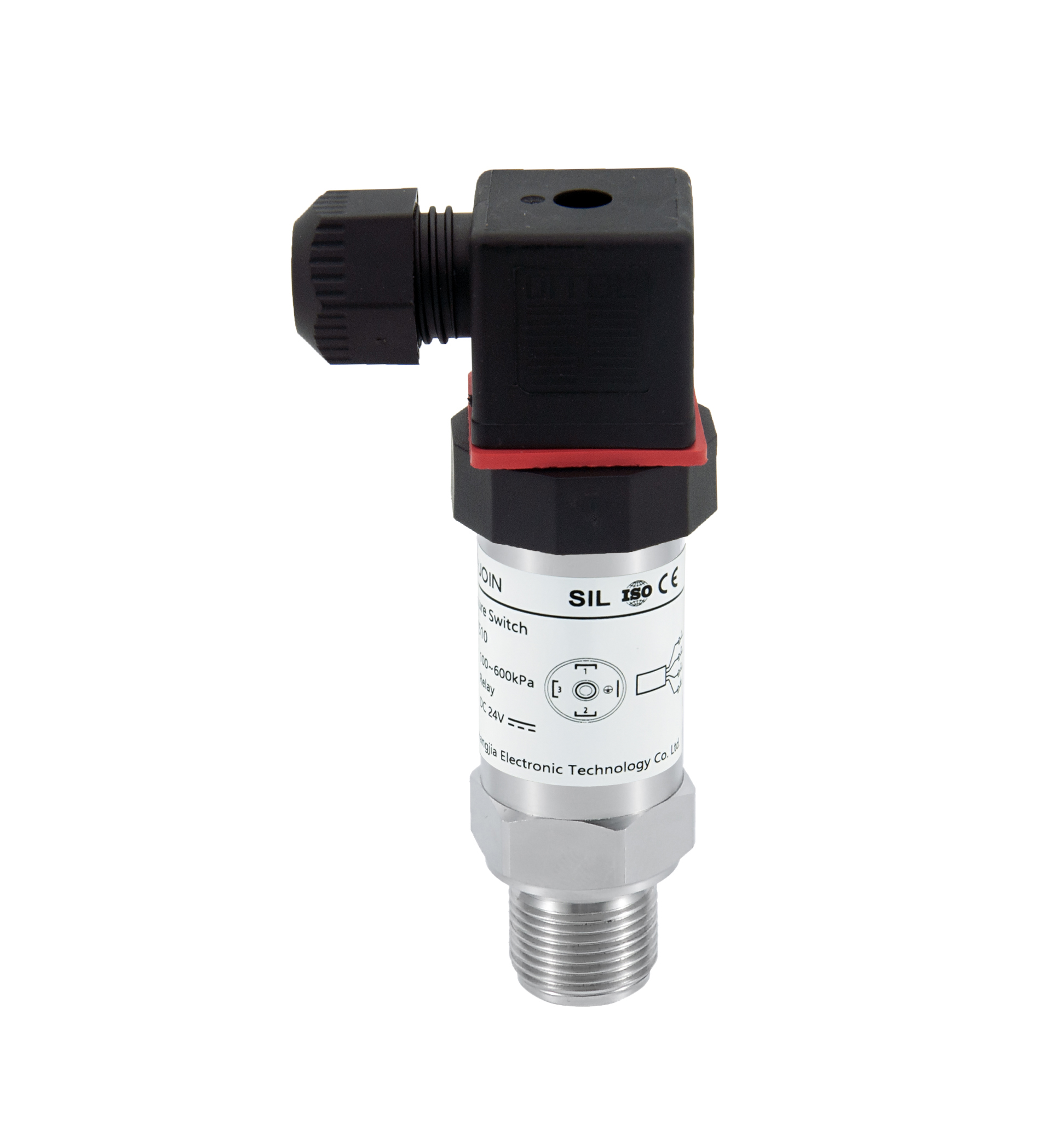

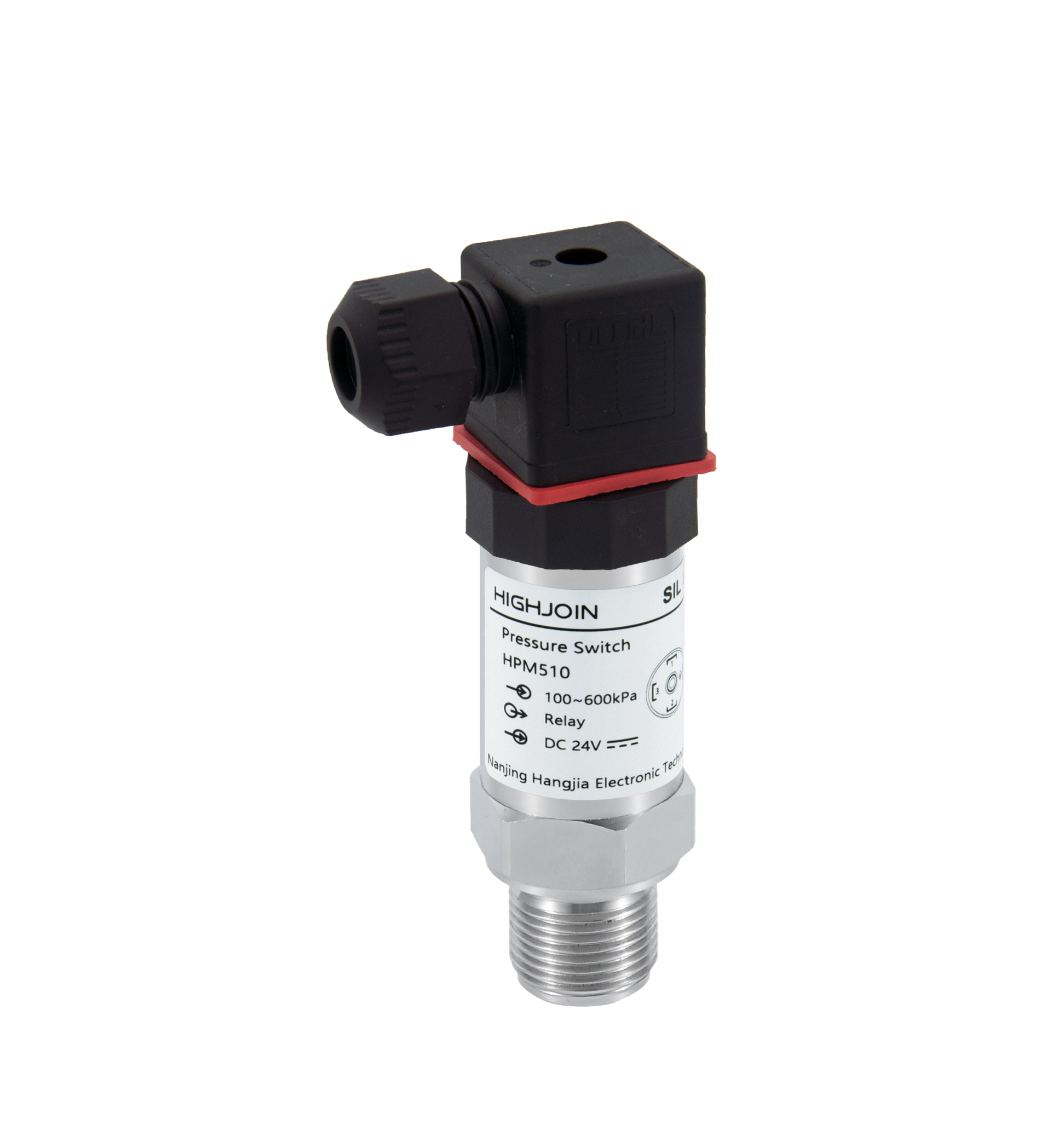

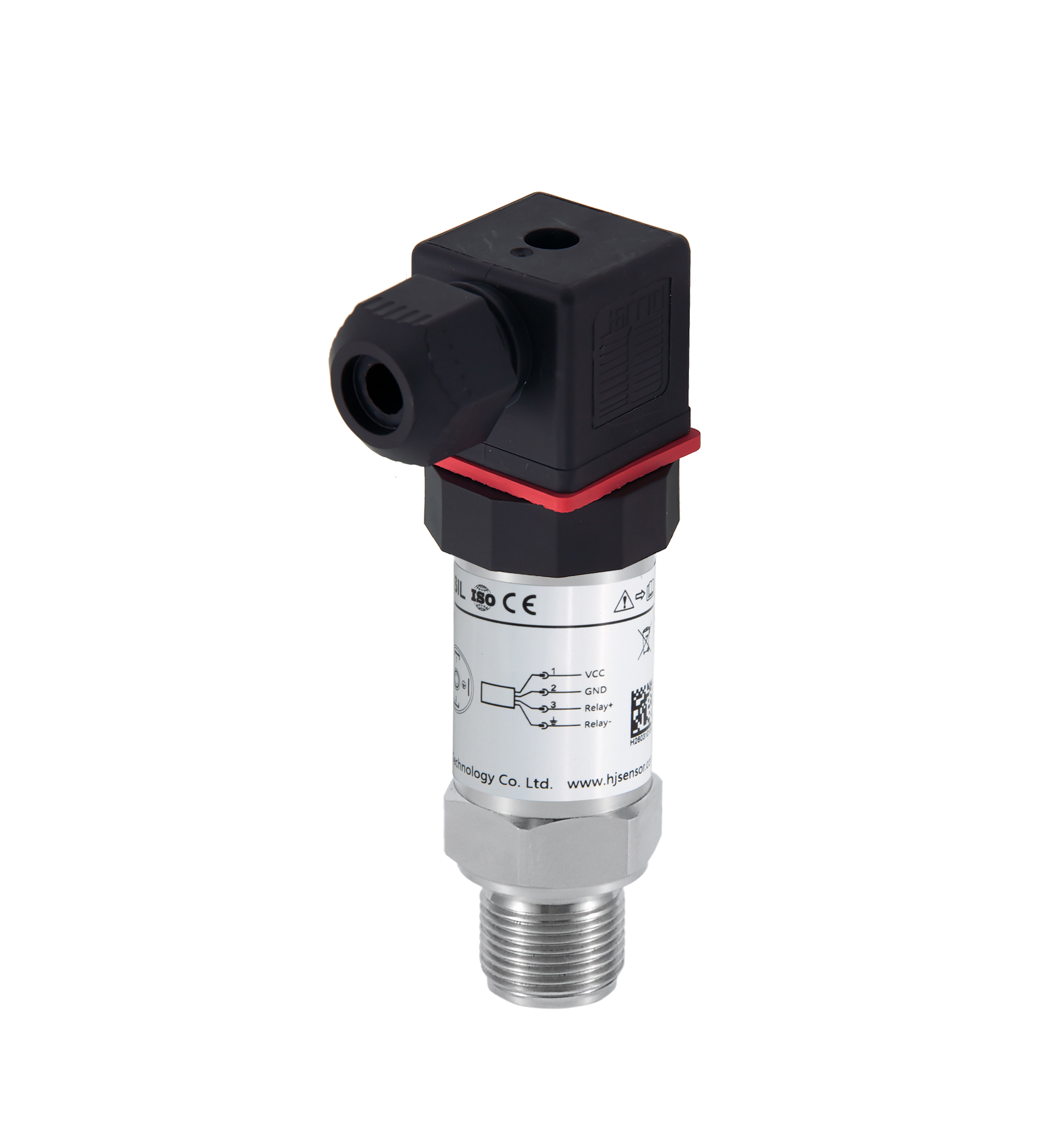

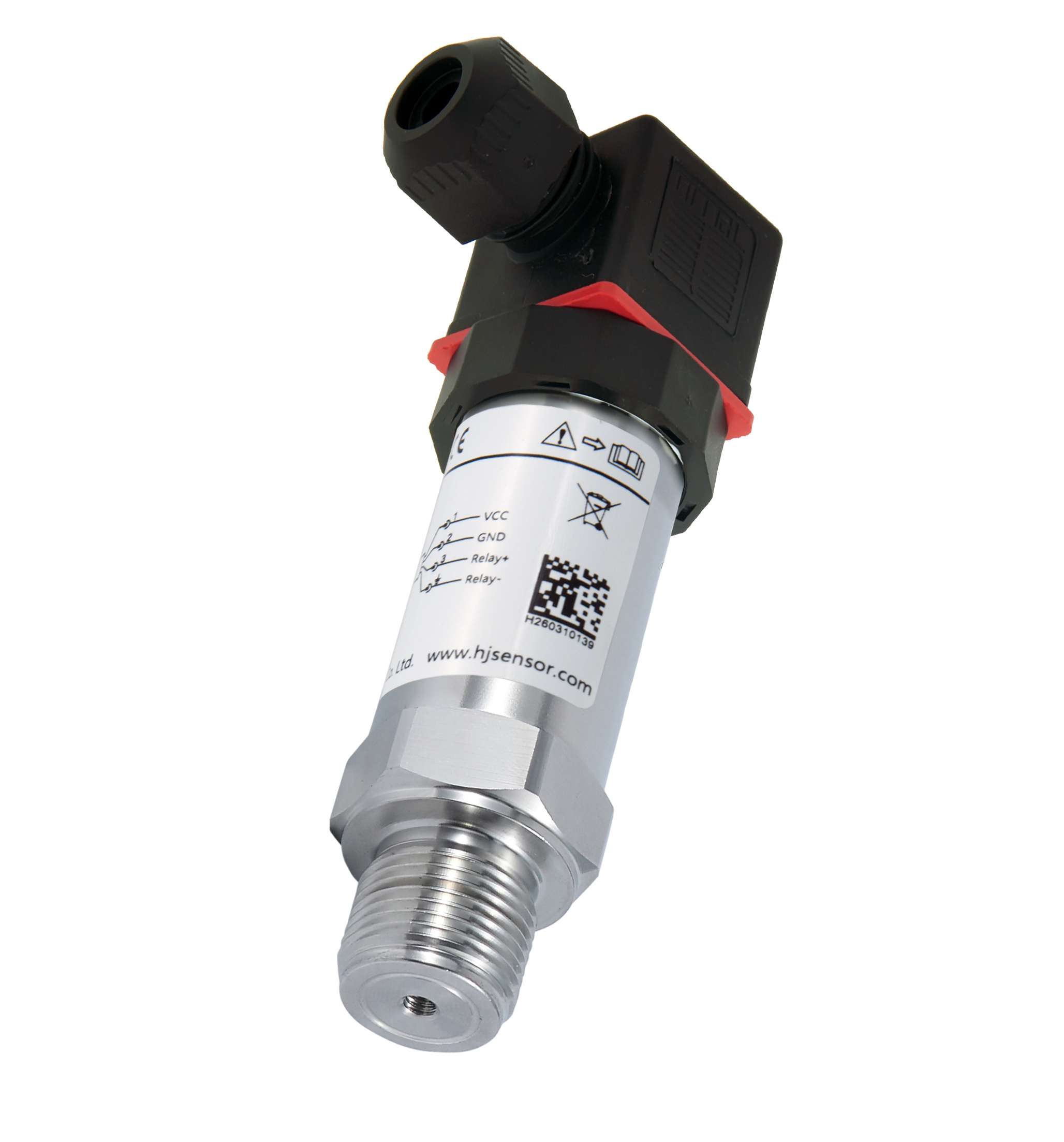

HPM510 compact pressure switch is all stainless-steel structure, the front end with isolation diaphragm silicon piezoresistive sensor, through the special signal conditioning circuit processing, can output a relay switch signal. The product has small volume, light weight, all stainless-steel sealing structure, flexible use, simple operation, safe and reliable, widely used in hydropower, petroleum, chemical, machinery, hydraulic and other industries.
Application: Pressure measuring and control in kinds of process
Features
Cost-effective
Stainless steel structure, corrosion resistant performance is good.
Small volume, light weight
Precision grade than mechanical pressure switch
Switch points can be set arbitrary between zero to the full
Normally open or normally closed switch types are optional.
Various optional interface pressure and electrical interface
Measuring Range | -100kPa…0~0.01Mpa…60MPa | Pressure type | Gauge or absolute |
Power Supply | 18~30VDC | Stability | ≤0.2% /year |
Accuracy | ≤±0.5%FS | Overload pressure | 150%FS |
Load capacity | <24V 2A | Switch type | 1-way relay (normally open or closed) 2*PNP OR NPN |
Response time | <30ms | Switch lifecycle | > 1 million times |
Protection | IP65 | Meduim temperature | -40~120℃ |
Working temperature | -25~80℃ | Storage temperature | -40~100℃ |
Pressure interface | G1/4, G1/2, M20×1.5, etc. | Electronical connection | DIN43650, M12x1 or cable outlet |
Anti-Vibration | 20g/20~5000Hz | Anti-shock | 50g/1ms |
