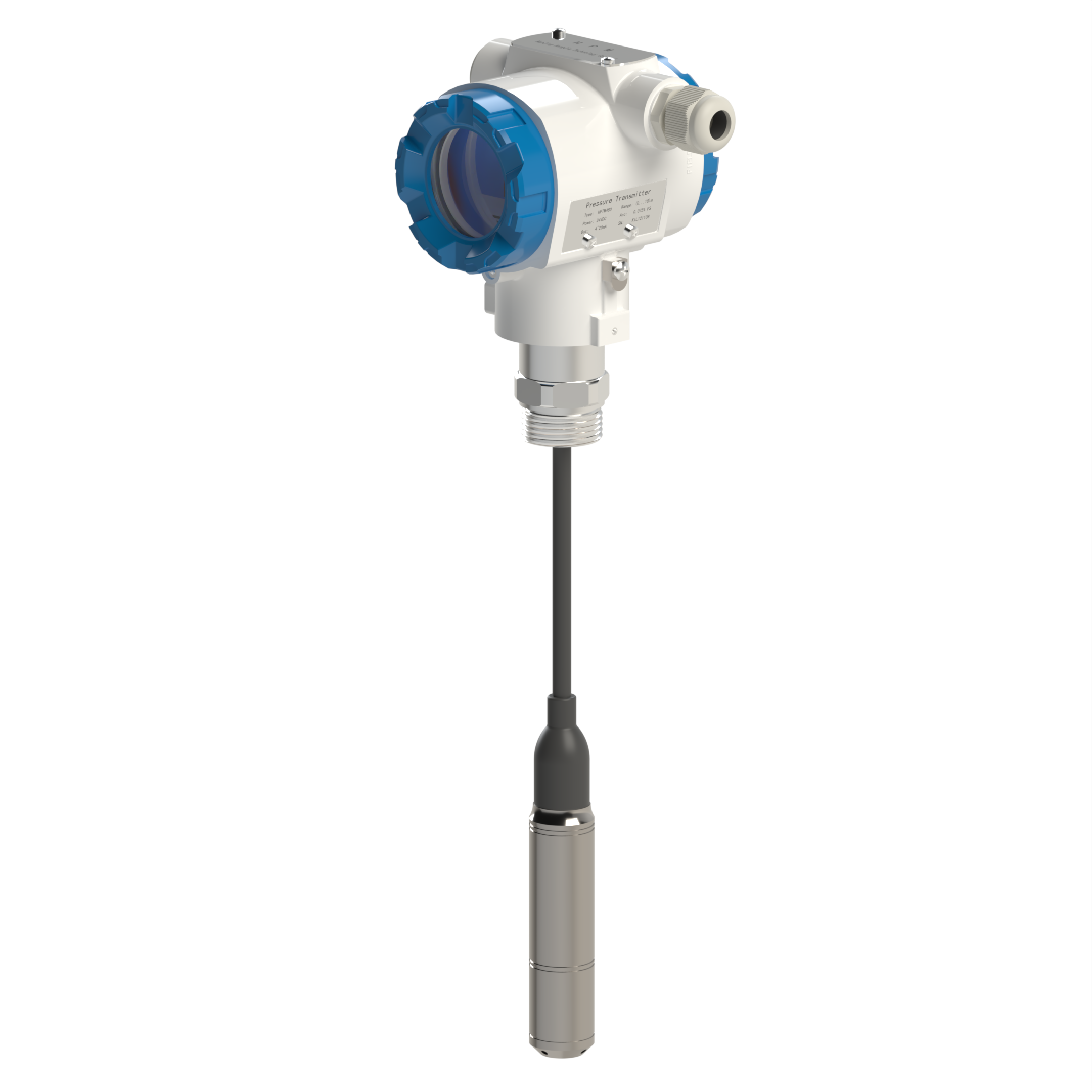

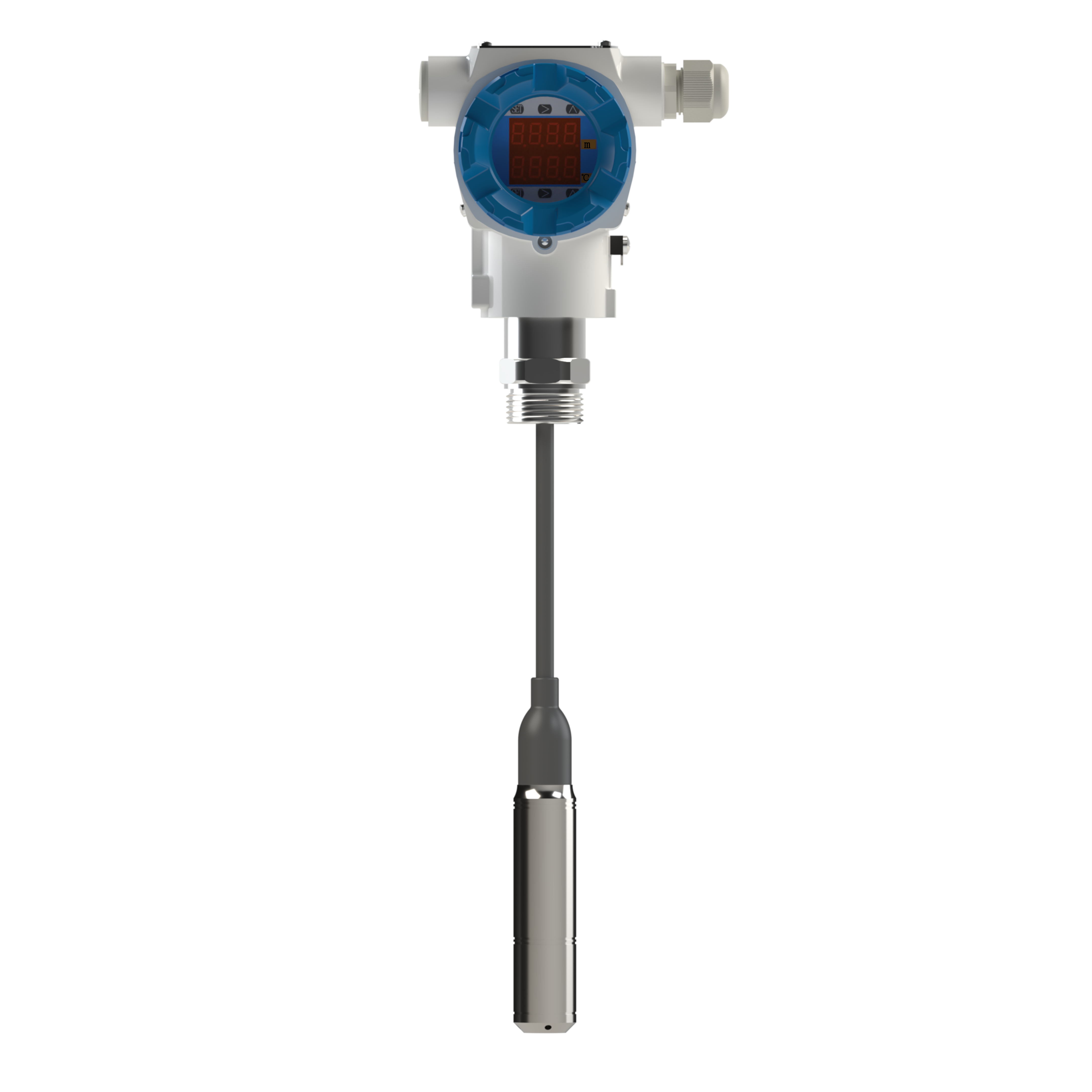

HPTM480 2 -way LED Channel Submersible Integrated Temperature & Pressure Transmitter

HPTM480 2 -way LED Channel Combined Submersible Temperature & Pressure Transmitter

Measuring range : 0..0.5mH2O~20mH2O

Output signal: 2-way 4-20mA

Display: 2 LED for pressure and temperature

Datasheet Download:
HPTM480 Integrated submersible temperature and pressure transmitter-Datasheet.pdf

Quantity:
Availability:





Inquire Add to Basket

Overview

HPTM480 Temperature-pressure transmitter uses a high-quality, highly stable pressure core as its sensing element to accurately measure the hydrostatic pressure of the liquid, which is proportional to the liquid level. This pressure is then converted into a standard 4-20mA signal output through signal conditioning circuitry, enabling the measurement of liquid depth. The probe incorporates a high-precision temperature sensing element, allowing simultaneous measurement of the liquid temperature. Additionally, the product features a 4-digit dual-row LED display that shows both liquid level and temperature values simultaneously.

Having undergone long-term aging and stability testing, the product demonstrates reliable and stable performance, making it suitable for harsh outdoor environments. It has wide applications in groundwater, rivers, lakes, seas, surface water tanks, and storage tanks.

Features

Simultaneous measurement of liquid level and temperature
Large LED screen display, simultaneously showing pressure and temperature
Standard analog signal output
Dual anti-condensation and anti-condensation technology

Description

Technical Parameters

Overview

HPTM480 Temperature-pressure transmitter uses a high-quality, highly stable pressure core as its sensing element to accurately measure the hydrostatic pressure of the liquid, which is proportional to the liquid level. This pressure is then converted into a standard 4-20mA signal output through signal conditioning circuitry, enabling the measurement of liquid depth. The probe incorporates a high-precision temperature sensing element, allowing simultaneous measurement of the liquid temperature. Additionally, the product features a 4-digit dual-row LED display that shows both liquid level and temperature values simultaneously.

Having undergone long-term aging and stability testing, the product demonstrates reliable and stable performance, making it suitable for harsh outdoor environments. It has wide applications in groundwater, rivers, lakes, seas, surface water tanks, and storage tanks.

Features

Simultaneous measurement of liquid level and temperature
Large LED screen display, simultaneously showing pressure and temperature
Standard analog signal output
Dual anti-condensation and anti-condensation technology

Liquid Level Range
Liquid level measuring range	0~0.5…20mH₂O
Overload	1.5x of full range
Temperature range
Temperature measuring range	-40~100℃
Note: Supports customized intermediate ranges, such as 0 to 60 ° C
Service
Medium type	Various liquids compatible with contact materials
Output signal/Power supply
Standard	Liquid level:2-wire 4~20mA_DC Temperature:2-wire 4~20mA_DC Vs:24 V_DC (9~30V_DC)
Performance
Accuracy	±0.5%FS (liquid level) ±0.4℃ (temperature)
Long-term stability	±0.25%FS/year
Environmental conditions
Temperature condition	Medium working temperature: -40~100℃ Ambient temperature: -30~70℃ Storage temperature: -30~70℃
Protection grade	IP68(measuring probe) IP65(LED display part)
Temperature drift characteristic (liquid level)
Compensation temperature scope	0~70℃
Temperature drift of zero	±1.0%FS reference 25℃, within the range of temperature compensation (≤20kPaTemperature drift of the range±1.5%FS, 0~70℃)
Temperature drift of full range	±1.0%FS reference 25℃, within the range of temperature compensation (≤20kPaTemperature drift of the range ±1.5%FS, 0~70℃)
Mechanical stability
Vibration	20g(20~5000Hz)
Shock resistance	20g(11ms)
Insulation
Insulation resistance	>100MΩ，500VDC
Dielectric strength	Apply 500VAC 50Hz test voltage, lasting 1min without breakdown and flare-up phenomenon
