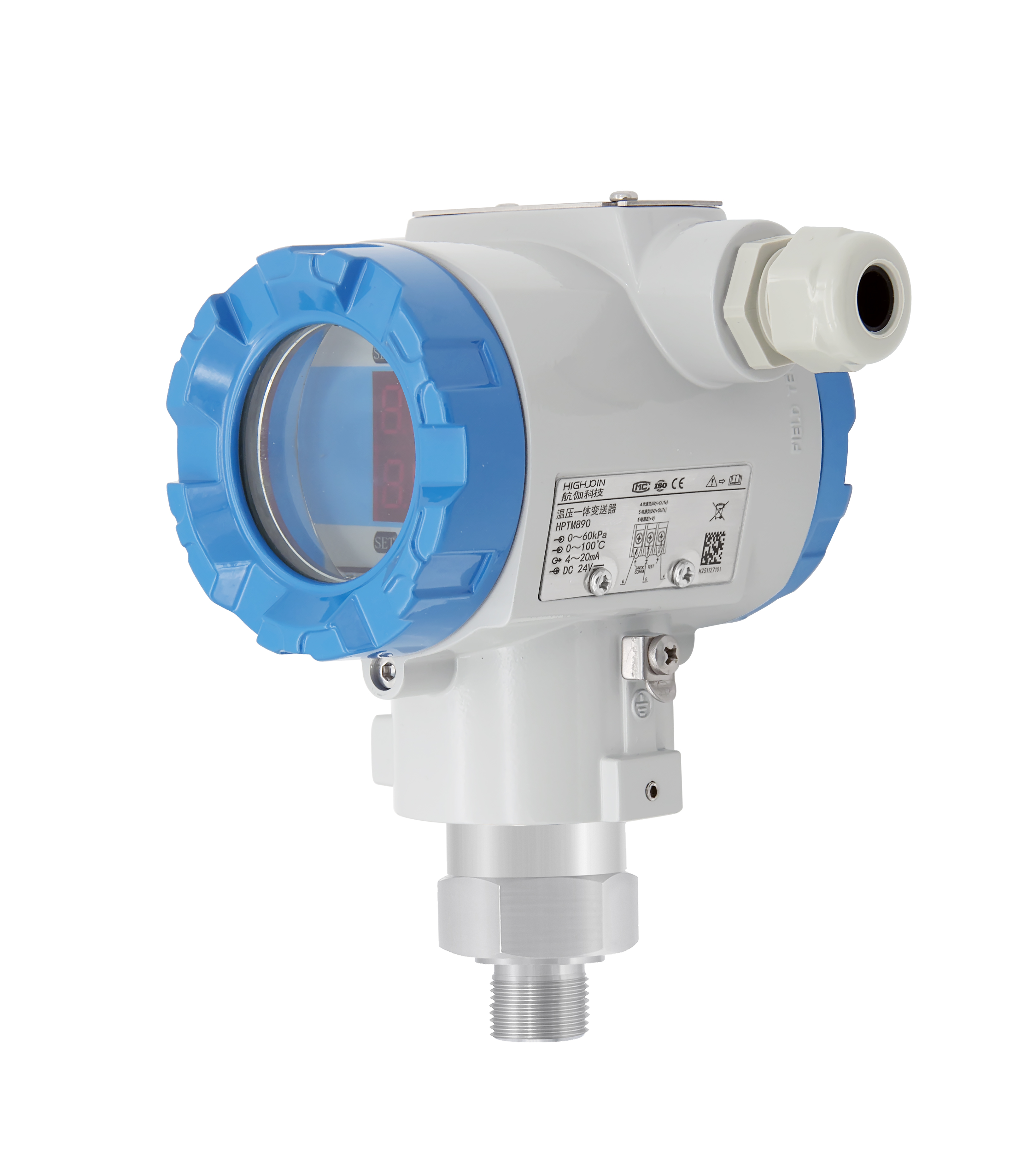

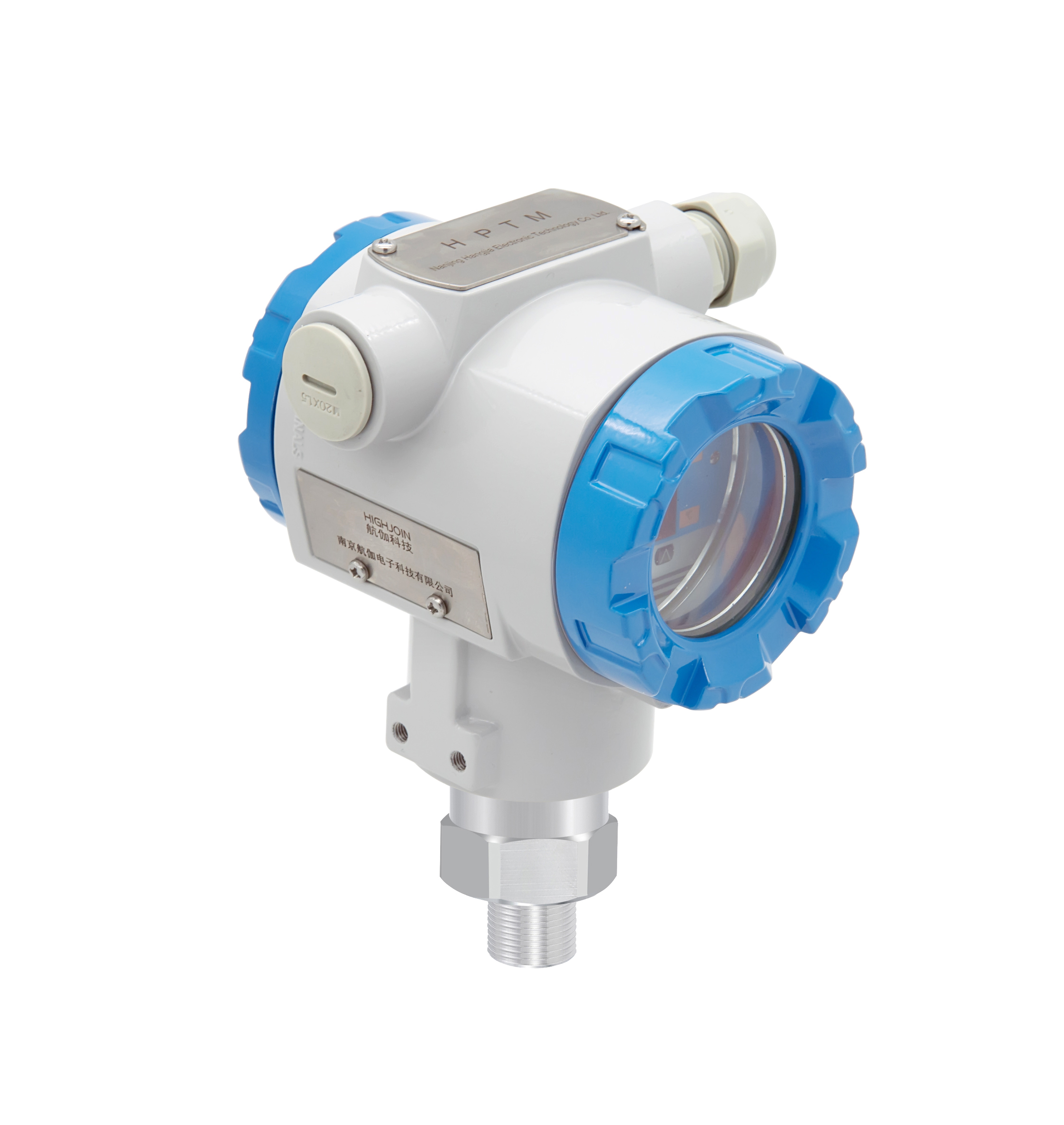

HPTM890 2-Channel Temperature Pressure Transmitter Industrial Control
HPTM890 digital display temperature and pressure transmitter integrates a highly stable pressure-sensitive element and a high-precision temperature-sensitive element for independent measurement, enabling simultaneous and accurate measurement of medium pressure and temperature. It can output two standard 4-20mA signals. Additionally, this product features a 4-digit dual-row LED field display that can simultaneously show pressure and temperature values.
| Quantity: | |
|---|---|
Overview

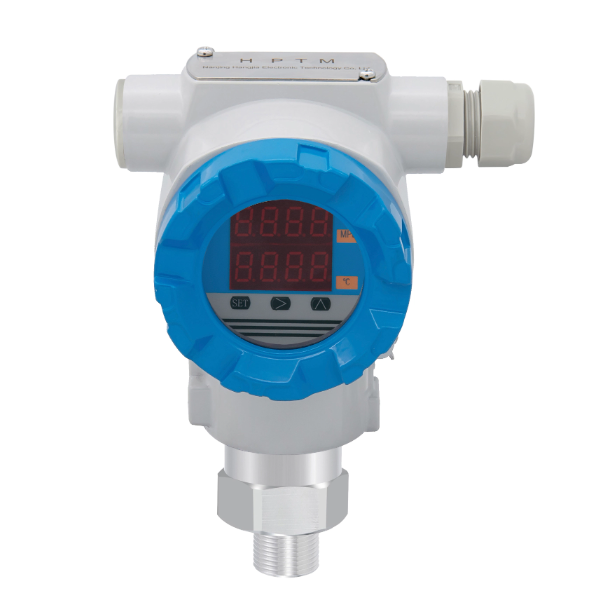

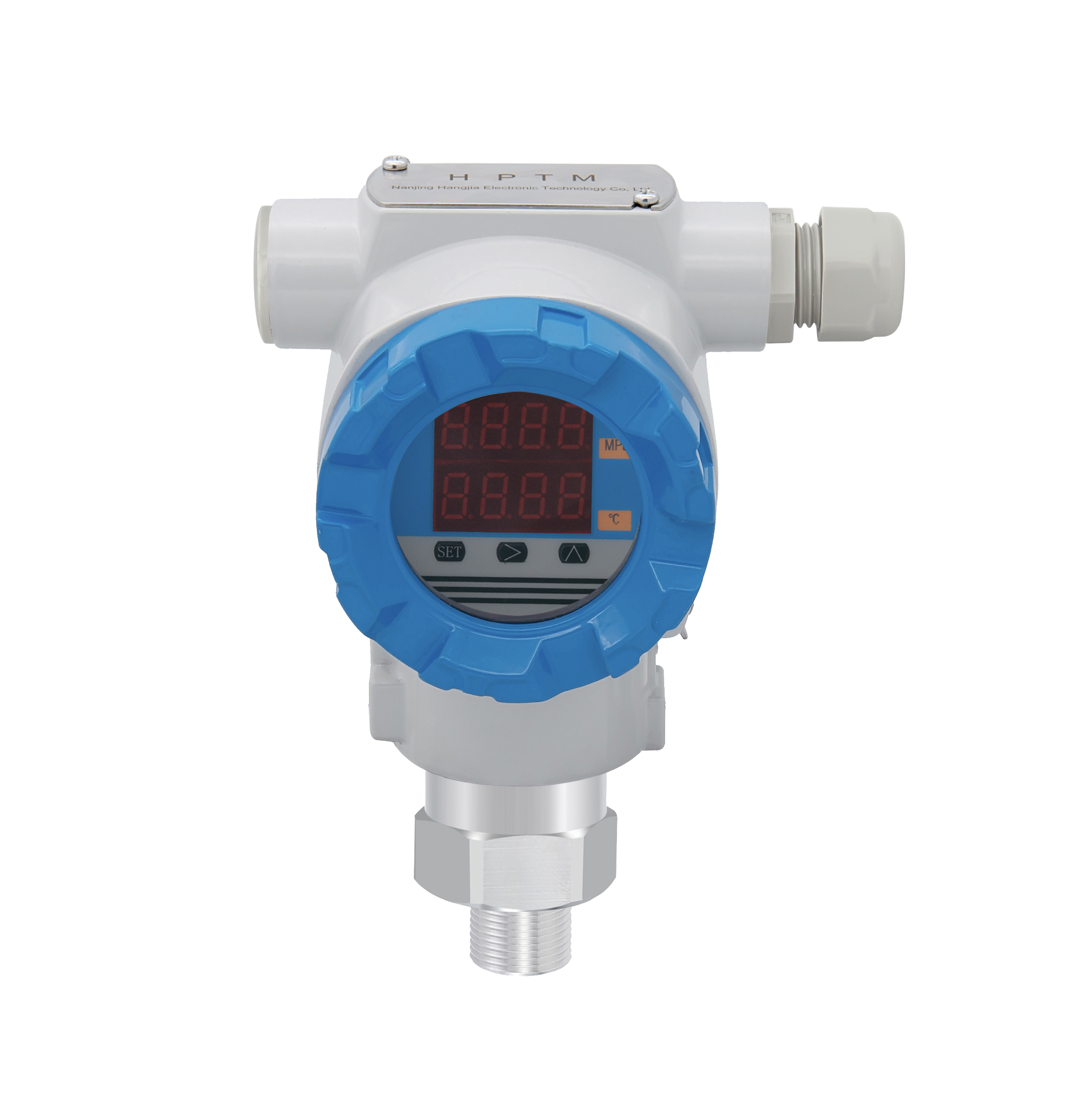

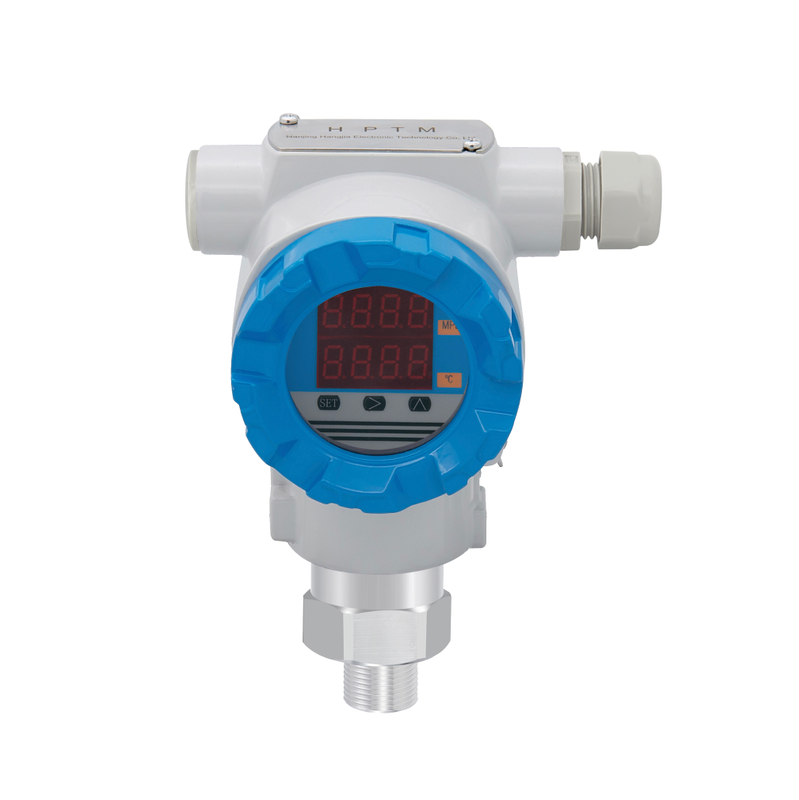

Equipped with a 4-digit dual-row LED field display, this transmitter enables real-time, simultaneous visualization of pressure and temperature values on-site, eliminating the need for separate monitoring devices. It has undergone rigorous long-term aging and stability testing to ensure reliable, consistent performance even in harsh industrial environments. With the ability to capture accurate multi-parameter data from a single measurement point, this industrial control temperature pressure transmitter streamlines installation, reduces wiring costs, and optimizes process monitoring efficiency for professional industrial users.
The HPTM890 2-Channel Temperature Pressure Transmitter is a high-performance, integrated measurement solution engineered by Nanjing Hangjia Electronic Technology, designed to deliver simultaneous, high-accuracy monitoring of medium pressure and temperature for industrial process control systems. This advanced integrated temperature and pressure transmitter combines a highly stable pressure-sensitive element and a high-precision temperature-sensitive element for independent dual-parameter measurement, outputting two standard 4-20mA signals fully compatible with mainstream industrial control systems.
Key Benefits
High-Precision Dual-Channel Parallel Measurement
This 4-20mA dual channel pressure temperature sensor supports independent parallel measurement of pressure and temperature, with a temperature sensor positioned in close proximity to the measured medium to minimize transmission errors. It delivers a standard pressure accuracy of ±0.5%FS (optional ±0.2%FS) and temperature accuracy of ±0.4℃, with customizable measuring ranges to meet diverse industrial requirements.
Robust Performance for Harsh Industrial Conditions
Engineered for demanding industrial settings, this transmitter features an IP65 protection grade, superior vibration resistance (20g, 20~5000Hz) and shock resistance (20g, 11ms). It comes with built-in reverse polarity protection, high insulation resistance (>100MΩ at 500VDC), and strong dielectric strength, ensuring stable operation even in electrically noisy or mechanically challenging environments.
Flexible Power Supply & Intuitive On-Site Display
The industrial pressure temperature transmitter with LED display supports multiple power supply options: 3.18VDC (built-in 3.6V lithium battery), 5VDC external power, and 24VDC (930VDC) external power, adapting to various on-site power configurations. Its large dual-row LED display delivers clear, easy-to-read data even in low-light industrial environments, enabling instant on-site parameter checks without additional tools.
Industrial Applications
The 2-Channel Temperature Pressure Transmitter is a versatile solution widely adopted across core industrial sectors where simultaneous fluid pressure and temperature monitoring is critical. It is ideal for industrial process control systems, hydraulic and pneumatic systems, water treatment and environmental protection projects, oil and gas pipeline monitoring, HVAC&R systems, food and beverage processing, and pharmaceutical manufacturing lines.
For process control engineers and industrial operators, this integrated transmitter simplifies multi-parameter monitoring, reduces equipment installation and maintenance costs, and improves the stability and safety of production processes. Its ability to operate reliably across a wide medium temperature range (-40~100℃) makes it suitable for both normal and extreme working conditions in industrial facilities.
FAQ
What output signal does the HPTM890 2-Channel Temperature Pressure Transmitter provide?
This transmitter delivers two independent 4-20mADC output signals (one for pressure, one for temperature) with a standard 24VDC power supply (compatible with 9~30VDC input), fully compatible with most industrial control and data acquisition systems.
What types of media can this transmitter measure?
This industrial transmitter is compatible with a wide range of liquids, gases, and other media compatible with its contact materials, making it adaptable to diverse industrial fluid monitoring applications.
