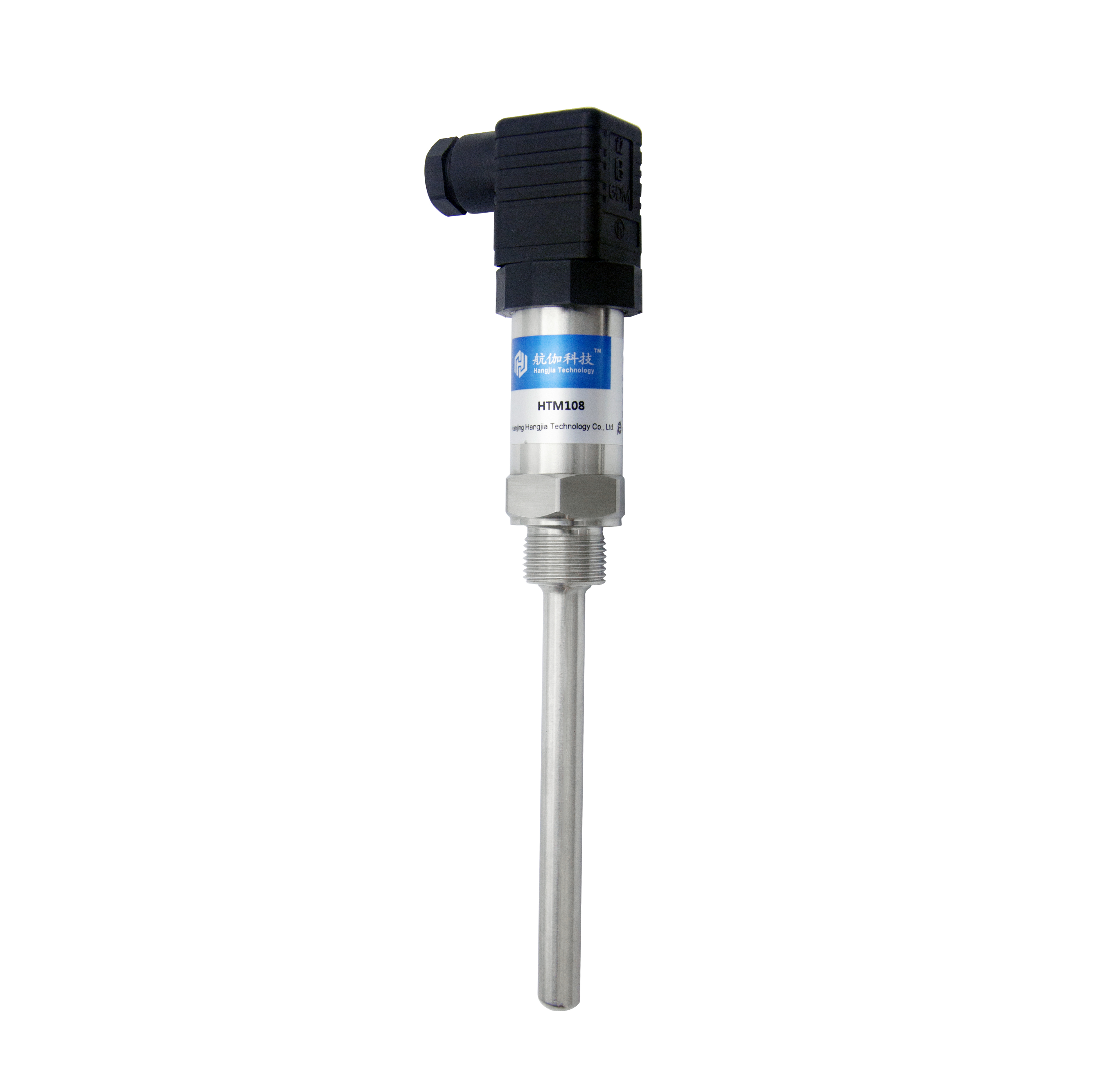

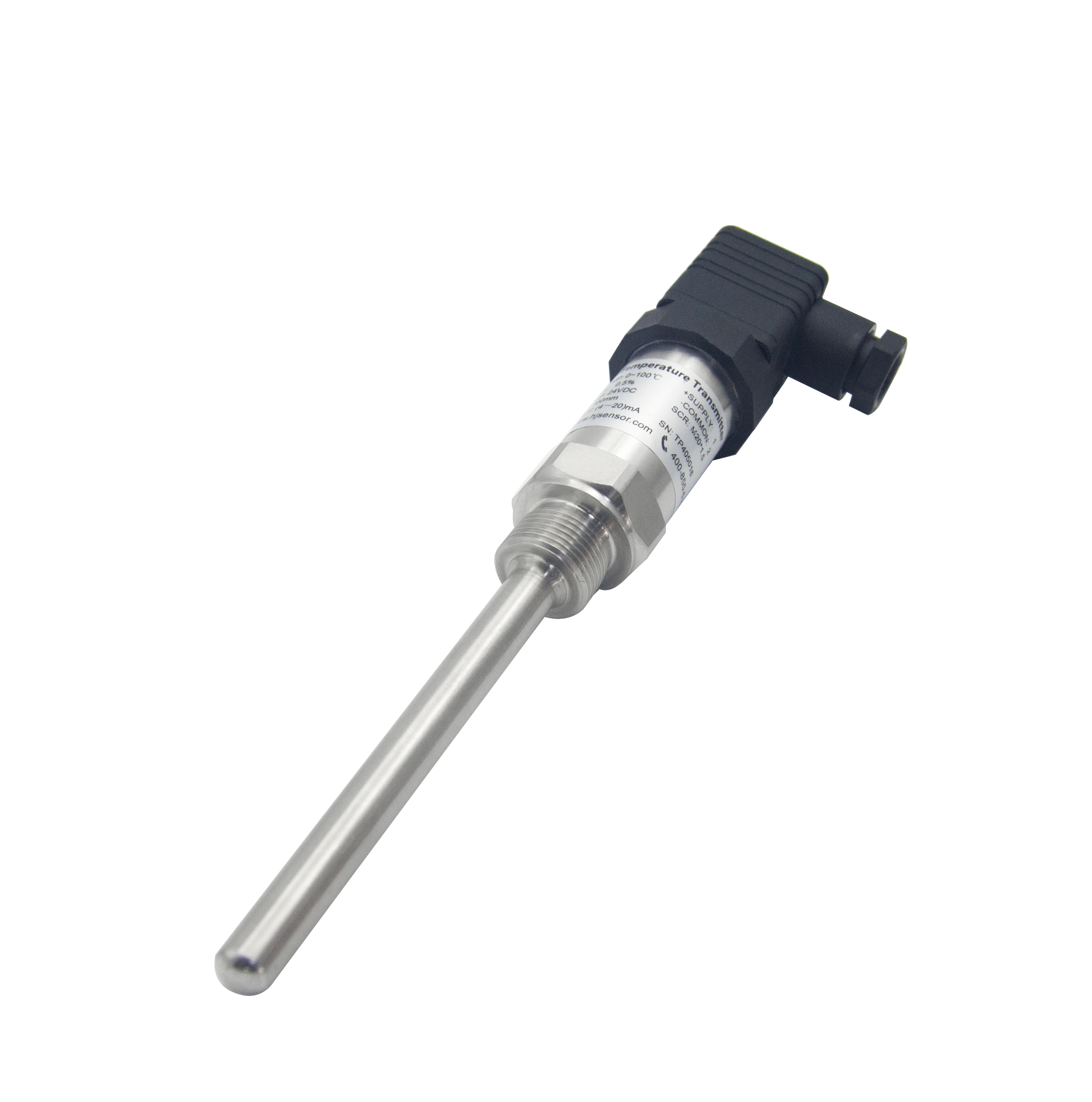

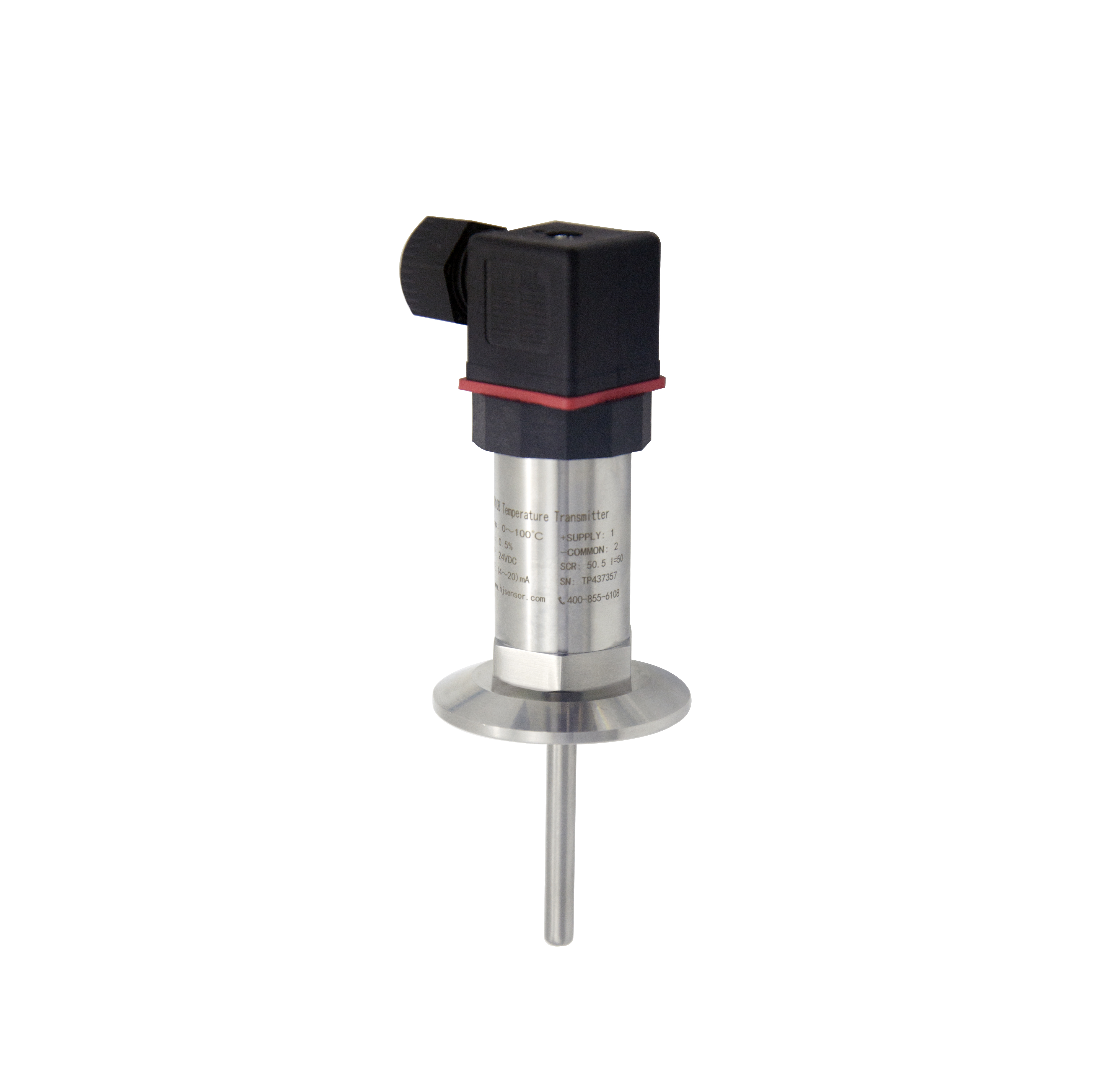

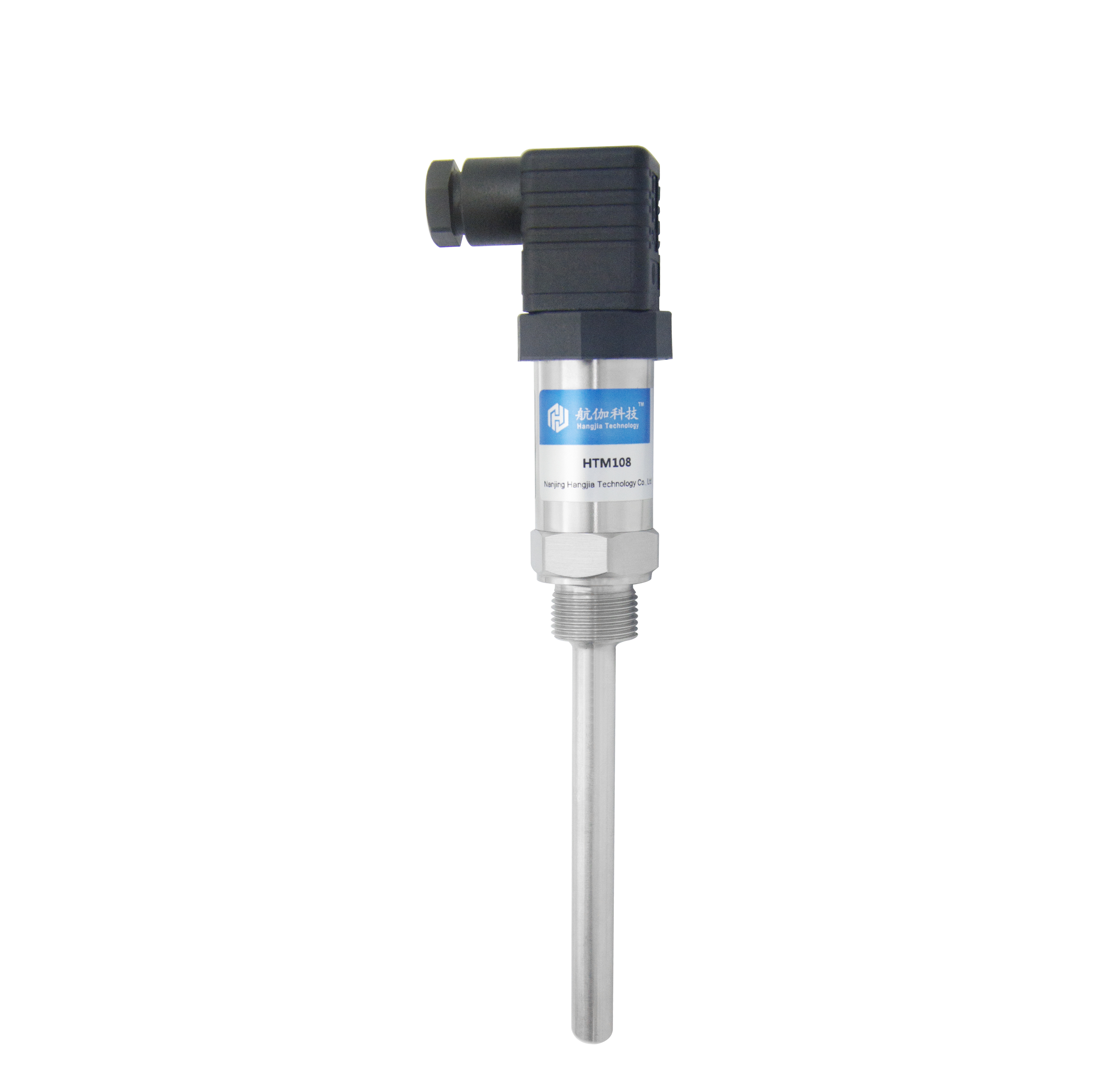

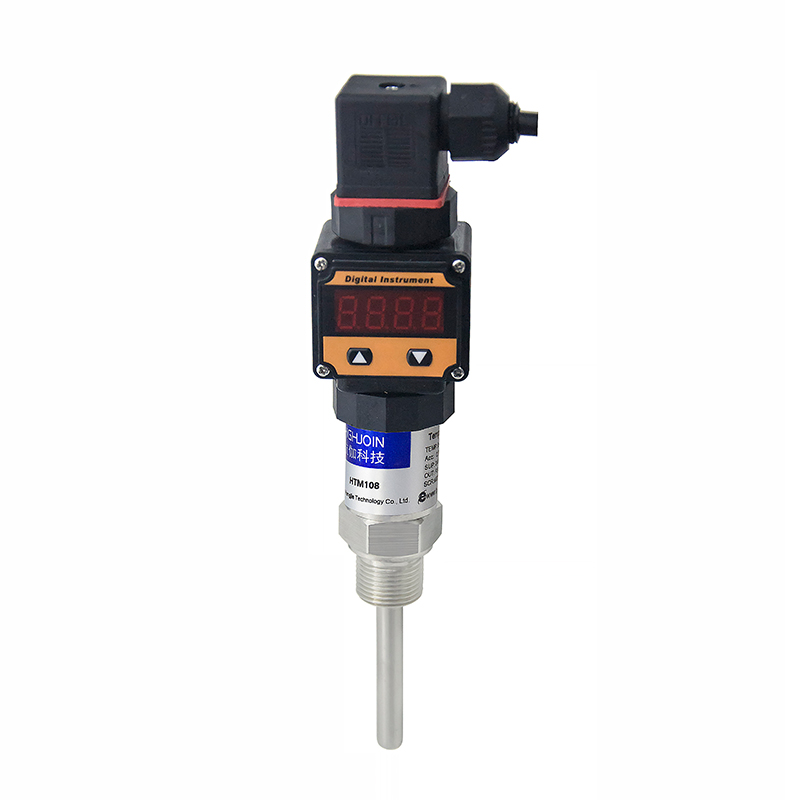

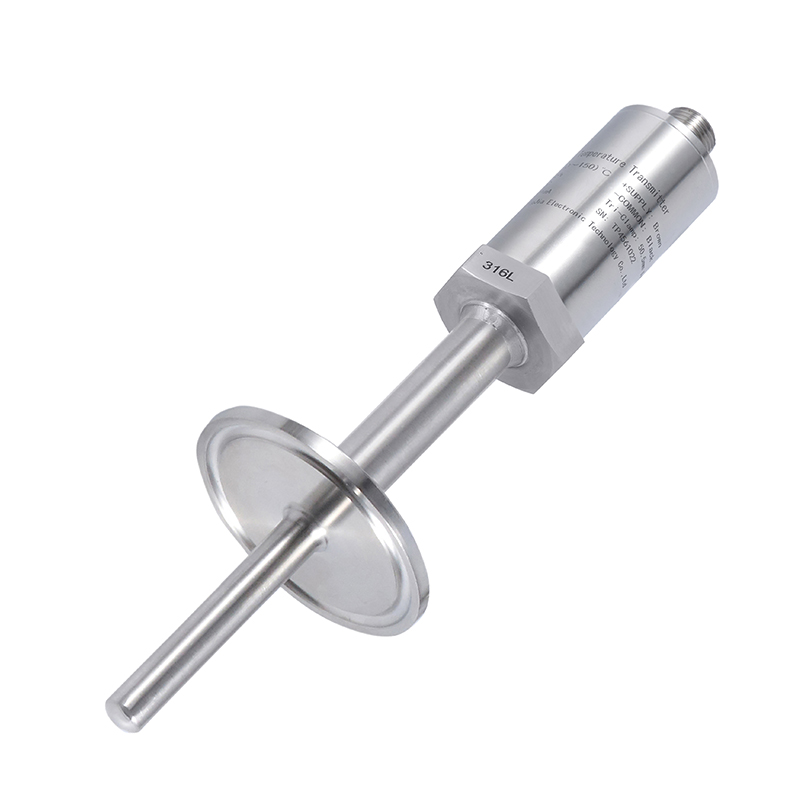

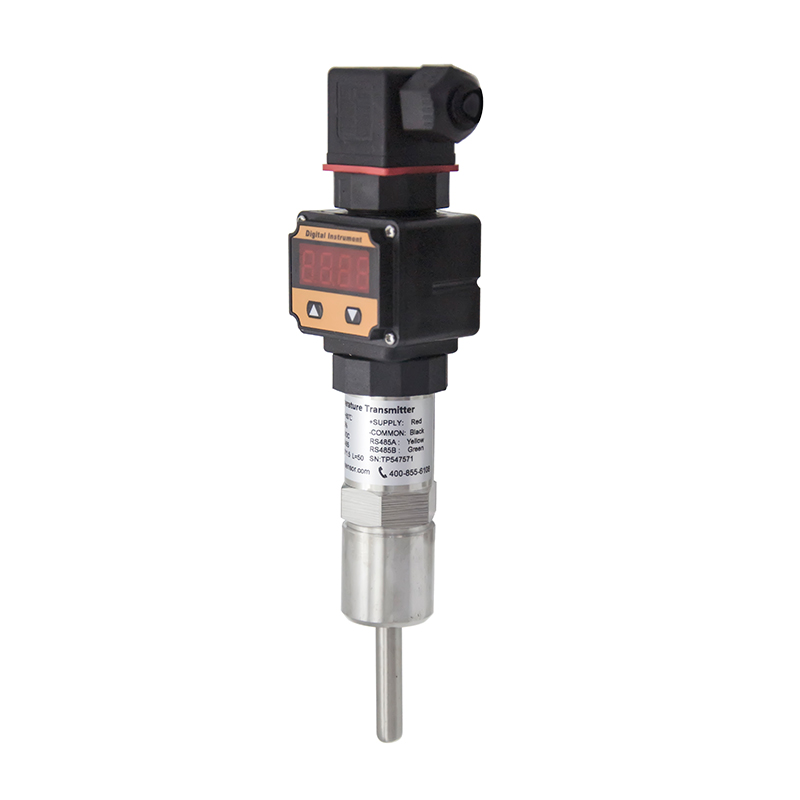

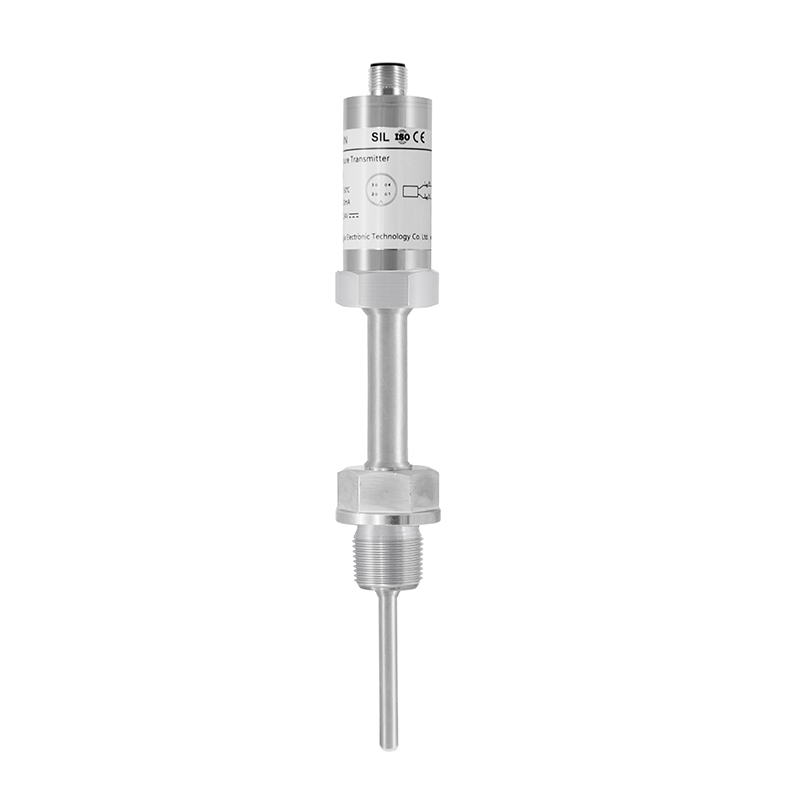

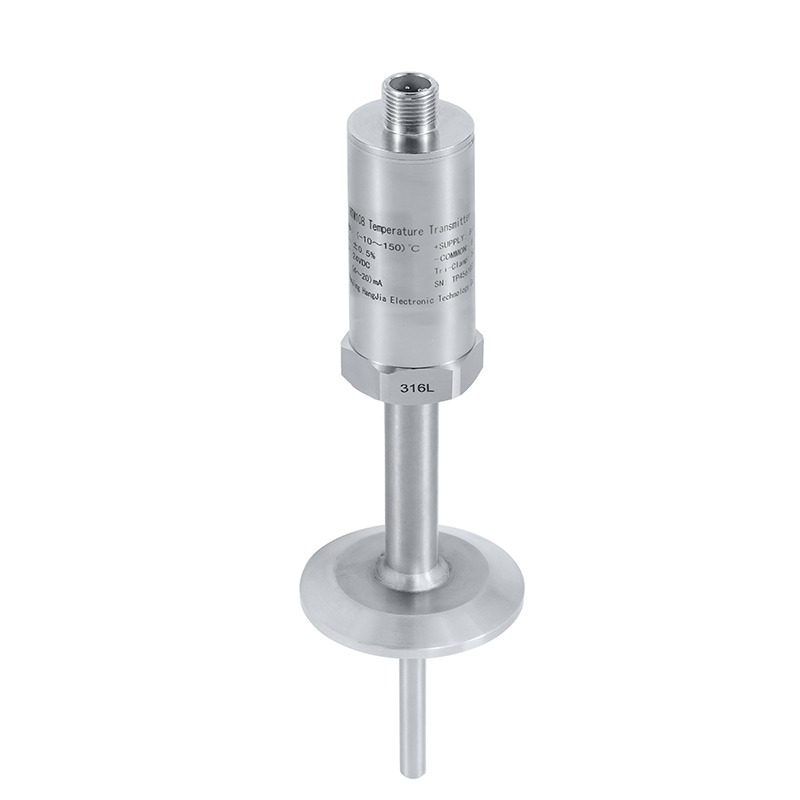

HTM108 4-20mA Stainless Steel Compact Temperature Transmitter

Measuring Range: -40~1500℃
Output:voltage, 4~20mA



Availability:
Quantity:
whatsapp sharing button
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button


The HTM108 Compact Temperature Transmitter is a highly adaptable device designed for precise temperature measurement and control in various industrial processes. It offers the flexibility to utilize either PT100 sensors or thermocouples, catering to diverse temperature sensing needs.

This transmitter has undergone extensive testing and aging procedures for all components, semi-finished products, and final assemblies. This thorough quality control process guarantees both reliability and long-term performance, making it a dependable choice for demanding applications.

Housed in a durable stainless-steel shell, the HTM108 features an integrated amplification circuit, ensuring accurate temperature readings across a wide range of conditions. Its versatility makes it suitable for applications in industries such as petroleum, chemical processing, metallurgy, electric power, and hydrology.

In summary, the HTM108 Compact Temperature Transmitter combines flexibility, rigorous quality assurance, and robust design to deliver reliable temperature measurement solutions.



Application

On-site temperature measurement and control in

  • petroleum

  • chemical industry

  • metallurgy

  • electric power

  • hydrology, etc.


Features:

  • Shell protection grade IP65

  • The material in contact with the medium is stainless steel, which has good corrosion resistance.

  • Suitable for temperature measurement of fluid media, long-term stable operation

  • Impact resistance, vibration resistance, corrosion resistance


Technical Parameters

Measuring Temperature Range

-40~1500℃

Accuracy

±0.5%FS

Long-term   Stability

±0.2%FS/year

Insertion Depth

customization

Installment Thread

customization

Operation Temperature

-30~70℃

Storage Temperature

-30~85℃

Supply Voltage

24VDC

Output   Signal

2-wire 4~20mADC,3-wire voltage output, etc.

Protection Grade

IP67

Electrical   Connection

DIN43650   and Cable Output, etc.


Our product philosophy is specialization, customization, and intelligence.
