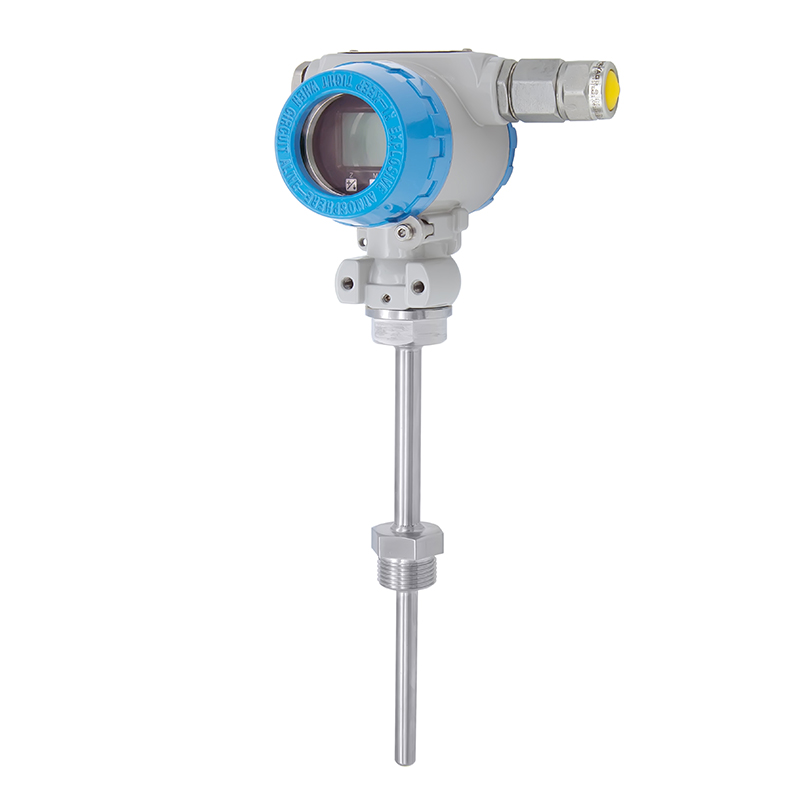

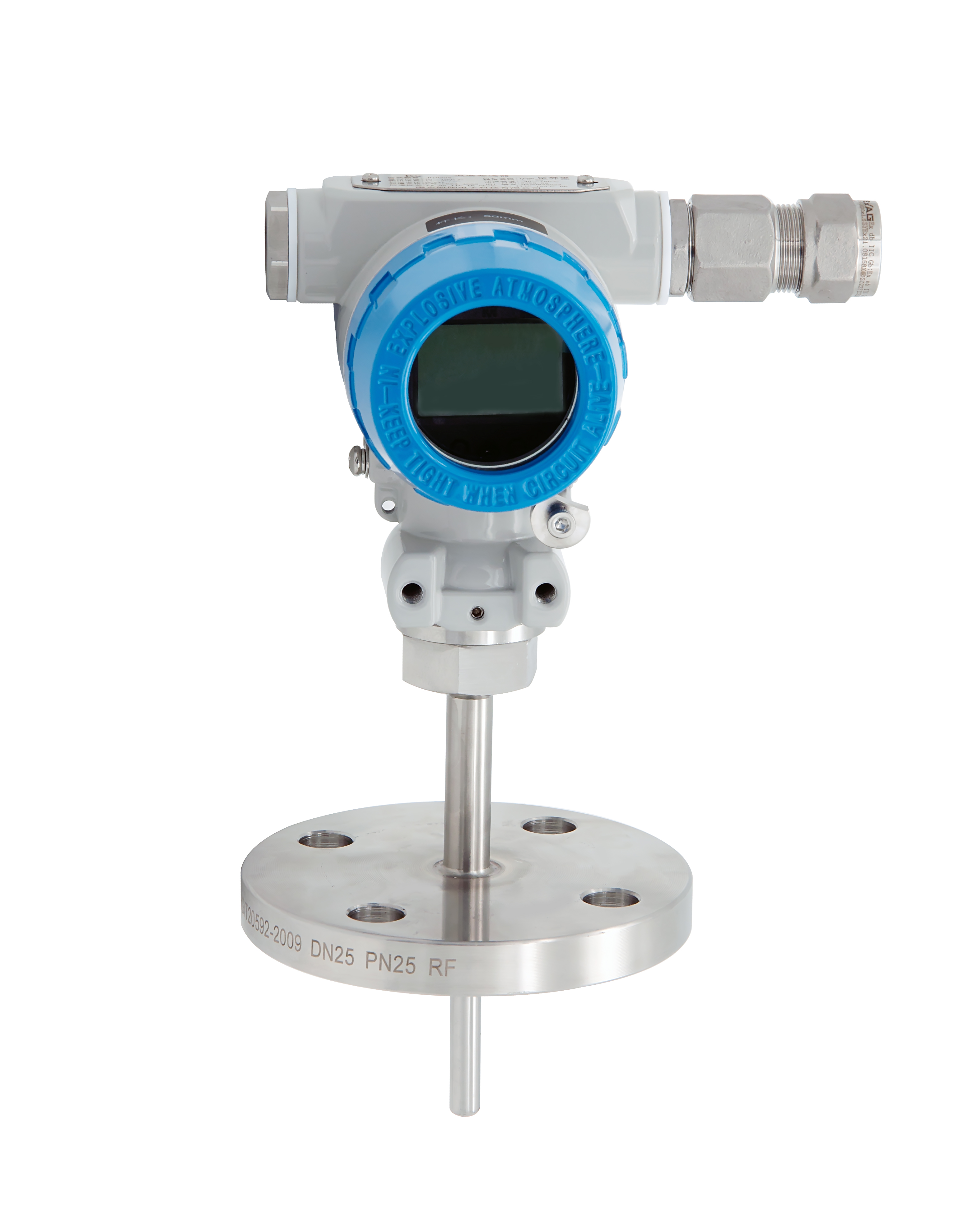

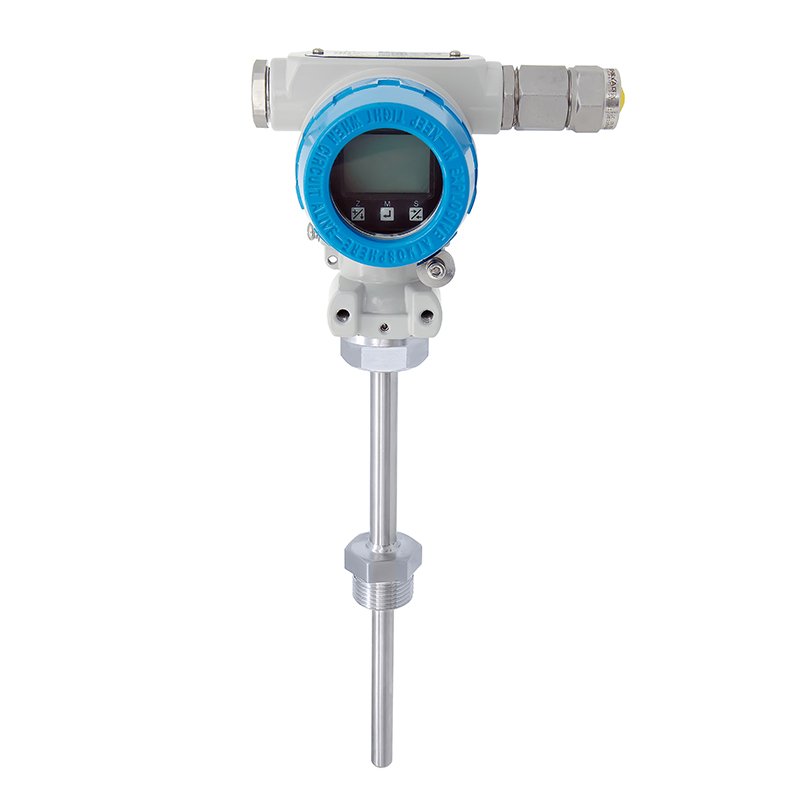

HTM208 Explosive Proof Ex Db IIC T6 Gb Temperature Transmitter LCD Digital Display

Measuring Range: -40~1500℃
Output:voltage, 4~20mA, RS485, HART
Sensor: PT100


Availability:
Quantity:
whatsapp sharing button
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button


The HTM208 Explosion-Proof Digital Temperature Transmitter is designed for demanding industrial environments, featuring an explosion-proof rating of Ex db IIC T6 Gb and Ex tb IIIC T80°C Db. Utilizing PT100 as its signal measurement element, this transmitter incorporates an amplification circuit housed in durable stainless steel, ensuring reliable conversion of the sensor signal into standardized outputs.

All components, including semi-finished and finished products, undergo rigorous testing and aging processes, guaranteeing high reliability and robust performance. With strong adaptability and a wide range of product options, the HTM208 is ideal for on-site temperature measurement and control.

This versatile transmitter is extensively used in various industrial processes, including petroleum, chemical, metallurgy, electricity, and hydrology, making it an excellent choice for temperature monitoring in hazardous locations.

By selecting the HTM208, you enhance operational safety and efficiency in your temperature measurement applications.



Application

On-site temperature measurement and control are crucial in various industries, including:

  • petroleum

  • chemical industry

  • metallurgy

  • electric power

  • hydrology, etc.


Features:

  • On-site display

  • Support RS485 communication protocol or HART communication protocol

  • Shell protection grade IP65

  • The material in contacted with medium is stainless steel with good corrosion resistance.

  • Suitable for temperature measurement of fluid media, long-term stable operation

  • Impact resistance, vibration resistance and corrosion resistance


Technical Parameters

Measuring   Temperature Range

-40~1500℃

Measuring   Medium

various liquid, gas, or steam compatible with 304   or 316L stainless steel

Accuracy

±0.5%FS

Long-term Stability

±0.2%FS/year

Insertion   Depth

customization

Installment   Thread

customization

Operation   Temperature

-30~85℃(normal type);

-20~60℃(Explosion-proof type)

Storage   Temperature

-30~85℃

Supply   Voltage

24VDC

Output Signal

2-wire 4~20mADC,or   RS485, HART

Protection   Grade

IP65

Electrical Connection

Cables with cable gland

Explosion-proof

Ex db IIC T6 Gb

Ex tb IIIC T80°C Db
