How Can Radar Level Meters Improve Bulk Material And Solid Level Measurement?

Views: 316     Author: Site Editor     Publish Time: 2025-06-12      Origin: Site

Inquire

Solid and bulk material measurement has long been one of the most challenging areas in industrial process control. Traditional technologies often fall short in accuracy, reliability, and durability—especially in environments filled with dust, vibration, and high temperatures. That’s where the industrial radar level meter for harsh environments steps in as a powerful and intelligent solution. At Nanjing Hangjia Electronic Technology Co., Ltd., we design and manufacture high-performance radar level meters that offer customizable, contactless measurement for even the most demanding bulk material applications.



What Challenges Do Bulk Material and Solid Level Measurements Present?

Unlike liquids, bulk materials and solids such as grains, powders, ores, or pellets have complex surfaces that can shift, slope, or form irregular cones. This creates several measurement difficulties:

Irregular Reflection Surfaces: Sloping or moving surfaces scatter signals unpredictably.

Heavy Dust Generation: Dense airborne dust can absorb or reflect measurement signals.

Low Dielectric Constant: Many solid materials have low reflectivity, making echo detection harder.

Material Build-Up: Powder coating or condensation can obscure sensor surfaces.

Challenging Environmental Conditions: Industrial processes often expose sensors to high temperatures, strong vibrations, or corrosive chemicals.

Traditional measurement methods—such as mechanical probes, capacitive sensors, or ultrasonic level meters—frequently fail in these conditions, requiring frequent recalibration or maintenance. The result: process inefficiencies, downtime, and compromised safety.



How Does a Radar Level Meter Adapt to Bulk Material Applications?

Modern customizable radar level meters for bulk material applications offer solutions that directly address these unique measurement challenges. Operating within the 76-81GHz high-frequency band, these sensors emit highly focused radar beams that penetrate dust and are less affected by irregular surfaces.

Key Technologies:

High-Frequency Emission (76-81GHz): Narrow beam angles ensure precise targeting, reducing false echoes from tank walls or internal structures.

Custom Sensor Heads: Antenna configurations can be tailored for narrow openings, harsh materials, or confined vessels.

Advanced Signal Processing: Adaptive echo tracking software identifies and locks onto true surface signals even in noisy environments.

Communication Interfaces: Compatibility with 4-20mA, HART, and RS485 ensures seamless data integration with existing automation platforms, providing real-time updates and control.

These features make radar level meters especially effective in silos, hoppers, bins, and storage tanks used in cement, mining, agriculture, and chemical industries.



Why Is Durability Crucial for Radar Level Meters in Harsh Environments?

Measuring equipment used in bulk material applications must withstand aggressive conditions for extended periods. Hangjia's industrial radar level meters are engineered for resilience:

High-Temperature Resistance: Sensors operate reliably in temperatures exceeding 200°C.

Pressure and Vibration Endurance: Units remain stable in pressurized systems and vibrating machinery.

Corrosion and Dust Protection: Constructed from high-grade stainless steel with IP68-rated enclosures, our devices resist corrosion, condensation, and material build-up.

Real-World Example:

In a mining facility processing metallic ores, dust levels were high enough to clog traditional ultrasonic sensors within weeks. By replacing them with Hangjia's radar level meters, the customer achieved uninterrupted monitoring over six months without recalibration—improving throughput and minimizing downtime.

Reliability is not just about hardware—it’s about consistent performance over time. That’s why we subject every unit to rigorous factory testing, including temperature cycling and vibration simulation, to ensure long-term field stability.



How Can Customization Improve Radar Level Meter Performance?

Bulk material applications vary significantly in terms of particle size, material flow, and vessel geometry. Standard sensors often cannot handle these variations effectively. Customization allows radar level meters to be precisely configured for the task.

Material-Specific Adjustments:

Moisture and Density Compensation: Software can be configured to adjust echo sensitivity based on bulk density or surface texture.

Custom Mounting Options: Top-mounted, angled, or side-mounted installations can be optimized for visibility and reflection.

User-Defined Parameters: Users can set alarms, sensitivity levels, and blanking zones to exclude interference from chutes or mechanical agitators.

By offering flexible configuration and calibration options, Hangjia ensures that each radar level meter performs optimally in its specific environment. Whether monitoring cement powder in a dusty silo or grain in a ventilated bin, the ability to tailor both hardware and software delivers accurate, actionable data.



What Are the Benefits of Integrating Radar Level Meters with Industrial Automation Systems?

In modern facilities, data is just as valuable as material. A radar level meter equipped with communication protocols like 4-20mA, HART, and RS485 becomes part of a smarter, more efficient plant.

Advantages of Integration:

Remote Monitoring: Access data from centralized control rooms or cloud-based dashboards.

Automated Alerts: Trigger alarms when levels reach set thresholds, preventing overflows or shortages.

Process Optimization: Use historical data to adjust refill schedules, predict usage trends, or balance material flow.

Improved Safety: Reduce manual inspections in hazardous areas, minimizing operator exposure.

With our devices, clients can monitor dozens of silos or bins across sites, identify anomalies in real-time, and make data-driven decisions that boost productivity and ensure compliance.



How to Choose the Right Radar Level Meter for Your Application?

Selecting the appropriate radar level meter involves more than just picking a model—it requires understanding your material and environment.

Key Selection Criteria:

Material Characteristics: Is your product powdery, granular, sticky, or free-flowing?

Environmental Conditions: Are you measuring in extreme temperatures, dust, or pressure?

Range Requirements: Does the application require a long-range sensor (up to 120 meters) or short-range precision?

Interface Compatibility: Will you need Modbus RTU (RS485), analog output, or digital HART protocol?

Mounting Constraints: Is the sensor to be installed inside a confined hopper, on a sloped tank roof, or externally?

At Nanjing Hangjia, we assist customers in evaluating these parameters and offer consultation services to ensure the chosen device aligns with both the technical and operational requirements.

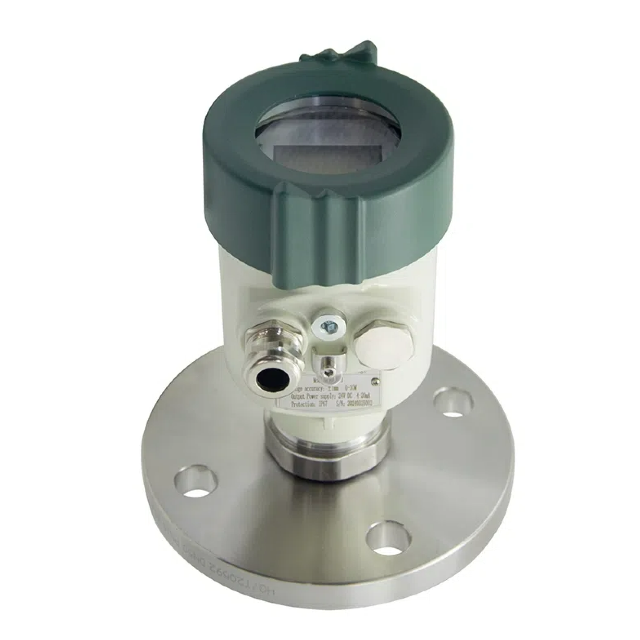

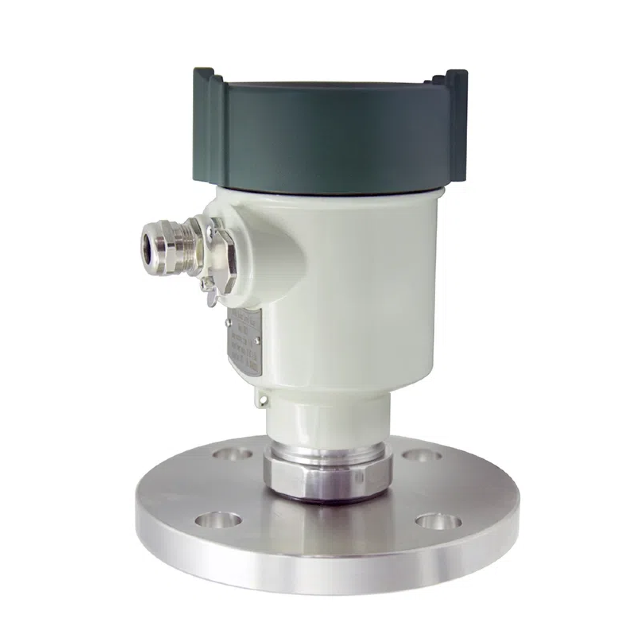

 Radar Level Meter

Conclusion

As industries move toward smarter, safer, and more automated operations, investing in durable, accurate, and customizable radar level meters for bulk material applications is a step toward operational excellence. With advanced signal processing, rugged construction, and flexible integration options, our industrial radar level meters for harsh environments represent a long-term solution that adapts to the future of industrial monitoring.

Contact Us
If you're ready to improve your bulk material measurement capabilities, connect with the experts at Nanjing Hangjia Electronic Technology Co., Ltd. today. From consultation to customization, we deliver radar level solutions that work for your process, not against it.
