How to Install a Magnetic Level Indicator Correctly?
Magnetic level indicators are widely used in petrochemical, metallurgical, and industrial process control applications – especially in high‑temperature and high‑pressure environments. But incorrect installation can lead to false readings, sticking floats, or even equipment damage. So, what is the right way to install a magnetic level indicator like the HYM‑UZ? This guide walks you through the key steps and best practices.
Why Choose the HYM‑UZ Magnetic Level Indicator?

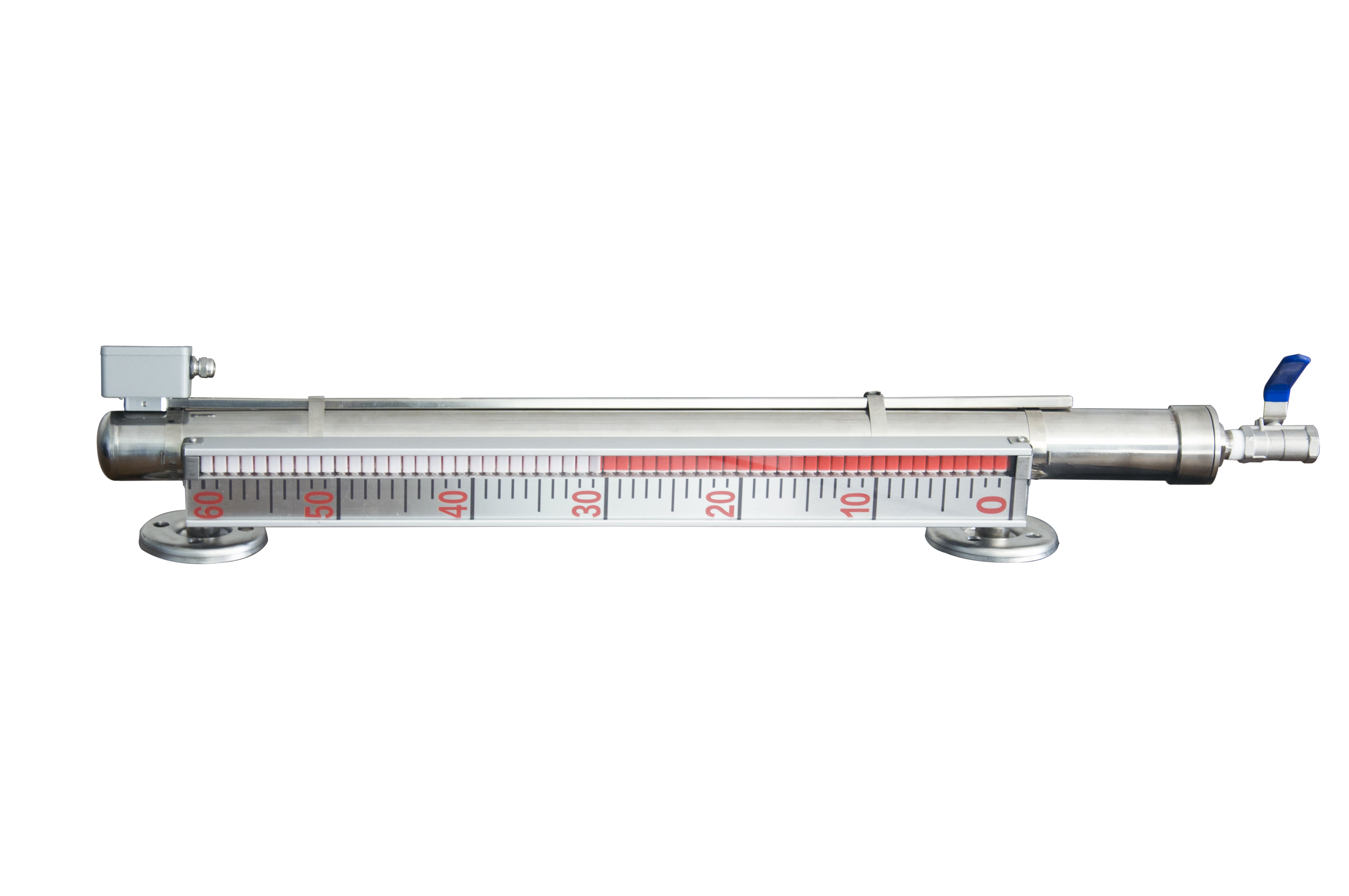

The HYM‑UZ consists of a chamber connected to the tank via bypass pipes, with a magnet‑equipped float that rises and falls with the liquid level. This movement flips red/white magnetic flags to provide a clear, visual level indication – red for liquid, white for vapor space. Key features include:
Wide measurement range – 200mm to 10,000mm
High accuracy – ±10mm
Broad temperature range – –150°C to 400°C
Pressure capability – up to 10.0MPa
Multiple material options – 304, 316L, PE, PP, UPVC, PTFE‑lined, and customised
Optional transmitter – 4‑20mA, RS485, or HART for remote monitoring
Special types available – anti‑corrosion, explosion‑proof, steam‑jacketed, and low‑temperature versions
Step‑by‑Step Installation Guide
1. Pre‑Installation Checks
Verify the model – confirm that the chamber material, float, and process connections match your order and application requirements.
Check the float – ensure the float moves freely inside the chamber. Remove any packing material or protective plugs before installation.
Inspect the flags – make sure the red/white magnetic flags rotate smoothly and are not stuck.

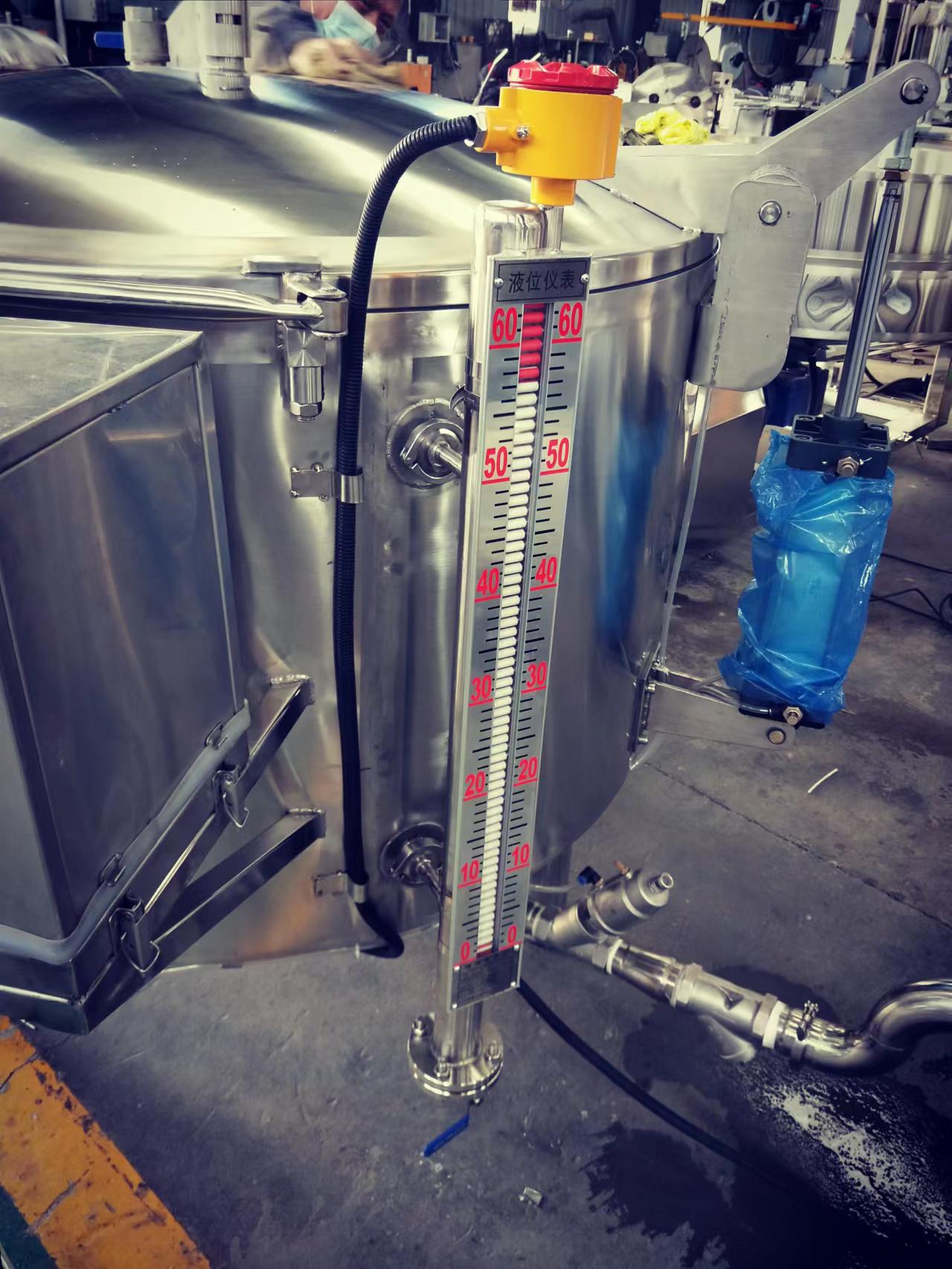

2. Mounting the Chamber
Vertical mounting – the chamber must be installed vertically (within ±2°) to ensure the float moves freely.
Bypass piping – connect the upper and lower bypass pipes to the tank. The top connection should return to the vapor space, and the bottom connection to the liquid space.
Isolation valves – install isolation valves between the tank and the chamber. This allows maintenance and cleaning without draining the tank.
For steam‑jacketed models – connect the steam inlet and outlet for heated applications to prevent medium solidification.
3. Float Installation
Float orientation – install the float with the magnet end facing upward (marked on the float body). Reverse installation will cause the indicator to show an incorrect level.
Gentle insertion – insert the float slowly into the chamber to avoid impact damage. Never drop the float.
For top‑mounted models – use a guide wire or rod to ensure the float enters the chamber straight.
4. Process Connections
Flange connections – align the flanges, install gaskets, and tighten bolts evenly in a cross‑pattern. Recommended gasket material: PTFE or graphite for chemical resistance.
Threaded connections – apply PTFE tape to male threads and tighten to recommended torque. Do not overtighten.
Tri‑clamp connections – use appropriate gaskets and clamps, ensuring a secure, leak‑free seal.
5. Transmitter Installation (Optional)
Mount the HYM880 magnetic level transmitter (or equivalent) on the chamber.
Connect the output signal (4‑20mA, RS485, or HART) to the control system.
Ensure the cable gland is properly sealed, especially for explosion‑proof models.
Calibrate the transmitter according to the range and density parameters.
6. System Commissioning
Slowly open the isolation valves to allow liquid into the chamber. Sudden pressurisation can damage the float.
Observe the magnetic flags – they should flip smoothly as the liquid level rises.
Check for leaks at all connection points.
For remote output, verify the signal matches the visual reading.
Adjust the zero and span if necessary using the transmitter’s built‑in settings.
Common Mistakes to Avoid
Mistake | Consequence | Solution |
|---|---|---|
Installing the chamber with a tilt (≥3°) | Float sticks or false readings | Ensure vertical mounting (≤2° tilt) |
Float installed upside down | Flags do not flip correctly | Install with magnet end facing up |
No isolation valves installed | Impossible to maintain without draining the tank | Install valves on both top and bottom connections |
Excessive medium viscosity | Float movement is restricted | For viscosity >150mPa·s, use a steam‑jacketed model |
Wrong chamber material for corrosive media | Leakage or equipment failure | Select 316L, PTFE‑lined, or appropriate corrosion‑resistant material |
Overtightening the flange bolts | Gasket damage or flange deformation | Tighten evenly to recommended torque |
Real‑World Application Example
A chemical plant needed reliable level indication for a high‑temperature (250°C) reactor containing corrosive acid. They installed the HYM‑UZ with a 316L chamber, PTFE‑lined float, and a steam‑jacketed option to prevent medium crystallisation. The chamber was mounted vertically with isolation valves and connected to the tank via DN50 flanges. A HYM880 transmitter with 4‑20mA HART output was added for remote monitoring. After commissioning, the system provided stable, accurate level readings with no maintenance issues for over two years, even under high‑temperature and corrosive conditions.
Final Thoughts
Proper installation of a magnetic level indicator is essential for accurate, reliable level measurement and long service life. Always verify the float orientation, mount the chamber vertically, and use the correct materials for your application. If you are unsure which HYM‑UZ model suits your process – whether you need a standard version, low‑temperature type, or steam‑jacketed option – contact us for free selection assistance.
Need a reliable magnetic level indicator for your next project? Check the HYM‑UZ specifications or request a quote today.
— The Hangjia Engineering Team
