How to Install a Monocrystalline Silicon Differential Pressure Transmitter Correctly?
Differential pressure transmitters are essential for measuring liquid, gas, or steam flow, level, and pressure in industries like petroleum, chemical, power, and steel. But improper installation can lead to inaccurate readings, drift, or even equipment damage. So, what is the correct way to install a high‑performance differential pressure transmitter like the HPM82 Monocrystalline Silicon Differential Pressure Transmitter? This guide walks you through the key steps and best practices
Why Choose the HPM82?
The HPM82 uses a MEMS‑based monocrystalline silicon sensor with intelligent static pressure and temperature compensation. Key benefits include:
Wide range: from –1 kPa to 1 kPa (S1) or –6 kPa to 6 kPa (S2), with a turndown ratio of 3:1.
High accuracy: ±0.1% for TD 1:1, ±0.1% × TD for higher turndown.
Robust construction: IP66 aluminum alloy housing, multiple corrosion‑resistant materials (316L, Hastelloy C, tantalum, gold‑plated diaphragm).
Flexible output: 4‑20mA with HART protocol.
Explosion‑proof options: Ex db IIC T4…T6 and Ex ia II CT6.
User‑friendly: 5‑digit backlit LCD display, three local buttons for on‑site adjustment.
Step‑by‑Step Installation Guide
1. Select the Right Location
Choose a location away from vibration, direct heat, and corrosive fumes.
Ambient temperature for general use: –40 to 85°C (for fluorocarbon oil fill: –10 to 60°C).
Ensure the transmitter is easily accessible for maintenance and reading the display.
2. Mounting Orientation
The HPM82 can be mounted vertically or horizontally using the supplied 2‑inch bracket (tablet or right‑angle holder).
For liquid, gas, or steam flow measurement: Mount the transmitter below the orifice plate or flow element to keep impulse lines flooded with liquid and avoid gas bubbles.

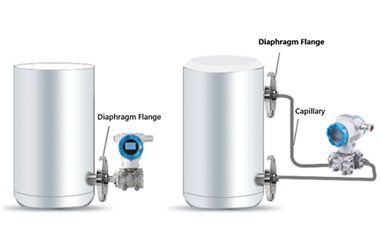

For level measurement (open tank): Mount the low‑pressure side vented to atmosphere, high‑pressure side connected to the bottom of the tank.
For level measurement (closed tank): Connect both high and low pressure sides. Use condensate pots for steam service.
3. Impulse Piping
Keep impulse lines as short as possible, with a slope of at least 1:10 downward from the process taps to the transmitter.
Use the same diameter and length for both high and low pressure sides to minimise differential errors.
Install isolation valves (e.g., three‑valve or five‑valve manifolds) to allow zero adjustment and transmitter removal without shutting down the process.
4. Electrical Connections
Use shielded twisted pair cable. Connect the shield to ground at one end only.
For HART communication, ensure a load resistance of at least 250 Ω in the loop.
Power supply: DC 10.5–45V for general service; DC 10.5–26V for intrinsic safety/explosion‑proof versions.
Cable entry: M20×1.5 female thread. Use explosion‑proof cable glands for hazardous areas.
5. Zero and Span Adjustment
After installation and before pressurising, vent both pressure ports to atmosphere (for gauge DP) and adjust zero using the three local buttons or a HART communicator.
Zero and span can be migrated within ±20% of the maximum range using configuration software or the hand‑held terminal.
The HART protocol allows remote zero/span adjustment and square root output selection for flow measurement.
6. Leak Test and Commissioning
Slowly open the isolation valves. Never open both high and low side valves suddenly – use the equalising valve first.
Check for leaks at all connections.
Monitor the LCD display for stable readings. For flow applications, enable square root output if not already set.
Common Mistakes to Avoid
Mistake | Consequence | Solution |
|---|---|---|
Mounting the transmitter above the process for wet gas/steam | Condensate drains away, causing measurement errors | Mount below or use condensate pots |
Using different length impulse lines | Static pressure errors | Keep both lines identical |
Forgetting to open the equalising valve before removing transmitter | Overpressure damage to sensor | Always follow three‑valve manifold procedure |
Not grounding the shield | Noise and unstable readings | Ground shield at one end |
Exceeding static pressure rating (16 MPa for HPM82) | Permanent sensor damage | Check process pressure before installation |
Final Thoughts
Proper installation of a monocrystalline silicon differential pressure transmitter like the HPM82 ensures reliable performance, long‑term stability, and safe operation. Follow the manufacturer’s guidelines, respect the process conditions, and always use the correct materials for your media. If you need help selecting the right diaphragm material or filling oil for your specific application, contact us – we are happy to assist.
