Is Your Pressure Transmitter Ruining Your Product?

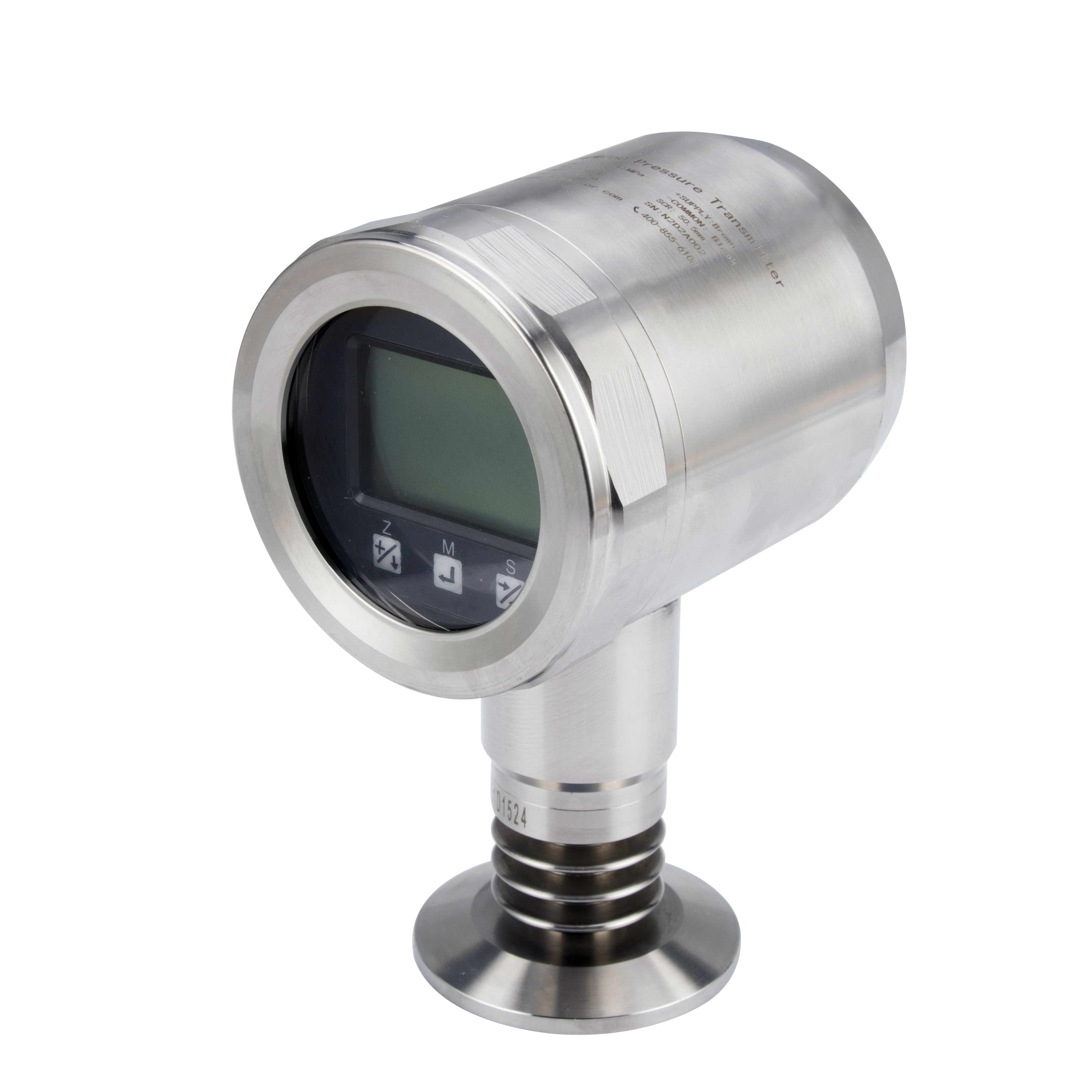

The HPM760 Sanitary Pressure Transmitter is designed for food, beverage, pharmaceutical, and biotech industries where cleanliness and reliability are critical. Its flush diaphragm, all-stainless-steel construction, and optional cooling fins make it ideal for measuring pressure or level in viscous, sticky, or high-temperature media. Proper installation ensures accurate readings and long service life.
1. Before Installation – What to Check
Verify process connection – The HPM760 supports Tri‑clamp (K252, K505, K640), DIN 11851 (KD40, KD50), SMS (KS112, KS2), and DRD (KDRD). Make sure the fitting matches your pipeline.
Select correct diaphragm material – Standard 316L for most foods and mild chemicals; Hastelloy C or Tantalum for aggressive acids.
Check medium temperature – Standard unit works up to 80°C. For higher temperatures, add cooling fins (3 fins for ≤140°C, 5 fins for ≤180°C). Also choose appropriate fill fluid (high‑temp silicone oil up to 320°C).
Confirm output signal – 4‑20mA (two‑wire), 4‑20mA+HART, or 0‑10V (three‑wire). Ensure compatibility with your control system.
2. Installation Steps
Step 1: Mount the transmitter
Install the transmitter vertically or horizontally with the diaphragm facing the flow. Avoid mounting with the electrical connection pointing upward to prevent moisture ingress.
Use a sanitary clamp (e.g., Tri‑clamp) to secure the connection. Do not overtighten – follow the gasket manufacturer’s torque specification.
Step 2: Electrical connection
For M12×1 connector (ordering code C5 or C5X), wire according to the table below:
Output Type | Pin 1 (Brown) | Pin 2 (White) | Pin 3 (Blue) |
|---|---|---|---|
4‑20mA (2‑wire) | +V power | not used | 0V / +OUT |
0‑10V (3‑wire) | +V power | +OUT signal | GND |
Use shielded cable for long runs to avoid EMI.
Step 3: Power on and verify
Apply power (8‑30V DC for 4‑20mA, 12‑30V DC for 0‑10V). The on‑site digital display (Y6 or Y7) should light up and show a pressure reading.
Check for zero drift. If the reading is not zero under no pressure, perform a simple zero adjustment via the internal potentiometer (if equipped) or correct in your PLC.
Step 4: Test under process conditions
Slowly open the process valve to avoid pressure spikes. Compare the displayed pressure with a reference gauge to confirm accuracy.
3. Common Applications & Installation Notes
Application | Recommended Configuration | Installation Tip |
|---|---|---|
Milk / yogurt tank level | Tri‑clamp K505, 316L, 4‑20mA | Mount at bottom of tank, zero out hydrostatic pressure before filling. |
Juice pasteurizer | Cooling fins (T3 or T5), 4‑20mA+HART | Place upstream of the heat exchanger for accurate filter differential pressure. |
Pharmaceutical bioreactor | Electropolishing (EP), high‑temp silicone oil (HS) | Ensure diaphragm is flush with tank interior – no dead zones. |
Syrup / honey pipeline | K640 Tri‑clamp (2″), 316L | Install with diaphragm facing downward to prevent air bubbles. |
4. Troubleshooting Quick Guide
Problem | Likely Cause | Solution |
|---|---|---|
No output / display dark | Power supply issue or reversed polarity | Check wiring. The unit has reverse polarity protection (no damage, just inoperative). |
Erratic reading | Air trapped in front of diaphragm | Re‑install with diaphragm at an angle or bleed the system. |
Reading drifts over time | Temperature change beyond compensation range | Add cooling fins or change fill fluid to high‑temp oil. |
Clogging / sticking | Wrong connection type (threaded instead of sanitary) | Replace with Tri‑clamp or other flush fitting. |
5. Maintenance Tips
CIP (Clean‑in‑Place) – The flush diaphragm and smooth 316L surface allow easy cleaning. No need to remove the transmitter.
Periodic zero check – Every 6 months, isolate the process, vent to atmosphere, and verify zero reading. Recalibrate if necessary.
Inspect gasket – Replace the sanitary gasket annually or if leakage is observed.
Conclusion
The HPM760 Sanitary Pressure Transmitter offers reliable, hygienic pressure and level measurement for food, dairy, beverage, and pharmaceutical applications. By following the correct installation procedures—choosing the right process connection, wiring carefully, and considering temperature compensation—you can ensure accurate readings and long‑term stability.
For custom configurations (cooling fins, diaphragm material, electropolishing), contact our team.
