Four-Channel Digital Controller for Multi-Point Industrial Measurement HDM5740
| Quantity: | |
|---|---|
Overview
The HDM5740 Series Four-circuit Digital Display Controller is a high-performance, anti-interference industrial measurement and control device, manufactured with advanced surface mounting technology and automatic placement production. This four-channel industrial digital display controller supports multiple input signal types, fully compatible with various sensors and transmitters to realize accurate measurement and display of temperature, pressure, liquid level, speed, force and other physical quantities. It can simultaneously display real-time measurement signals from four independent channels, and can be equipped with 8-channel or 4-channel independent alarm output, RS485/232 communication and other optional functions, making it the optimal solution for industrial systems requiring synchronous multi-point measurement and inspection.
Key Benefits
High-Precision Measurement & Universal Signal Compatibility
This multi-circuit industrial measurement controller delivers a high measurement accuracy of 0.2%FS±1 word, ensuring reliable data acquisition for critical industrial processes. It supports full-range input signals including current, voltage, resistance and thermocouple, with input impedance ≤250Ω for current signals and ≥500KΩ for voltage signals, maximum input current up to 30mA, and maximum input voltage ≤6V. The -1999 to 9999 display range supports 0-3 adjustable decimal point settings, adapting to diverse industrial measurement requirements.
Configurable Control & Seamless System Integration
The HDM5740 digital display controller provides configurable 8-channel or 4-channel independent relay alarm outputs, with contact capacity of AC220V/2A, DC24V/2A. It supports upper and lower limit alarm modes with adjustable return difference, avoiding frequent relay action at critical points. Adopting standard MODBUS communication protocol, this industrial digital controller with RS485 communication offers stable transmission, with RS485 communication distance up to 1km and RS232 up to 15m, supporting baud rates from 1200bps to 9600bps, seamlessly integrating with industrial control systems and SCADA platforms.
Rugged Industrial-Grade Design & Easy Installation

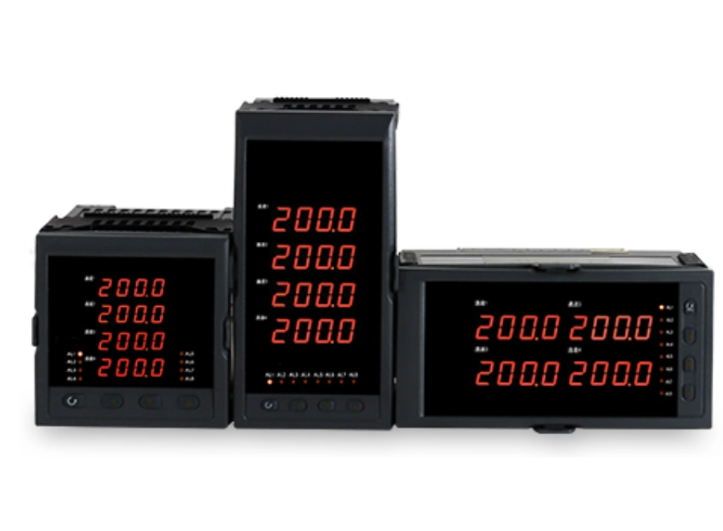

With a standard snap-in structure, the controller is available in 160×80mm (horizontal), 80×160mm (vertical) and 96×96mm (square) dimensions, adapting to various panel installation needs. It operates reliably in ambient temperatures of 0-50°C and relative humidity ≤85% RH, with a wide power supply range of AC 100-240V (50-60HZ) or DC 20-29V, and power consumption ≤4W, ensuring long-term stable operation in harsh industrial sites.
Industrial Applications
Core Application Scenarios
The HDM5740 four-circuit measurement and control controller is widely used in industrial automation and process control scenarios, including HVAC and building automation, water and wastewater treatment, chemical and petrochemical processing, food and beverage manufacturing, power generation and distribution, metallurgy, pharmaceutical production and other industrial processes requiring multi-point synchronous measurement.
Target Industrial User Groups
This controller is tailored for industrial manufacturers, system integrators, engineering contractors, facility management teams and industrial automation solution providers, meeting their demands for stable multi-point data acquisition, on-site control and system integration.
FAQ
What input signals does the HDM5740 Series controller support?
The controller supports a wide range of input signals including current, voltage, resistance, thermocouple, thermal resistance and linear mV signals, covering 35 input graduation specifications to match most industrial sensors and transmitters.
What is the measurement accuracy of this four-circuit digital controller?
The HDM5740 Series controller has a standard measurement accuracy of 0.2%FS±1 word, ensuring stable and accurate data acquisition for industrial measurement applications.
What communication functions are available for this industrial controller?
It can be equipped with optional RS485 or RS232 interface, adopting standard MODBUS protocol, with adjustable baud rates from 1200bps to 9600bps, supporting seamless connection with industrial control systems.
What is the power supply requirement of the HDM5740 Series?
The controller supports a wide power supply range: AC 100-240V (50-60HZ) or DC 20-29V switch power supply, with maximum power consumption ≤4W.
