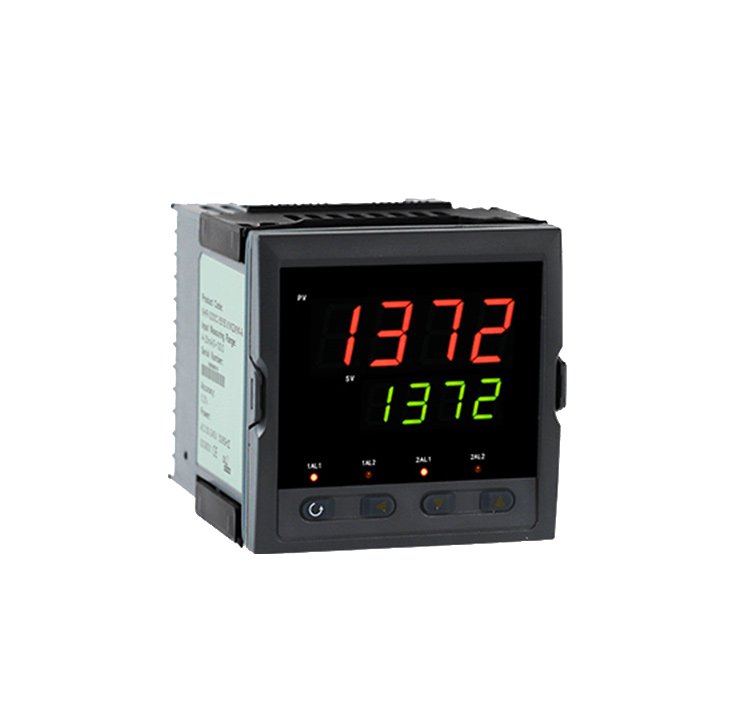

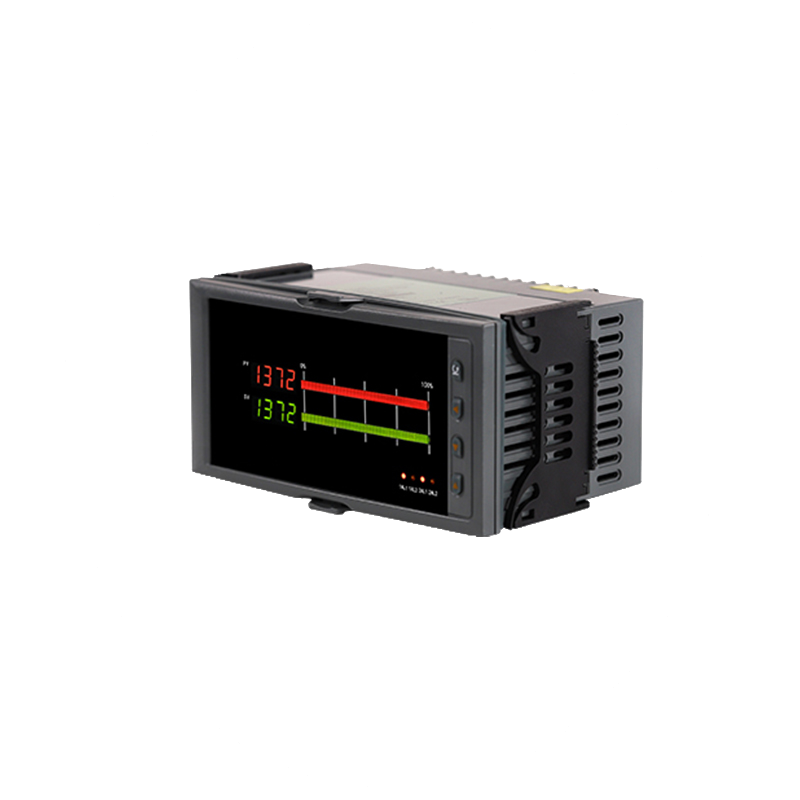

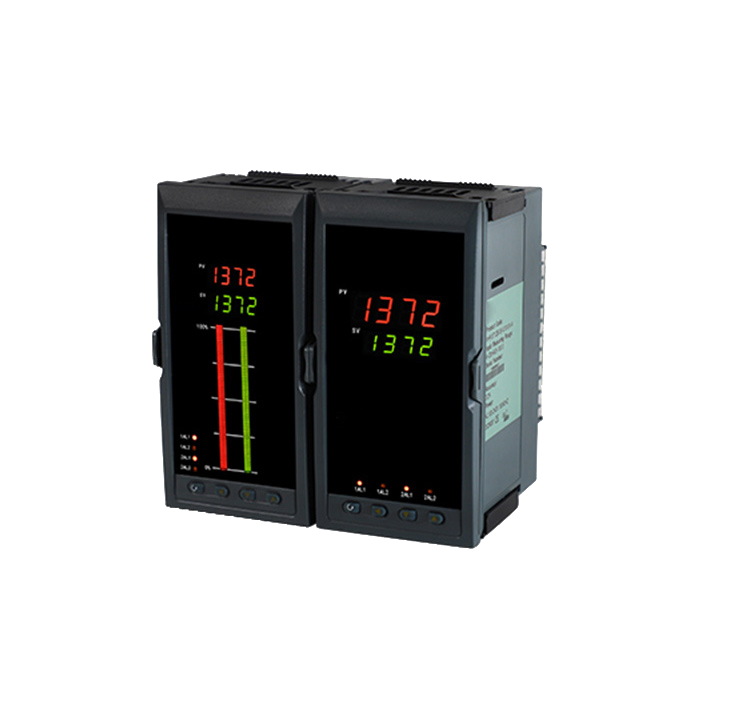

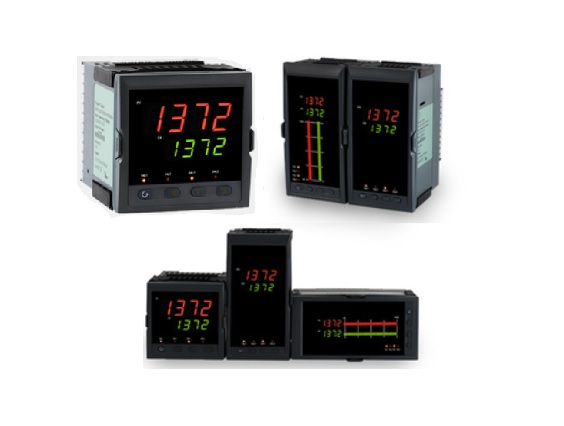

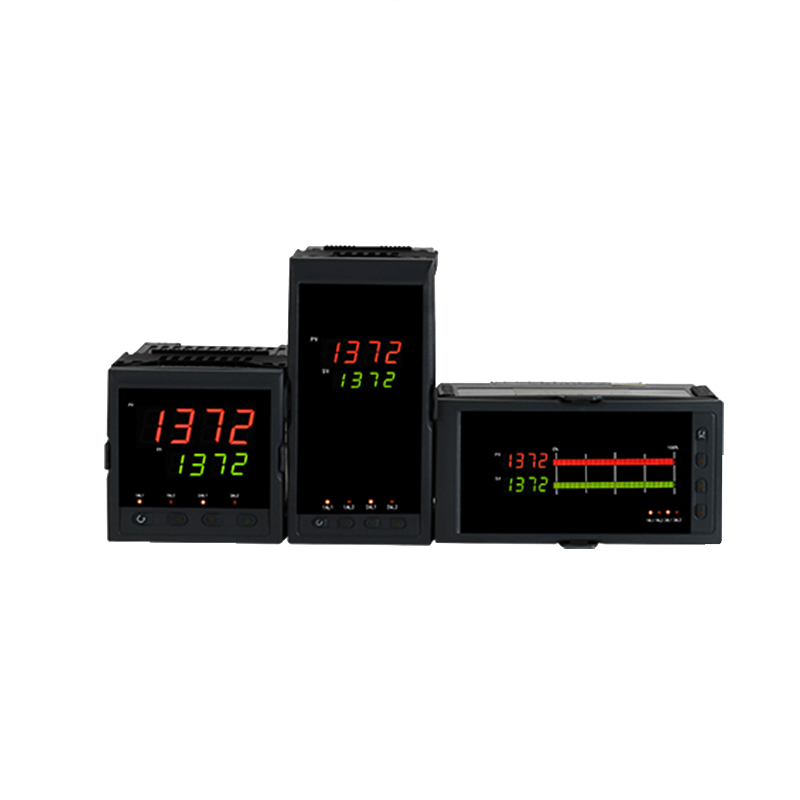

HDM-5200 Dual-Loop Digital Display Controller with Math Function

Datasheet Download:
HDM5200 dual-loop digital display controller-Instruction Book.pdf

Quantity:
Availability:





Inquire Add to Basket

Overview

HDM-5200 Series dual-loop digital display controller with automatic SMD packaging technology has a strong anti-jamming capability. It can be used in conjunction with various sensors、 transmitters to display temperature, pressure, liquid level, speed, force and other physical parameters, and to output alarm control, analog transmission, RS-485/232 communication etc. Designed with dual-screen LED display, you can set the displaying contents of upper and lower screen, and through mathematic function you can make addition, subtraction, multiplication, and division to the two input loop input signals, and it has a very good applicability.

Description

Technical Parameters

Overview

HDM-5200 Series dual-loop digital display controller with automatic SMD packaging technology has a strong anti-jamming capability. It can be used in conjunction with various sensors、 transmitters to display temperature, pressure, liquid level, speed, force and other physical parameters, and to output alarm control, analog transmission, RS-485/232 communication etc. Designed with dual-screen LED display, you can set the displaying contents of upper and lower screen, and through mathematic function you can make addition, subtraction, multiplication, and division to the two input loop input signals, and it has a very good applicability.

Specifications

Input
Input signals	Current	Voltage	Resistance	Thermocouple
Input Impedance	≤250Ω	≥500KΩ
Maximum input current	≤30mA
Maximum input voltage		≤6V
Output
Output signals	Current	Voltage	Relay	24V Distribution or feeder
Output load capability	≤500Ω	≥250 KΩ (Note: Please replace the module for higher load capacity)	AC220V/0.6（small） DC24V/0.6A （small） AC220V/3A（big） DC24V/3A（big） According to Remarks	≤30mA
Comprehensive parameter
Accuracy	0.2%FS±1word
Setting model	Panel touch key parameter setting values locking; store the setting values permanently
Display style	-1999 ~ 9999 display range 0 ~ 100% measured value lightness bargraph display; LBD display for working state
Working environment	Ambient temperature: 0 ~ 50 ℃; Relative humidity: ≤ 85% RH; Far from strong corrosive gas
Power supply	AC 100 ~ 240V, (50/60HZ); DC 20 ~ 29V
Power	≤5W
Frame	Standard snap-on
Communication	Standard MODBUS communication protocol, RS-485, communication distance up to 1 km, RS-232, communication distance up to 15 meters Note: While with communication function, the communication converter should be a active one.
