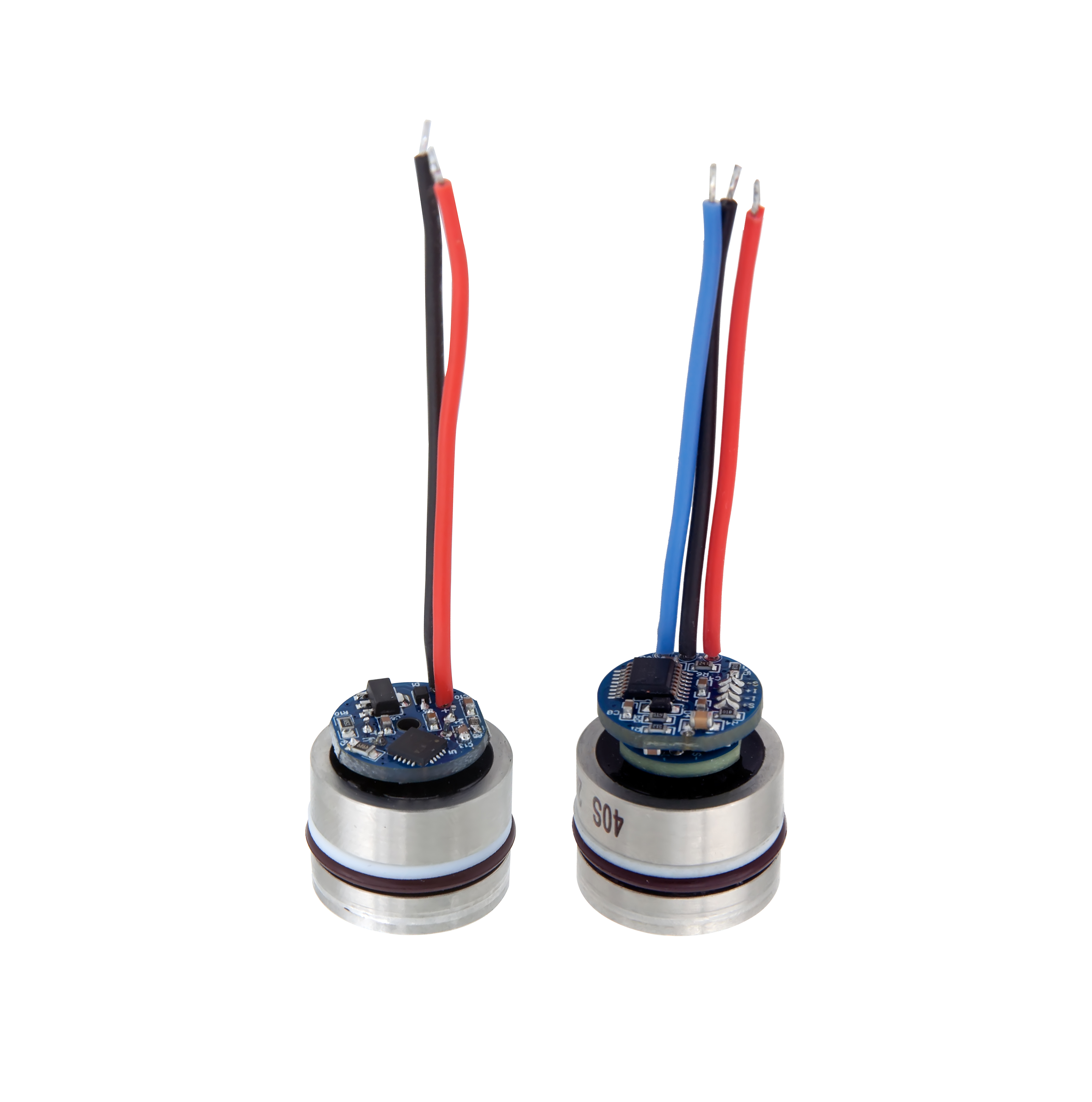

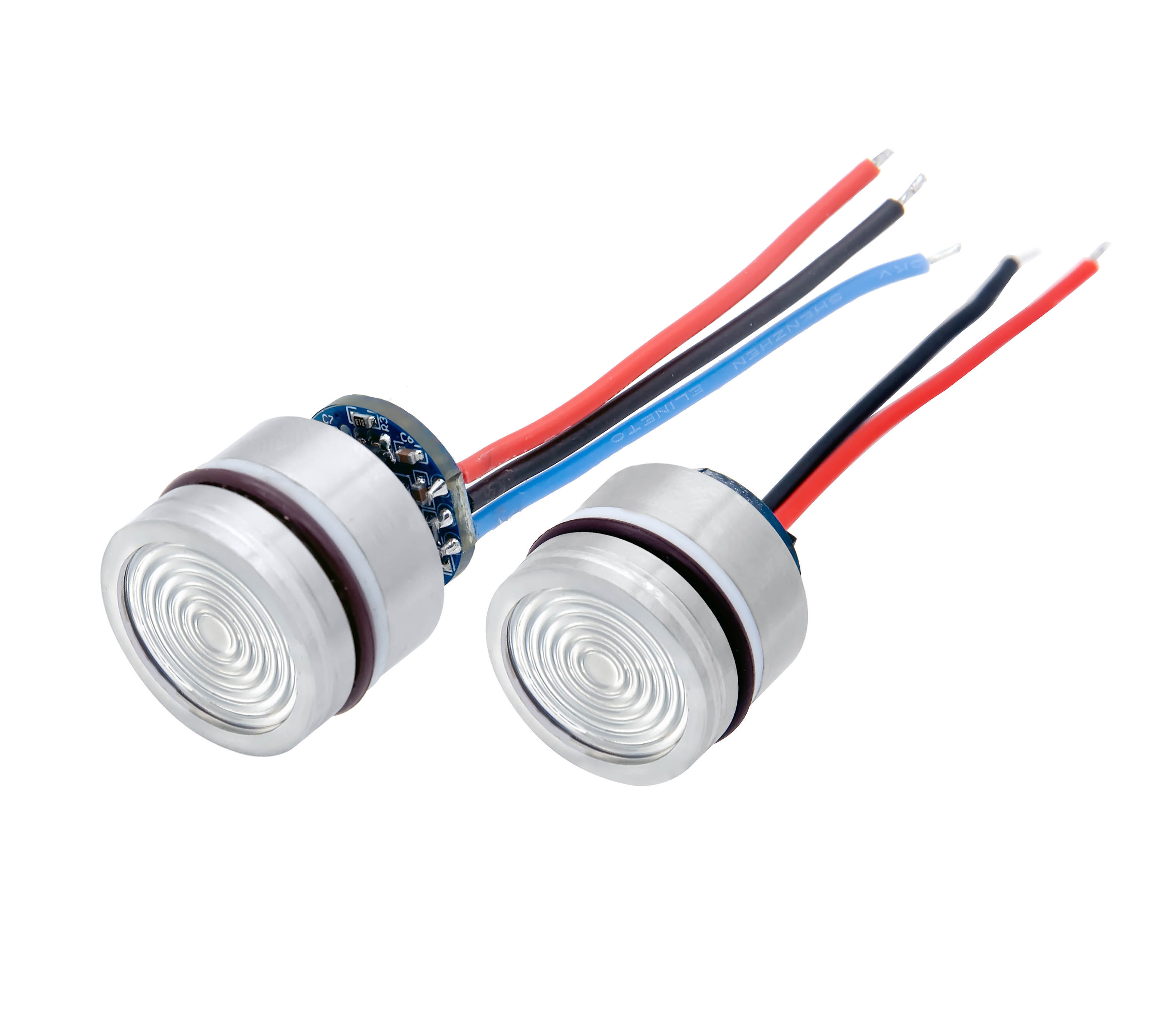

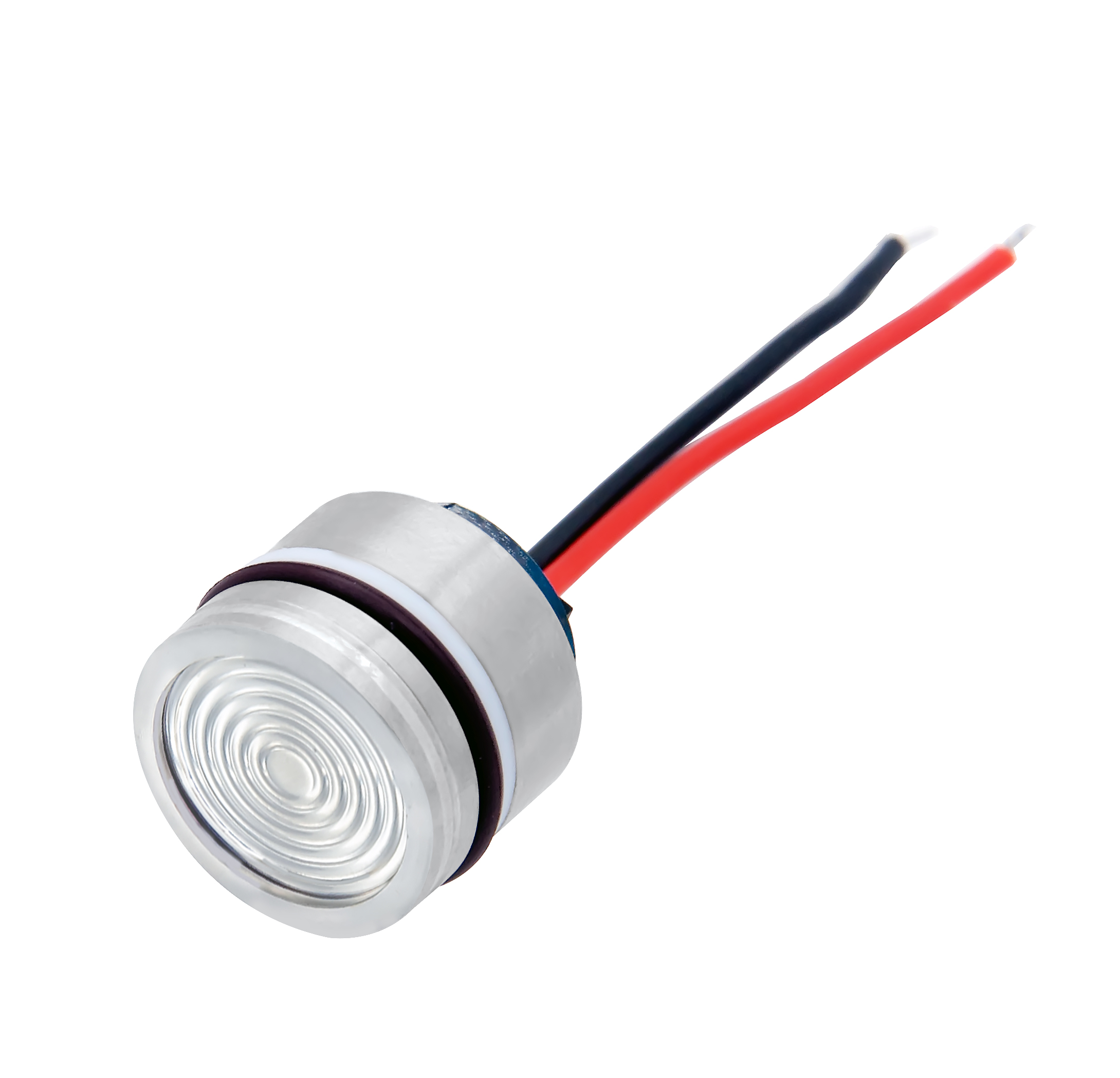

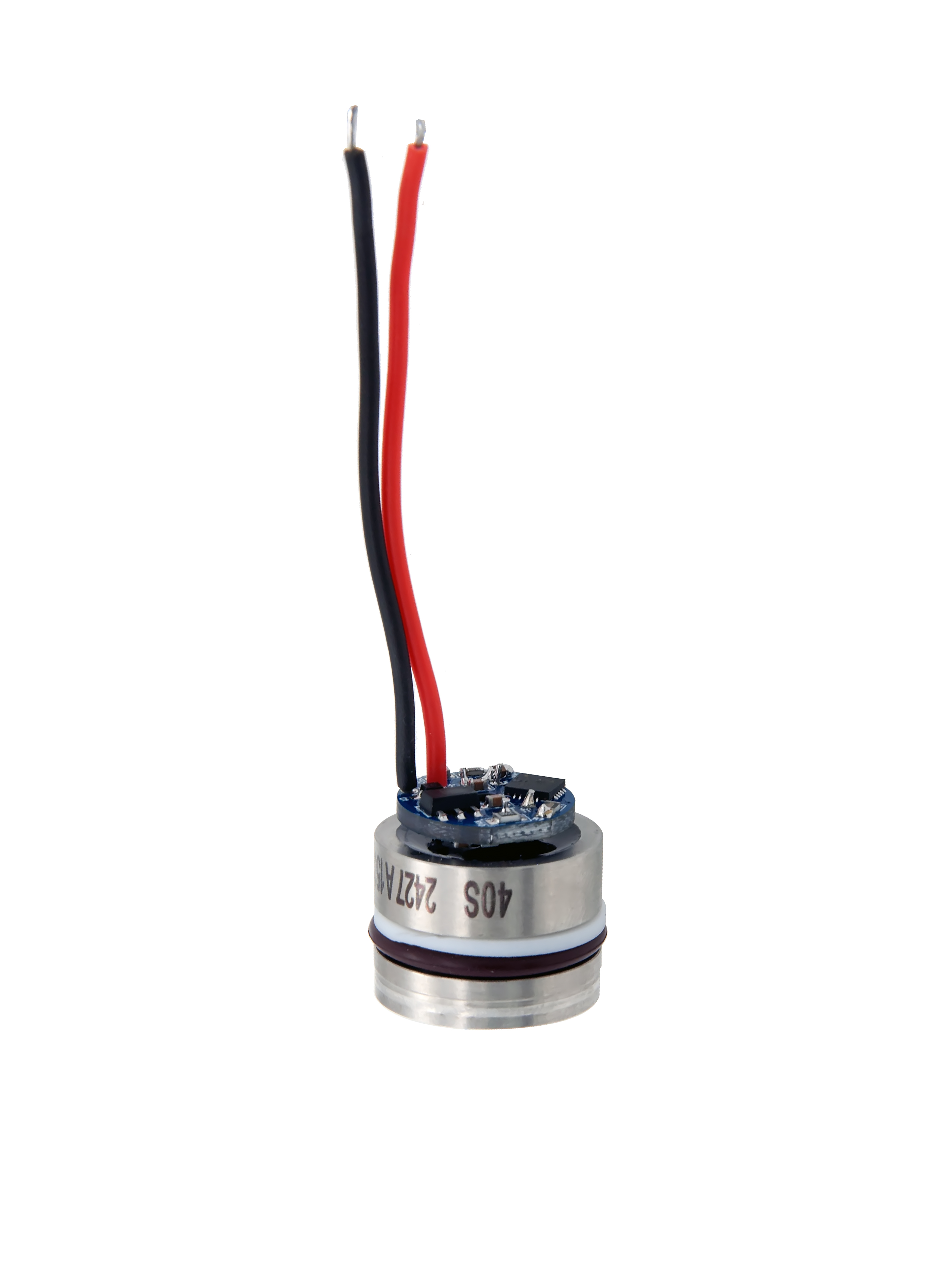

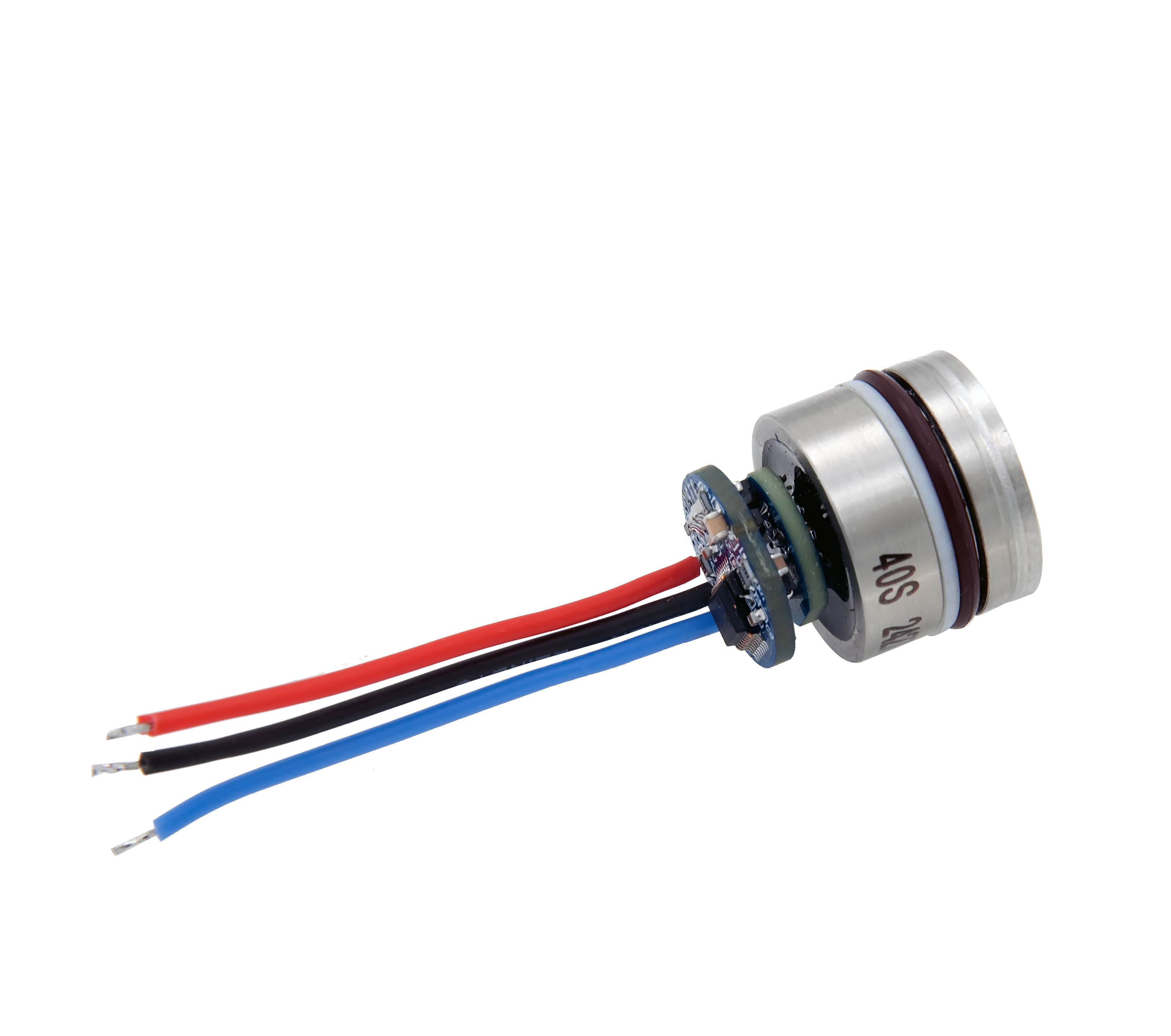

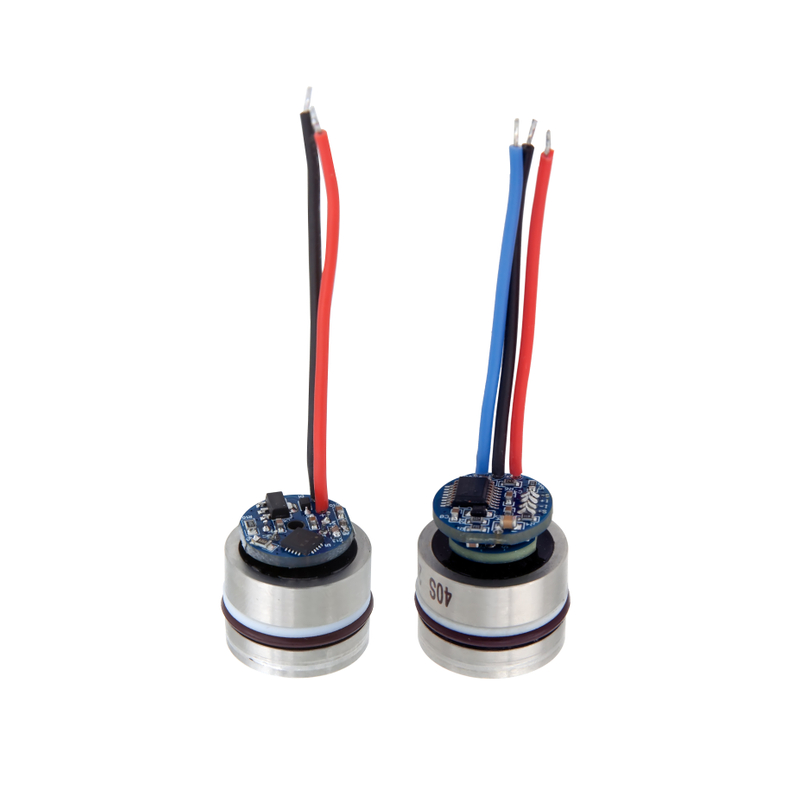

HP10MY 0-5V 0-10V 4-20mA Silicon Piezoresistive Pressure Sensor Module

HP10MY 0-5V 0-10V 4-20mA Silicon Piezoresistive Pressure Sensor Module

Measuring range: -100kPa…0～10kPa…100MPa (Gauge); 0～20kPa…10MPa(Aboslute)

Output signal: 4-20mA. 0-5V,0-10V

Accuracy: ±0.5%FS; ±0.2%FS

Download:
HP10MY Silicon Piezoresistive Pressure Sensor Module-Datasheet.pdf

Quantity:
Availability:





Inquire Add to Basket

The HP10MY silicon piezoresistive pressure sensor module is an oil-filled OEM pressure core isolated by a 316 stainless steel corrugated diaphragm. The sensitive components are selected from high-stability and high-precision silicon pressure chips. Mature production processes and high-precision production inspection equipment are applied to ensure the product has excellent stability. Wide-temperature range temperature compensation and nonlinearity correction are carried out through dedicated integrated circuits, and standard current or voltage signals are directly output. Product stability after long term aging and screening, reliable and steady performance. This product can be conveniently connected to various devices, is easy to assemble, has strong applicability, and can be widely used in the detection of various fluid pressures.

Application

Fluid pressure testing, industrial process control

Features

General span a wide range dimension, easy to install

Description

Technical Parameters

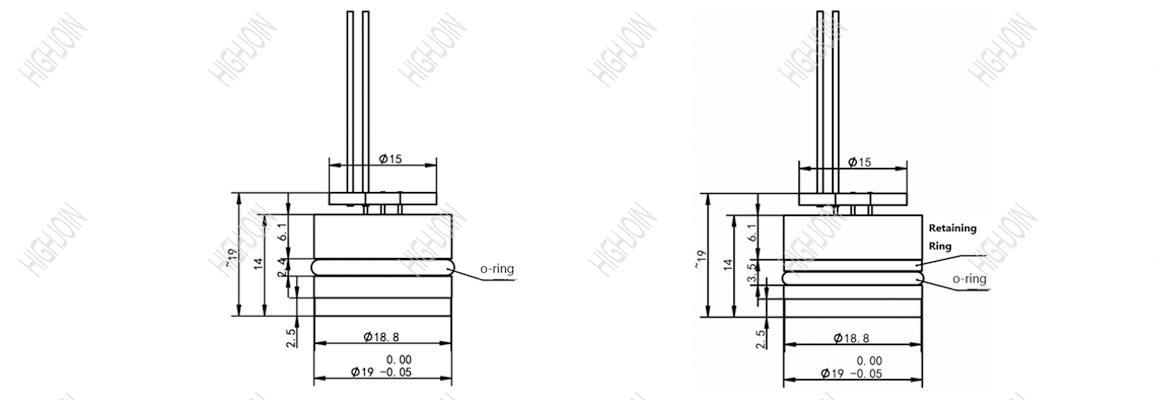

Dimensions

The HP10MY silicon piezoresistive pressure sensor module is an oil-filled OEM pressure core isolated by a 316 stainless steel corrugated diaphragm. The sensitive components are selected from high-stability and high-precision silicon pressure chips. Mature production processes and high-precision production inspection equipment are applied to ensure the product has excellent stability. Wide-temperature range temperature compensation and nonlinearity correction are carried out through dedicated integrated circuits, and standard current or voltage signals are directly output. Product stability after long term aging and screening, reliable and steady performance. This product can be conveniently connected to various devices, is easy to assemble, has strong applicability, and can be widely used in the detection of various fluid pressures.

Application

Fluid pressure testing, industrial process control

Features

General span a wide range dimension, easy to install

Measuring range(Gauge)	-100kPa…0～10kPa…100MPa
Measuring range(Absolute)	0～20kPa…10MPa
Overload	1.5x
Measuring medium	A variety of liquids compatible with the contact materials
Output signal/Power supply
Two- wire	4~20mA / Vs=10~30V
Three-wire	0～10V / Vs=12~30V
Four-wire	0～5V / Vs=12~30V
Performance
Accuracy	±0.5%FS (std.) ±0.25%FS(opt.)
Long-term stability	±0.25%FS/Year
Environment condition
Temperature range	Ambient temp.：-40～85℃ Medium temp.：-40～125℃ Storage temp.：-40～85℃
Temperature drift
Compensation temperature scope	0～60℃ (≤70kPa);-10～70℃ (other normal range）
Temperature effect on zero	±1.5%FS(reference 30℃); ±2.0%FS(10kPa)
Temperature effect on full scale	±1.5%FS(reference 30℃); ±2.0%FS(10kPa)
Mechanical stability
Vibration	20g(20~5000Hz)
Shock resistance	100g(10ms)
Insulation
Insulation resistance	>100MΩ，100VDC
