Commercial Low Power Consumption Diffusion Silicon Pressure Sensor HP10LC

Commercial Low Power Consumption Diffusion Silicon Pressure Sensor HP10LC

Measuring range:-100kPa…0～10kPa…100MPa (Gauge pressure)

Output / Supply : I²C / 3.0~5.5 VDC

Download:
HP10LC Digital Pressure Sensor.pdf

Quantity:
Availability:





Inquire Add to Basket

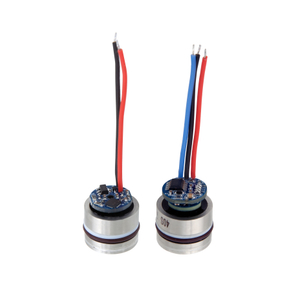

HP10LC digital pressure sensor is an oil filled OEM pressure core isolated by 316 stainless steel corrugated diaphragm. Sensitive components selected from the international advanced high stability, high precision silicon pressure chip, the application of the latest production technology and high precision production and inspection equipment, so that the product has excellent stability, through a dedicated integrated circuit for 10~70℃ wide temperature zone temperature compensation and non linear correction, direct output of the standard I2C digital

signal.

Product Introduction

Application

Features

Technical Parameters

HP10LC digital pressure sensor is an oil filled OEM pressure core isolated by 316 stainless steel corrugated diaphragm. Sensitive components selected from the international advanced high stability, high precision silicon pressure chip, the application of the latest production technology and high precision production and inspection equipment, so that the product has excellent stability, through a dedicated integrated circuit for 10~70℃ wide temperature zone temperature compensation and non linear correction, direct output of the standard I2C digital

signal.

Application

IoT
Industrial process control

Introducing the Commercial Low Power Consumption Diffusion Silicon Pressure Sensor HP10LC, a cutting-edge solution designed for a wide range of applications. This advanced sensor is ideal for various industries and sectors, including:

IoT (Internet of Things):

The HP10LC sensor is perfectly suited for IoT applications, where low power consumption and accurate pressure sensing are essential. Whether used in smart devices, environmental monitoring systems, or remote sensing applications, the HP10LC ensures reliable and efficient pressure measurement.

Industrial Process Control:

In industrial settings, precise pressure monitoring is crucial for ensuring optimal performance and safety. The HP10LC sensor excels in industrial process control applications, providing accurate pressure data for monitoring and controlling processes in manufacturing, oil and gas, chemical processing, and more.

With its low power consumption and high-performance diffusion silicon technology, the HP10LC sensor offers unparalleled reliability and accuracy in diverse applications. Trust the HP10LC sensor to meet your pressure sensing needs in IoT and industrial process control environments. Experience the difference with the Commercial Low Power Consumption Diffusion Silicon Pressure Sensor HP10LC.

Features

I2C digital signal output
Low power hibernation control pin
Can be powered by external lithium battery
Wide pressure measuring range
Universal form factor, easy to install
Support customer customized development

Technical Parameters

Measuring range (Gauge pressure)	-100kPa…0～10kPa…100MPa
Measuring range (Absolute pressure)	0～20kPa…10MPa
Overload	1.5 times of full scale
Medium type	Various liquids compatible with contact materials
Output Signal	I2C
Power Supply	3.0~5.5 VDC
Power Consumption (Normal mode)	<3mA
Power Consumption (Hibernation mode)	<100nA
Wake up time	4ms
Accuracy	±0.5%FS (typical); ±0.25%FS (optional)
Long-term Stability	±0.25%FS/year
