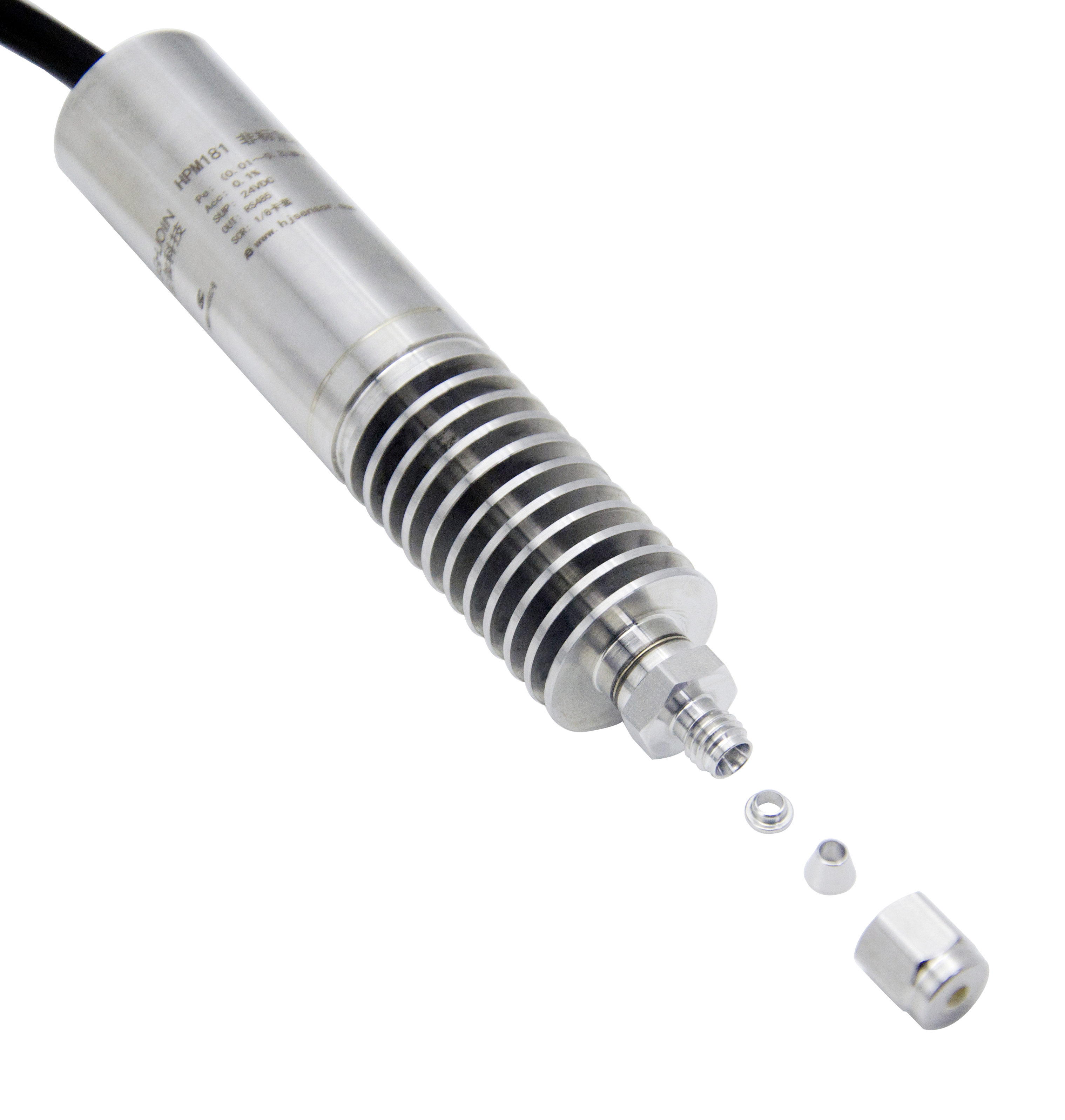

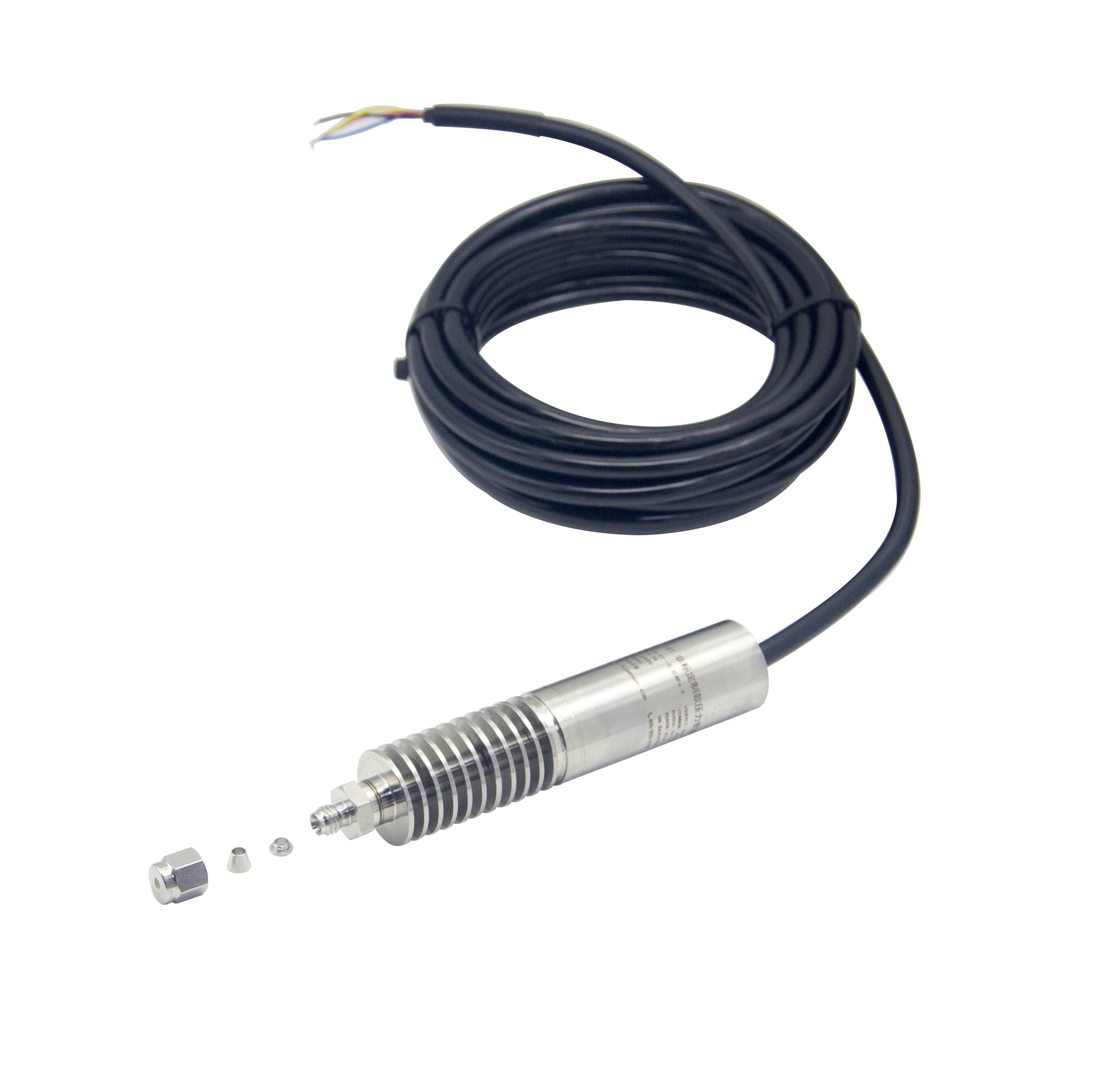

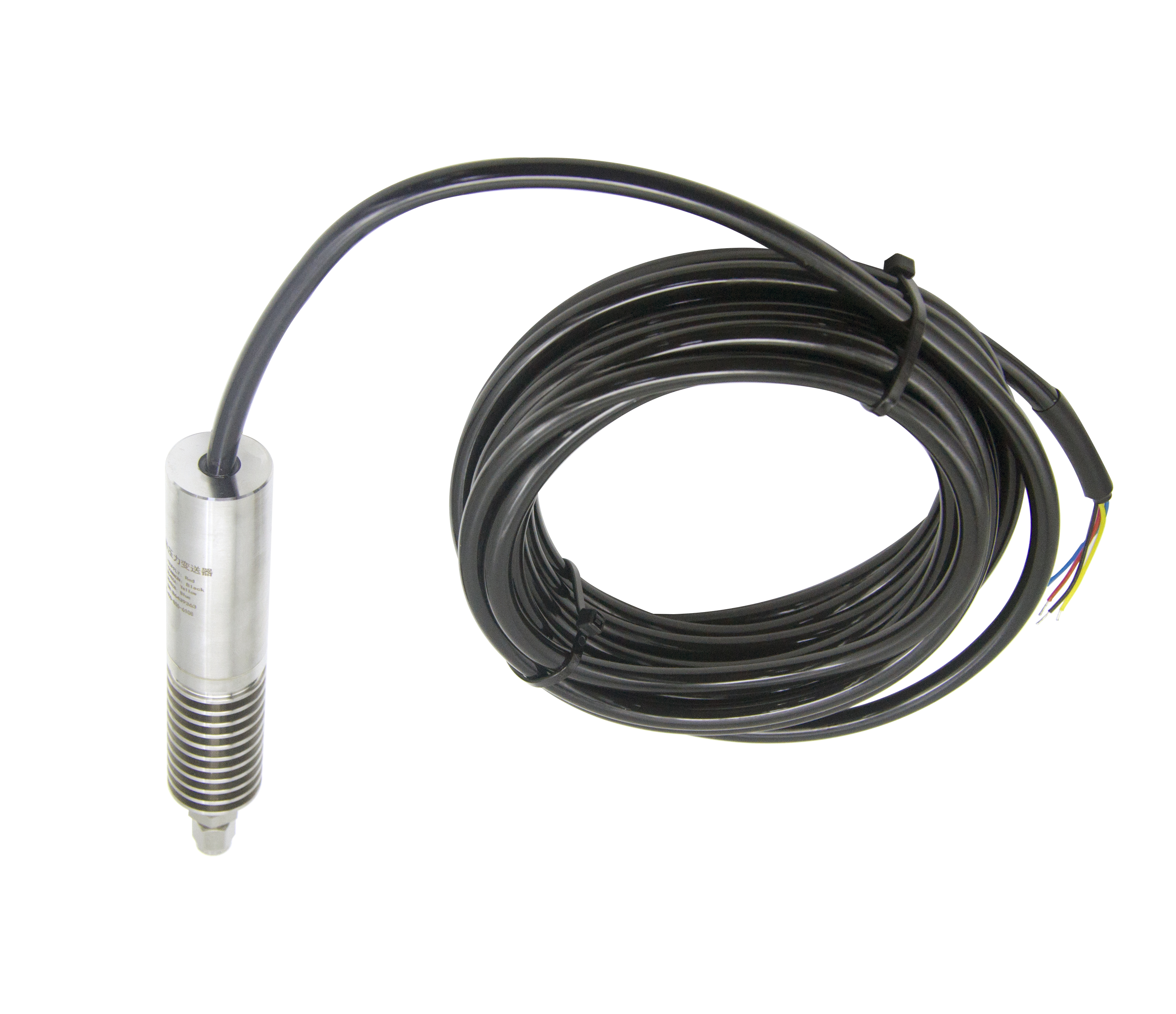

HPM181 High Precision Pressure Transmitter

Accuracy: ±0.075%FS(std.)

Measuring range:-100kPa…0～10kPa…60MPa

High precision, up to 0.05%FS

Datasheet Download:
HPM181 High Precision Pressure Transmitter-Datasheet V26.1.1.pdf

Quantity:
Availability:





Inquire Add to Basket

Overview

HPM181 High Precision Pressure Transmitter adopts silicon piezoresistive pressure sensor with high stability and reliability as signal measuring element. The signal conditioning circuit is located in the stainless steel housing and converts the sensor signal into standard current or voltage signal output. The whole product is stable and reliable through strict testing and aging screening of components, semi-finished products and finished products.

The product has a modular design and a variety of electrical and pressure interface combinations. A wide variety of options can meet most of pressure measurement requirements in the industry.

Features

High precision, up to 0.05%FS
Excellent long-term stability
Multiple pressure interface
Intrinsic safety or Explosive-proof is optional

Description

Technical Parameters

Overview

HPM181 High Precision Pressure Transmitter adopts silicon piezoresistive pressure sensor with high stability and reliability as signal measuring element. The signal conditioning circuit is located in the stainless steel housing and converts the sensor signal into standard current or voltage signal output. The whole product is stable and reliable through strict testing and aging screening of components, semi-finished products and finished products.

The product has a modular design and a variety of electrical and pressure interface combinations. A wide variety of options can meet most of pressure measurement requirements in the industry.

Features

High precision, up to 0.05%FS
Excellent long-term stability
Multiple pressure interface
Intrinsic safety or Explosive-proof is optional

Pressure Range (Gauge pressure)	-100kPa…0～10kPa…60MPa
Pressure Range (Absolute pressure)	0～20kPa…10MPa
Overload	1.5x of full scale
Measuring medium	Various liquids and gases compatible with contact materials
Output Signal/Power supply	l 2-wire 4~20mA / Vs=12~30V l 3-wire 0～5V / Vs=8~28V l 4-wire Modbus-RTU/RS485 / Vs=10~28V
Accuracy	Standard：±0.075%FS @25℃ Optional：±0.05%FS @25℃
Long-term Stability	±0.2%FS/Year （0.075% accuracy） ±0.1%FS/Year （0.05% accuracy
Compensated temperature range	-10~80℃
Temperature Coefficient of Zero	±0.05%FS/10℃（reference 25℃）
Temperature Coefficient of Full Scale	±0.05%FS/10℃（reference 25℃）
Ambient Temperature	-40~85℃
Medium Temperature	-40～85℃
