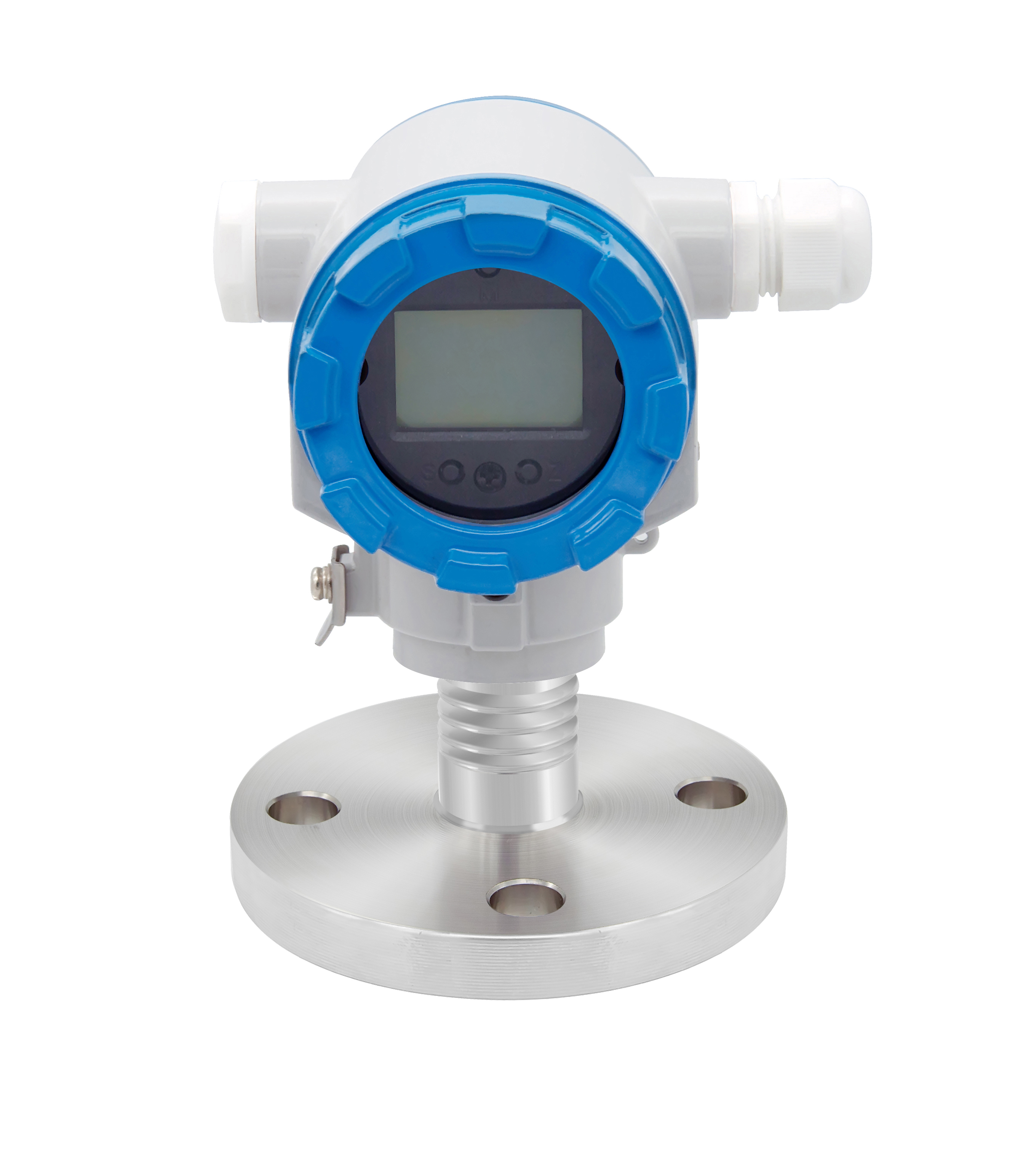

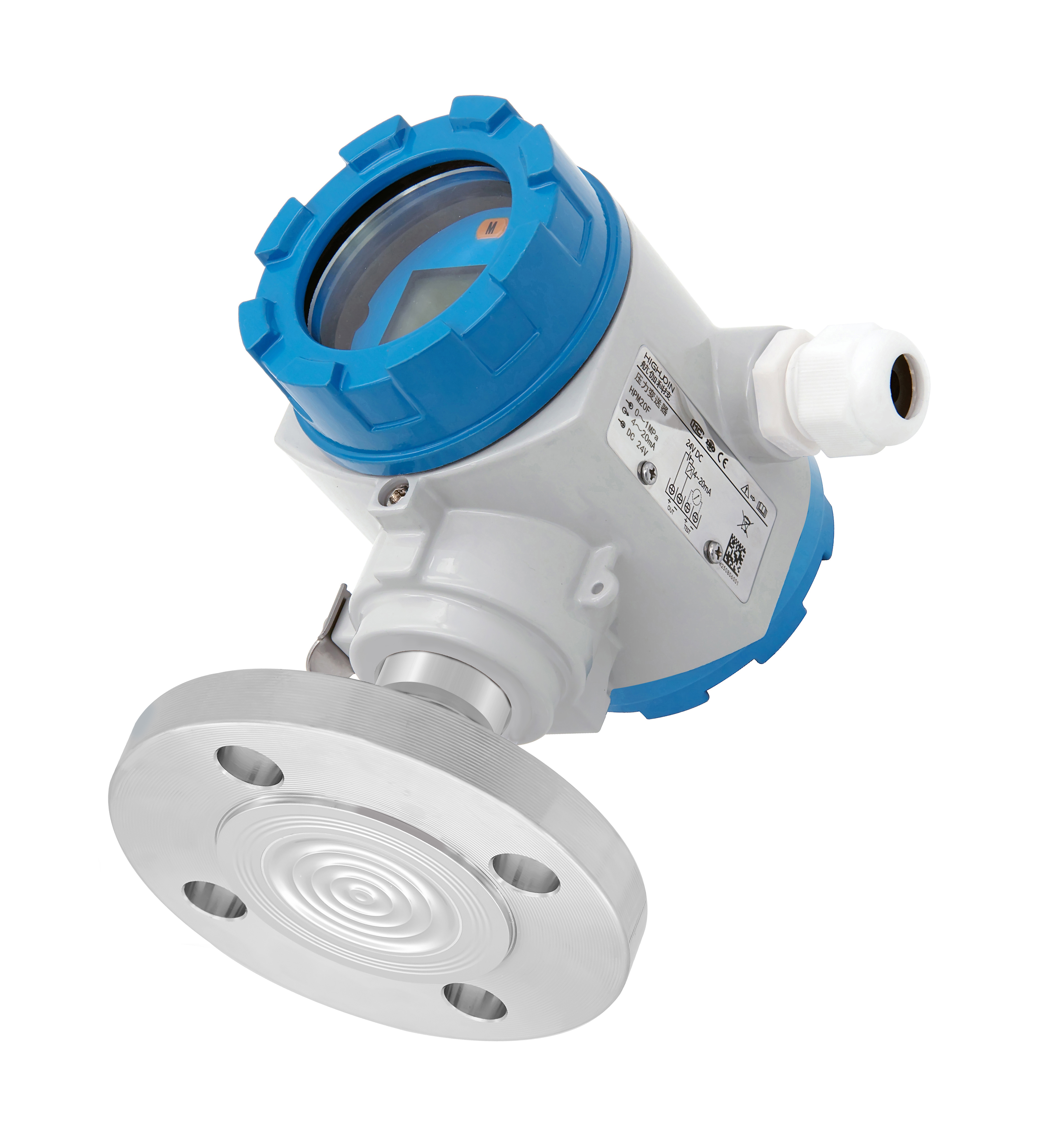

HPM20F Flange Diaphragm Digital Pressure Transmitter

Availability:
Quantity:
Inquire Add to Basket

whatsapp sharing button
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button


The HPM20F Flange Diaphragm Pressure Transmitter utilizes an international standard flange interface for easy field installation. It features advanced technology and incorporates a highly stable and reliable silicon piezoresistive pressure sensor as the signal measuring component. The sensor undergoes automatic testing and laser trimming to ensure wide temperature compensation. This product delivers stable and reliable performance, having successfully passed rigorous testing and long-term aging tests. The HPM20F is designed to meet requirements for corrosion resistance and hygiene, making it suitable for pressure measurement in various industries including machinery, metallurgy, petrochemical, power generation, food processing, and pharmaceuticals.


Application


  • Designed for measuring corrosive fluids.

  • Suitable for media prone to clogging due to solid suspensions or high viscosity.

  • Ideal for media that may crystallize or solidify in the pressure tube.

  • Allows for flushing of the pressure port to prevent media contamination.

  • Meets high hygiene standards to prevent contamination.


Features


  • Offers a variety of materials for the isolation diaphragm, with a high level of corrosion resistance.

  • Designed in a hygienic style for easy cleaning without any inaccessible areas.

  • Constructed with an aluminum alloy shell, featuring IP65-rated protection against ingress.

  • Equipped with a field display, 4-20mADC signal output, and various other communication signals.

  • Includes protection against polarity reversal, overcurrent, and overvoltage.

  • Allows for zero-scale and full-scale adjustment.

  • Provides strong immunity to interference and ensures long-term stability.



Technical Parameters


Measuring Medium

Liquid, Gas, Steam

Pressure Range

0~20kPa...10MPa

Overload

1.5 times pressure range of full scale

Pressure Type

Gauge, Absolute or Sealed Gauge

Accuracy

±0.5%FS

Long-term Stability

±0.2%FS/year

Temperature Coefficient of Zero

±0.03%FS/℃（Reference 25℃）

Temperature Coefficient of Full Scale

±0.03%FS/℃（Reference 25℃）

Working Temp

-30~85℃

Supply Voltage

24VDC (12~30V)

Output Signal

4~20mADC or customized

Output Mode

Two wire, Three wire

Load Resistance

≤(U-12)/0.20Ω

Insulation Resistance

100MΩ，500VDC

Ingress Protection of Shell

IP65

Electrical Connection

Dedicated shield cable


Product Introduction
Application
Features
Technical Parameters


The HPM20F Flange Diaphragm Pressure Transmitter utilizes an international standard flange interface for easy field installation. It features advanced technology and incorporates a highly stable and reliable silicon piezoresistive pressure sensor as the signal measuring component. The sensor undergoes automatic testing and laser trimming to ensure wide temperature compensation. This product delivers stable and reliable performance, having successfully passed rigorous testing and long-term aging tests. The HPM20F is designed to meet requirements for corrosion resistance and hygiene, making it suitable for pressure measurement in various industries including machinery, metallurgy, petrochemical, power generation, food processing, and pharmaceuticals.


Application


  • Designed for measuring corrosive fluids.

  • Suitable for media prone to clogging due to solid suspensions or high viscosity.

  • Ideal for media that may crystallize or solidify in the pressure tube.

  • Allows for flushing of the pressure port to prevent media contamination.

  • Meets high hygiene standards to prevent contamination.


Features


  • Offers a variety of materials for the isolation diaphragm, with a high level of corrosion resistance.

  • Designed in a hygienic style for easy cleaning without any inaccessible areas.

  • Constructed with an aluminum alloy shell, featuring IP65-rated protection against ingress.

  • Equipped with a field display, 4-20mADC signal output, and various other communication signals.

  • Includes protection against polarity reversal, overcurrent, and overvoltage.

  • Allows for zero-scale and full-scale adjustment.

  • Provides strong immunity to interference and ensures long-term stability.



Technical Parameters


Measuring Medium

Liquid, Gas, Steam

Pressure Range

0~20kPa...10MPa

Overload

1.5 times pressure range of full scale

Pressure Type

Gauge, Absolute or Sealed Gauge

Accuracy

±0.5%FS

Long-term Stability

±0.2%FS/year

Temperature Coefficient of Zero

±0.03%FS/℃（Reference 25℃）

Temperature Coefficient of Full Scale

±0.03%FS/℃（Reference 25℃）

Working Temp

-30~85℃

Supply Voltage

24VDC (12~30V)

Output Signal

4~20mADC or customized

Output Mode

Two wire, Three wire

Load Resistance

≤(U-12)/0.20Ω

Insulation Resistance

100MΩ，500VDC

Ingress Protection of Shell

IP65

Electrical Connection

Dedicated shield cable
