HPM718 4-20mA Sanitary Flat Film Hygienic Pressure Transducer

Accuracy:±0.5%FS (std.) 0.2%FS(opt.)
Measuring range: -100kPa...0~2kPa...2MPa

Availability:
Quantity:
Inquire Add to Basket

whatsapp sharing button
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button


The HPM718 Flat Membrane Sanitary Pressure Transmitter features an imported ceramic capacitor pressure sensor that ensures reliable performance across various applications. Its screw installation and flat membrane design offer excellent elasticity, wear resistance, and corrosion protection. Designed to operate within a temperature range of -40 to 125 °C, it also provides outstanding heat dissipation and thermal stability.

One of the key advantages of the HPM718 is its ceramic sensor core, which operates without any filling liquid, effectively eliminating the risk of process contamination. This makes it an ideal choice for industries such as food processing and pharmaceuticals.

Additionally, the HPM718 is widely utilized in diverse fields including mechanical equipment, wind pressure monitoring, and laboratory research, showcasing its versatility and reliability in sanitary applications.





Features


  • The advanced flat film structure design ensures unobstructed flow of the medium during measurements. This transmitter operates effectively across a wide temperature range of -40 to 125℃, providing excellent thermal stability and minimal fluctuations.

  • Engineered for precise micro pressure measurement, it features a minimum range of 2 kPa and outstanding accuracy, with the ability to withstand overloads up to 50 times its rated capacity. The pressure core is liquid-free, making it particularly suitable for food and pharmaceutical applications, thereby mitigating concerns about process contamination.

  • Constructed from durable materials such as ceramic, stainless steel, and fluororubber, this device offers excellent corrosion resistance for long-lasting performance. Additionally, it is capable of accurately measuring both positive and negative pressure, enhancing its versatility across various industrial applications.


Technical Parameters

Pressure Range

Measuring Pressure

-100kPa...0~2kPa...2MPa

Overload

1.5x of full scale

Measuring Medium

Type

Various liquids and gases compatible with contact materials

Output/Power Supply

Standard

4～20mADC,0.5～4.5VDC,etc.

Performance

Accuracy

±0.5%FS (std.) 0.2%FS(opt.)

Long term stability

±0.1%FS/year

(includes linearity, hysteresis, and repeatability)*


Product Description
Features
Technical Parameters


The HPM718 Flat Membrane Sanitary Pressure Transmitter features an imported ceramic capacitor pressure sensor that ensures reliable performance across various applications. Its screw installation and flat membrane design offer excellent elasticity, wear resistance, and corrosion protection. Designed to operate within a temperature range of -40 to 125 °C, it also provides outstanding heat dissipation and thermal stability.

One of the key advantages of the HPM718 is its ceramic sensor core, which operates without any filling liquid, effectively eliminating the risk of process contamination. This makes it an ideal choice for industries such as food processing and pharmaceuticals.

Additionally, the HPM718 is widely utilized in diverse fields including mechanical equipment, wind pressure monitoring, and laboratory research, showcasing its versatility and reliability in sanitary applications.





Features


  • The advanced flat film structure design ensures unobstructed flow of the medium during measurements. This transmitter operates effectively across a wide temperature range of -40 to 125℃, providing excellent thermal stability and minimal fluctuations.

  • Engineered for precise micro pressure measurement, it features a minimum range of 2 kPa and outstanding accuracy, with the ability to withstand overloads up to 50 times its rated capacity. The pressure core is liquid-free, making it particularly suitable for food and pharmaceutical applications, thereby mitigating concerns about process contamination.

  • Constructed from durable materials such as ceramic, stainless steel, and fluororubber, this device offers excellent corrosion resistance for long-lasting performance. Additionally, it is capable of accurately measuring both positive and negative pressure, enhancing its versatility across various industrial applications.


Technical Parameters

Pressure Range

Measuring Pressure

-100kPa...0~2kPa...2MPa

Overload

1.5x of full scale

Measuring Medium

Type

Various liquids and gases compatible with contact materials

Output/Power Supply

Standard

4～20mADC,0.5～4.5VDC,etc.

Performance

Accuracy

±0.5%FS (std.) 0.2%FS(opt.)

Long term stability

±0.1%FS/year

(includes linearity, hysteresis, and repeatability)*


Related Products

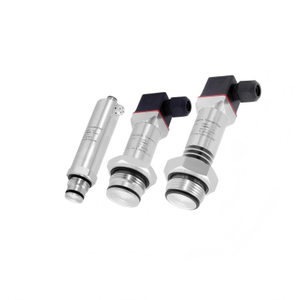

HPM711 G1 G1/2 Thread Flush Diaphragm Sanitary Type Pressure Transmitter

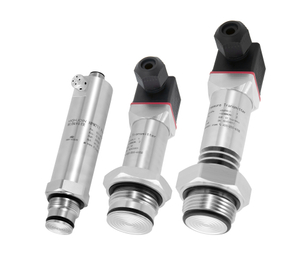

HPM711 G1 G1/2 Thread Flush Diaphragm Sanitary Type Pressure Transmitter
