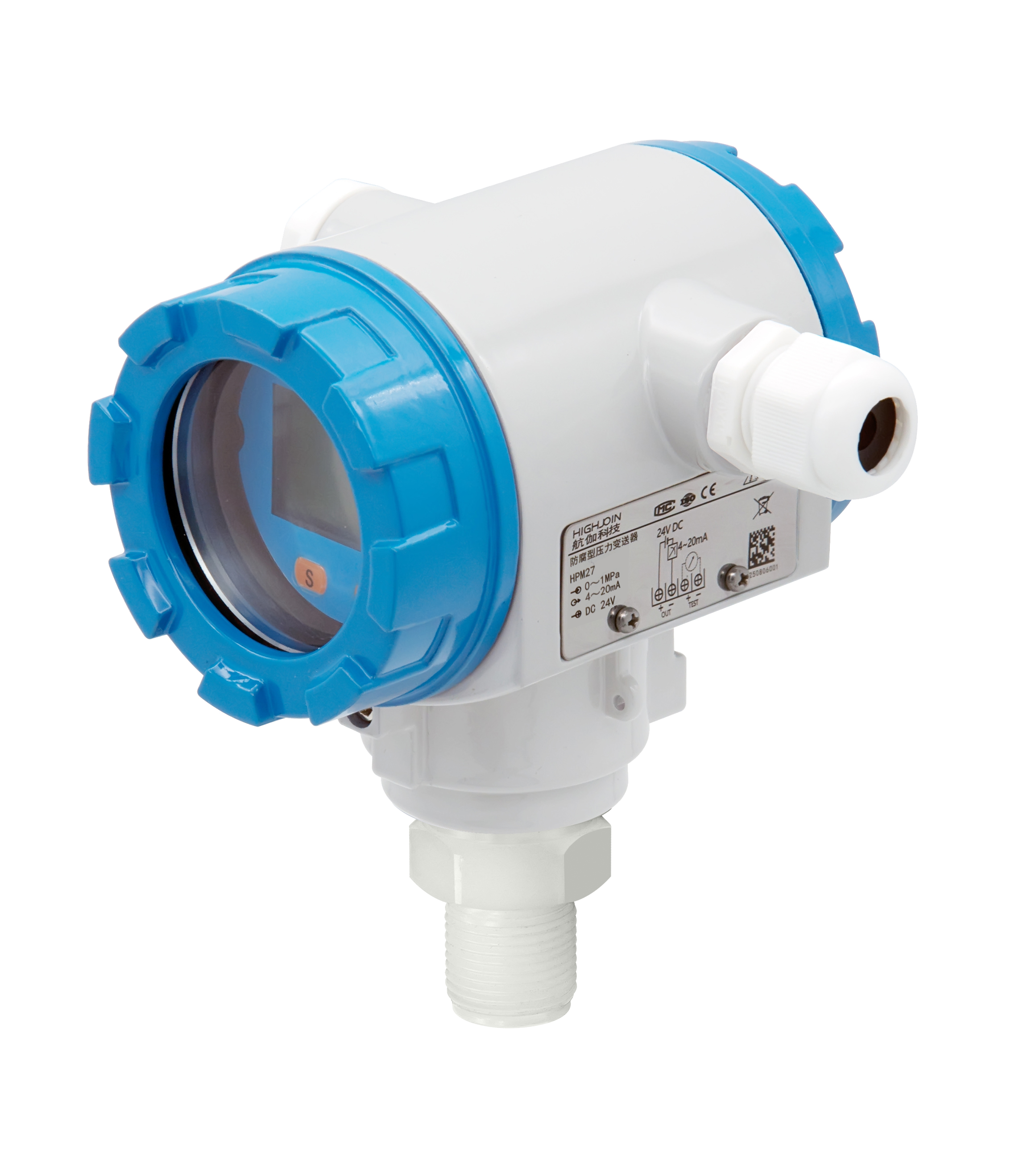

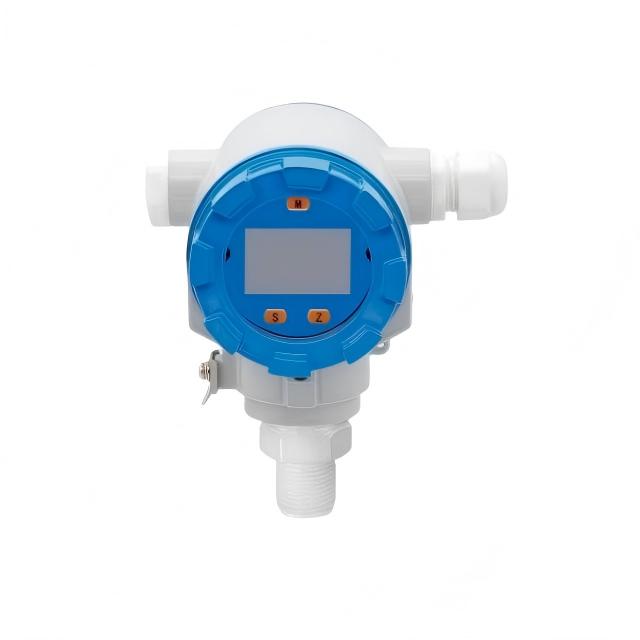

HPM27 Anti-corrosive Digital Pressure Transmitter with PP/PTFE/PVC Material
| Quantity: | |
|---|---|
Turning Chemical Chaos into Precise Data
Imagine a environment where the air is thick with the sharp, acrid scent of hydrochloric acid and every metal surface is etched by oxidation. In this chaotic world, the HPM27 remains unyielding. While traditional metal sensors quickly become pitted and fail—leading to dangerous spills or system shutdowns—the HPM27 stands calm. Its smooth, matte-white PTFE housing feels solid and impervious to the touch, reflecting a design philosophy rooted in absolute survival.
When you integrate the HPM27 into your chemical processing line, you are not just adding a measurement tool; you are installing peace of mind. You no longer have to worry about the "ticking clock" of sensor corrosion. Instead, you get a clear, digital readout that remains as accurate on day 1000 as it was on day one. It is the story of a sensor designed by engineers who were tired of seeing chemical plants struggle with frequent maintenance. The HPM27 is the silent, corrosion-proof guardian that allows your facility to run at peak efficiency without the constant threat of a hardware breach.
Material Science and Chemical Compatibility
The secret to the longevity of the HPM27 lies in its "No-Metal" philosophy for wetted parts. In chemical processing, the interface between the sensor and the media is the most frequent point of failure.
PTFE/PVDF Excellence: For environments involving sulfuric acid, nitric acid, or aqua regia, our PTFE housing acts as an impenetrable shield. It is non-reactive and maintains its structural integrity even in high-concentration chemical baths.
Ceramic Diaphragm Advantage: Unlike metal diaphragms that can stretch or "fatigue" over time, our ceramic sensing core is incredibly rigid. It resists abrasion from particles in the fluid and is virtually immune to the chemical degradation that causes drift in stainless steel sensors.
Polymer Customization: We offer PP (Polypropylene) for general waste water and PVC for cost-effective swimming pool or desalination applications, ensuring you have the right material for your specific budget and chemical profile.
Wireless Connectivity and IoT Integration
In the modern era of smart monitoring, the HPM27 bridges the gap between the tank and the control room. We have integrated advanced communication protocols that allow for remote diagnostics and real-time alerts.
RS485 Modbus RTU: This allows for long-distance, multi-drop networking. You can chain dozens of HPM27 sensors together on a single twisted-pair cable, significantly reducing wiring costs while gaining high-resolution digital data.
Digital Signal Integrity: By converting the pressure to a digital signal at the source, we eliminate the risk of electromagnetic interference (EMI) that can plague analog signals in large industrial plants with heavy pumps and motors.
Smart Diagnostics: The digital version of the HPM27 can report internal temperature and status codes, allowing your maintenance team to predict when a tank might be overflowing or if a pipe is becoming clogged before it happens.
Explosion-Proof and Safety Certification
Safety is the cornerstone of the HPM27 design. In many chemical plants, corrosive media is also volatile, requiring the highest levels of electrical safety.
Intrinsically Safe Design: The HPM27 is engineered to operate with ultra-low power consumption, making it suitable for intrinsically safe loops. This prevents the sensor from becoming an ignition source in explosive atmospheres.
Overpressure Security: We understand that pumps can malfunction. The HPM27 features an overpressure rating of up to 300% for certain ranges, ensuring that a sudden surge doesn't result in a burst diaphragm and a subsequent chemical leak.
Hermetic Electronics Isolation: The internal circuit board is isolated from the pressure port by multiple redundant seals. Even in the unlikely event of a diaphragm breach, the corrosive media is contained, protecting your external wiring and personnel.
Hygienic Design and Specialized Applications
While its primary home is the chemical plant, the HPM27’s non-toxic and non-corrosive nature makes it ideal for specialized "Clean" industries.
Desalination & Seawater: Stainless steel, even 316L, will eventually succumb to pitting corrosion in seawater. The HPM27’s polymer body is completely unaffected by salinity, making it the standard choice for reverse osmosis (RO) systems.
Food & Pharmaceutical Grade Plastics: The materials used in the HPM27 are inert. This makes it a viable option for measuring pressure in systems where metal ions cannot be allowed to leach into the product, such as in ultra-pure water systems or certain pharmaceutical fermentation processes.
Flush Interface Options: For viscous chemicals or fluids with suspended solids, we offer a flush-diaphragm configuration that prevents build-up and ensures easy cleaning.
Why Choose Us
When you select the HPM27, you are choosing a partner with a deep understanding of fluid dynamics and material compatibility.
Deep Industry Experience: We have solved pressure measurement challenges in the world's most aggressive pickling lines and chemical refineries. We don't just sell sensors; we provide environmental solutions.
Precision Manufacturing: Every HPM27 is calibrated using high-end pressure controllers and verified across its entire temperature range. We ensure that our ±0.25% accuracy claim is a reality, not a marketing estimate.
Rapid Customization: Need a specific flange size or a unique cable length? Our production facility is designed for agility, allowing us to provide custom-engineered products in the timeframe that others provide standard ones.
Dedicated After-Sales Support: Our technical team is available to assist with Modbus register mapping, material selection, and installation best practices to ensure your project is a success.
FAQ: Frequently Asked Questions
Q: Can the HPM27 handle high-temperature concentrated sulfuric acid?
A: The HPM27 with PTFE housing is rated up to 80°C. For concentrated acids at higher temperatures, we recommend using a cooling siphon or a specialized remote-seal configuration. Our technical team can help design the correct installation for high-temp applications.
Q: Is the RS485 output compatible with standard SCADA systems?
A: Yes, the HPM27 uses standard Modbus RTU protocol. It is compatible with virtually all major PLC and SCADA brands, including Siemens, Rockwell, and Schneider Electric. We provide a full register map with every digital unit.
Q: How do I install the sensor on a plastic pipe?
A: The HPM27 is designed with lightweight materials to prevent stress on plastic pipe threads. We recommend using PTFE tape for threaded connections and ensuring that the flange bolts are torqued according to the plastic manufacturer's specifications to prevent cracking.
Q: What is the lifespan of the ceramic diaphragm in a sandy fluid?
A: Ceramic is significantly harder than stainless steel. In fluids with sand or suspended solids, the ceramic diaphragm resists erosion much better than metal, typically offering a lifespan 3 to 5 times longer in abrasive environments.
Would you like me to create a comparison chart between the PTFE, PP, and PVC versions to help your users choose the right material for their specific chemical?
