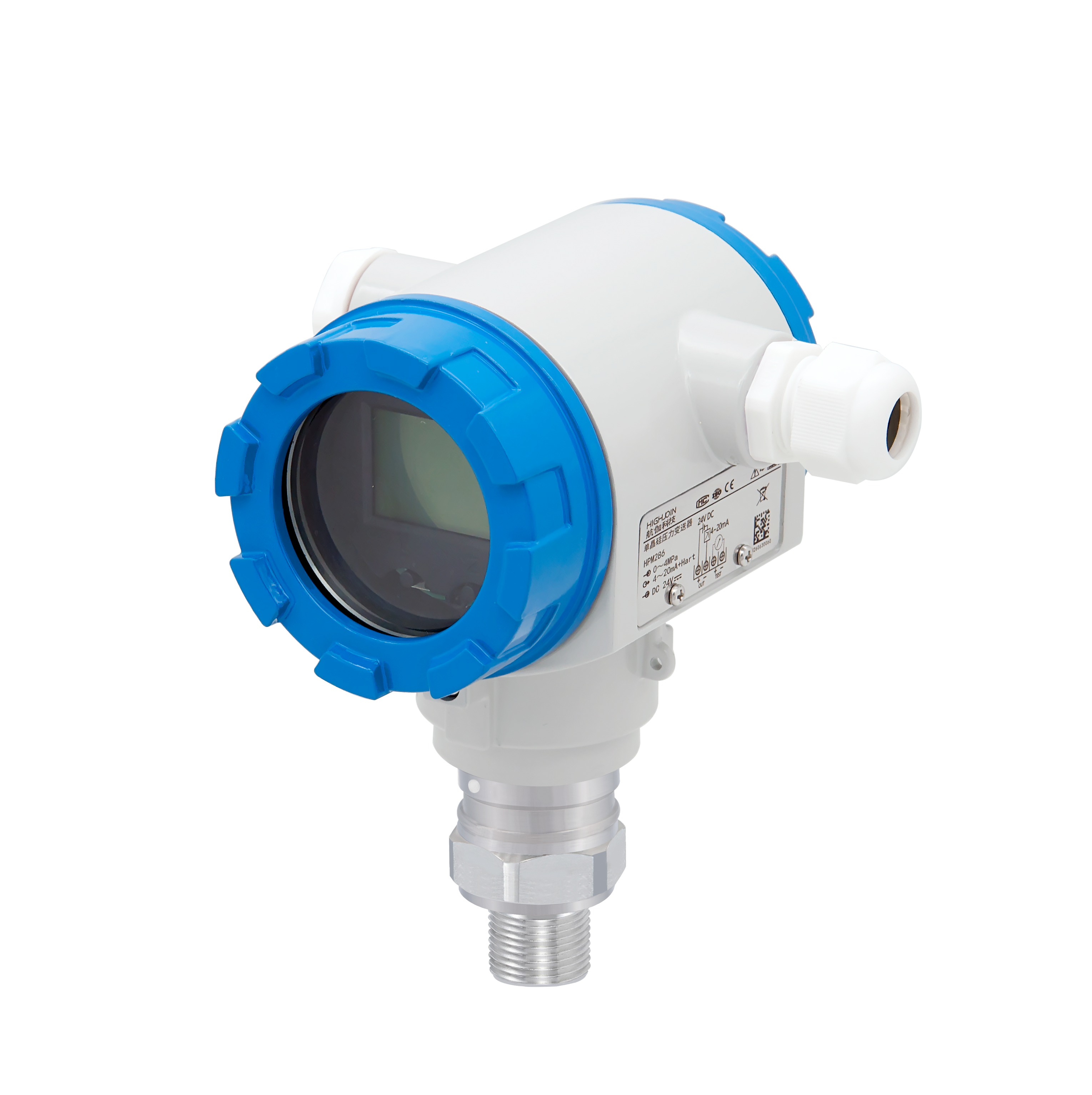

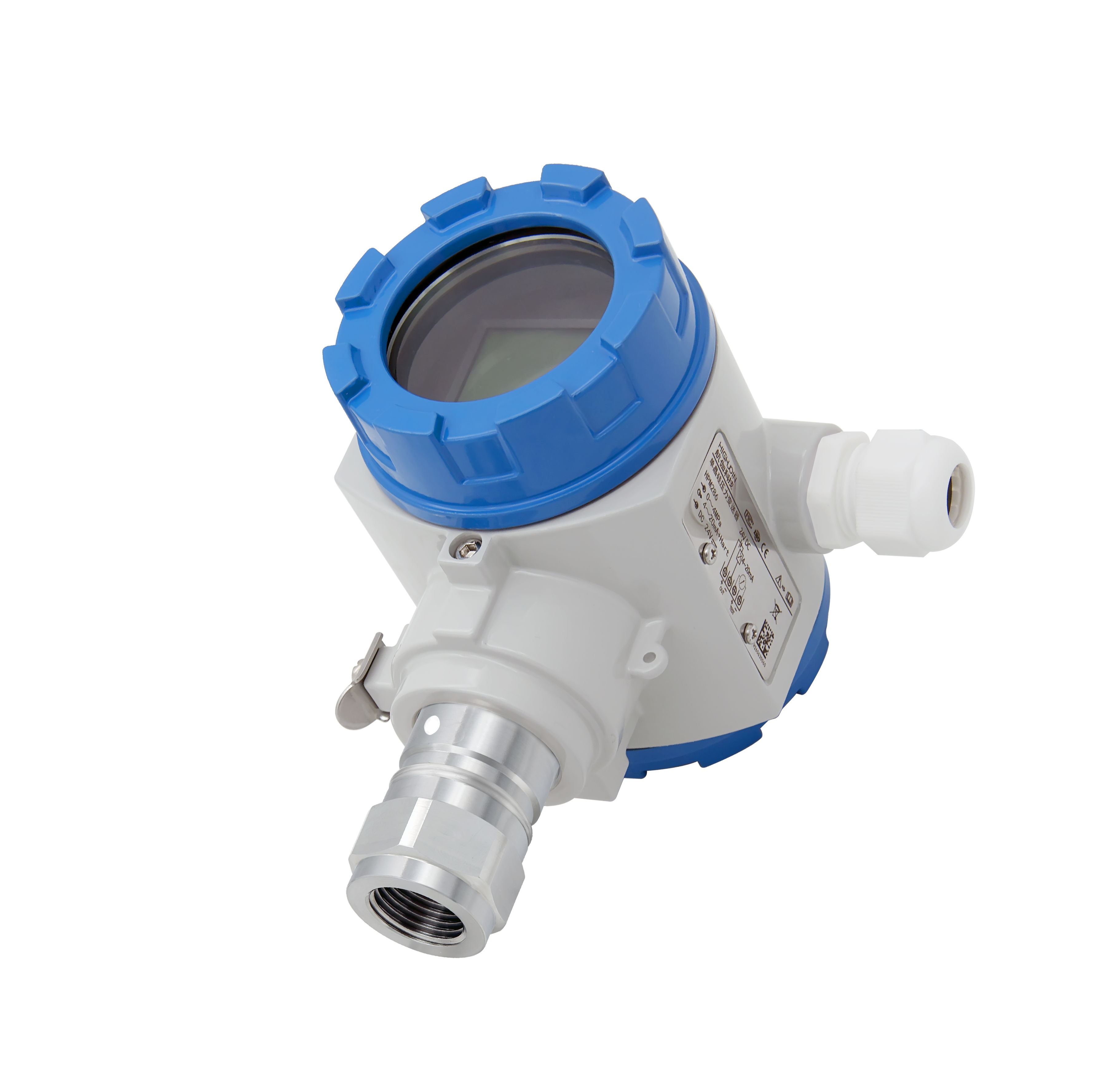

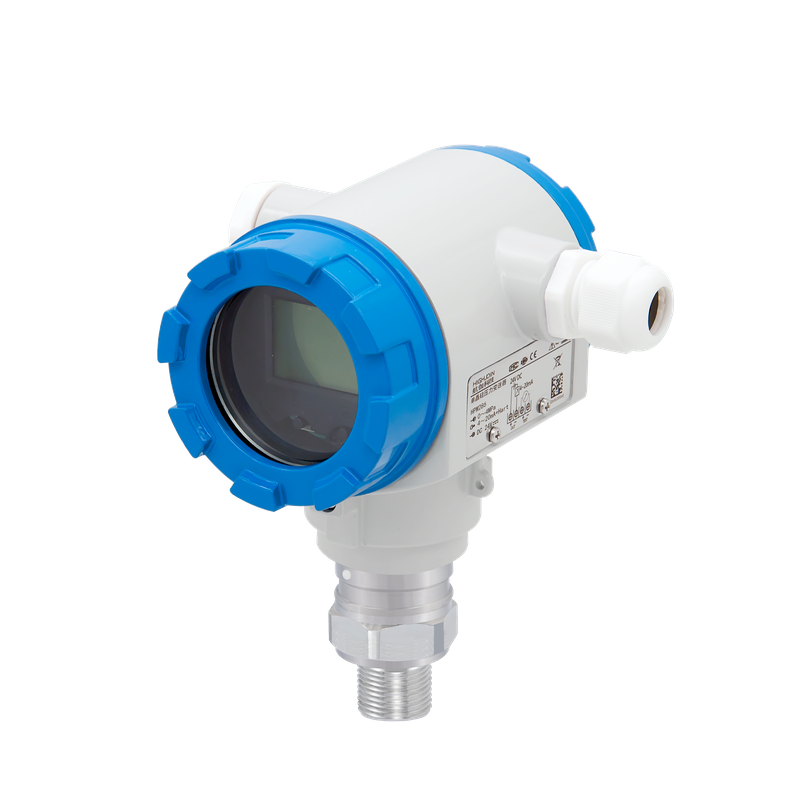

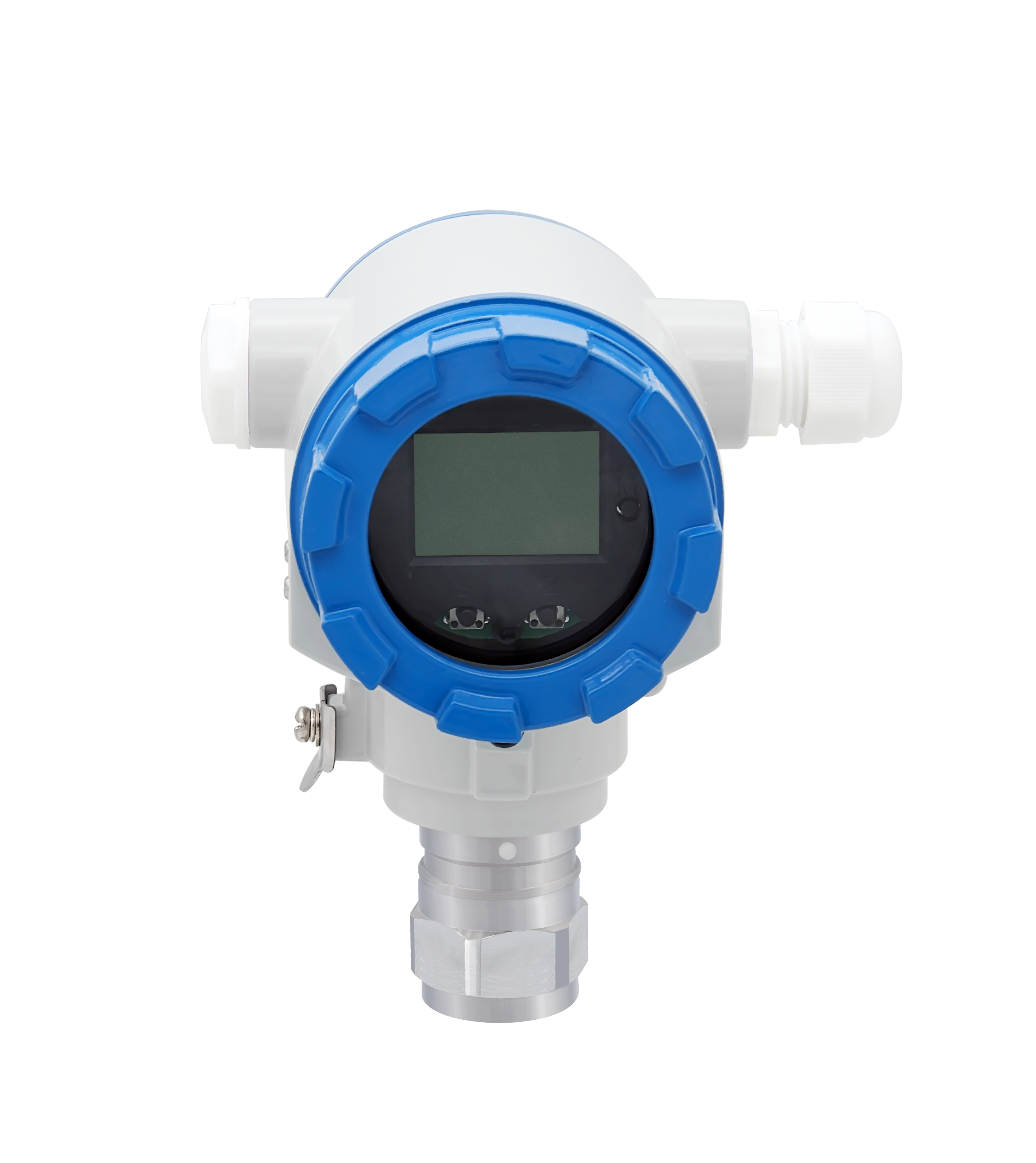

HPM286 High Accuracy ±0.075% 4-20ma HART Monocrystalline Silicon Pressure Transmitter
| Quantity: | |
|---|---|
Overview
The HPM286 monocrystalline silicon pressure transmitter adopts advanced MEMS technology, high-precision and high stability monocrystalline silicon pressure sensitive chips, combined with advanced intelligent microcontroller technology and sensors
Carefully designed with application technology. The default material for the liquid receiving part of the product is 316L, with a fully welded structure, no sealing ring, and pressure leakage
Low risk.
This product can be used to measure the liquid level, pressure, etc. of liquids, gases, or vapors, converting pressure signals into 4-20mA analog electricity
Stream signal output, standard with universal HART protocol, convenient for users to debug and network.
The HPM286 monocrystalline silicon pressure transmitter has the characteristics of high stability and high precision, and is suitable for harsh process industrial environments
Measurement of pressure and liquid level
Features
High precision level, 0.075 level
has good overload characteristics
wide temperature compensation, small temperature drift
fully welded structure, no sealing ring, low risk of pressure leakage
Good long-term stability
Intelligent header
