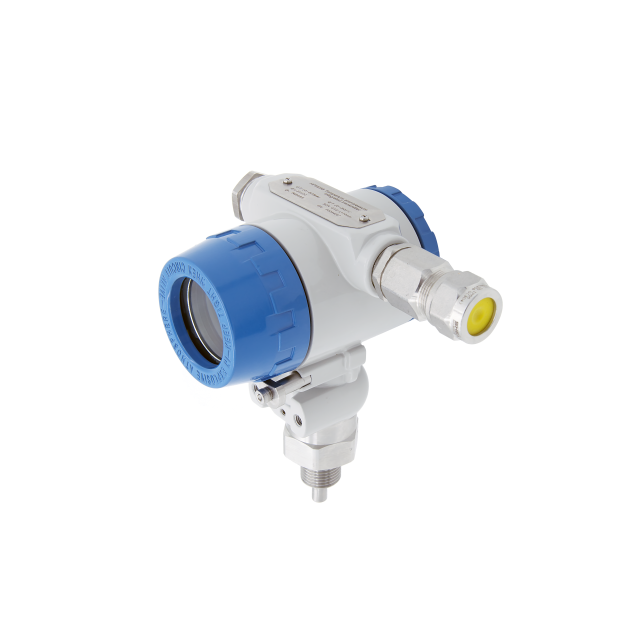

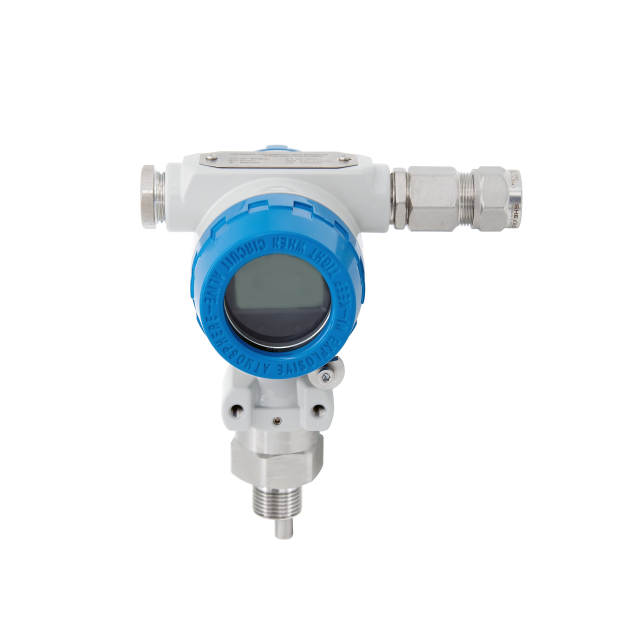

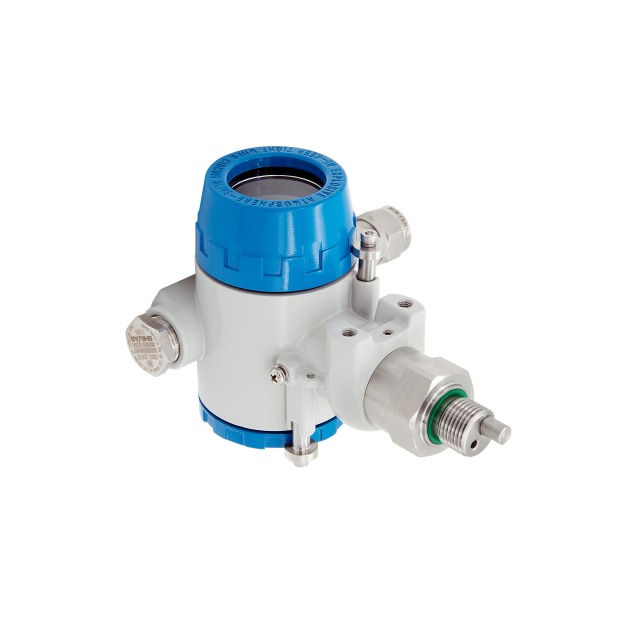

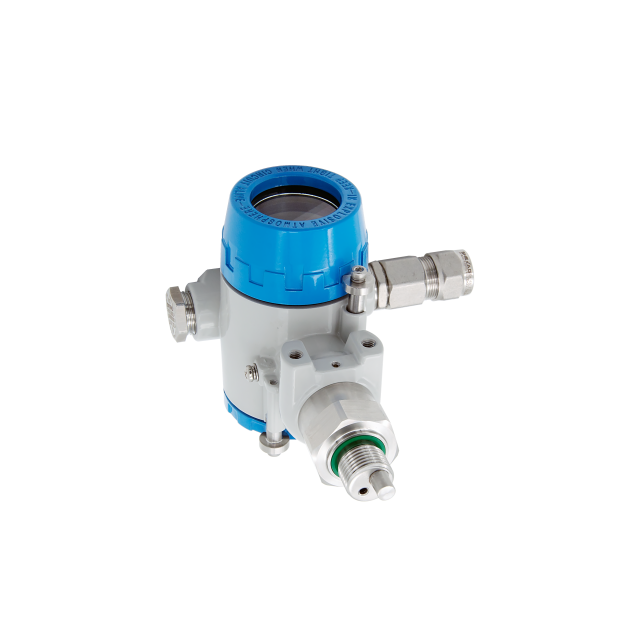

HPTM280 Combined Temperature & Pressure Transmitter with Digital LCD Display

Datasheet Download:
HPTM280 Combined Pressure & Temperature Transmitter.pdf

Quantity:
Availability:





Inquire Add to Basket

Overview

HPTM280 digital temperature and pressure integrated transmitter adopts the industry's leading and unique design structure, with built-in independent measurement of high-stability pressure sensitive elements and high-precision temperature sensing elements, which can simultaneously achieve accurate measurement of medium pressure and temperature. In addition, the product has a field display, which can alternately display pressure and temperature values, and can also be networked through RS485.

The product has been screened for long-term aging and stability, with reliable and stable performance. It can be used in places with relatively harsh environments and can meet the accurate measurement of multiple parameters at one measuring point. It is widely used in the simultaneous measurement of fluid pressure and temperature in the field of industrial process control.

Features

Parallel measurement of temperature and pressure
Up to 0.2 level pressure channel measurement
Temperature sensor front-mounted method measurement, smaller error
Breathable design makes pressure measurement more stable
Supports a variety of electrical interfaces

Description

Technical Parameters

Overview

HPTM280 digital temperature and pressure integrated transmitter adopts the industry's leading and unique design structure, with built-in independent measurement of high-stability pressure sensitive elements and high-precision temperature sensing elements, which can simultaneously achieve accurate measurement of medium pressure and temperature. In addition, the product has a field display, which can alternately display pressure and temperature values, and can also be networked through RS485.

The product has been screened for long-term aging and stability, with reliable and stable performance. It can be used in places with relatively harsh environments and can meet the accurate measurement of multiple parameters at one measuring point. It is widely used in the simultaneous measurement of fluid pressure and temperature in the field of industrial process control.

Features

Parallel measurement of temperature and pressure
Up to 0.2 level pressure channel measurement
Temperature sensor front-mounted method measurement, smaller error
Breathable design makes pressure measurement more stable
Supports a variety of electrical interfaces

Pressure Range	0～50kPa…40MPa (Gauge); 0～50kPa…10MPa (Absolute)
Temperature Range	0~100℃
Measuring Medium	Various liquids, gases and various compatible with contact materials
Output Signal	RS485
Power Supply	Vs=3.1~8VDC (built-in lithium battery ER14250, 3.6V 1200mAh) Vs=5VDC (external power supply) Vs=24VDC (external power supply)
Accuracy	Pressure: ±0.5%FS standard. ; ±0.2%FS option Temperature: ±0.4℃
Long-term stability	±0.25%FS/year
Standby current	<20uA
Acquisition cycle	0 ~ 65535 seconds
Power Consumption	The sensor acquisition cycle is 1s, and the power consumption is about 300uA The sensor acquisition period is 3s, and the power consumption is about 110uA Sensor acquisition cycle 5s, power consumption about 75uA ...... Note: The longer the collection cycle, the lower the power consumption
Compensation temperature	-10~70℃
Zero-point Temperature Coefficient	±1.5%FS reference 30℃,within temperature compensation range
Full scale Temperature Coefficient	±1.5%FS reference 30℃,within temperature compensation range
Medium Temperature	-40～100℃
Ambient Temperature	-30～70℃
Storage Temperature	-30～70℃
Protection grade	IP65
Electric protection	Reverse polarity protection
Mechanical Stability	Vibration 20g(20~5000Hz) Shock resistance 20g(11ms)
Insulation resistance	>100MΩ 500VDC
Dielectric strength	500VAC 50Hz test voltage applied for 1min without breakdown and arcing
