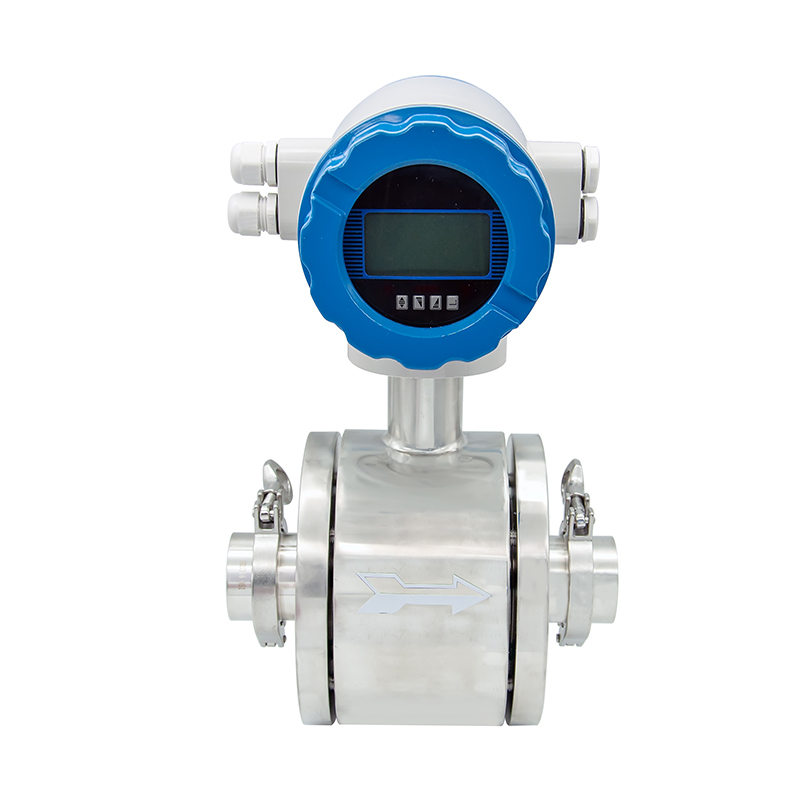

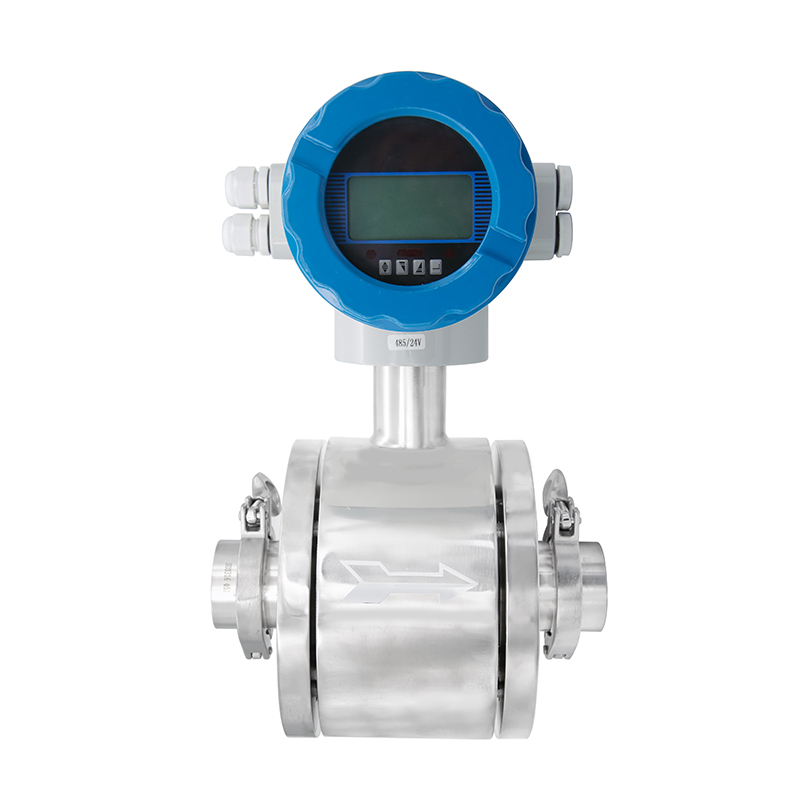

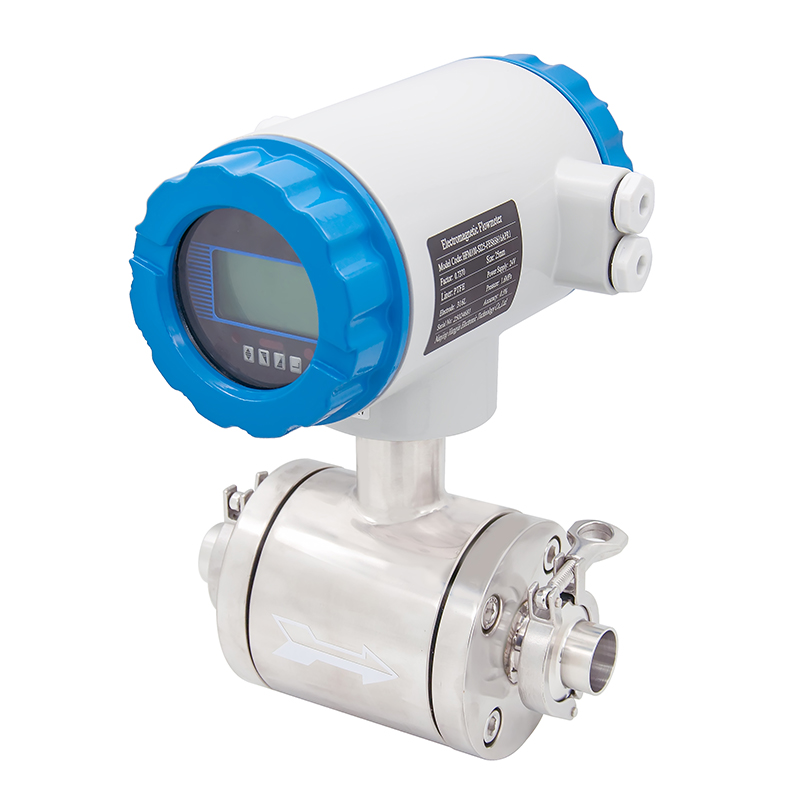

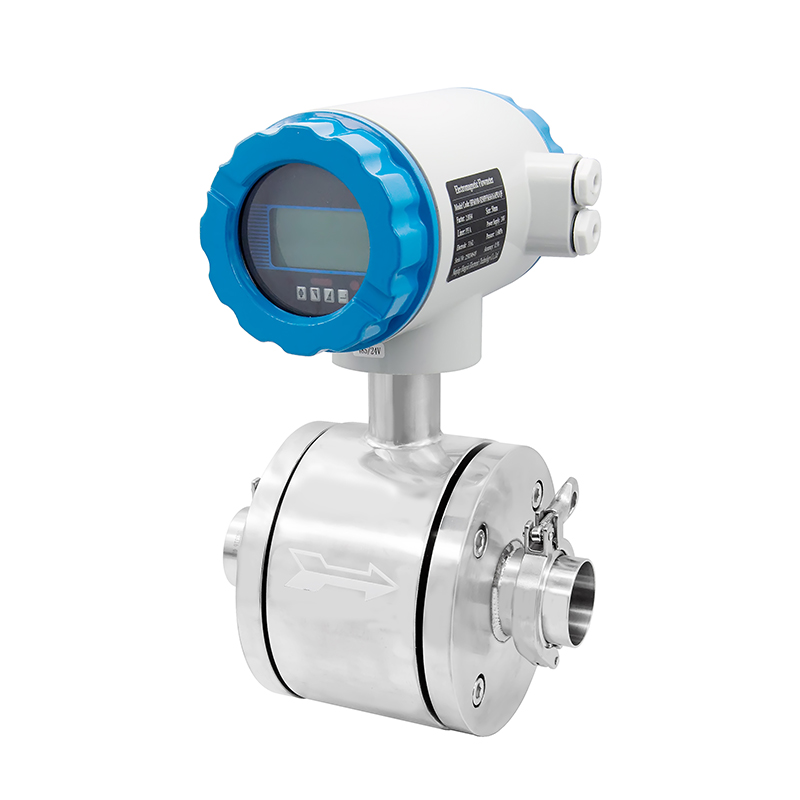

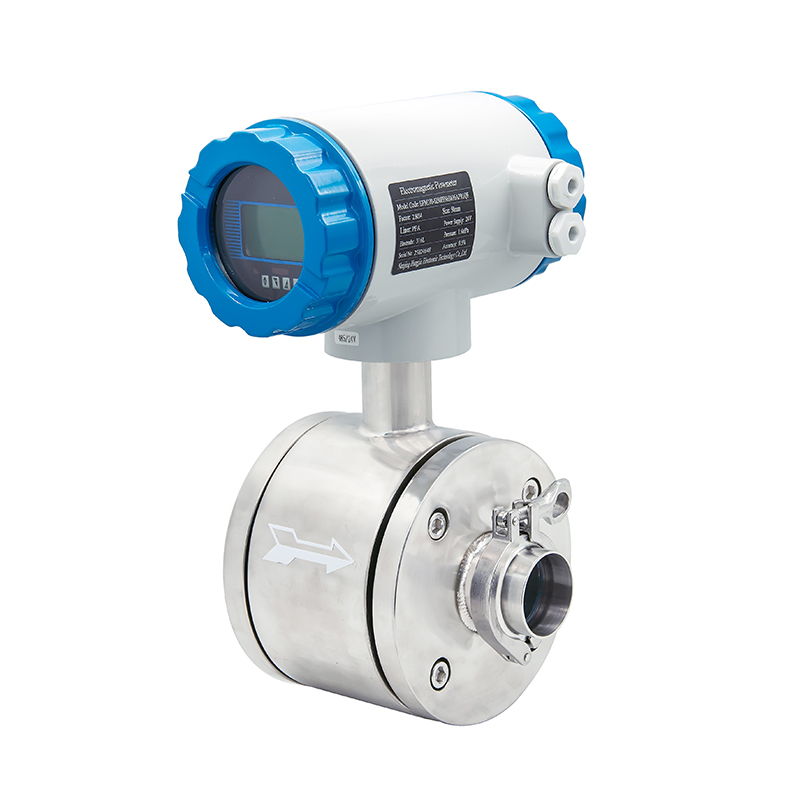

HFM100 sanitary electromagnetic flowmeter is made of SS316 stainless steel, which has excellent corrosion resistance and hygienic performance. Its clamp connection design ensures the sealing and safety of the fluid, and is suitable for various occasions with high hygienic requirements. The flowmeter is widely used in food and beverage industries such as breweries and juice factories. It can accurately measure the flow of fluids to ensure the efficiency of the production process and the stability of product quality.
HFM100 sanitary electromagnetic flowmeter is made of SS316 stainless steel, which has excellent corrosion resistance and hygienic performance. Its clamp connection design ensures the sealing and safety of the fluid, and is suitable for various occasions with high hygienic requirements. The flowmeter is widely used in food and beverage industries such as breweries and juice factories. It can accurately measure the flow of fluids to ensure the efficiency of the production process and the stability of product quality.
Application
Widely used in sanitary industry
Chemical industry
Water treatment industry
Sewage, acid, alkali, salt solution
Volume flow of liquid-solid two-phase fluid conductive medium
Application
Widely used in sanitary industry
Chemical industry
Water treatment industry
Sewage, acid, alkali, salt solution
Volume flow of liquid-solid two-phase fluid conductive medium
Features
1. Clear LCD display screen, display instantaneous flow and cumulative flow respectively
2. Advanced excitation technology, brief excitation circuit with stability and reliability
3. Pioneering fuzzy algorithm technology applies to measurement of electromagnetic flowmeter with the performance of artificial intelligence
4. Empty and full pipe measurement technique to avoid false alarms
5. With low conductivity measurement function
6. Prompt response design for high resistance, undistorted collection of weak signals and 2 prompt reaction for flow change
7. Various optional output communication interfaces
Features
1. Clear LCD display screen, display instantaneous flow and cumulative flow respectively
2. Advanced excitation technology, brief excitation circuit with stability and reliability
3. Pioneering fuzzy algorithm technology applies to measurement of electromagnetic flowmeter with the performance of artificial intelligence
4. Empty and full pipe measurement technique to avoid false alarms
5. With low conductivity measurement function
6. Prompt response design for high resistance, undistorted collection of weak signals and 2 prompt reaction for flow change
7. Various optional output communication interfaces
Technical Parameters
Aperture Diameter | DN10-DN2400 |
Flange Standard | GB/T9119-2000, carbon steel material (stainless steel optional), other standards can be customized |
Rated Pressure Grade | DN10~DN600, 1.0 1.6 2.5 4.0MPa; DN700~DN2000, 0.6 1.0 1.6MPa |
Lining Material | Chloroprene Rubber (CR), Teflon (PTFE), Polyurethane Rubber (PU), Polyethylene (PE), PFA, etc. |
Body Material | SS316 |
Electrode | Default Stainless steel 316L, Hastelloy (HB and HC), Titanium, Ttantalum, Platinum optional |
Accuracy Grade | 0.5 grade |
Medium Temperature | Sensor: -25~180℃, Transmitter: -10~80℃ |
Supply Voltage | 24VDC, 220VAC |
Output | Current 4~20mA, Pulse, RS485 and HART optional |
Technical Parameters
Aperture Diameter | DN10-DN2400 |
Flange Standard | GB/T9119-2000, carbon steel material (stainless steel optional), other standards can be customized |
Rated Pressure Grade | DN10~DN600, 1.0 1.6 2.5 4.0MPa; DN700~DN2000, 0.6 1.0 1.6MPa |
Lining Material | Chloroprene Rubber (CR), Teflon (PTFE), Polyurethane Rubber (PU), Polyethylene (PE), PFA, etc. |
Body Material | SS316 |
Electrode | Default Stainless steel 316L, Hastelloy (HB and HC), Titanium, Ttantalum, Platinum optional |
Accuracy Grade | 0.5 grade |
Medium Temperature | Sensor: -25~180℃, Transmitter: -10~80℃ |
Supply Voltage | 24VDC, 220VAC |
Output | Current 4~20mA, Pulse, RS485 and HART optional |
