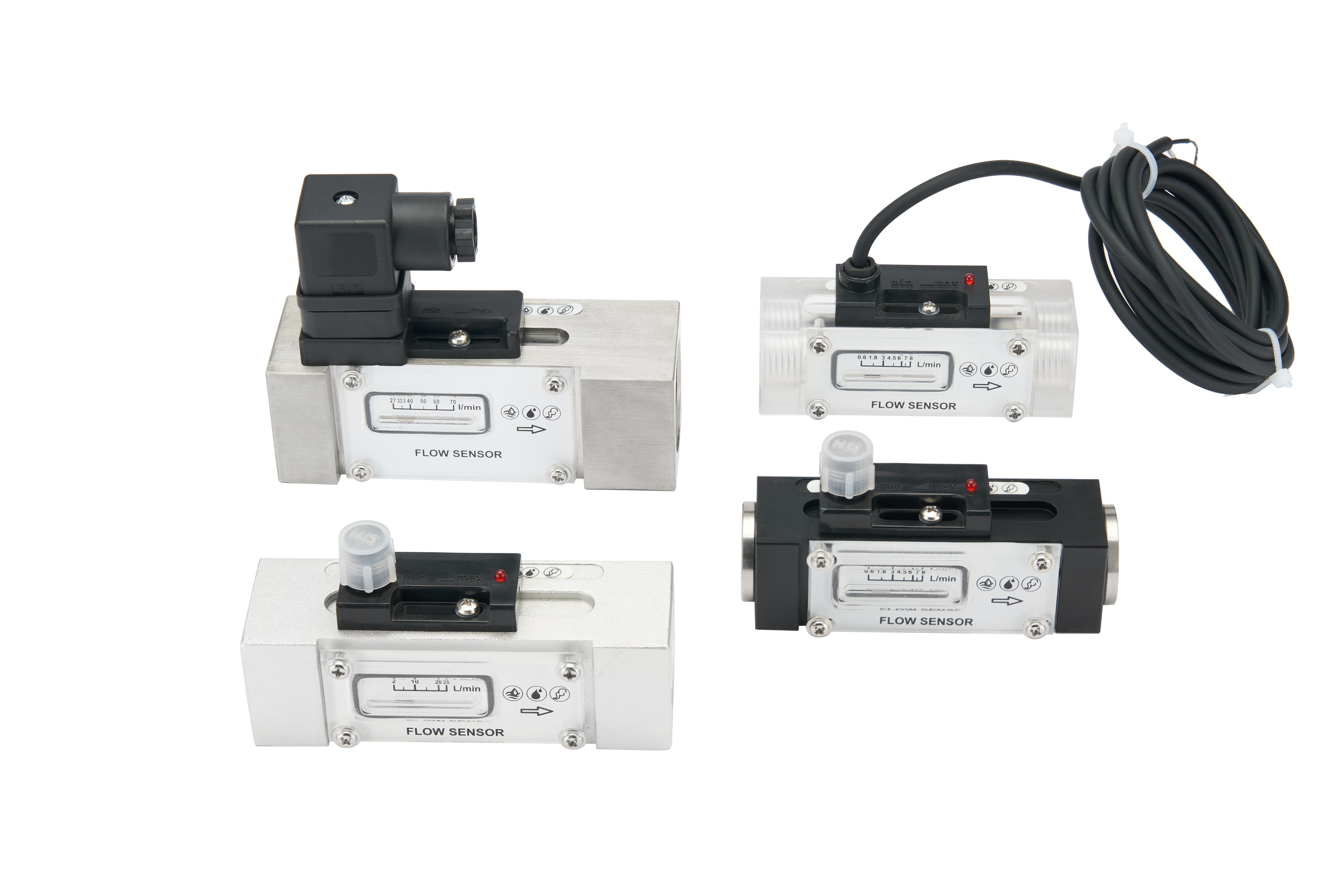

The S20D Flow Switch features a durable stainless steel housing, with an option for aluminum. This mechanical flow switch is designed for both liquid and gaseous media, ensuring versatile application. Its design includes complete isolation between the mechanical and electronic components, making it ideal for economical small flow applications. The easy installation process further enhances its usability, making the S20D a reliable choice for effective flow management.
The S20D Flow Switch features a durable stainless steel housing, with an option for aluminum. This mechanical flow switch is designed for both liquid and gaseous media, ensuring versatile application. Its design includes complete isolation between the mechanical and electronic components, making it ideal for economical small flow applications. The easy installation process further enhances its usability, making the S20D a reliable choice for effective flow management.
Features
Low Pressure Loss: Ensures efficient fluid movement with minimal pressure drop.
High Repeatability: Delivers consistent performance for reliable measurements.
Built-in Setting Scale: Users can easily adjust settings without needing field calibration.
Versatile Applications: Suitable for both vapor and liquid, making it ideal for water-cooling and hydraulic systems.
LED Status Indicator: Clearly displays switch status, with dual output options for enhanced flexibility.
Features
Low Pressure Loss: Ensures efficient fluid movement with minimal pressure drop.
High Repeatability: Delivers consistent performance for reliable measurements.
Built-in Setting Scale: Users can easily adjust settings without needing field calibration.
Versatile Applications: Suitable for both vapor and liquid, making it ideal for water-cooling and hydraulic systems.
LED Status Indicator: Clearly displays switch status, with dual output options for enhanced flexibility.
Technical Parameters
Measuring Medium | Water, gas, oil |
Output Signal | Reed switch, normally open |
Contact Capacity | 24VDC/250VAC,100mA |
Maximal Withstand Pressure | 30bar(Aluminum), 100bar (Stainless Steel) |
Medium Temperature | -20~100℃ |
Protection Grade | IP65(DIN43650) |
Electronic output | PG9 DIN43650 |
