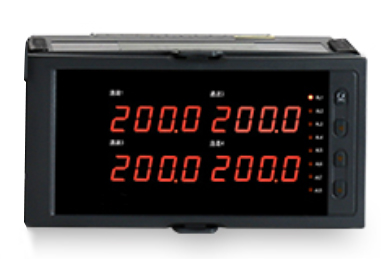

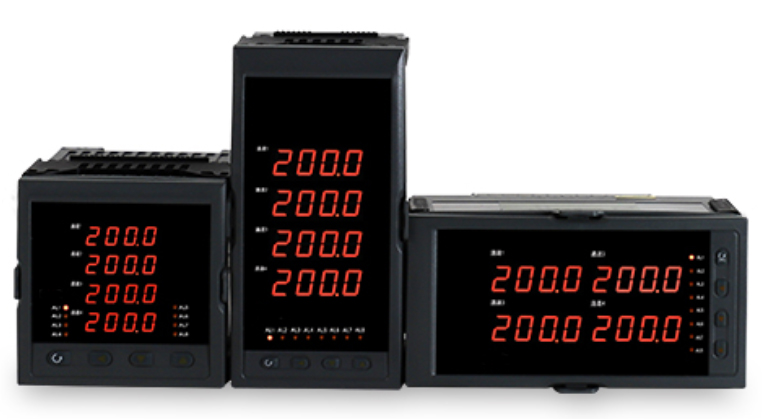

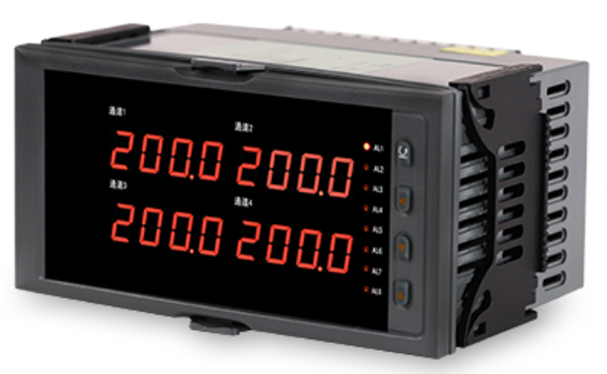

HDM5740 Four-Channel Digital Controller with Multi-Point Synchronous Display

Datasheet Download:
HDM5740 Series Four–circuit Digital Display Controller-Instruction Book.pdf

Quantity:
Availability:





Inquire Add to Basket

Overview

HDM5740 four–circuit digital display controller adopts surface mounting technology and automatic placement machine production with strong disturbance resistance capacity. The controller supports input of several kinds of signals and can be used with a variety of sensors and transmitters to realize measurement display of temperature, pressure, liquid level, speed, force and other physical quantity. It can display measurement signals at four channels simultaneously and be equipped with 8–channel separate alarm output or 4–channel separate alarm output, RS485/232 communication and other output functions, thus suitable for systems to carry out inspection of synchronous measurement of multi–points.

Description

Technical Parameters

Overview

HDM5740 four–circuit digital display controller adopts surface mounting technology and automatic placement machine production with strong disturbance resistance capacity. The controller supports input of several kinds of signals and can be used with a variety of sensors and transmitters to realize measurement display of temperature, pressure, liquid level, speed, force and other physical quantity. It can display measurement signals at four channels simultaneously and be equipped with 8–channel separate alarm output or 4–channel separate alarm output, RS485/232 communication and other output functions, thus suitable for systems to carry out inspection of synchronous measurement of multi–points.

Specifications

Input
Input signals	Current	Voltage	Resistance	Couple
Input Impedance	≤250Ω	≥500KΩ
Maximum input current	30mA
Maximum input voltage		≤6V
Output
Output signals	Current	Voltage	Relay	24V Distribution or feeder
Allowableoutputload	≤500Ω	≥250KΩ (Note:Higherloadcapacity necessitateschangeofthe module)	AC220V/2A DC24V/2A	≤30mA
Comprehensive parameter
Accuracy	0.2%FS±1word
Setting model	Soft touchpanelkeys fordatasetting; setparametervalues lockedwithpassword; set valueseternallysaveduponblackout
Display mode	–1999~9999 for display of measurement values, set values and working status of light emitting diode
Operating environment	Ambient temperature: 0~50 °C; relative humidity: ≤85% RH; avoiding strong corrosive gas
Operating power source	AC 100 ~ 240V, (50/60HZ); DC 20 ~ 29V(switch power supply)
Power consumption	≤4W
Structure	Standard snap–in type
Communication	Adopting standard MODBUS communication protocol, the communication distance of RS–485 able to cover 1km and the same of RS–232 able to cover 15m Note: When the controller is equipped with communication function, it is better to use an active converter as the communication converter
