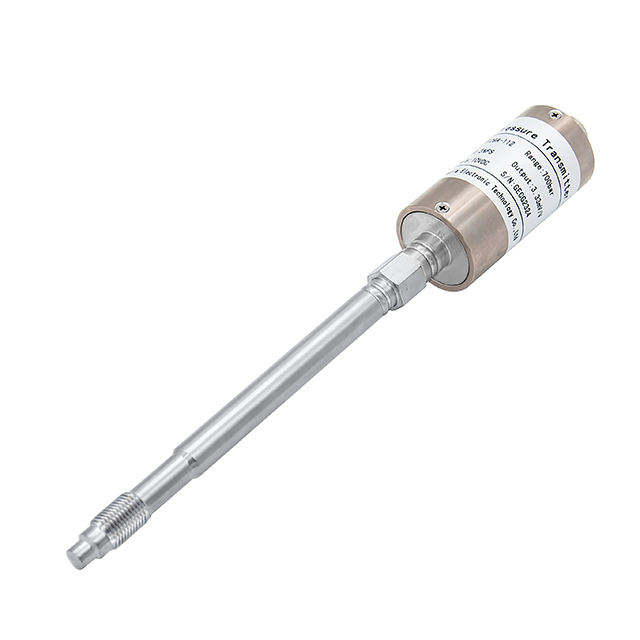

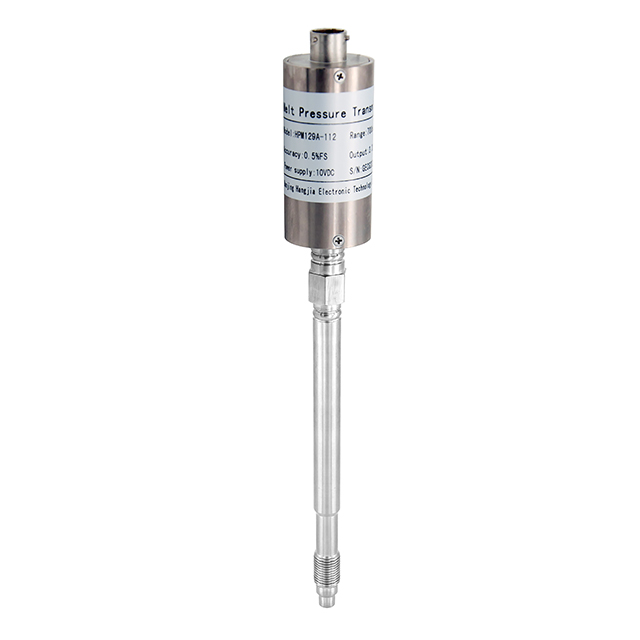

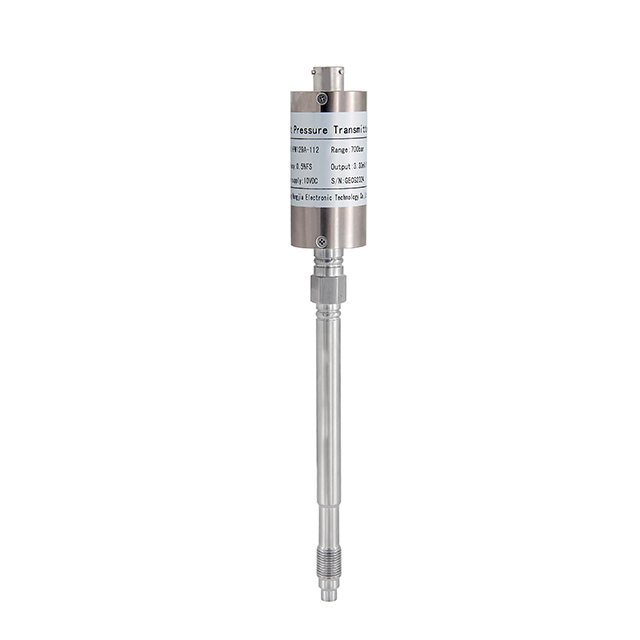

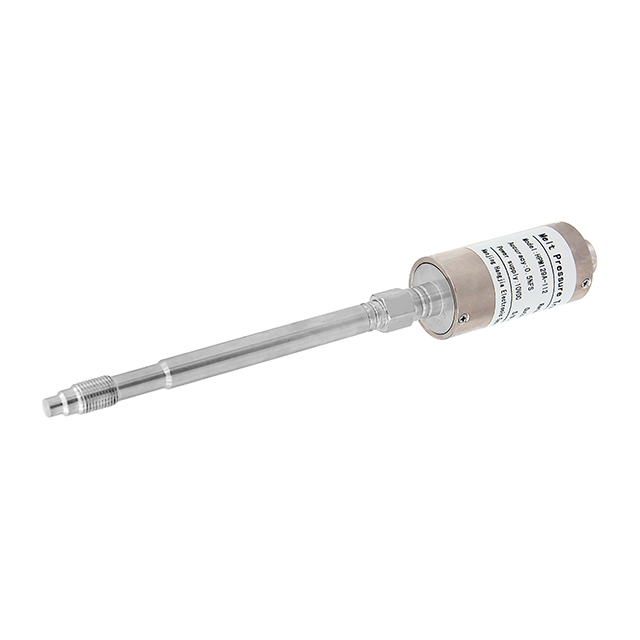

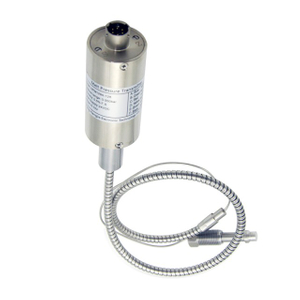

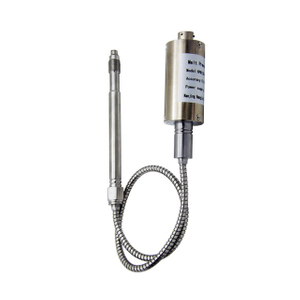

HPM129A-112 Straight Rod Type Melt Pressure Sensor Transmitter
The HPM129A Straight Rod Melt Pressure Sensor Transmitter is the cornerstone of precision for the plastic extrusion and polymer processing industries. Designed to withstand the searing heat and abrasive nature of molten polymers, this transmitter provides the critical data needed to ensure product uniformity and equipment safety. By maintaining a rigid, straight-rod architecture, it offers a cost-effective yet high-performance solution for machines where space is available for a vertical or horizontal direct-mount sensor.
-
Extreme Thermal Endurance: Capable of operating flawlessly in melt temperatures reaching up to 400°C.
-
Dual Sensing Capability: Available with integrated J, K, or E type thermocouples for simultaneous pressure and temperature monitoring.
-
Industry Standard Compatibility: Fully interchangeable with Dynisco, Gefran, and other leading global brands.
-
Superior Diaphragm Protection: Specialized anti-abrasion coating prevents wear from glass-filled or reinforced polymers.
-
Enhanced Signal Stability: Features an internal 80% shunt calibration for quick, accurate on-site verification.
| Quantity: | |
|---|---|
Precision Under Pressure and Heat
In the heart of a plastic extrusion line, where the air is warm with the scent of molten resin and the machinery hums with powerful torque, the environment is unforgiving. A sensor must do more than just survive; it must remain an absolute source of truth. The HPM129A Straight Rod Melt Pressure Transmitter is crafted for this specific theater of operations. When you hold the HPM129A, you feel the weight of its high-grade stainless steel construction and the precision-machined threads (1/2-20UNF or M14), designed to seat perfectly into the extruder barrel without leaks or friction.
The HPM129A tells a story of reliability in the face of extremity. While standard pressure sensors would fail instantly when exposed to the 300°C+ heat of a melt stream, the HPM129A uses its rigid stem to move the delicate electronic housing away from the heat source. The result is a clean, crisp 4-20mA or 0-10V signal that allows your control system to adjust motor speeds and heater bands with surgical accuracy. By installing the HPM129A, you are choosing to eliminate the guesswork of "melt surges" and protecting your expensive extruder screws from overpressure damage. It is a transition from reactive maintenance to proactive process mastery.
Thermal Isolation and Straight Rod Design
The "Straight Rod" architecture of the HPM129A is more than just a structural choice—it is a sophisticated thermal management strategy. In a melt stream, heat is the enemy of electronics.
Rigid Stem Technology: The stainless steel rod acts as a physical buffer, dissipating heat as it travels away from the diaphragm. This ensures that the internal strain gauge and signal conditioning circuitry remain within their compensated temperature range, preventing thermal drift.
Low-Volume Fill: The internal capillary system is filled with a precise volume of specialized fluid (typically mercury or food-grade oil) that transmits the pressure force from the hot diaphragm to the cool sensor element. This design minimizes the "temperature effect" where heat-induced expansion of the fill fluid causes false pressure readings.
Ease of Installation: The straight rod is ideal for extrusion barrels with direct, unobstructed access ports. It provides a solid mechanical connection that resists the torque applied during installation, ensuring a gas-tight seal at the thread seat.
Diaphragm Durability and Anti-Abrasion Coating
In the world of plastic extrusion, the sensor diaphragm is constantly blasted by high-pressure flow, often containing glass fibers, calcium carbonate, or recycled materials that act like sandpaper.
Hardened Diaphragm Faces: We utilize 15-5PH stainless steel or Hastelloy diaphragms that are significantly tougher than standard 316L. This rigidity ensures the diaphragm doesn't "stretch" permanently under high pressure.
Advanced Coating Options: For applications involving abrasive fillers, we offer Titanium Nitride (TiN) or Chromium Nitride (CrN) coatings. These gold or silver-toned finishes provide a surface hardness that drastically reduces erosive wear, extending the sensor's lifespan by up to 300% compared to untreated metal.
Corrosion Resistance: The materials are selected to resist the chemical vapors released by PVC, fluoropolymers, and other resins that can become acidic when heated, preventing the pitting corrosion that leads to diaphragm rupture.
Interchangeability and System Integration
One of the primary challenges for maintenance engineers is finding high-quality replacements for expensive original equipment manufacturer (OEM) sensors. The HPM129A is designed with "universal DNA."
Drop-in Replacement: Whether your machine was built in Europe, the USA, or Asia, the HPM129A adheres to the standard mounting dimensions. It serves as a direct, high-performance alternative to brands like Dynisco, Gefran, and Terwin.
Multiple Output Standards: We provide the standard 3.33mV/V strain gauge output for legacy systems, as well as modern amplified 4-20mA and 0-10V signals for direct connection to PLCs and DCS systems.
Shunt Calibration Accuracy: Every HPM129A transmitter includes a built-in 80% FSO shunt calibration signal. This allows operators to verify the accuracy of the display or control system with the press of a button, ensuring safety protocols are always functioning correctly.
FAQ: Frequently Asked Questions
Q: Can I use the HPM129A in a food-grade or medical plastic application?
A: Yes. While the standard version uses mercury as the filling fluid for its excellent thermal stability, we offer "Green" versions filled with specialized food-grade oil or NaK (Sodium-Potassium) for applications where mercury is prohibited.
Q: What is the benefit of the integrated thermocouple (HPM129A-T)?
A: The integrated thermocouple allows you to measure both pressure and temperature at the exact same point in the melt stream. This is critical for calculating the melt density and ensuring the polymer has reached its proper plasticizing temperature without the need for a second hole in your extruder barrel.
Q: How do I prevent damage to the diaphragm during installation?
A: Most damage occurs when the sensor is installed into a "cold" barrel where solidified plastic is still in the port. Always ensure the extruder is heated to the proper processing temperature and the port is cleaned with a specialized cleaning kit before threading in the sensor.
Q: What is the difference between the 6-pin and 8-pin connectors?
A: The 6-pin connector is the industry standard for 3.33mV/V or 4-20mA signals. The 8-pin connector is typically used for models that require both an amplified pressure signal and a separate temperature signal (thermocouple or RTD) through the same cable.
