How to Choose a Vacuum Pressure Transmitter for Vacuum Packaging Machine Control
Views: 0 Author: Site Editor Publish Time: 2026-04-21 Origin: Site
A Vacuum Pressure Transmitter is a mission‑critical sensor in automated manufacturing systems, especially in vacuum packaging machine control. Choosing the right Vacuum Pressure Transmitter can make the difference between efficient, repeatable production and faulty seals, inconsistent vacuum levels, wasted products, and unplanned maintenance. In this comprehensive guide, we’ll explain what a Vacuum Pressure Transmitter is, how it works, how it relates to Pressure Transmitter technology, and what factors matter most when choosing one for vacuum packaging machines.
This article covers:
Fundamentals of vacuum measurement and transmitter operation
Key specifications and selection criteria
Vacuum ranges and measurement types
Process control considerations
A detailed comparison table
Case‑oriented tips for vacuum packaging machines
Maintenance & calibration strategies
FAQs that help with common problems and choices
By the end, engineers, technicians, and process managers will have a clear roadmap to select the best Vacuum Pressure Transmitter for modern vacuum packaging control systems.
What Is a Vacuum Pressure Transmitter?
A Vacuum Pressure Transmitter is a kind of Pressure Transmitter specifically engineered to measure pressures below atmospheric pressure. In a vacuum packaging system, the chamber pressure drops well below ambient air pressure during product sealing. A Vacuum Pressure Transmitter senses this difference—often measured in negative gauge units or absolute pressure units—and converts it into a usable electrical signal for automated control.
In essence:
It detects vacuum pressure with precision
Converts the physical pressure into an electrical signal
Sends signals (e.g., 4–20 mA analog or digital) to controllers or PLC systems
Helps control vacuum pumps and sealing cycles for consistent packaging results
Without a suitable Vacuum Pressure Transmitter, vacuum packaging machines would lack reliable feedback on chamber conditions, causing unpredictable performance and compromise in quality.
Why Vacuum Measurement Matters in Vacuum Packaging Machines
Vacuum packaging machines remove air from bags, pouches, or trays, then seal them. Maintaining a specific vacuum level is essential to:
✔ Extend product shelf life
✔ Protect sensitive contents from oxidation or moisture
✔ Improve aesthetics (no air pockets)
✔ Ensure seal integrity
✔ Enable repeatable, automated control cycles
Vacuum packaging processes can be continuous, intermittent, or dual‑chamber. In all cases, the Vacuum Pressure Transmitter provides real‑time feedback to vacuum controllers that:
Start and stop the vacuum pump
Determine when a desired vacuum level has been reached
Trigger sealing once vacuum setpoints are attained
Detect leaks or abnormal vacuum conditions
A well‑chosen transmitter ensures reliability, efficiency, lower operating cost, and higher throughput.
Core Technologies in Vacuum Pressure Transmitters
The performance of a Vacuum Pressure Transmitter depends on the sensing technology used inside the device. Key types include:

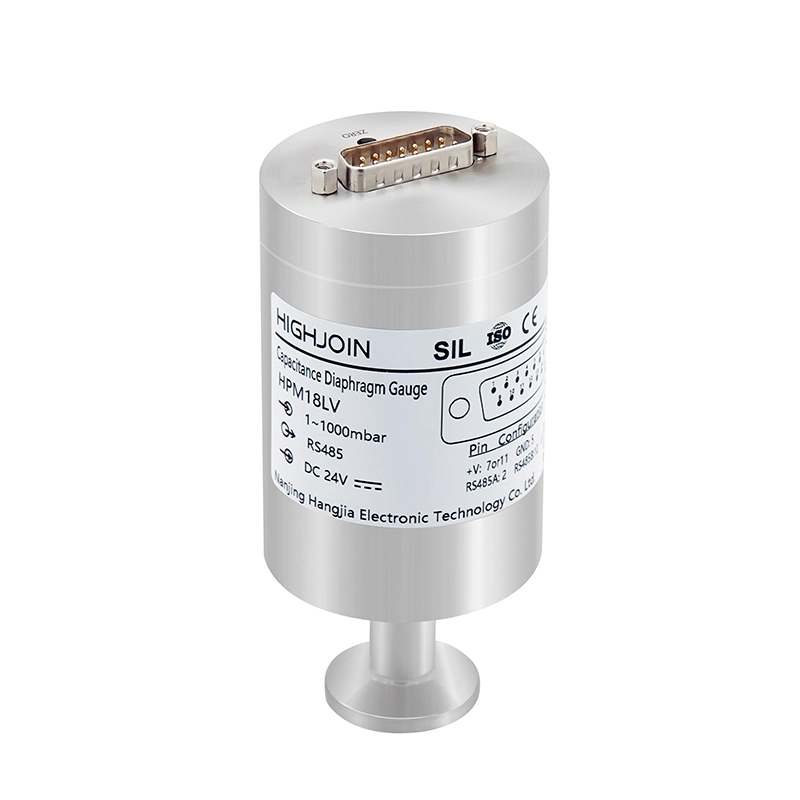

1. Capacitive Vacuum Pressure Transmitters
These use changing capacitance to measure pressure variations. A diaphragm’s movement alters the distance between capacitor plates, converting pressure changes into electrical signals.
Strong points:
✔ High sensitivity in low‑pressure ranges
✔ Good stability
✔ Broad vacuum range
Challenges:
✖ Slightly higher cost in some configurations
2. Diffused Silicon Vacuum Pressure Transmitters
These are the most common type used in industrial applications. They employ a silicon sensor with a Wheatstone bridge to detect pressure‑induced resistance changes.
Strong points:
✔ Good accuracy
✔ Cost‑effective
✔ Robust in many packaging environments
3. Single‑Crystal Silicon Transmitters
Single‑crystal silicon utilizes the piezoresistive effect with minimal hysteresis.
Strong points:
✔ Very stable
✔ High precision
Challenges:
✖ Require careful calibration and handling
Key Specifications to Compare
Selecting the right Vacuum Pressure Transmitter involves understanding several key specifications. The table below summarizes the most important parameters to compare:
Specification | What It Means | Why It Matters for Vacuum Packaging |
|---|---|---|
Pressure Range | Range from lowest vacuum to near atmospheric | Critical for matching package vacuum requirements |
Accuracy | Error percentage of actual pressure | Higher accuracy gives tighter control |
Output Signal | 4–20 mA, digital, RS485, etc. | Controls how data integrates with PLC/SCADA |
Response Time | How quickly transmitter reacts to pressure changes | Makes real‑time control feasible |
Stability / Drift | Long‑term measurement stability | Ensures fewer recalibrations |
Temperature Compensation | Sensor performance over temperature range | Machines often heat up with continuous operation |
Media Compatibility | Suitability for air, gases, vapors | Packaging environments may include humidity |
Mounting / Process Connection | Thread or flange type | Fit with existing vacuum ports |
Electrical Interface | Power requirements and signal format | Matches machine control system |
These criteria help engineers precisely map system needs to a Vacuum Pressure Transmitter specification. In vacuum packaging, pressure range and output signal compatibility often take priority.
Absolute vs Gauge vs Differential Pressure
Understanding how vacuum measurement references are defined is crucial. There are three basic types of pressure measurements:
Absolute Pressure
Measured relative to perfect vacuum (zero pressure). Widely used in vacuum systems because it accurately reflects the real vacuum state.
Gauge Pressure
Measured relative to local atmospheric pressure. Often used in less precise control where negative values (below atmospheric) indicate vacuum.
Differential Pressure
Comparison between two pressure points. Useful when you need to monitor differences across filters or chambers.
For vacuum packaging machines, absolute vacuum measurement is usually the most technically effective because it measures the true degree of vacuum regardless of atmospheric fluctuations.
Choosing the Right Pressure Range
The pressure range describes the lowest and highest pressures a Vacuum Pressure Transmitter can measure. For vacuum packaging machines, typical vacuum levels are in the range of:
Vacuum Category | Approximate Range | Representative Unit |
|---|---|---|
Rough Vacuum | 1 atm down to 1 Torr | ~760 Torr to 1 Torr |
Medium Vacuum | 1 Torr to 10⁻³ Torr | ~133.3 Pa to 0.13 Pa |
High / Ultra‑High Vacuum | Below 10⁻³ Torr | ≈0.13 Pa and below |
Carefully define the vacuum level your packaging process requires. A mismatch can result in poor measurements, control noise, or out‑of‑range readings.
Signal Output and Control System Compatibility
Modern vacuum packaging machines demand advanced automation. A Vacuum Pressure Transmitter should support signal outputs that align with machine controllers.
Common output options include:
Output Type | Typical Use |
|---|---|
4–20 mA Analog | Standard industrial control loops |
Voltage Output | Simple PLC or data acquisition systems |
Digital Protocol (e.g., RS485) | High‑speed digital communication |
Fieldbus / Smart Protocols | Networked manufacturing systems |
Many systems rely on signals from the transmitter for:
PID vacuum control
Fault detection
Data logging and trend analysis
Functional integration minimizes downtime and supports predictive maintenance strategies.
Installation and Environmental Considerations
When installing a Vacuum Pressure Transmitter for a vacuum packaging machine:
Mount at a stable point where pressure changes represent true chamber conditions
Ensure temperature compensation if the environment is warm
Protect the transmitter electronics from humidity or condensate
Use appropriate connectors and sealed fittings to avoid vacuum losses
Installation affects both measurement accuracy and long‑term stability.
Vacuum Transmitter Calibration and Maintenance
Calibrating a Vacuum Pressure Transmitter ensures accurate readings over time. Typical practices include:
Initial calibration after installation
Routine calibration checks (scheduled per usage hours)
Zero point verification using certified vacuum standards
Signal integrity tests to confirm 4–20 mA or digital output scaling
Proper calibration minimizes drift and avoids process errors. Additionally, visually inspect physical connections and sensor diaphragms for debris or damage.
Troubleshooting Common Issues
Problem | Possible Cause | Hint |
|---|---|---|
No signal from transmitter | Loose wiring or power issue | Check power and grounding |
Unstable readings | Rapid temperature changes | Add temperature compensation |
Wrong vacuum levels reported | Wrong pressure range | Confirm transmitter range |
Machine control errors | Incompatible output signal | Match control system protocol |
Understanding these patterns can speed up corrective action without interrupting packaging operations.
Summary: Best Practices and Recommendations
To pick the right Vacuum Pressure Transmitter:
Define vacuum range precisely based on your packaging type
Choose the appropriate pressure measurement reference (absolute vs gauge)
Ensure output signal compatibility with your control system
Consider environmental and installation conditions
Prioritize accuracy, stability, and calibration requirements
Maintain and verify calibration regularly for consistent performance
With a methodical selection process, you can ensure your vacuum packaging machine operates with repeatable, robust control—yielding higher throughput and reduced downtime.
FAQs
1. What pressure range should a Vacuum Pressure Transmitter support for standard vacuum packaging machines?
A Vacuum Pressure Transmitter should cover a vacuum range that matches the machine’s chamber pressure requirements. Typical vacuum packaging reaches pressures significantly below atmospheric pressure, so look for transmitters that measure both low vacuum and near‑atmospheric values to ensure broad coverage.
2. Can a general Pressure Transmitter be used for vacuum packaging control instead of a dedicated Vacuum Pressure Transmitter?
General Pressure Transmitters can measure positive pressures but may lack the range and accuracy for vacuum‑level control. A purpose‑built Vacuum Pressure Transmitter is recommended for reliable vacuum packaging control.
3. How often should I calibrate a Vacuum Pressure Transmitter in a packaging line?
Calibration frequency depends on usage intensity and process criticality. For high throughput production lines, quarterly or semi‑annual calibration checks can help maintain accuracy and avoid drift.
4. What type of signal output is best for modern vacuum packaging machines?
Analog 4–20 mA remains standard for deterministic process control, but digital protocols like RS485 enable richer data and integration with PLC/SCADA systems. The choice depends on your control architecture.
5. How can I tell if the transmitter reading is drifting over time?
Compare readings against a certified reference gauge or use diagnostic tools plotted over time. If readings deviate beyond an acceptable tolerance, it’s time to recalibrate or replace the transmitter.
