1-Inch vs 1.5-Inch Tri-Clamp Pressure Transmitters

Choosing between a 1-inch vs 1.5-inch Tri-Clamp pressure transmitter is not simply a matter of picking the number printed on an existing pipe. The correct size depends on the sanitary connection standard, actual ferrule dimensions, tube bore, diaphragm geometry, process medium, and cleaning conditions. Under common sanitary tube systems, 1-inch and 1.5-inch fittings may even share the same clamp flange outside diameter while having different internal openings. That is why measuring only the outside of the flange can lead to the wrong order. A buyer should confirm both the nominal tube size and the physical connection dimensions, then check whether the transmitter’s wetted materials, pressure range, surface finish, gasket, and fill fluid suit the process.

Key Takeaways

• A Tri-Clamp size normally identifies the compatible tube size, not the outside diameter of the clamp itself.

• In common sanitary systems, 1-inch and 1.5-inch ferrules may both have an approximately 50.5 mm clamp flange outside diameter, but their bores and gasket openings differ.

• A 1-inch connection suits compact equipment and smaller process lines; a 1.5-inch connection usually provides a larger process opening for mainstream food, beverage, and pharmaceutical lines.

• A larger connection does not automatically produce better measurement accuracy. Range selection, sensor technology, temperature compensation, diaphragm construction, and installation quality matter more.

• Never order from the nominal size alone. Confirm the applicable standard, ferrule OD, tube OD, gasket ID, pressure range, medium, cleaning temperature, and output signal.

1-Inch vs 1.5-Inch Tri-Clamp Pressure Transmitters at a Glance

The dimensions below represent a common sanitary tube configuration and are useful for initial comparison. They are not a substitute for the dimensional drawing of the specific ferrule, gasket, and transmitter being purchased. DIN, ISO, and other sanitary standards can use different dimensional relationships, so the applicable standard must appear on the final specification.

The most important point in this table is that the clamp flange outside diameter may not reveal the nominal tube size. Two fittings can accept a similar-looking clamp while presenting very different openings to the process. The gasket bore and ferrule geometry determine whether the connection is truly matched.

What Does the Tri-Clamp Size Actually Refer To?

Tri-Clamp is widely used as a practical name for a sanitary connection made from two ferrules, a gasket, and a clamp. The clamp pulls the ferrule faces together while the gasket forms the seal. For pressure measurement, the transmitter replaces one side of this connection or mounts to a matching process ferrule on a pipe, tank, or equipment port.

The number attached to the fitting usually relates to the nominal tube size. It does not necessarily describe the flange outside diameter, gasket outside diameter, diaphragm diameter, or clear flow opening. Treating all these dimensions as one number is the source of many purchasing and installation errors.

Nominal Tube Size vs Clamp Flange Diameter

A nominal 1-inch sanitary line typically uses tubing with an outside diameter near 25.4 mm. A nominal 1.5-inch line typically uses tubing near 38.1 mm outside diameter. However, the ferrule faces are wider than the tubes because they must provide enough area for the gasket and clamp to form a secure joint.

Under a common sanitary fitting series, both 1-inch and 1.5-inch ferrules use a clamp flange outside diameter close to 50.5 mm. Their internal bores remain different. A representative gasket may have an opening near 22.9 mm for the 1-inch line and near 35.3 mm for the 1.5-inch line.

This distinction matters when replacing an existing transmitter. Measuring a flange OD of approximately 50.5 mm does not tell the supplier whether the process line is 1 inch or 1.5 inches. The tube OD, gasket ID, or ferrule drawing is needed to resolve the size.

Why 1-Inch and 1.5-Inch Fittings May Use the Same Clamp

The clamp engages the angled outer faces of the ferrules rather than the internal flow passage. Manufacturers can therefore use a common external clamp envelope for more than one tube size while changing the internal bore and gasket opening.

This shared clamp geometry can be convenient for maintenance because a facility may stock one clamp style for both sizes. It can also create a false sense of interchangeability. A 1-inch gasket installed on a 1.5-inch process opening can project into the flow path, create a ledge, trap product, and interfere with cleaning. A 1.5-inch gasket used against a smaller opening can also create an internal mismatch that is difficult to inspect and clean. Even if the clamp closes, the assembled connection may not be hygienically or mechanically correct.

The same caution applies to the transmitter diaphragm. A connection that can be physically clamped in place is not automatically a correctly matched sanitary assembly.

Why the Actual Ferrule and Gasket Must Be Measured

Before ordering a replacement, record at least three physical dimensions: tube outside diameter, ferrule flange outside diameter, and gasket inside diameter. If possible, also photograph the existing ferrule beside a ruler and provide the original drawing or equipment tag.

The connection standard must be identified as well. A buyer may use “Tri-Clamp” as a general description while the installed equipment follows a particular ISO, DIN, or manufacturer-specific sanitary geometry. Nominal sizes do not translate perfectly across every standard.

Measurement also protects against an incorrect legacy installation. Copying the old transmitter label without checking the pipe can repeat a mismatch that has already caused gasket extrusion, an internal step, or difficult cleaning. A quick dimensional check is less expensive than modifying a hygienic process line after delivery.

Key Differences Between 1-Inch and 1.5-Inch Transmitters

The connection changes how the transmitter fits the process, how much of the diaphragm is exposed, and how easily the wetted face can be cleaned. It does not change every aspect of transmitter performance, and the practical effect depends on the actual diaphragm and ferrule design.

Process Opening and Flow Restriction

A 1-inch connection presents a smaller internal opening than a 1.5-inch connection. On a small line already designed around 1-inch tubing, that is not a problem; the transmitter should match the existing bore rather than enlarge it unnecessarily. The compact connection can fit dosing skids, pilot systems, and utility circuits without an adapter.

Problems arise when a reduced opening is introduced into a larger process line. A reducer or undersized gasket can create a step where product accumulates. In a pressure port with little continuous flow, this pocket may retain syrup, protein, fermentation solids, or cleaning solution. The resulting buildup can slow pressure response and make sanitation harder to verify.

A 1.5-inch connection provides more open area and generally creates a smoother transition on mainstream sanitary process lines. The trade-off is that the equipment nozzle, tube, and mating ferrule must be sized accordingly. It is not useful to specify a larger transmitter connection if the vessel port remains 1 inch.

Flush Diaphragm Area

A flush diaphragm sits at or near the process-facing end of the connection. It removes the narrow pressure channel found in many threaded industrial transmitters, reducing the places where viscous product can collect.

The larger opening of a 1.5-inch connection may allow a larger exposed diaphragm, but the connection name alone does not guarantee the active sensing diameter. Some designs place a smaller diaphragm inside a larger ferrule. Others use a full-face membrane. Buyers should request the dimensional drawing and confirm the actual wetted diaphragm diameter.

Diaphragm thickness, material, support structure, and the sensing element behind it affect response and overload resistance. A physically larger membrane is therefore not automatically more accurate or more durable. It simply provides a potentially more open interface to the medium.

Performance with Viscous or Particle-Containing Media

For water-like liquids and clean gases, both sizes can work when the range, material, and process connection are correct. The difference becomes more noticeable with yogurt, sauce, syrup, cream, cosmetic paste, fermentation broth, or liquids containing soft particles.

A wider, fully flush opening gives sticky material less opportunity to bridge across a recess. It also makes it easier for cleaning flow to reach the complete wetted surface. For that reason, a 1.5-inch connection is often the more forgiving option for viscous media, especially on a line that already uses 1.5-inch tubing.

Still, size cannot compensate for poor diaphragm geometry. A recessed sensor behind the ferrule can hold product even when the clamp is large. For difficult media, specify a truly flush face and review the maximum particle size, viscosity, cleaning method, and orientation with the supplier.

Cleanability and CIP/SIP Operation

A hygienic connection should avoid crevices, exposed threads, deep cavities, and internal steps. The ferrule faces must align, and the gasket should be compressed evenly without protruding into the process. Surface finish and gasket compatibility matter just as much as nominal size.

During clean-in-place operation, the cleaning solution must contact the diaphragm face and the surrounding seal area. A larger opening may improve access, but only when the transmitter sits flush with the mating ferrule. During sterilize-in-place operation, the transmitter, gasket, fill fluid, and electrical assembly must tolerate the stated sterilization temperature and duration.

Do not describe a process only as “CIP/SIP.” Provide the cleaning chemicals, concentration, maximum temperature, cycle duration, and pressure. Those details determine wetted-material and gasket compatibility. They also show whether a cooling extension is needed to protect the electronics from sustained process heat.

Installation Space and Existing Pipe Compatibility

A 1-inch line is useful where the skid layout is dense or the process flow is low. However, the clamp itself may occupy nearly the same radial space as the clamp used on a 1.5-inch ferrule. The real space saving can therefore come from the smaller tubing and equipment nozzle, not from a dramatically smaller clamp.

Check axial space too. A transmitter with a display, cable gland, cooling fins, or a tall housing may need more clearance than the clamp size suggests. Maintenance personnel need room to release the clamp, remove the transmitter without striking adjacent piping, and inspect or replace the gasket.

Adapters should be used cautiously. A reducer can solve a mechanical mismatch but may introduce a pocket or abrupt change in bore. In sanitary service, a direct, correctly sized connection is usually easier to clean and document.

When Should You Choose a 1-Inch Tri-Clamp Transmitter?

A 1-inch Tri-Clamp transmitter makes sense when it matches the existing equipment and the process does not need a larger opening. Typical candidates include laboratory or pilot skids, dosing equipment, compact bioprocess modules, small filtration systems, and low-flow product or utility lines.

Choose the 1-inch option when most of the following conditions apply:

• The mating ferrule and tube are confirmed as nominal 1 inch under the same connection standard.

• Space for the pipework or equipment nozzle is limited.

• The medium is clean or only moderately viscous.

• The process does not contain particles likely to bridge a smaller opening.

• The pressure range and diaphragm design are available in the required size.

• The smaller line is intentional and not a reducer added only to fit the instrument.

For very low pressure ranges, verify that the selected 1-inch model can provide the required span without excessive temperature or mounting influence. Small pressure ranges can be more sensitive to diaphragm stress, gasket compression, and zero shift. The dimensional fit may be correct while the measurement configuration is not.

When Should You Choose a 1.5-Inch Tri-Clamp Transmitter?

A 1.5-inch connection is widely used on food, beverage, dairy, brewing, fermentation, pharmaceutical, biotechnology, and personal-care process equipment. It provides a larger bore than a 1-inch connection and often supports a more open flush diaphragm arrangement.

It is usually the stronger choice when:

• The process line or vessel nozzle is already 1.5 inches.

• The product is viscous, sticky, easy to crystallize, or contains small soft particles.

• Frequent CIP cleaning requires an accessible, crevice-minimized wetted face.

• The instrument measures tank pressure or hydrostatic level through a hygienic vessel port.

• The facility wants a commonly used connection size across multiple production lines.

• Maintenance teams need easier visual inspection of the diaphragm and gasket area.

The larger connection is not a universal upgrade. Installing a 1.5-inch unit through a reducer on a genuine 1-inch line adds components and sealing surfaces without necessarily improving measurement. Match the process first, then choose the diaphragm, range, and electronics.

Does a Larger Tri-Clamp Improve Measurement Accuracy?

No. Connection size and measurement accuracy are separate specifications. A 1.5-inch fitting may improve exposure to difficult media and reduce the chance of buildup, which can help preserve reliable response in service. It does not, by itself, reduce the transmitter’s specified error.

Accuracy depends primarily on the following factors:

• Sensor element: Silicon piezoresistive, ceramic capacitive, and other technologies have different span, temperature, and overload characteristics.

• Pressure range: A correctly sized range keeps normal operating pressure within a useful portion of the calibrated span. An unnecessarily wide range reduces practical resolution.

• Temperature compensation: Process and ambient temperature changes can affect zero and span. The specified compensated range should cover actual operation.

• Diaphragm construction: Material, thickness, fill system, and mechanical support influence response, sensitivity, and overload behavior.

• Installation stress: Misaligned ferrules, an uneven gasket, or excessive clamp force can place stress on the diaphragm assembly and shift zero, especially at low ranges.

• Zero calibration: The transmitter should be zeroed under the manufacturer’s recommended conditions after installation and before commissioning.

A useful purchasing question is not “Which size is more accurate?” but “Which connection prevents buildup while allowing the sensor and calibrated range to meet the required total measurement error?” That question brings process fit and measurement performance into the same decision.

How to Specify a Tri-Clamp Pressure Transmitter

An effective request for quotation should describe the process rather than send only a photo and a nominal size. The following checklist gives the supplier enough information to confirm compatibility and prepare an accurate dimensional drawing.

Also state whether the instrument is for line pressure, tank pressure, or hydrostatic level. A tank-level application needs liquid density, maximum and minimum level, vessel condition, and whether the tank is open or pressurized. A line-pressure application needs normal pressure, possible surge pressure, and pump or valve operating conditions.

When Nanjing Hangjia Electronic Technology Co., Ltd. (HIGHJOIN) reviews a sanitary transmitter request, a complete process description is more useful than a connection name alone. It allows the selected sanitary pressure transmitter to be checked against both the physical fitting and the measurement conditions.

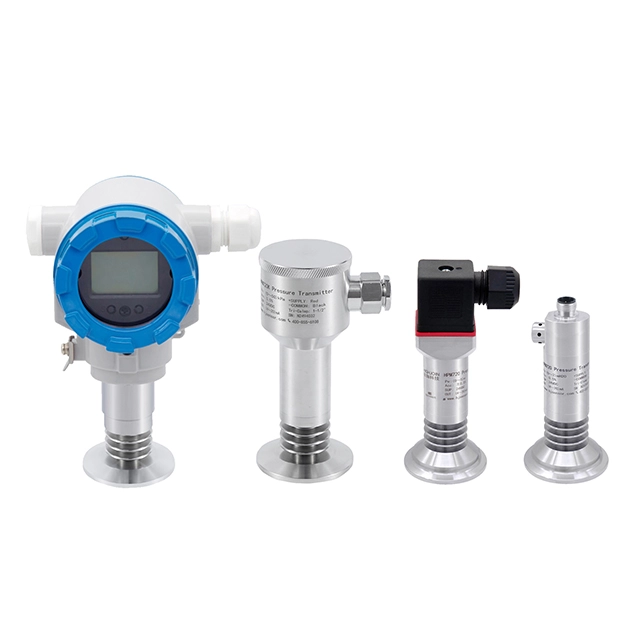

HPM720 Tri-Clamp Sanitary Pressure Transmitter

The HPM720 Tri-Clamp sanitary pressure transmitter is designed around a flush, process-facing diaphragm for hygienic pressure and level measurement. Its standard product information specifies 1.5-inch and 2-inch Tri-Clamp connections; other connection requirements should be confirmed as a custom order rather than assumed from the standard model.

The wetted assembly uses 316L stainless steel, and the transmitter employs a silicon pressure core. Depending on the ordered configuration, silicone oil or olive oil can be used as the pressure-transmission fill. The flat diaphragm avoids the narrow pressure passage associated with conventional threaded pressure ports, making it better suited to media that can scale, block, or remain trapped in a recess.

Available electrical configurations include two-wire 4–20 mA, 4–20 mA with HART, and three-wire voltage outputs such as 0–5 V or 0–10 V. Optional cooling fins can separate the electronics from higher-temperature media. Their use should be based on the stated process temperature, ambient temperature, and cleaning cycle rather than added automatically.

HIGHJOIN specifies gauge and absolute pressure configurations across multiple ranges for the HPM720. Buyers should select the narrowest practical range that still covers normal operation, cleaning pressure, and credible process excursions. Connection size, range, fill fluid, output, and cooling structure should be treated as one configuration rather than independent catalogue choices.

Common Sizing and Installation Mistakes

Most Tri-Clamp problems are preventable when the fitting is measured and the process conditions are documented. Watch for these recurring errors:

1. Ordering from flange OD alone. A 50.5 mm flange can correspond to more than one nominal tube size in a common sanitary system.

2. Assuming every “Tri-Clamp” follows the same standard. Similar-looking ferrules may have different dimensions or sealing geometry.

3. Using the wrong gasket bore. A protruding gasket creates a ledge and can trap product; an oversized opening may not support the intended seal.

4. Selecting a larger connection only for accuracy. Connection size does not replace correct range selection or temperature compensation.

5. Installing a reducer directly at the diaphragm without reviewing cleanability. The transition can create a dead space or restrict cleaning flow.

6. Clamping misaligned ferrules. Misalignment can damage the gasket, create an internal step, and transmit stress into the diaphragm assembly.

7. Applying uncontrolled clamp force. Tightening beyond the fitting or gasket recommendation can distort the seal and, on sensitive low-range instruments, contribute to zero shift.

8. Ignoring process orientation. Pockets that retain air, condensate, or product can delay response or create a cleaning problem.

9. Failing to zero after installation. Mechanical mounting and temperature conditions may shift the zero point from its bench-calibrated state.

10. Specifying only the normal process temperature. CIP or SIP may expose the instrument and gasket to a much higher temperature for a sustained period.

Before commissioning, inspect the connection internally whenever the equipment design permits. The ferrule faces should align, the gasket should sit evenly without intruding into the bore, and the diaphragm should be free from dents, tool marks, or dried product. Record the transmitter range, zero condition, gasket material, and cleaning limits in the maintenance documentation.

Conclusion

The right choice between a 1-inch and 1.5-inch Tri-Clamp pressure transmitter starts with the installed process connection, not with a general preference for smaller or larger hardware. A 1-inch fitting fits compact equipment and small lines when its bore is adequate for the medium. A 1.5-inch fitting is often more forgiving on mainstream hygienic lines and with viscous or buildup-prone products.

Because the two sizes may share a similar clamp flange outside diameter, buyers must verify the tube OD, gasket ID, ferrule geometry, and connection standard. Once the physical fit is confirmed, pressure range, reference type, diaphragm design, materials, fill fluid, temperature limits, and output determine whether the transmitter will measure reliably. A larger clamp can improve process access; it cannot correct an unsuitable sensor or an incorrectly specified range.

FAQs

Is a 1-inch Tri-Clamp the same as a 1.5-inch Tri-Clamp?

No. They refer to different nominal tube sizes and have different internal openings. Under a common sanitary tube system, both may use a clamp flange outside diameter close to 50.5 mm, which makes them look similar from the outside. Confirm the tube OD and gasket ID before ordering.

Can 1-inch and 1.5-inch fittings use the same clamp?

They may use the same external clamp size in some sanitary fitting systems because their ferrule flange ODs are similar. That does not make the ferrules or gaskets interchangeable. The internal bore and gasket opening must match the nominal line size and connection standard.

Does a 1.5-inch diaphragm provide better accuracy?

Not automatically. A larger process opening may reduce buildup and permit a larger exposed diaphragm, but specified accuracy depends on sensor technology, calibrated range, temperature compensation, diaphragm construction, and calibration. Review the transmitter data sheet rather than judging accuracy from the clamp size.

Which Tri-Clamp size is better for viscous media?

A 1.5-inch flush connection is often more forgiving because it provides a wider opening and easier access for cleaning. The best choice still depends on the existing line size, actual diaphragm geometry, viscosity, particle content, and CIP conditions. Avoid adding an unnecessary reducer solely to obtain a larger instrument connection.

What dimensions should be confirmed before ordering?

Confirm the nominal tube size, tube outside diameter, ferrule flange outside diameter, gasket inside diameter, connection standard, and actual diaphragm opening. A dimensional drawing or clear photograph with measurements is useful when replacing an older instrument.

Can a 1.5-inch transmitter be installed on a 1-inch line with an adapter?

It can sometimes be installed mechanically with a sanitary reducer, but the adapter may create an internal transition or pocket. Review cleanability, available space, response, and drainage before using an adapter. A direct connection matched to the line is usually simpler.

Should the transmitter be recalibrated after installation?

At minimum, verify and adjust zero according to the manufacturer’s instructions after the transmitter is mounted. Low-pressure ranges are particularly sensitive to installation position, gasket compression, and temperature. Full calibration frequency should follow process criticality, quality procedures, and observed drift.
