Sanitary Pressure Transmitter Guide for Food, Beverage, Dairy, and Pharma Lines

Can pressure transmitters really impact food and pharma safety? Yes, sanitary pressure transmitters ensure hygiene and accuracy. These devices prevent contamination in critical processes.

Sanitary pressure transmitters are essential in food, beverage, dairy, and pharma lines. They face unique challenges in maintaining cleanliness and precise pressure measurement.

In this post, you’ll learn about sanitary pressure transmitters’ design, uses, and best practices for hygienic industries. We’ll cover selection, installation, and future trends too.

Comprehensive Guide to Sanitary Pressure Transmitters for Hygienic Applications

Design Principles of Sanitary Pressure Transmitters

Sanitary pressure transmitters are engineered to meet the strict hygiene requirements of food, beverage, dairy, and pharma lines. Their design prioritizes smooth surfaces, flush diaphragms, and minimal crevices to prevent contamination buildup. The transmitter’s wetted parts usually consist of stainless steel or other corrosion-resistant materials that withstand aggressive cleaning agents used in CIP (Clean-In-Place) and SIP (Sterilize-In-Place) processes. This ensures that the sanitary pressure transmitter can be thoroughly cleaned without compromising accuracy or durability. The tri clamp pressure transmitter is a common design, featuring clamp-style connections that enable quick disassembly for cleaning or maintenance while maintaining a leak-proof seal.

Types of Sanitary Pressure Transmitters and Their Specific Uses

There are several types of sanitary pressure transmitters tailored to different hygienic applications:

• Flush Diaphragm Transmitters: Ideal for viscous or particulate-laden fluids, they feature a diaphragm flush with the housing to avoid dead zones where bacteria could grow.

• Intrinsically Safe Transmitters: Designed for pharma lines or beverage production areas with explosive atmospheres, ensuring safety without sacrificing performance.

• Differential Pressure Transmitters: Used for flow measurement or filter monitoring in dairy and pharmaceutical processes.

• Gauge Pressure Transmitters: Common in food processing to monitor tank or pipeline pressures.

Each type serves a specific purpose, ensuring precise pressure measurement while maintaining sanitary conditions.

Materials and Construction Standards for Sanitary Transmitters

Materials used in sanitary pressure transmitters must comply with industry standards such as FDA, 3-A Sanitary Standards, and EHEDG. Stainless steel 316L is the most common choice due to its corrosion resistance and compatibility with food and pharma products. The construction involves polished surfaces with a roughness average (Ra) below 0.8 microns, preventing microbial adhesion. Seals and gaskets are typically made from FDA-approved elastomers or PTFE to withstand cleaning chemicals and temperatures. This construction guarantees that the pressure transmitter sanitary design supports both product safety and regulatory compliance.

How Sanitary Pressure Transmitters Ensure Product Safety and Quality

Accurate pressure measurement is critical in hygienic processes to maintain product integrity. Sanitary pressure transmitters provide real-time data to control systems, allowing operators to adjust parameters like pasteurization pressure or filtration rates. Their hygienic design minimizes contamination risks by preventing bacterial buildup on sensor surfaces. This directly supports product safety and quality, especially in dairy applications where precise pressure control ensures effective pasteurization without degrading milk nutrients. Additionally, in pharma lines, these transmitters help maintain sterile conditions essential for drug safety.

Integration with Control Systems in Food, Beverage, Dairy, and Pharma Lines

Sanitary pressure transmitters communicate with PLCs, DCS, or SCADA systems through standardized signals such as 4-20 mA or digital protocols like HART. This integration allows seamless monitoring and automated control of pressure-related parameters. For example, in a beverage production line, pressure transmitter programming enables setting alarm thresholds to detect pressure deviations early. Integration also facilitates data logging for compliance audits and process optimization. Proper sanitary pressure transmitter setup ensures that the device fits into the control architecture without compromising hygienic standards.

Calibration and Accuracy Considerations in Sanitary Pressure Measurement

Calibration is vital to maintain the accuracy and reliability of sanitary pressure transmitters. Calibration should follow industry best practices, using traceable standards and considering process conditions such as temperature and pressure range. Many transmitters support in-situ calibration, reducing downtime. Regular sanitary pressure transmitter calibration ensures consistent performance, crucial for processes like dairy pasteurization where even slight pressure deviations can impact product safety. Calibration schedules depend on usage intensity and regulatory requirements but typically occur annually or semi-annually.

Troubleshooting Common Issues with Sanitary Pressure Transmitters

Despite robust design, sanitary pressure transmitters may experience issues such as signal drift, mechanical damage, or contamination buildup. Troubleshooting steps include:

• Verifying electrical connections and signal integrity.

• Inspecting the diaphragm for damage or residue.

• Performing zero and span checks during calibration.

• Ensuring proper installation torque to avoid leaks or sensor distortion.

• Cleaning the transmitter according to sanitary transmitter cleaning protocols.

Timely maintenance and troubleshooting prevent extended downtime and costly product losses.

Working Principles and Technology Behind Sanitary Pressure Transmitters

Pressure Sensing Mechanisms: Diaphragm and Sensor Types

Sanitary pressure transmitters rely on precise pressure sensing mechanisms designed for hygienic environments. The core component is the diaphragm—a thin, flexible membrane that deforms under pressure. This deformation translates the physical pressure into an electrical signal. Common sensor types paired with diaphragms include:

• Piezoresistive sensors: These change electrical resistance when the diaphragm flexes, offering high sensitivity and accuracy.

• Capacitive sensors: They detect changes in capacitance caused by diaphragm displacement, suitable for stable and low-drift measurements.

• Strain gauge sensors: These measure strain on the diaphragm, converting mechanical stress into an electrical output.

Each sensor type supports different pressure ranges and environmental conditions, allowing sanitary pressure transmitters to meet diverse food, beverage, dairy, and pharma line requirements.

Signal Conversion and Transmission Methods

After sensing pressure, the transmitter converts the mechanical signal into an electrical one. This signal undergoes conditioning—amplification, filtering, and linearization—to ensure accuracy. The conditioned signal is then transmitted to control systems via:

• Analog outputs: Typically 4–20 mA current loops, which are robust and widely compatible.

• Digital protocols: Such as HART or Foundation Fieldbus, enabling advanced diagnostics and programming.

Sanitary pressure transmitter programming often uses these digital protocols to set zero points, span, and alarm thresholds remotely, reducing the need for manual intervention and maintaining hygienic conditions.

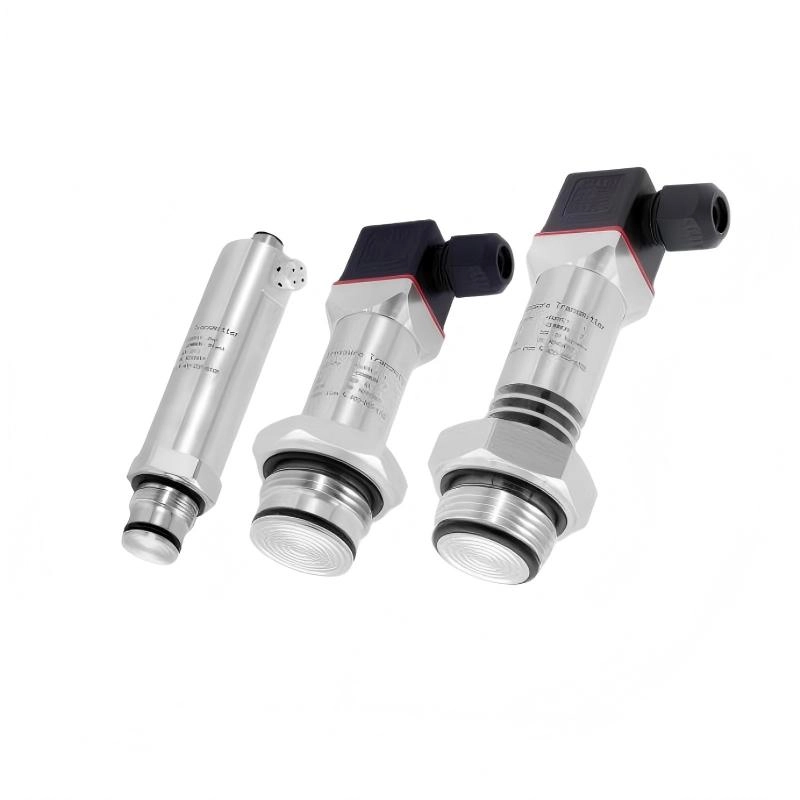

Flush Diaphragm Design and Its Role in Hygiene

A key hygienic feature is the flush diaphragm design. Unlike traditional sensors with recessed diaphragms, flush diaphragms sit level with the housing surface. This eliminates crevices where bacteria and product residues could accumulate. Benefits include:

• Easy cleaning: Compatible with CIP and SIP procedures.

• Reduced contamination risk: No dead zones for microbial growth.

• Improved accuracy: Stable contact with process media, even with viscous or particulate fluids.

Flush diaphragm transmitters, including tri clamp pressure transmitters, are preferred in sanitary installations for these reasons.

Intrinsic Safety Features for Hazardous Environments

Pharmaceutical and beverage lines sometimes operate in potentially explosive atmospheres, such as alcohol fermentation areas. Sanitary pressure transmitters designed for these zones incorporate intrinsic safety features:

• Energy limitation: Prevents sparks or heat generation that could ignite flammable gases.

• Robust enclosures: Certified to meet ATEX or IECEx standards.

• Fail-safe designs: Ensuring safe operation even during faults.

These features protect both personnel and product quality without compromising pressure measurement performance.

Advancements in Sensor and Transmitter Integration

Modern sanitary pressure transmitters increasingly integrate sensor and transmitter components into compact, sealed units. Advantages include:

• Reduced signal interference: Shorter signal paths improve accuracy.

• Simplified installation: Fewer components and connections.

• Enhanced diagnostics: Onboard self-checks detect faults early.

• Smart capabilities: Integration with IoT systems enables real-time monitoring and predictive maintenance.

This integration supports the stringent demands of food processing, dairy applications, and pharma lines, where reliability and hygiene are paramount.

Selection Criteria for Sanitary Pressure Transmitters in Food, Beverage, Dairy, and Pharma Lines

Choosing the right sanitary pressure transmitter is crucial for ensuring accurate measurement and maintaining hygienic standards in food, beverage, dairy, and pharma lines. Several key factors must be considered to select a device that fits your process needs and regulatory requirements.

Evaluating Pressure Range and Process Conditions

First, assess the pressure range your process operates within. Sanitary pressure transmitters come with various pressure ratings—from low vacuum to high-pressure applications. Selecting a transmitter with an appropriate range ensures precise readings without risking sensor damage. Also, consider process conditions such as temperature, viscosity, and the presence of particulates. For example, dairy applications often require sensors that handle moderate pressures and higher temperatures during pasteurization. A tri clamp pressure transmitter with a flush diaphragm is ideal for viscous or particulate-laden fluids, offering accurate measurement while maintaining hygiene.

Compatibility with Cleaning and Sterilization Protocols

Sanitary pressure transmitters must withstand rigorous cleaning regimes like CIP (Clean-In-Place) and SIP (Sterilize-In-Place). Choose transmitters designed with smooth surfaces and flush diaphragms to prevent residue buildup. The device should resist aggressive cleaning agents and high-temperature sterilization cycles without degrading accuracy or materials. Proper sanitary pressure transmitter setup includes ensuring all wetted parts are compatible with these protocols to avoid contamination risks.

Material Compatibility with Product and Cleaning Agents

Materials in contact with the process media must be corrosion-resistant and compliant with food and pharma standards. Stainless steel 316L is the industry standard for sanitary pressure transducers due to its durability and inertness. Seals and gaskets should be made from FDA-approved elastomers or PTFE to resist chemical attack from cleaning agents. Material compatibility guarantees product safety and extends transmitter lifespan, which is vital in sensitive pharma lines.

Connection Types and Installation Requirements

Connection types affect both hygiene and ease of maintenance. Tri clamp connections are preferred for their quick assembly and disassembly, facilitating cleaning and transmitter replacement. Other sanitary fittings include DIN 11864 or ISO 2852 standards. Proper sanitary pressure transmitter installation requires ensuring leak-proof seals and correct torque on fittings to maintain hygienic integrity and sensor accuracy. Selecting the right connection type also simplifies maintenance and reduces downtime.

Ensuring Compliance with Industry Standards and Regulations

Finally, verify that the sanitary pressure transmitter complies with relevant standards such as FDA, 3-A Sanitary Standards, EHEDG, and ATEX for hazardous environments. Compliance ensures the transmitter meets hygiene, safety, and performance criteria essential in regulated industries. Using certified devices reduces audit risks and supports regulatory approvals in food, beverage, dairy, and pharma production lines.

Installation and Maintenance Best Practices for Sanitary Pressure Transmitters

Proper Installation Techniques to Maintain Hygiene and Accuracy

Correct sanitary pressure transmitter installation is essential for maintaining hygiene and measurement accuracy in food, beverage, dairy, and pharma lines. Start by selecting appropriate connection types—tri clamp pressure transmitters are preferred due to their quick-release design and sanitary sealing. Ensure all wetted parts meet FDA and 3-A Sanitary Standards to prevent contamination. When installing, avoid dead legs or pockets where product residue could accumulate. Use proper torque on fittings to prevent leaks or diaphragm distortion, which can affect accuracy. Position the transmitter to allow easy access for cleaning and calibration without disrupting the process. Also, ensure electrical connections are secure and shielded to maintain signal integrity.

Routine Cleaning and Sterilization Procedures

Routine sanitary transmitter cleaning is critical to prevent buildup that compromises hygiene and sensor performance. Follow CIP (Clean-In-Place) and SIP (Sterilize-In-Place) protocols compatible with the transmitter's materials. Flush diaphragm designs simplify cleaning by eliminating crevices where bacteria can grow. Use cleaning agents approved for the process and compatible with the transmitter’s seals and housing. After cleaning cycles, visually inspect the transmitter for residue or damage. Regular cleaning extends transmitter life and supports consistent pressure measurement in sensitive applications such as dairy pasteurization and pharmaceutical production.

Calibration Schedules and Methods for Consistent Performance

Maintaining calibration is vital for reliable sanitary pressure transmitter operation. Establish calibration schedules based on process criticality, usage intensity, and regulatory requirements—typically annual or semi-annual. Use traceable pressure standards and simulate process conditions during calibration to ensure accuracy. Many transmitters support in-situ calibration, reducing downtime and preserving hygienic conditions. Calibration involves zero and span adjustments and verification of linearity. Document calibration results for audit compliance. Proper calibration safeguards product safety and process control across food, beverage, dairy, and pharma lines.

Handling and Resolving Transmitter Failures

When a sanitary pressure transmitter fails, promptly diagnose the issue to minimize downtime. Common problems include signal drift, mechanical damage, or contamination on the diaphragm. Start by checking electrical connections and verifying signal output. Inspect the diaphragm and seals for residue or physical damage. Follow troubleshooting protocols such as zero and span checks. If cleaning is necessary, adhere to sanitary transmitter cleaning guidelines. For complex faults, engage professional maintenance services to avoid further damage. Avoid operating a faulty transmitter, as it can lead to inaccurate readings and product quality issues.

Maintenance Tips to Extend Transmitter Lifespan

Regular maintenance helps extend the lifespan of sanitary pressure transmitters. Beyond routine cleaning and calibration, periodically inspect seals, gaskets, and electrical connectors for wear or corrosion. Replace worn parts with FDA-approved materials to maintain hygiene. Ensure transmitter firmware is updated if digital programming features are available. Store spare transmitters properly to avoid damage. Training operators on sanitary pressure transmitter setup and maintenance reduces mishandling risks. Proactive maintenance lowers repair costs and supports continuous, accurate pressure monitoring.

Benefits of Using Sanitary Pressure Transmitters in Hygienic Process Lines

Sanitary pressure transmitters play a vital role in maintaining hygiene and process efficiency across food, beverage, dairy, and pharma lines. Their design and functionality bring multiple benefits that directly impact product safety, quality, and operational performance.

Reducing Contamination Risks and Ensuring Product Safety

One of the primary advantages of using a sanitary pressure transmitter is its ability to minimize contamination risks. These transmitters feature flush diaphragm designs and smooth surfaces that eliminate crevices where bacteria or residues could accumulate. This design supports effective cleaning protocols such as CIP (Clean-In-Place) and SIP (Sterilize-In-Place), crucial in food processing and pharmaceutical lines. By preventing microbial growth on the sensor surface, the sanitary pressure transmitter ensures that the product remains uncontaminated throughout processing, thereby safeguarding consumer health and meeting stringent hygiene standards.

Improving Process Control and Product Consistency

Accurate and reliable pressure measurement is essential for consistent product quality. Sanitary pressure transmitters provide real-time data that operators use to control critical parameters like pasteurization pressure in dairy applications or fermentation pressure in beverage production. This precise control helps maintain process stability, reducing variability and ensuring each batch meets quality specifications. For example, in dairy lines, maintaining exact pressure levels during pasteurization preserves milk nutrients while eliminating harmful bacteria. The transmitter’s integration with control systems enables automated adjustments, enhancing overall process reliability.

Facilitating Compliance with Regulatory Standards

Regulatory bodies such as the FDA, 3-A Sanitary Standards, and EHEDG require strict adherence to hygiene and safety protocols. Using certified sanitary pressure transmitters helps companies demonstrate compliance during audits by providing documented, accurate pressure data and ensuring sanitary design in instrumentation. These devices are constructed from FDA-approved materials like stainless steel 316L and feature tri clamp pressure transmitter connections for easy cleaning and inspection. Compliance not only avoids costly fines but also builds consumer trust in product safety and quality.

Enhancing Automation and Operational Efficiency

Sanitary pressure transmitters support advanced automation by delivering stable and precise signals to PLCs, DCS, or SCADA systems. This integration allows for continuous monitoring, early detection of process deviations, and timely alarms, reducing manual intervention and human error. Automated pressure control optimizes resource use, minimizes downtime, and improves throughput. Furthermore, features like sanitary pressure transmitter programming enable remote configuration and diagnostics, reducing the need for physical access and maintaining hygienic conditions. Overall, these benefits contribute to more efficient, cost-effective production lines.

Case Studies Demonstrating the Impact of Sanitary Pressure Transmitters

Improving Dairy Pasteurization Quality through Accurate Pressure Control

In dairy applications, pasteurization requires precise pressure control to ensure product safety without compromising nutritional value. A leading dairy plant faced inconsistencies in milk quality due to fluctuating pressure during pasteurization. By installing sanitary pressure transmitters with flush diaphragm designs and tri clamp connections, the plant achieved real-time, accurate pressure monitoring. This enabled tight control over pasteurization parameters, eliminating bacterial risks and preserving milk nutrients. The sanitary pressure transmitter setup also simplified cleaning and maintenance, ensuring compliance with dairy industry standards. The result was consistent, high-quality dairy products and reduced product recalls.

Maintaining Fermentation Pressure in Beverage Production

Beverage manufacturers rely heavily on maintaining stable fermentation pressure to ensure product flavor and carbonation. A brewery implemented sanitary pressure transmitters designed for food industry use, featuring intrinsic safety for explosive atmospheres. These transmitters provided continuous pressure data integrated into the brewery’s automation system. Early detection of pressure deviations allowed operators to adjust fermentation parameters promptly, preventing batch spoilage. The hygienic design minimized contamination risks during cleaning cycles, supporting both product quality and regulatory compliance. This case highlights how sanitary pressure sensors in food processing can enhance beverage consistency and safety.

Safety Enhancements in Pharmaceutical Manufacturing Lines

Pharmaceutical production demands stringent safety and hygiene controls. A pharma facility integrated intrinsically safe sanitary pressure transmitters into their sterile processing lines. These transmitters featured FDA-compliant materials and flush diaphragms, enabling seamless CIP and SIP cleaning. The devices monitored critical pressure points in reactors and filtration units, ensuring sterile conditions were maintained. The pressure transmitter programming allowed remote calibration and diagnostics, reducing manual intervention and contamination risks. This integration improved process safety, met regulatory requirements, and enhanced operational efficiency in pharma lines.

Cost Savings from Reduced Downtime and Maintenance

A food processing plant experienced frequent downtime due to pressure transmitter failures and lengthy maintenance cycles. After switching to sanitary pressure transmitters with robust stainless steel construction and tri clamp fittings, the plant noticed significant improvements. The hygienic design facilitated quick disassembly for cleaning and calibration, minimizing downtime. Routine maintenance became easier and less frequent due to durable materials and reliable sensor integration. Over time, the plant reduced maintenance costs and avoided costly production halts, demonstrating the economic benefits of investing in quality sanitary pressure transmitters.

Future Trends and Innovations in Sanitary Pressure Transmitter Technology

Emerging Materials and Coatings for Enhanced Hygiene

The next generation of sanitary pressure transmitters is embracing advanced materials and coatings to boost hygiene and durability. New antimicrobial coatings inhibit bacterial growth on sensor surfaces, reducing contamination risks between cleanings. Materials like enhanced stainless steel alloys and ceramic composites offer superior corrosion resistance against aggressive cleaning agents used in CIP and SIP processes. These innovations extend transmitter lifespan while maintaining sanitary pressure sensor food processing standards. For example, applying PTFE-based coatings can improve cleanability without affecting measurement accuracy.

Integration with IoT and Smart Factory Systems

Sanitary pressure transmitters are becoming smarter by integrating with IoT platforms and Industry 4.0 systems. Equipped with digital communication protocols such as HART, Foundation Fieldbus, or wireless options, these transmitters provide real-time pressure data for remote monitoring and predictive maintenance. This connectivity enables operators to optimize sanitary pressure transmitter setup and programming from centralized control rooms, reducing manual interventions. Smart diagnostics alert maintenance teams to potential failures before they occur, minimizing downtime in critical food, beverage, dairy, and pharma lines.

Advances in Miniaturization and Sensor Accuracy

Miniaturization trends are driving the development of compact sanitary pressure transducers that fit into tighter spaces without sacrificing performance. Smaller sensors with improved diaphragm designs offer faster response times and higher accuracy across wider pressure ranges. This is especially beneficial in dairy applications where precise control of pasteurization pressure is crucial. Enhanced sensor integration reduces signal noise and drift, improving overall reliability. These compact devices also simplify installation, making them ideal for retrofitting existing sanitary process lines.

Sustainability Considerations and Energy Efficiency

Sustainability is a growing focus in sanitary pressure transmitter technology. Manufacturers are designing transmitters that consume less power, supporting energy-efficient plant operations. Materials are selected for recyclability and reduced environmental impact. Additionally, longer maintenance intervals and durable construction reduce waste and replacement frequency. Some transmitters incorporate energy harvesting features, drawing power from process vibrations or temperature gradients to operate without external power sources. These innovations align with corporate sustainability goals across hygienic industries.

Expanding Applications Across Hygienic Industries

While food, beverage, dairy, and pharma remain primary users, sanitary pressure transmitters are expanding into new hygienic sectors. Biotechnology, cosmetics, and even clean water treatment facilities require sanitary pressure measurement to maintain product purity. Customized transmitter designs now cater to diverse process conditions, including ultra-high purity and sterile environments. This broadening of applications drives innovation and encourages manufacturers to develop versatile, adaptable sanitary pressure transmitters that meet evolving industry needs.

Conclusion

Sanitary pressure transmitters are essential for ensuring hygiene, accuracy, and safety in food, beverage, dairy, and pharma lines. Following best practices in installation, cleaning, and calibration maintains product quality and process efficiency. These transmitters help industries comply with strict regulatory standards while reducing contamination risks. Adopting advanced sanitary pressure measurement solutions enhances automation and operational reliability. HIGHJOIN offers innovative sanitary pressure transmitters that deliver precise, durable, and hygienic performance, supporting your production goals with expert service and cutting-edge technology.

FAQs

Q: What is a sanitary pressure transmitter and why is it important in food, beverage, dairy, and pharma lines?

A: A sanitary pressure transmitter is a pressure sensor designed with hygienic features like flush diaphragms and FDA-approved materials to prevent contamination. It ensures accurate pressure measurement critical for product safety and quality in food, beverage, dairy, and pharma lines.

Q: How does sanitary pressure transmitter setup affect process hygiene and accuracy?

A: Proper sanitary pressure transmitter setup, including tri clamp connections and correct installation torque, maintains hygienic integrity and prevents leaks or sensor distortion, ensuring accurate pressure readings and compliance with cleaning protocols like CIP and SIP.

Q: What maintenance practices are recommended for sanitary pressure transmitters in dairy applications?

A: Routine sanitary transmitter cleaning, regular calibration, and inspection of seals and diaphragms are essential. Using FDA-approved cleaning agents and following sanitary transmitter cleaning guidelines prolongs lifespan and maintains accuracy in dairy applications.

Q: How do flush diaphragm designs benefit sanitary pressure transmitters in pharma lines?

A: Flush diaphragm designs eliminate crevices where bacteria can grow, facilitating effective CIP and SIP cleaning. This design supports sterile conditions crucial in pharma lines while ensuring reliable pressure measurement.

Q: What troubleshooting steps can resolve common issues with sanitary pressure transmitters?

A: Check electrical connections, inspect the diaphragm for damage or residue, perform zero and span calibration checks, and clean the transmitter following sanitary transmitter cleaning protocols to resolve signal drift or inaccurate readings.
